7-40 — INSTRUMENT PANEL AND BOX (#166420) — 101 parça

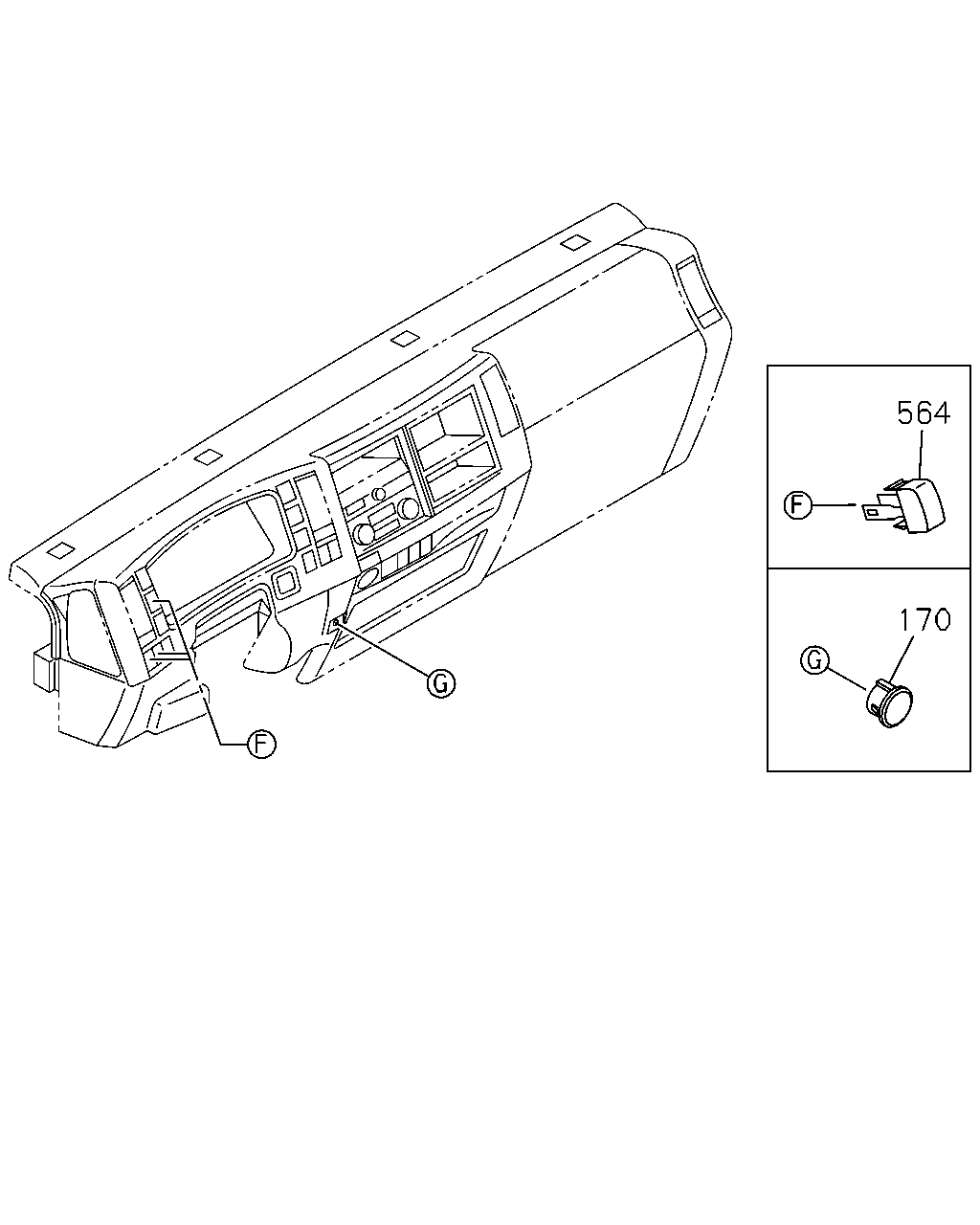

çizim 492795
564 170
BalonParca AdiParca NoAdetTipApplied Date
170 16.165 COVER; HOLE 8-98070-401-2 01 1 1509-
564 16.081 COVER; SW 8-98025-954-1 03 1 1509-

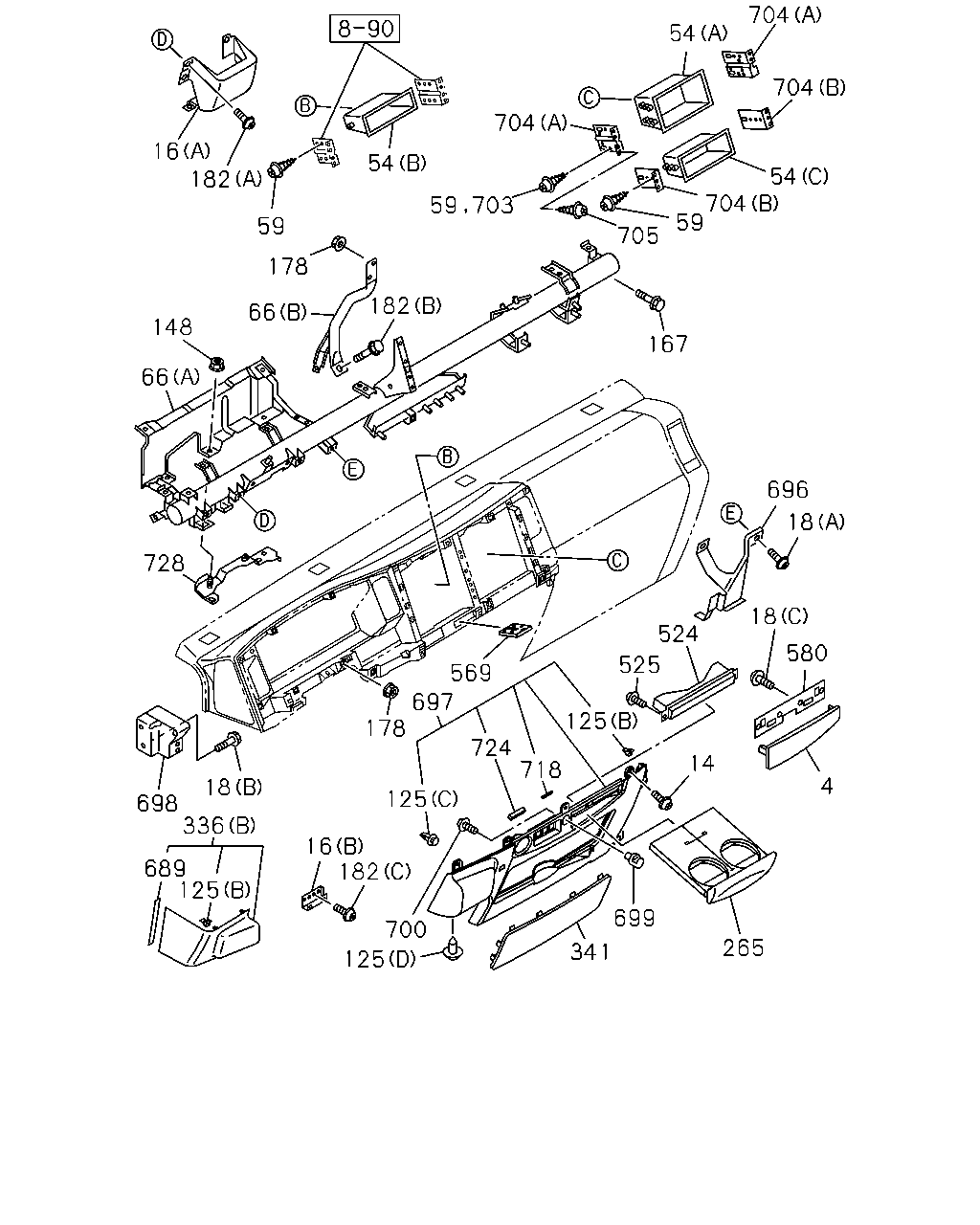

çizim 493291
704 54 704 704 54 704 59 705 59 703 54 16 182 59 178 66 148 66 728 18 698 336 167 182 689 125 16 178 569 697 724 718 125 525 524 696 18 18 580 4 265 14 699 341 125 182 700 125
BalonParca AdiParca NoAdetTipApplied Date
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 1509-
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1509-
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1509-
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 1509-
16 16.085 BRACKET; INST PNL
(A) 		8-98081-718-1 01 1 1509-
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1509-
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1509-
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1509-
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1509-
54 16.100 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<SM8> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1509-
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1509-
54 16.100 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<SM8> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1509-
59 16.100 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<SM8> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1509-
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1509-
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97585-579-1 01 1 1509-
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-98192-944-0 01 1 1509-
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1509-
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1509-
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1509-
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 1509-
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 03 1 1509-
148 16.080 NUT; INST PANEL BRKT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1509-
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 1509-
178 16.085 NUT; INST PANEL
01.062 M6 FLANGE 		0-91180-106-0 03 1 1509-
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1509-
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1509-
182 16.085 BOLT; BRKT,INST PANEL
(B) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1509-
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 1509-
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97406-000-4 01 1 1509-
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 1509-
341 16.110 LID; FUSE BOX
GRAY 		8-97423-659-0 01 1 1509-
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 1509-
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1509-
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 1509-
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 1509-
689 09.743 SEAL; INST 8-98068-244-0 01 1 1509-
696 16.085 BRACKET; KNEE 8-98201-847-0 01 1 1509-
697 16.080 PANEL; INST CENTER
GRAY 		8-97423-657-1 01 1 1509-
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1509-
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1509-
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1509-
700 16.090 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1509-
703 16.085 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<SM8> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1509-
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1509-
704 16.085 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1509-
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1509-
718 16.100 SEAL; COVER
5X30 		8-98176-199-0 01 1 1509-
718 16.100 SEAL; COVER
8X80 		8-98200-040-0 01 1 1509-
718 16.100 SEAL; COVER
4X35 		8-98200-041-0 01 1 1509-
724 16.085 INSULATOR; INST PANEL 8-98200-042-0 01 1 1509-
728 16.085 BRACKET; INST PNL LWR 8-98169-687-0 01 1 1509-

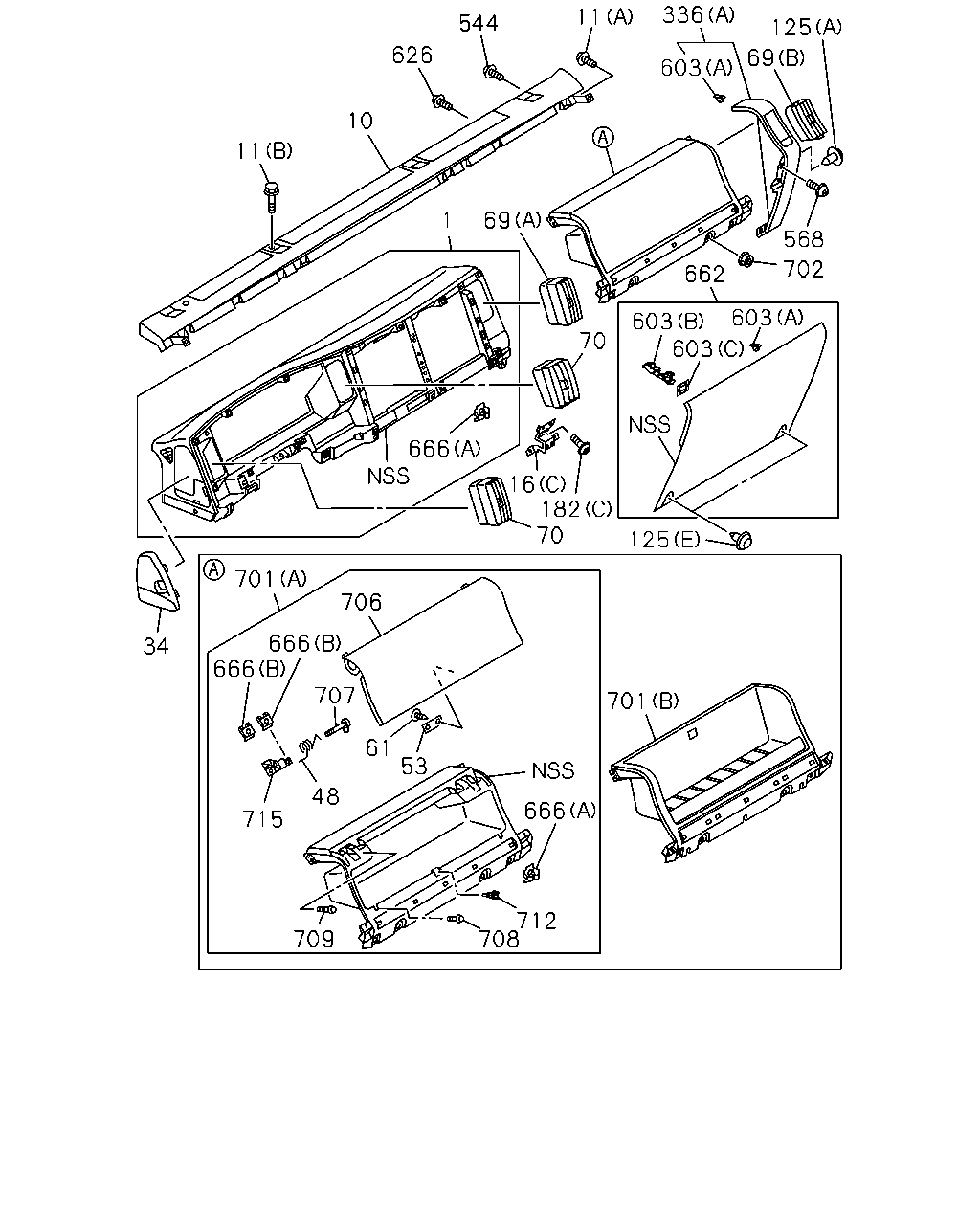

çizim 493455
701 666 712 708 709 715 53 61 707 666 666 706 701 34 48 125 70 182 16 666 1 69 70 603 603 603 702 662 568 69 125 603 336 11 544 626 10 11
BalonParca AdiParca NoAdetTipApplied Date
1 16.080 PANEL; INST
GRAY 		8-97406-004-4 01 1 1509-
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1509-
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1509-
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1509-
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1509-
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 1509-
16 16.085 BRACKET; INST PNL
(A) 		8-98081-718-1 01 1 1509-
34 16.085 LID; OIL TANK
GRAY 		8-97406-003-1 01 1 1509-
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1509-
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1509-
53 16.115 STRIKER; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98270-765-0 01 1 1509-
61 16.100 SCREW; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> M4X85 		8-97926-404-0 02 1 1509-
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 01 1 1509-
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1509-
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 02 1 1509-
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1509-
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1509-
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1509-
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 1509-
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 03 1 1509-
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1509-
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1509-
182 16.085 BOLT; BRKT,INST PANEL
(B) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1509-
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97406-000-4 01 1 1509-
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 1509-
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1509-
568 09.744 BOLT; COVER
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1509-
603 16.090 CLIP; COVER
ECE R29<EFE> 16.085 (A) 		8-98021-271-0 03 1 1509-
603 16.090 CLIP; COVER
ECE R29<EFE> (B) 		8-98152-030-0 02 1 1509-
603 16.090 CLIP; COVER
ECE R29<EFE> (C) 		8-98152-031-0 02 1 1509-
603 16.090 CLIP; COVER
16.085 (A) 		8-98021-271-0 01 1 1509-
603 16.090 CLIP; COVER
EXC. ECE R29<EFE> 16.085 (A) 		8-98021-271-0 05 1 1509-
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 1509-
662 16.081 COVER; LWR,INST PANEL
ECE R29<EFE> GRAY 		8-97418-533-2 01 1 1509-
662 16.081 COVER; LWR,INST PANEL
EXC. ECE R29<EFE> GRAY 		8-97405-258-2 01 1 1509-
666 16.085 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) M5 		8-97926-400-0 04 1 1509-
666 16.085 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98037-629-0 02 1 1509-
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 1509-
701 16.100 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) GRAY 		8-97429-702-1 01 1 1509-
701 16.100 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITHOUT LID<JDP> (B) GRAY 		8-97422-091-1 01 1 1509-
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 1509-
706 16.081 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1509-
707 09.744 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1509-
708 16.100 STOPPER; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1509-
709 16.085 SCREW; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1509-
712 16.110 LOCK; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1509-
715 16.081 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1509-
715 16.081 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1509-
