◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51637 - NQR AIR BRAKE LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#166419) — 19 parça

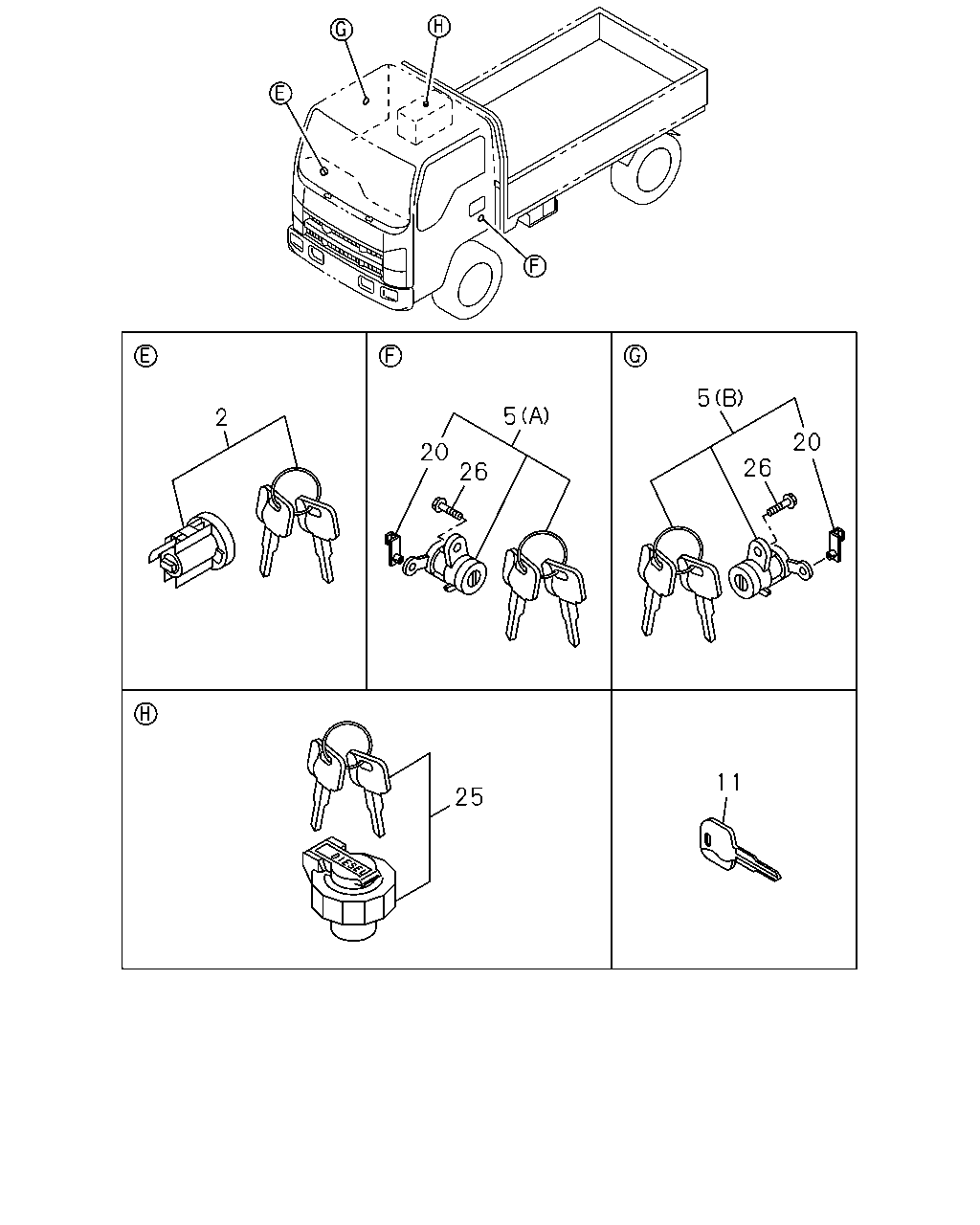

çizim 492971
11 25 20 26 5 5 26 20 2
BalonParca AdiParca NoAdetTipApplied Date
2 02.188 BARREL ASM; W/KEY,STRG LOCK
ISUZU BRAND<7WL> 		8-98201-342-0 01 1 1509-
2 02.188 BARREL ASM; W/KEY,STRG LOCK
EXC. ISUZU BRAND<7WL> 		8-98201-352-0 01 1 1509-
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> (B) 		8-98055-149-0 01 1 1509-
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> (A) 		8-98055-150-0 01 1 1509-
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. ISUZU BRAND<7WL> (B) 		8-98055-161-0 01 1 1509-
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. ISUZU BRAND<7WL> (A) 		8-98055-162-0 01 1 1509-
11 02.187 KEY; BLANK
ISUZU BRAND<7WL> 		8-98055-170-0 AR 1 1509-
11 02.187 KEY; BLANK
EXC. ISUZU BRAND<7WL> 		8-98055-171-0 AR 1 1509-
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1509-
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1509-
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> 		8-98146-010-0 01 1 1509-
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> EXC. ISUZU BRAND<7WL> 		8-98146-014-0 01 1 1509-
26 16.328 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 1509-

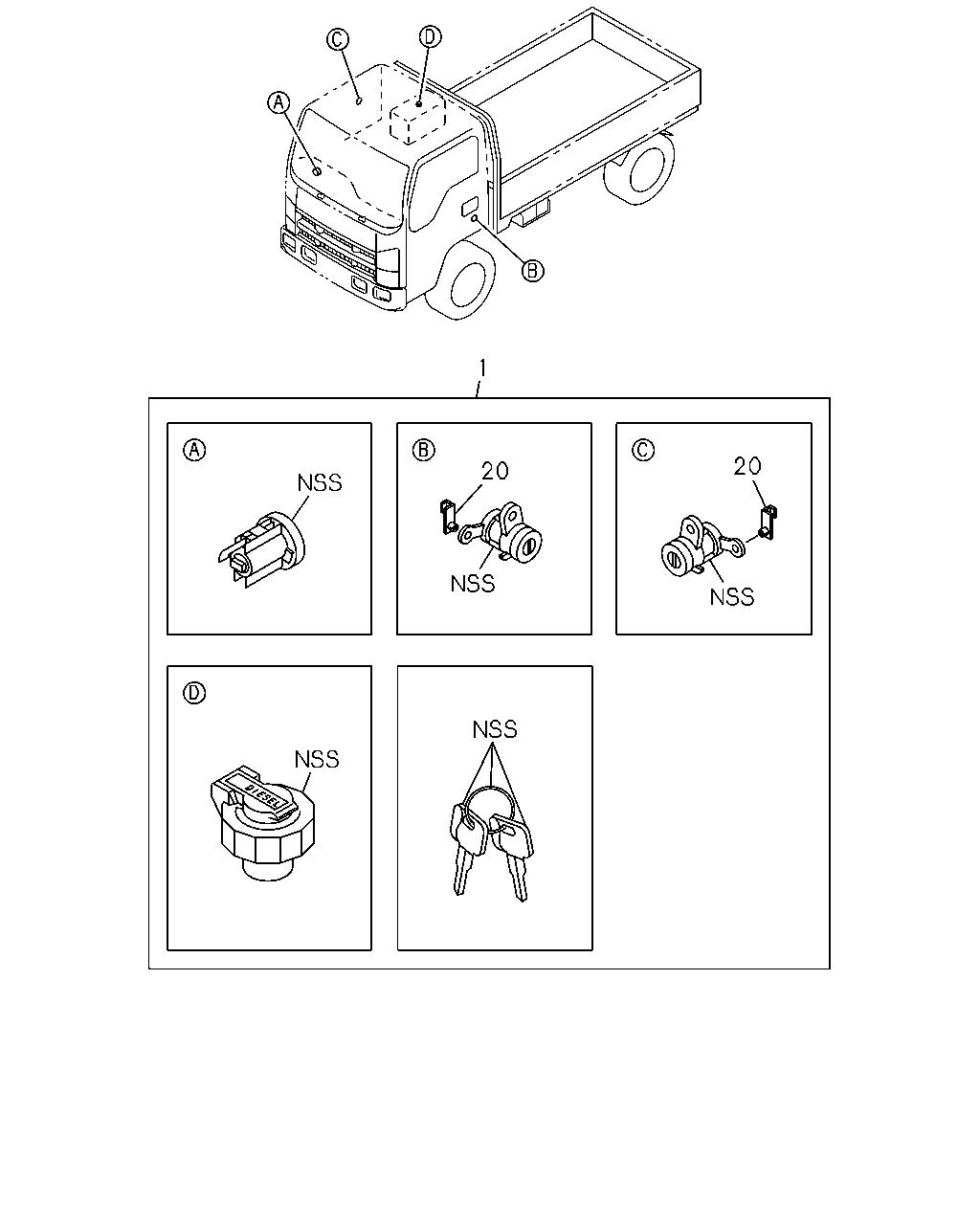

çizim 493022
1 20 20
BalonParca AdiParca NoAdetTipApplied Date
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> 		8-98201-216-0 01 1 1509-
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. ISUZU BRAND<7WL> 		8-98201-230-0 01 1 1509-
1 02.188 CYLINDER SET; CAR LOCK
ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05> 		8-98201-161-0 01 1 1509-
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>,ISUZU BRAND<7WL> 		8-98201-158-0 01 1 1509-
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1509-
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1509-
