◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51637 - NQR AIR BRAKE LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#166412) — 16 parça

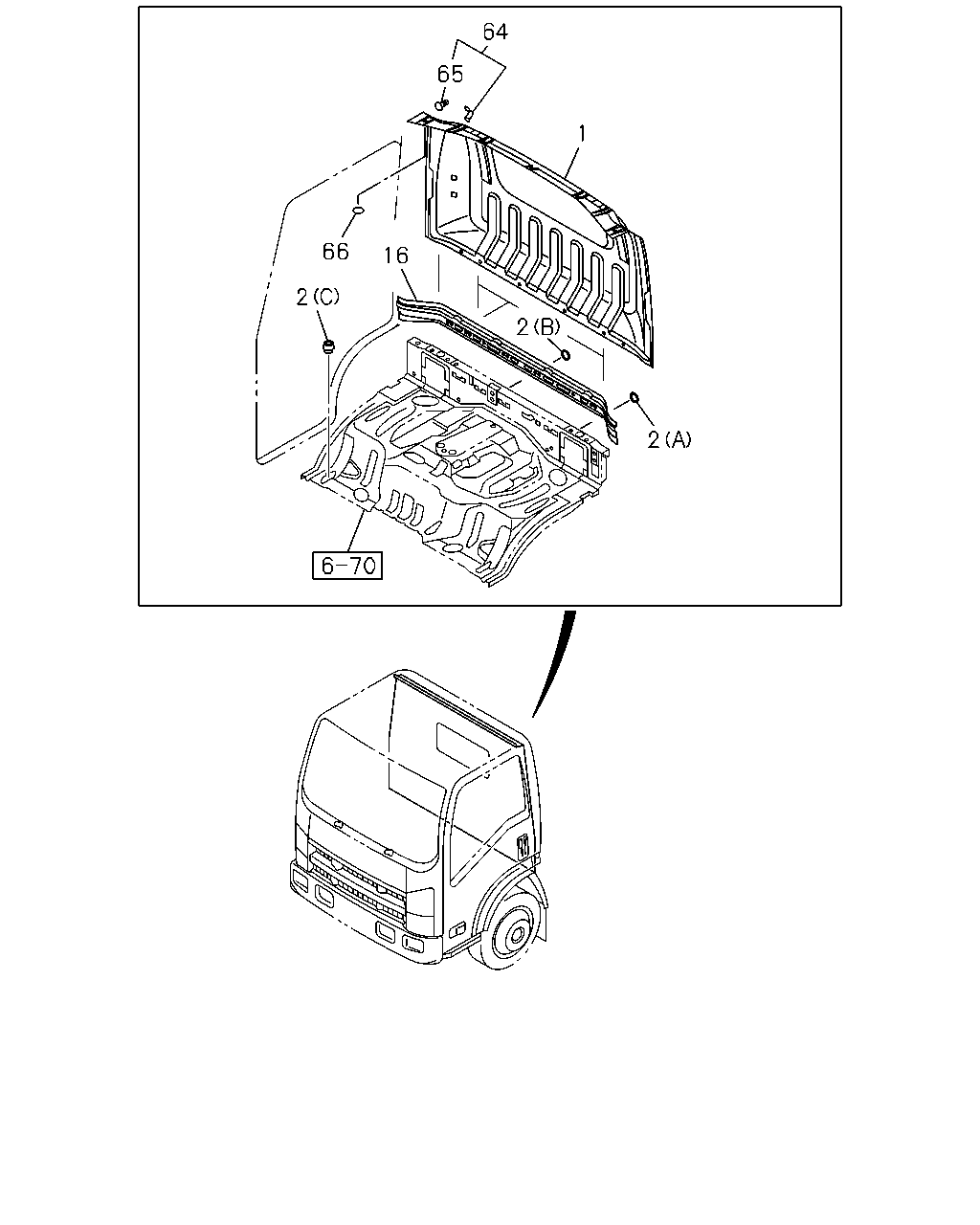

çizim 492899
1 64 65 66 2 16 2 2
BalonParca AdiParca NoAdetTipApplied Date
1 16.587 PANEL; BACK OUTER
GLASS BACK LIGHT DELETE<8CA> 		8-97584-311-4 01 1 1509-
1 16.587 PANEL; BACK OUTER
EXC. GLASS BACK LIGHT DELETE<8CA> 		8-97584-304-3 01 1 1509-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1509-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (C) OD=12.1 		8-97898-423-0 04 1 1509-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (B) OD=32 BLACK 		8-98031-126-0 02 1 1509-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (B) OD=32 BLACK 		8-98031-126-0 06 1 1509-
16 16.575 REINFORCEMENT; BACK OUTER PNL 8-97584-608-2 01 1 1509-
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 		8-97584-611-1 01 1 1509-
65 17.198 STUD; BACK PANEL 8-94389-701-0 01 1 1509-
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BO DY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIG E(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLOW(916),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989) ,BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1509-
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BO DY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIG E(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLOW(916),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989) ,BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 05 1 1509-
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARCWHITE(729) COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1509-
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARCWHITE(729) EXC. COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 05 1 1509-

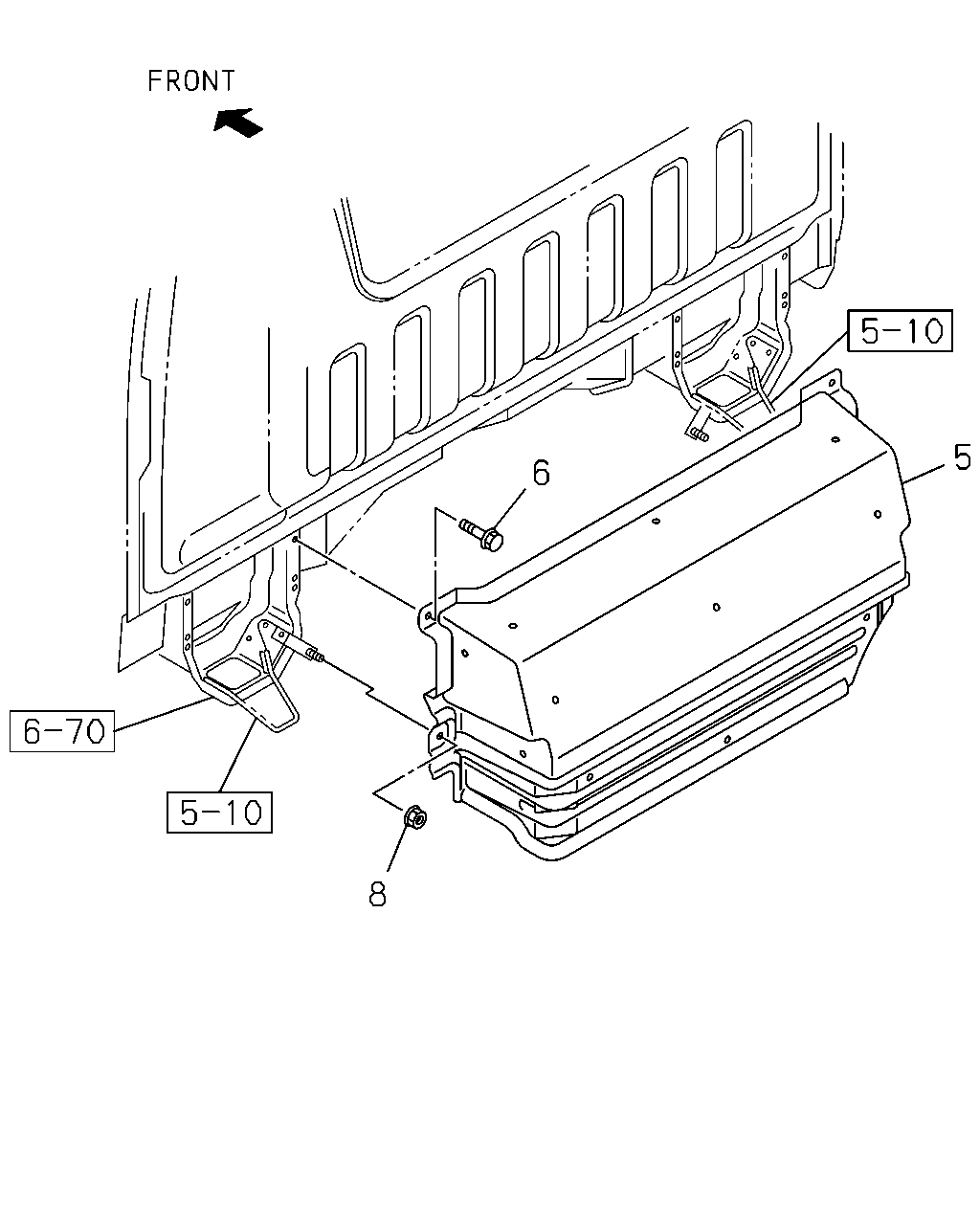

çizim 493323
5 6 8
BalonParca AdiParca NoAdetTipApplied Date
5 16.587 PANEL; CAB BACK
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98182-581-2 01 1 1509-
6 16.587 BOLT; BACK PANEL
NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 1509-
8 16.587 NUT; BACK PANEL
NOISE PACK FOR REGULATION VAR.2<7TF> 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1509-
