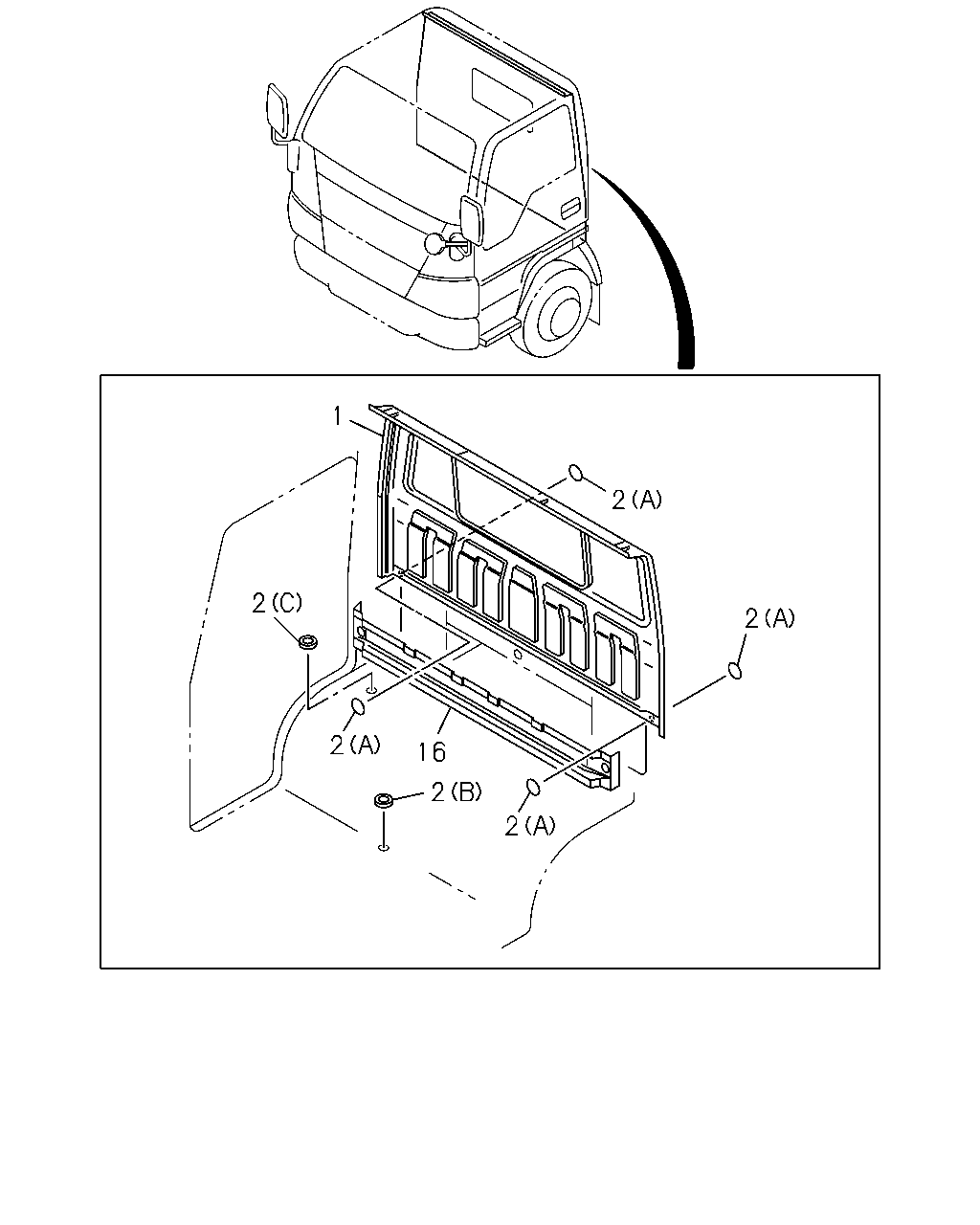

6-80 — BACK PANEL (#16641) — 10 parça

1 2 2 2 2 16 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PANEL; BACK OUTER 4JB1-TC ENG<RDT> KD CAB BREAKDOWN<RZV> THA	8-97851-352-2	01	1	0508-	●	●
1	PANEL; BACK OUTER 4HG1-T ENG<RDP> KD CAB BREAKDOWN<RZV> THA	8-97851-352-2	01	1	0508-			●
2	GROMMET; LOCATION HOLE,BACK PANEL (A) OD=25 BLACK THA	1-76798-019-0	04	1	0508-	●	●	●
2	GROMMET; LOCATION HOLE,BACK PANEL (A) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0508-0710	●	●	●
2	GROMMET; LOCATION HOLE,BACK PANEL (A) OD=32 BLACK	8-98031-126-0	02	1	0711-	●	●	●
2	GROMMET; LOCATION HOLE,BACK PANEL (B) OD=28.5	8-94279-711-0	02	1	0508-	●	●	●
2	GROMMET; LOCATION HOLE,BACK PANEL (C) OD=16.2	8-94492-493-0	02	1	0508-0512	●	●	●
2	GROMMET; LOCATION HOLE,BACK PANEL (C) OD=15.0	8-94279-040-0	02	1	0601-	●	●	●
16	REINFORCEMENT; BACK OUTER PNL 4JB1-TC ENG<RDT> KD CAB BREAKDOWN<RZV> THA	8-97916-528-0	01	1	0508-	●	●
16	REINFORCEMENT; BACK OUTER PNL 4HG1-T ENG<RDP> KD CAB BREAKDOWN<RZV> THA	8-97916-528-0	01	1	0508-			●
