Isuzu WW
▶
TRUCKS
▶
NQR
▶
51637 - NQR AIR BRAKE LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶

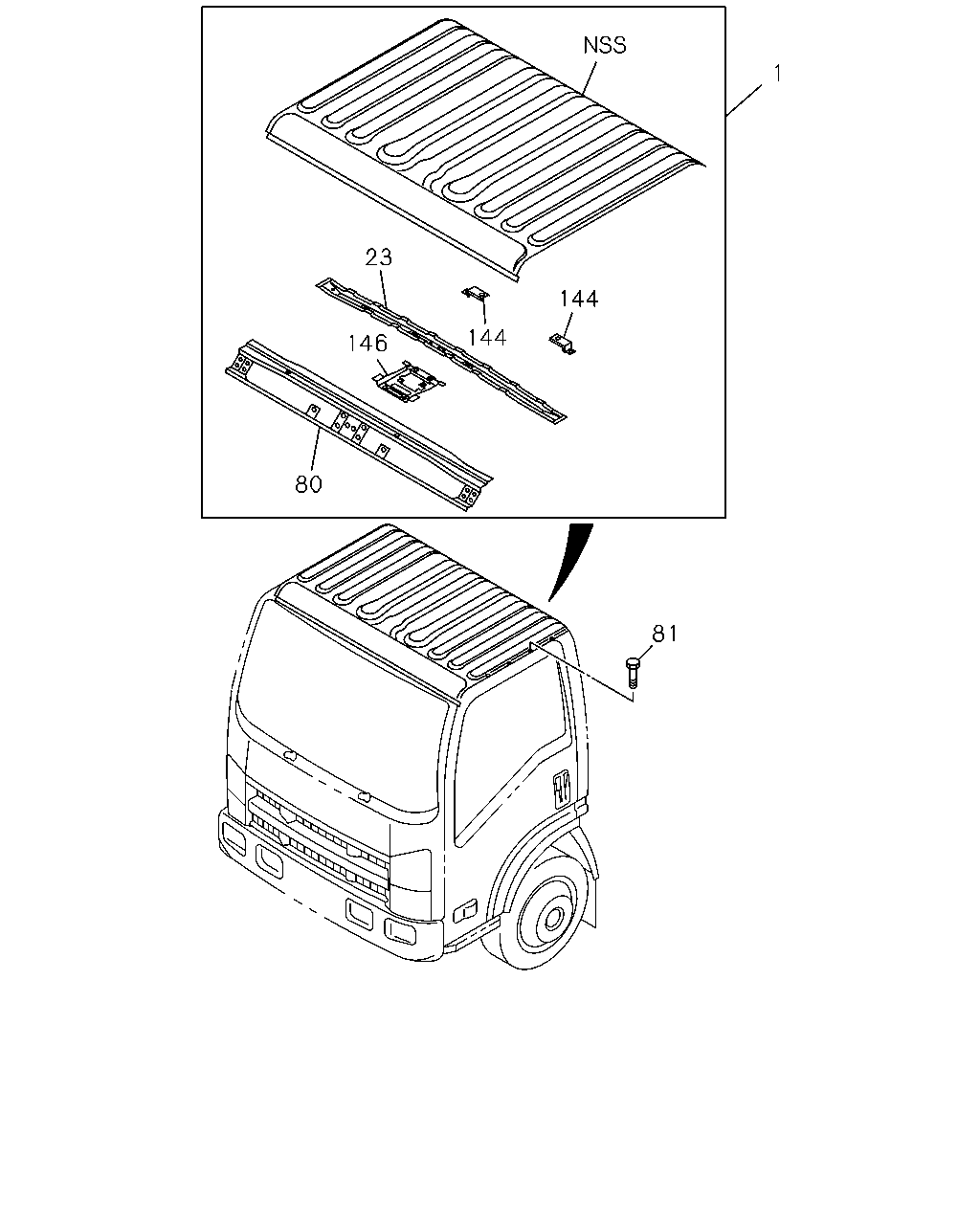

6-60 — ROOF PANEL
(#166406) — 6 parça
1
144
144
146
23
80
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.585 PANEL; ROOF
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1)
8-98287-347-0
01
1
1509-
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1)
8-98287-359-0
01
1
1509-
80
16.585 PANEL; HEADER,ROOF
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1)
8-98287-354-0
01
1
1509-
81
16.585 BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
1509-
144
16.585 BRACKET; ROOF
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1)
8-98013-931-1
02
1
1509-
146
16.570 REINFORCEMENT; ROOM LAMP
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1)
8-98075-827-0
01
1
1509-
