◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51637 - NQR AIR BRAKE LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶
6-30 — FRONT DOOR AND HINGE (#166400) — 16 parça

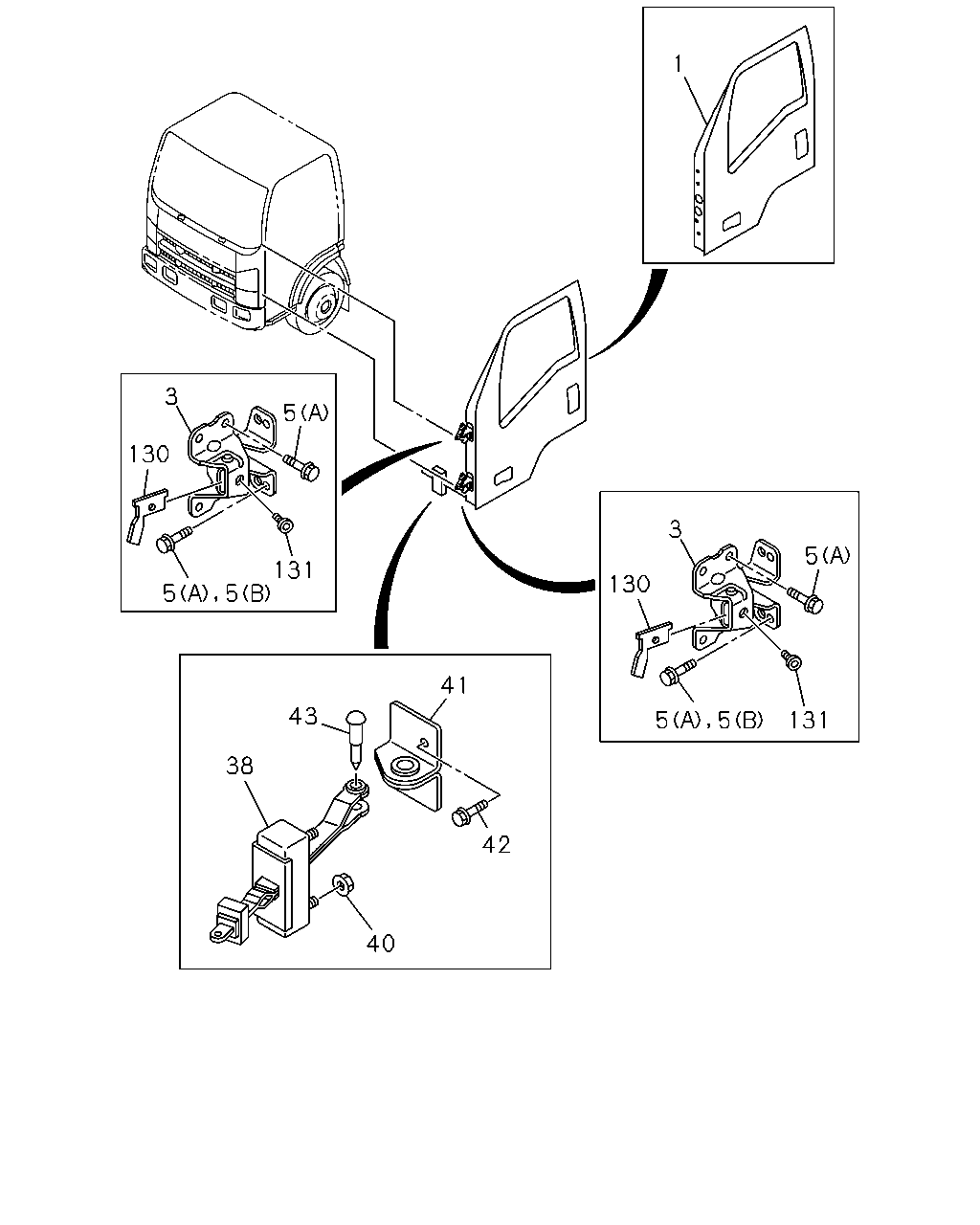

çizim 492766
3 130 5 5 131 5 41 43 38 40 42 5 5 131 130 3 5 1
BalonParca AdiParca NoAdetTipApplied Date
1 16.150 DOOR ASM; FRT,WO/TRIM
CORNERING LAMP<T87> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> 		8-98260-593-0 01 1 1509-
1 16.150 DOOR ASM; FRT,WO/TRIM
CORNERING LAMP<T87> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> 		8-98260-594-0 01 1 1509-
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. CORNERING LAMP<T87>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-98260-601-0 01 1 1509-
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. CORNERING LAMP<T87>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-98260-602-0 01 1 1509-
3 16.320 HINGE; DOOR FRT 8-98191-302-0 04 1 1509-
5 16.320 BOLT; HINGE
KD PREPARATORY PACK VAR.4<7TV> (A) M8X20 FLANGE 		8-98049-756-0 08 1 1509-
5 16.320 BOLT; HINGE
(A) M8X20 FLANGE 		8-98049-756-0 12 1 1509-
5 16.320 BOLT; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M8X23 FLANGE 		8-98029-440-0 16 1 1509-
38 16.320 CHECKER ASM; DOOR
CORNERING LAMP<T87> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> 		8-98296-601-0 02 1 1509-
38 16.320 CHECKER ASM; DOOR
EXC. CORNERING LAMP<T87>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-98296-602-0 02 1 1509-
40 16.320 NUT; CHECKER
01.840 M8 W/DISHED WASHER 		8-97329-625-0 04 1 1509-
41 16.320 BRACKET; CHECKER 8-98029-290-3 02 1 1509-
42 16.320 BOLT; BRKT
M6X20 W/PL WASHER 		8-98032-159-2 04 1 1509-
43 16.320 PIN 8-98037-152-2 02 1 1509-
130 16.320 STOPPER; HINGE
CORNERING LAMP<T87> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> 		8-98038-299-1 04 1 1509-
131 16.350 BOLT; DOOR STOPPER
CORNERING LAMP<T87> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> M10X11 		8-98039-593-1 04 1 1509-
