6-75 — MAT AND CARPET (#1664) — 38 parça

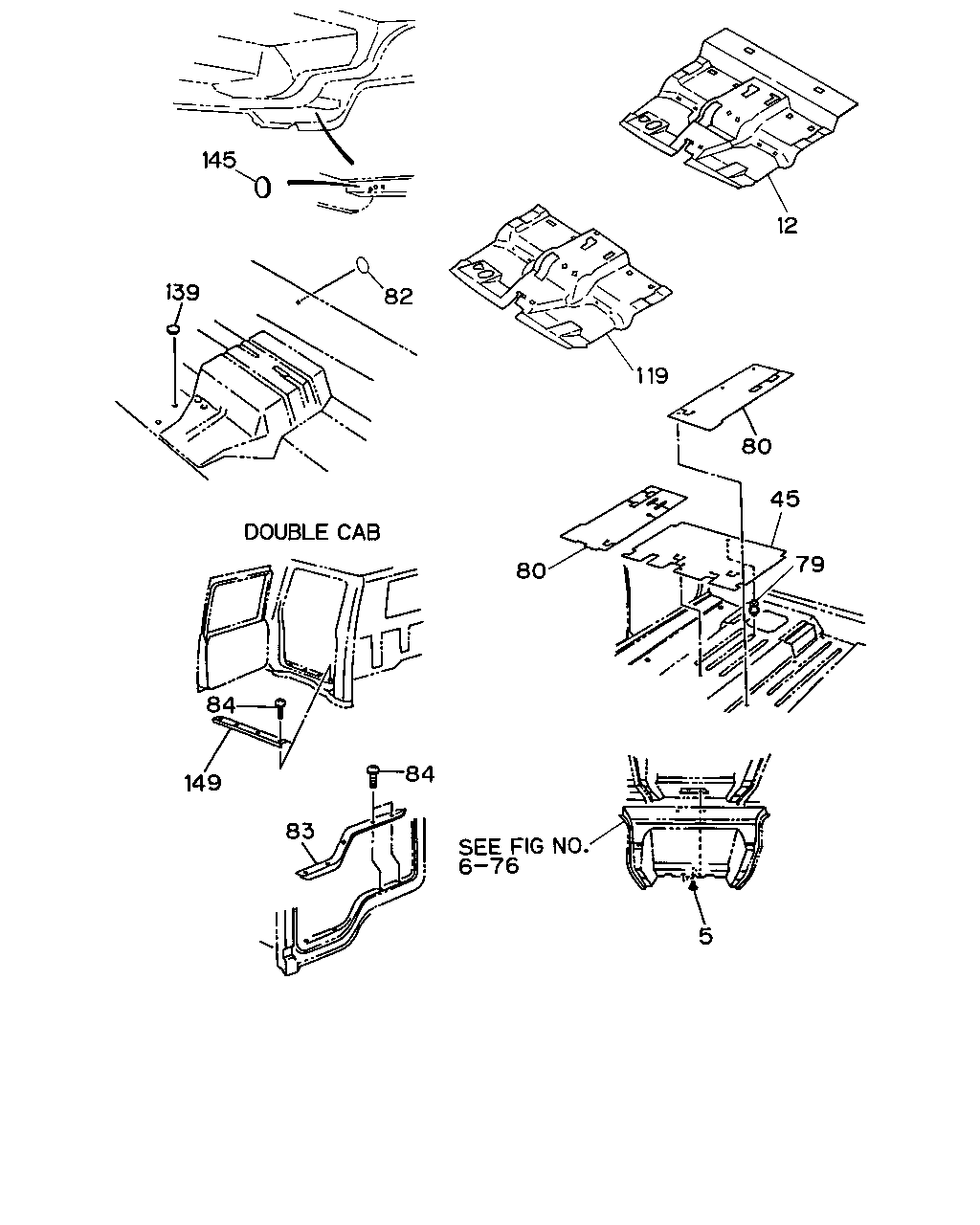

çizim 95732
145 139 82 12 119 80 45 79 80 5 84 83 149 84
BalonParca AdiParca NoAdetTipApplied Date A B C D E
5 CLIP; TRIM,HEAT INSULATOR 8-94279-048-0 04 1 9207- ● ● ● ● ●
12 CARPET; FLOOR,RR
VINYL CARPET<B30> HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> EXC. REAR WHEEL PARKING(B3A) 		1-73238-712-2 01 1 9207-9302 ● ● ● ● ●
12 CARPET; FLOOR,RR
VINYL CARPET<B30> HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> EXC. REAR WHEEL PARKING(B3A) 		1-73238-712-2 01 1 9303- ● ● ● ●
12 CARPET; FLOOR,RR
REAR WHEEL PARKING(B3A) VINYL CARPET<B30> HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-73238-713-2 01 1 9207-9302 ● ● ●
12 CARPET; FLOOR,RR
REAR WHEEL PARKING(B3A) VINYL CARPET<B30> HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> 		1-73238-713-2 01 1 9303- ● ● ●
45 MAT; FLOOR,ENG COVER
REAR WHEEL PARKING(B3A) VINYL CARPET<B30> 		1-73238-825-0 01 1 9207- ●
45 MAT; FLOOR,ENG COVER
REAR WHEEL PARKING(B3A) EXC. VINYL CARPET<B30> 		1-73238-826-0 01 1 9207- ●
45 MAT; FLOOR,ENG COVER
EXC. REAR WHEEL PARKING(B3A),VINYL CARPET<B30> 		1-73238-824-0 01 1 9207- ●
45 MAT; FLOOR,ENG COVER
VINYL CARPET<B30> EXC. REAR WHEEL PARKING(B3A) 		1-73238-823-0 01 1 9207- ●
79 HOOK; MALE
NYLON 6 		8-94291-778-0 08 1 9207- ● ● ● ●
79 HOOK; MALE
NYLON 6 		8-94291-778-0 12 1 9207- ●
80 MAT; FLOOR,RR
VINYL CARPET<B30> 		1-73238-554-2 01 1 9207- ●
80 MAT; FLOOR,RR
VINYL CARPET<B30> 		1-73238-553-1 01 1 9207- ●
80 MAT; FLOOR,RR
EXC. VINYL CARPET<B30> 		1-73238-686-1 01 1 9207- ●
80 MAT; FLOOR,RR
EXC. VINYL CARPET<B30> 		1-73238-684-1 01 1 9207- ●
82 SEAL; BED PAN
OD=36 BLACK 		1-76798-018-0 02 1 9207- ● ● ● ● ●
83 PLATE; KICKING,FLOOR MAT 1-76797-019-3 01 1 9207- ● ● ● ● ●
83 PLATE; KICKING,FLOOR MAT 1-76797-018-3 01 1 9207- ● ● ● ● ●
84 SCREW; PLATE TO FLOOR
M6X16 W/PL WASHER 		1-09981-505-0 06 1 9207- ● ● ● ● ●
84 SCREW; PLATE TO FLOOR
AUSTRALIA EQUIPMENT(RR3) M6X24 W/PL WASHER 		1-09981-504-0 04 1 9207- ● ● ●
84 SCREW; PLATE TO FLOOR
M6X24 W/PL WASHER 		1-09981-504-0 08 1 9207- ●
119 MAT; FLOOR
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> EXC. REAR WHEEL PARKING(B3A),VINYL CARPET<B30> 		1-73238-793-2 01 1 9207-9302 ● ● ● ●
119 MAT; FLOOR
HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> EXC. REAR WHEEL PARKING(B3A),VINYL CARPET<B30> 		1-73238-793-2 01 1 9303- ● ● ● ●
119 MAT; FLOOR
EXC. REAR WHEEL PARKING(B3A),VINYL CARPET<B30>, HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-73238-688-2 01 1 9207-9302 ● ● ● ●
119 MAT; FLOOR
EXC. REAR WHEEL PARKING(B3A),VINYL CARPET<B30>, HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-73238-688-2 01 1 9303- ● ● ● ●
119 MAT; FLOOR
REAR WHEEL PARKING(B3A) HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> EXC. VINYL CARPET<B30> 		1-73238-805-2 01 1 9207-9302 ● ● ●
119 MAT; FLOOR
REAR WHEEL PARKING(B3A) HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> EXC. VINYL CARPET<B30> 		1-73238-805-2 01 1 9303- ● ● ●
119 MAT; FLOOR
REAR WHEEL PARKING(B3A) EXC. VINYL CARPET<B30>,HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-73238-689-2 01 1 9207-9302 ● ● ●
119 MAT; FLOOR
REAR WHEEL PARKING(B3A) EXC. VINYL CARPET<B30>,HEATER & DEFROSTER<C41>, AIR CONDITIONER MANUAL CONTROL<C60>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-73238-689-2 01 1 9303- ● ● ●
119 MAT; FLOOR
HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> EXC. REAR WHEEL PARKING(B3A),VINYL CARPET<B30> 		1-73238-797-2 01 1 9303- ●
119 MAT; FLOOR
REAR WHEEL PARKING(B3A) HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> EXC. VINYL CARPET<B30> 		1-73238-798-2 01 1 9303- ●
119 MAT; FLOOR
REAR WHEEL PARKING(B3A) VINYL CARPET<B30> HEATER & DEFROSTER<C41> 		1-73238-709-2 01 1 9303- ●
119 MAT; FLOOR
REAR WHEEL PARKING(B3A) EXC. VINYL CARPET<B30>,HEATER & DEFROSTER<C41>, VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-73238-705-2 01 1 9303- ●
119 MAT; FLOOR
EXC. REAR WHEEL PARKING(B3A),VINYL CARPET<B30>, HEATER & DEFROSTER<C41>,VENTILATOR&DEFROSTER WO/HEATER<SAZ> 		1-73238-704-2 01 1 9303- ●
119 MAT; FLOOR
VINYL CARPET<B30> HEATER & DEFROSTER<C41> EXC. REAR WHEEL PARKING(B3A) 		1-73238-708-2 01 1 9303- ●
139 SEAL; FLOOR
OD=36 		5-76777-035-0 01 1 9207- ● ● ● ● ●
145 SEAL; FLOOR PANEL
OD=25 BLACK 		1-76798-019-0 01 1 9207- ● ● ● ● ●
149 PLATE; KICKING,RR 1-76798-010-4 02 1 9207- ●
