◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51637 - NQR AIR BRAKE LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#166399) — 49 parça

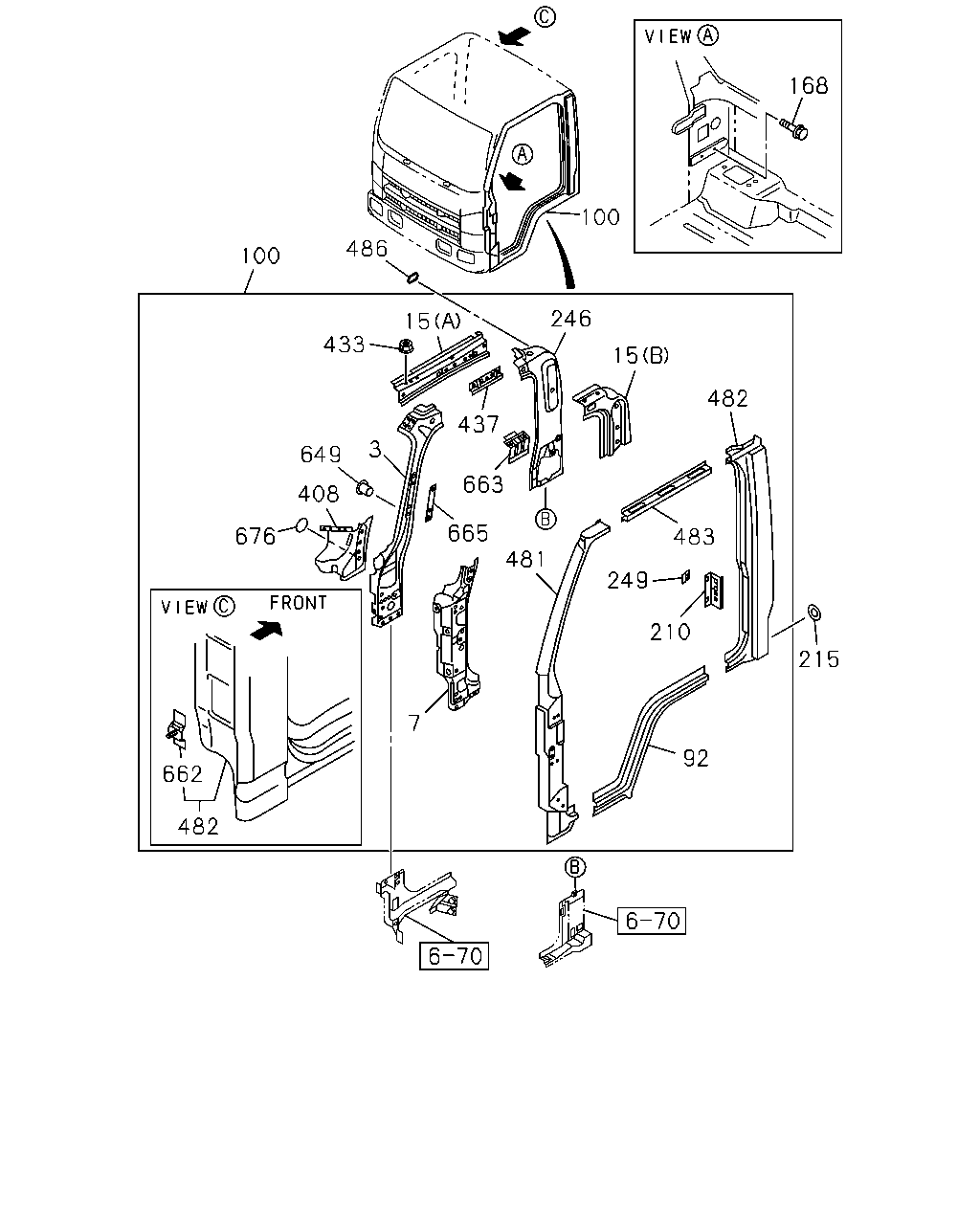

çizim 492926
100 486 433 15 246 100 15 168 482 483 249 210 215 92 481 665 663 437 3 649 676 408 7 662 482
BalonParca AdiParca NoAdetTipApplied Date
3 16.592 PANEL; CLOSING,FRT PILLAR
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 		8-98058-236-1 01 1 1509-
3 16.592 PANEL; CLOSING,FRT PILLAR
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 		8-98058-237-1 01 1 1509-
7 16.570 REINFORCEMENT; HINGE
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 		8-97585-240-3 01 1 1509-
7 16.570 REINFORCEMENT; HINGE
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 		8-97585-244-4 01 1 1509-
15 16.592 PANEL; CANT RAIL SIDE
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) (A) 		8-97585-294-2 01 1 1509-
15 16.592 PANEL; CANT RAIL SIDE
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) (A) 		8-97585-295-2 01 1 1509-
15 16.592 PANEL; CANT RAIL SIDE
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) (B) 		8-97585-302-1 01 1 1509-
15 16.592 PANEL; CANT RAIL SIDE
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) (B) 		8-97585-303-2 01 1 1509-
92 16.570 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1509-
92 16.570 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1509-
100 16.570 PANEL ASM; BODY SIDE
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) LAMPS TWO ROOF MARKER<TEC> 		8-97410-853-7 01 1 1509-
100 16.570 PANEL ASM; BODY SIDE
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) LAMPS TWO ROOF MARKER<TEC> 		8-97586-053-9 01 1 1509-
100 16.570 PANEL ASM; BODY SIDE
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-030-6 01 1 1509-
100 16.570 PANEL ASM; BODY SIDE
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-047-8 01 1 1509-
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1509-
210 16.588 PANEL; DOOR STRIKER REINF
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 		8-97585-260-4 01 1 1509-
210 16.588 PANEL; DOOR STRIKER REINF
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 		8-97585-261-4 01 1 1509-
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 1509-
246 16.575 PANEL; RR PILLAR,INNER
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 		8-97585-301-3 01 1 1509-
246 16.575 PANEL; RR PILLAR,INNER
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 		8-97586-154-3 01 1 1509-
249 16.674 REINFORCEMENT; RR PILLAR
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 		8-98012-287-1 02 1 1509-
408 16.570 GUSSET; PILLAR
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 		8-97585-316-3 01 1 1509-
408 16.570 GUSSET; PILLAR
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 		8-97585-317-4 01 1 1509-
433 16.585 NUT; HEADER SHELF
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 16.545 M6 		9-09114-086-0 04 1 1509-
437 08.155 BRACKET; ROOF RAIL
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 		8-98039-019-0 01 1 1509-
437 08.155 BRACKET; ROOF RAIL
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 		8-98039-020-0 01 1 1509-
481 16.570 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98072-715-1 01 1 1509-
481 16.570 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98093-581-0 01 1 1509-
481 16.570 PANEL; SIDE FRT PILLAR
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98072-787-0 01 1 1509-
481 16.570 PANEL; SIDE FRT PILLAR
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98072-802-0 01 1 1509-
482 16.570 PANEL; SIDE RR PILLAR
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 		8-98055-463-0 01 1 1509-
482 16.570 PANEL; SIDE RR PILLAR
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 		8-98055-464-0 01 1 1509-
483 16.570 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1509-
483 16.570 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1509-
486 16.570 SEAL; BODY SIDE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BO DY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIG E(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY YELLOW(916),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989) ,BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1509-
486 16.570 SEAL; BODY SIDE
BODY COLOR POLAR WHITE(534),BODY COLOR ARCWHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1509-
649 16.570 NUT; POP
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 09.647 M5 POP NUT 		8-97249-574-0 02 1 1509-
662 16.570 BRACKET; DUCT
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 		8-97584-611-1 01 1 1509-
663 08.228 BRACKET; AIR
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 		8-97585-207-2 01 1 1509-
663 08.228 BRACKET; AIR
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 		8-97585-208-2 01 1 1509-
665 16.575 REINFORCEMENT; GRIP,ASSIST
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 		8-97585-314-0 02 1 1509-
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1509-

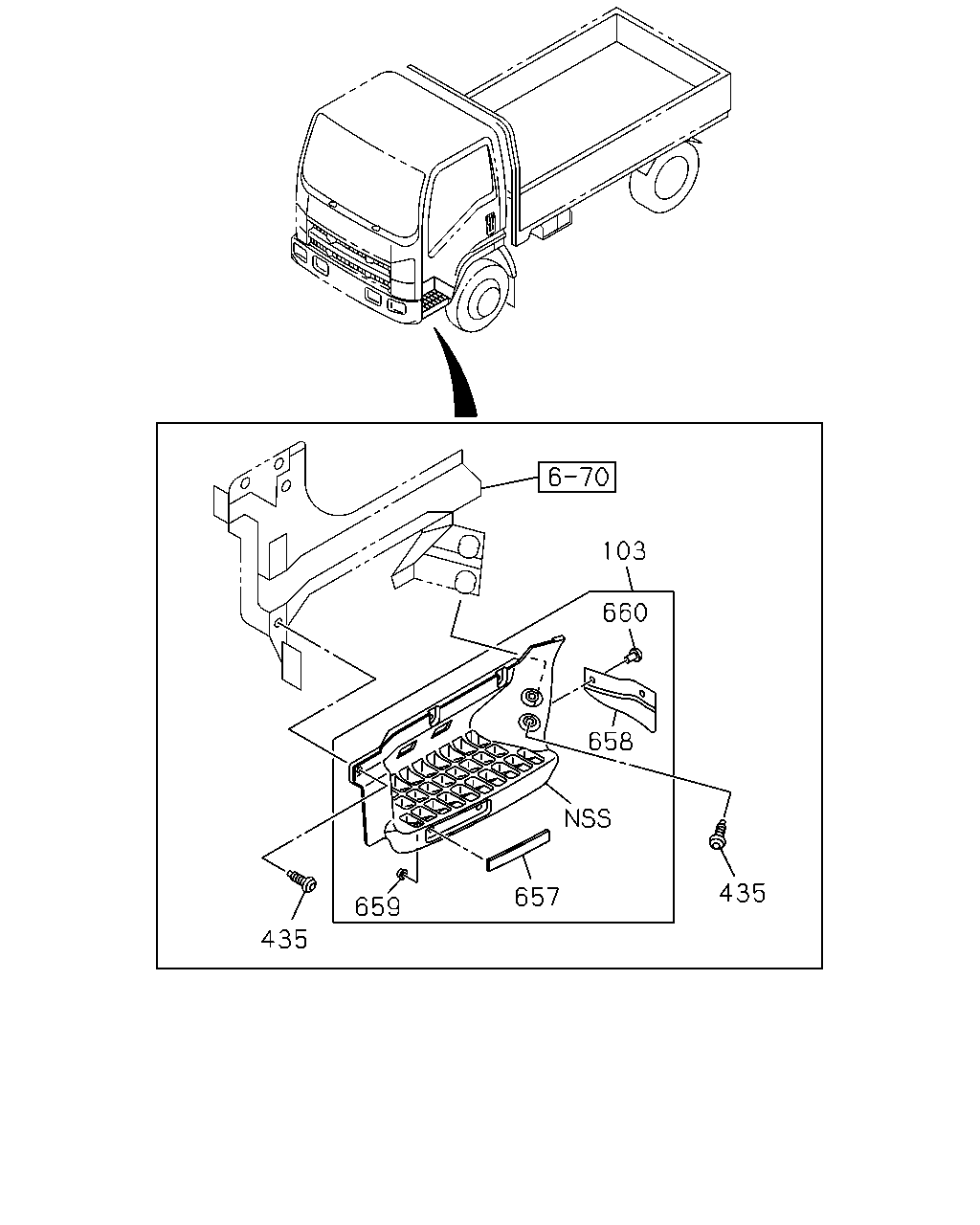

çizim 493176
435 657 659 435 658 660 103
BalonParca AdiParca NoAdetTipApplied Date
103 08.228 PLATE; STEP 8-98022-774-3 01 1 1509-
103 08.228 PLATE; STEP 8-98022-775-3 01 1 1509-
435 08.225 BOLT; RR STEP
M8X18 		8-98004-345-0 12 1 1509-
657 16.585 REFLECTOR; REFLEX 8-97378-910-0 02 1 1509-
658 08.228 FLAP; STEP 8-98037-560-1 02 1 1509-
659 08.131 CLIP; SPRING NUT 8-97811-510-0 04 1 1509-
660 08.131 CLIP; FLAP 8-98111-558-0 04 1 1509-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
