6-05 — FRONT PANEL (#166397) — 91 parça

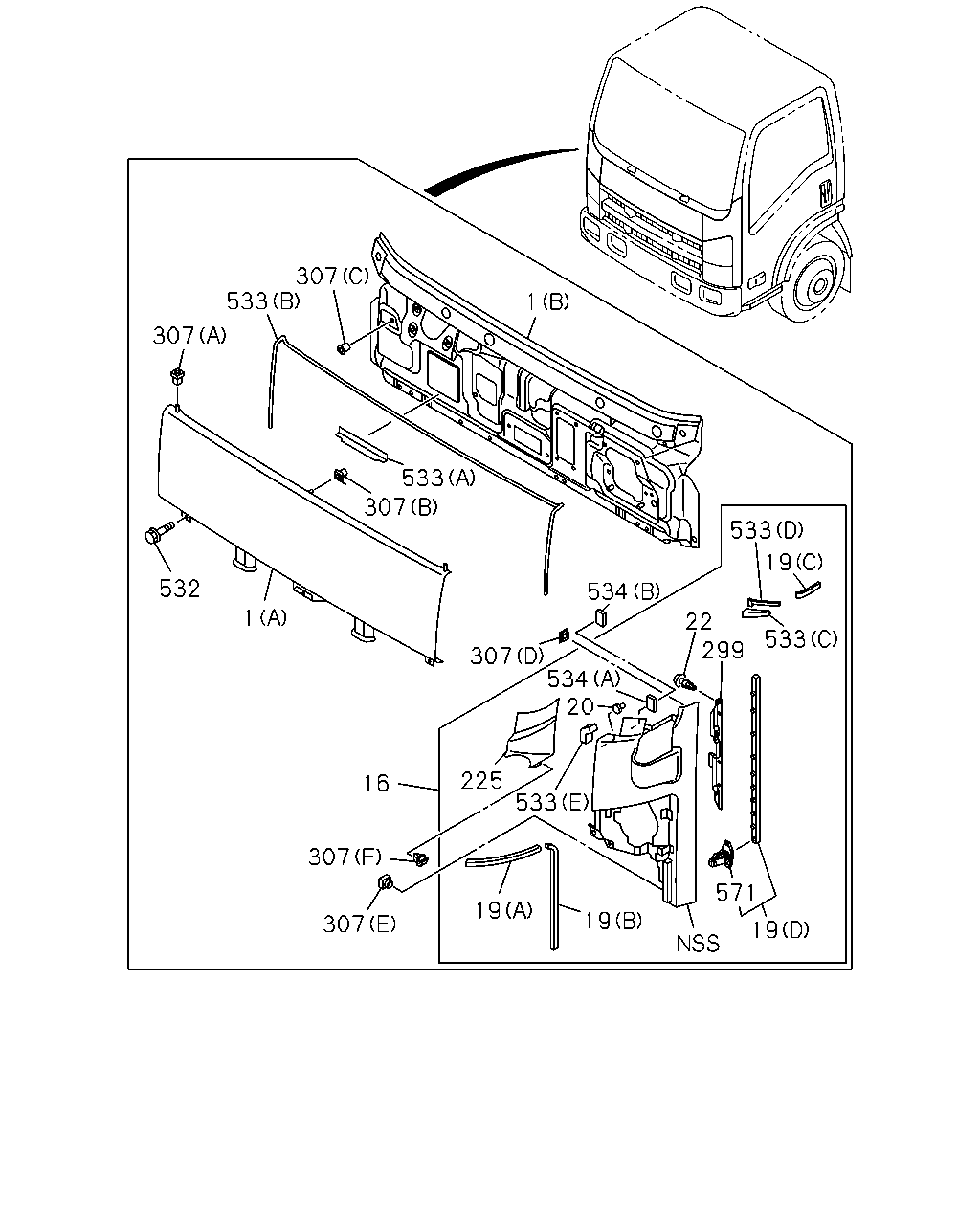

çizim 492763
532 1 16 307 307 19 19 19 571 533 225 533 19 533 534 22 299 307 534 20 307 533 307 533 307 1
BalonParca AdiParca NoAdetTipApplied Date
1 16.550 PANEL ASM; FRT
(B) 		8-98155-003-1 01 1 1509-
1 16.550 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97417-315-8 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE AR M<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> BLACK 		8-97407-909-9 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97412-096-8 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE AR M<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> GRAY 		8-97417-308-9 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97412-105-8 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE AR M<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> WHITE 		8-97417-310-9 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97412-097-8 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE AR M<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> BLUE 		8-97417-311-9 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97409-579-8 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE AR M<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> RED 		8-97417-312-9 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97412-098-8 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE AR M<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> BLUE 		8-97407-910-9 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97405-621-8 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE AR M<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> WHITE 		8-97406-040-9 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> WHITE 		8-97405-625-8 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97412-099-8 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE AR M<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> RED 		8-97407-343-9 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97412-100-8 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE AR M<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> DARK GREEN 		8-97407-911-9 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97412-101-8 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE AR M<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> YELLOW 		8-97407-912-9 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-102-8 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE AR M<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> BEIGE 		8-97417-314-9 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-103-8 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE AR M<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> BLUE 		8-97415-716-9 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> BLUE 		8-97412-114-8 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY YELLOW(916) DARK YELLOW 		8-97415-940-8 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY YELLOW(916) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE AR M<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> DARK YELLOW 		8-97422-885-9 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) DARK YELLOW 		8-97412-104-8 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE AR M<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> ORANGE 		8-97417-313-9 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-106-8 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE AR M<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> GREEN 		8-97412-843-9 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97405-619-8 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE AR M<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> LIGHT GRAY 		8-97414-636-9 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> LIGHT GRAY 		8-97405-623-8 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-620-8 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE AR M<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> BLUE 		8-97409-872-9 01 1 1509-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> BLUE 		8-97405-624-8 01 1 1509-
19 16.588 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 01 1 1509-
19 16.588 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 01 1 1509-
19 16.588 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 01 1 1509-
19 16.588 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 01 1 1509-
19 16.588 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 01 1 1509-
19 16.588 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 01 1 1509-
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-749-3 01 1 1509-
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 1509-
20 16.588 CLIP; FRT PANEL SIDE 8-97410-739-1 02 1 1509-
20 16.588 CLIP; FRT PANEL SIDE 8-97410-739-1 02 1 1509-
22 16.588 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1509-
22 16.588 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1509-
225 16.069 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-98036-521-3 01 1 1509-
225 16.069 COVER; SIDE,FRT
BODY COLOR ARC WHITE(729),BODY COLOR QUICKSILVER MET(998),BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> PLEASE PAINT TO MATCH BODY COLOR 		8-98036-520-3 01 1 1509-
299 16.069 COVER; FRT PANEL SIDE 8-98028-144-1 01 1 1509-
299 16.069 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 1509-
307 16.125 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 1509-
307 16.125 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 1509-
307 16.125 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 1509-
307 16.125 GROMMET; FRT PANEL
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> (F) 		8-98028-743-0 01 1 1509-
307 16.125 GROMMET; FRT PANEL
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> (F) 		8-98028-743-0 02 1 1509-
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 1509-
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 1509-
307 16.125 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 1509-
532 08.143 BOLT; FRT PANEL
EXC. IDENTIFICATION LABEL FOR KD<6UT>,KD PREPARATORY PACK VAR.4<7TV> M6X16 W/LK&PL WASHER 		0-52010-616-0 04 1 1509-
532 08.143 BOLT; FRT PANEL
IDENTIFICATION LABEL FOR KD<6UT> M6X16 W/LK&PL WASHER 		0-52010-616-0 04 1 1509-
533 08.143 SEAL; FRT PANEL
(B) 		8-98309-764-0 01 1 1509-
533 08.143 SEAL; FRT PANEL
(D) 		8-98043-511-1 01 1 1509-
533 08.143 SEAL; FRT PANEL
(D) 		8-98043-511-1 01 1 1509-
533 08.143 SEAL; FRT PANEL
(E) 		8-98064-939-0 01 1 1509-
533 08.143 SEAL; FRT PANEL
(E) 		8-98064-939-0 01 1 1509-
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-509-0 01 1 1509-
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 1509-
533 08.143 SEAL; FRT PANEL
(A) 		8-98049-007-0 01 1 1509-
534 16.550 FASTENER
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> (B) 40X25 		8-98089-411-1 01 1 1509-
534 16.550 FASTENER
(A) 20X30 		8-98059-208-1 01 1 1509-
534 16.550 FASTENER
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY <6TF> (A) 20X30 		8-98059-208-1 01 1 1509-
534 16.550 FASTENER
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV> (A) 40X25 		8-98089-412-1 01 1 1509-
571 16.570 CLIP; SEAL
16.165 NATURAL 		8-98027-457-0 10 1 1509-
571 16.570 CLIP; SEAL
16.165 NATURAL 		8-98027-457-0 10 1 1509-

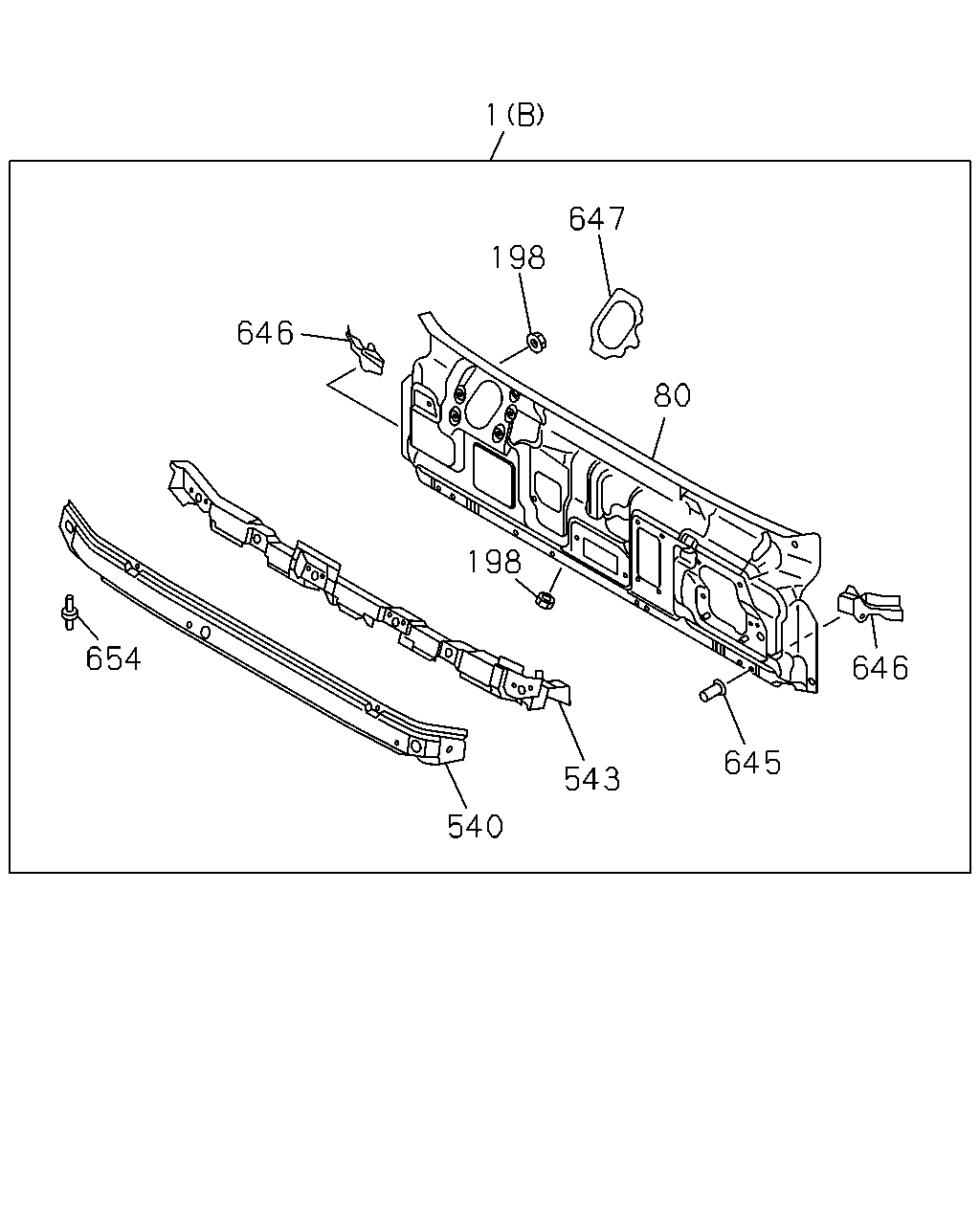

çizim 492801
646 645 543 540 654 198 80 647 198 1 646
BalonParca AdiParca NoAdetTipApplied Date
1 16.550 PANEL ASM; FRT
(B) 		8-98155-003-1 01 1 1509-
1 16.550 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 1509-
80 16.588 PANEL; SUB,DASH 8-98177-481-1 01 1 1509-
198 16.125 NUT; PANEL
16.545 M6 		9-09114-086-0 06 1 1509-
540 16.588 PANEL; FRONT,OUTER 8-97585-964-0 01 1 1509-
543 16.570 CLOSING; FRT MTG RAIL 8-98008-131-4 01 1 1509-
645 16.588 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 1509-
646 08.155 REINFORCEMENT; DASH 8-98023-098-1 01 1 1509-
646 08.155 REINFORCEMENT; DASH 8-98023-099-1 01 1 1509-
647 08.155 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 1509-
654 16.125 PIN; FRT PANEL 8-98021-967-2 02 1 1509-
