◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51637 - NQR AIR BRAKE LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#166394) — 17 parça

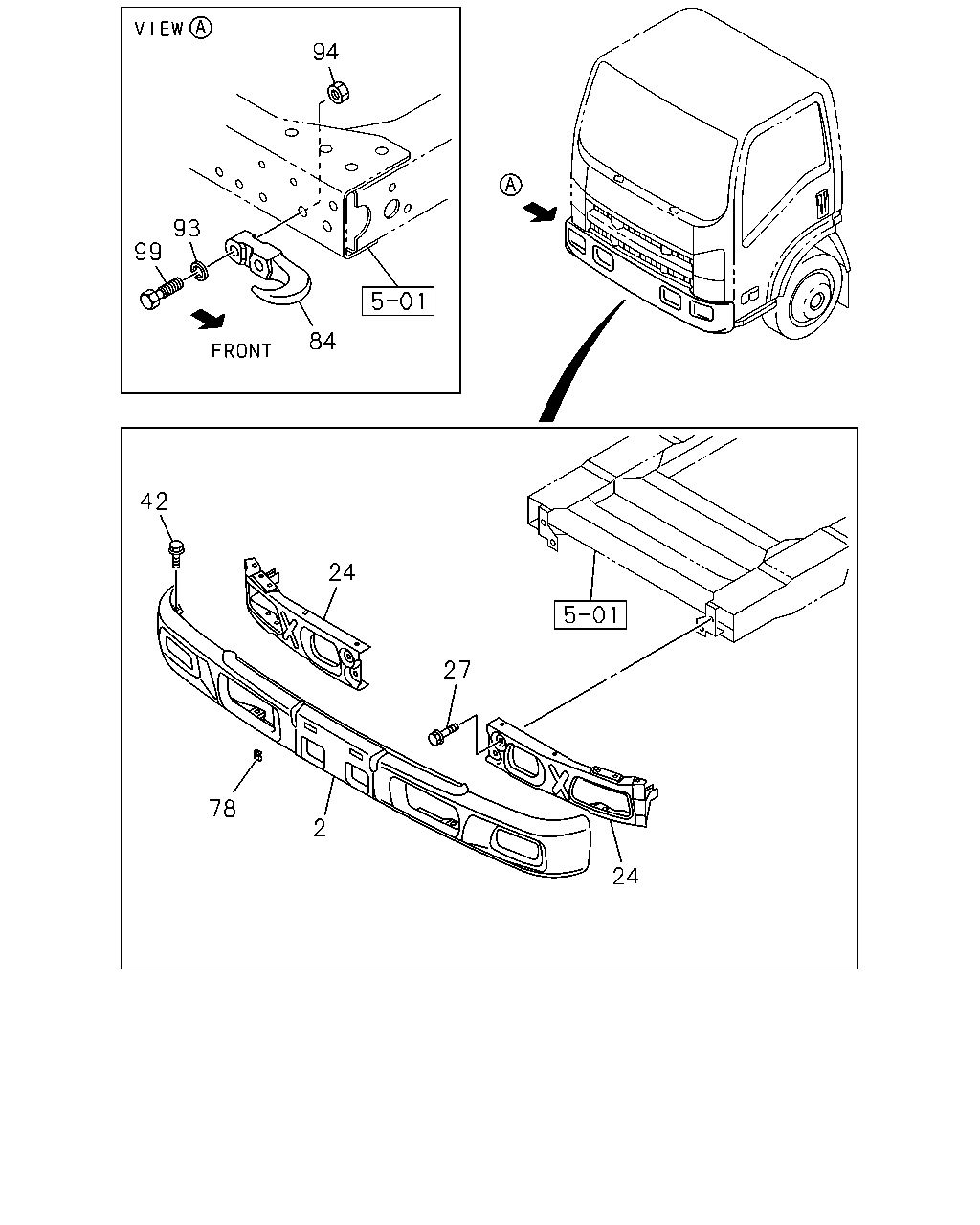

çizim 493001
24 27 42 78 2 24 84 99 93 94
BalonParca AdiParca NoAdetTipApplied Date
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> FRONT BUMPER PAINTED<VB5> PRIMER 		8-98055-079-2 01 1 1509-
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97405-627-5 01 1 1509-
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97405-628-5 01 1 1509-
2 07.831 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97405-629-5 01 1 1509-
2 07.831 BUMPER; FRT,CENTER
FRONT BUMPER PAINTED<VB5> EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> PRIMER 		8-98055-080-2 01 1 1509-
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> DARK GRAY 		8-97405-634-5 01 1 1509-
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> WHITE 		8-97405-635-5 01 1 1509-
2 07.831 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> BLUE 		8-97405-636-5 01 1 1509-
24 07.869 BAR; FRT BUMPER 8-98025-184-5 01 1 1509-
24 07.869 BAR; FRT BUMPER 8-98025-185-5 01 1 1509-
27 07.833 BOLT; BUMPER TO BACK BAR
M10X30 W/TORQUES 		8-98092-250-0 04 1 1509-
42 07.874 BOLT; BUMPER
08.143 M6X16 W/LK&PL WASHER 		0-52010-616-0 10 1 1509-
78 07.874 NUT; SPIRE
M6 		8-98029-416-0 02 1 1509-
84 07.068 HOOK 8-97387-665-0 01 1 1509-
93 07.068 WASHER; LK,HOOK
06.174 ID=14.2 		0-91510-814-0 02 1 1509-
94 07.068 NUT; HOOK
07.833 M14 		0-91110-514-0 01 1 1509-
99 07.039 BOLT; HOOK
M14X55 		8-97301-262-0 02 1 1509-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
