Isuzu WW
▶
TRUCKS
▶
NQR
▶
51637 - NQR AIR BRAKE LHD
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

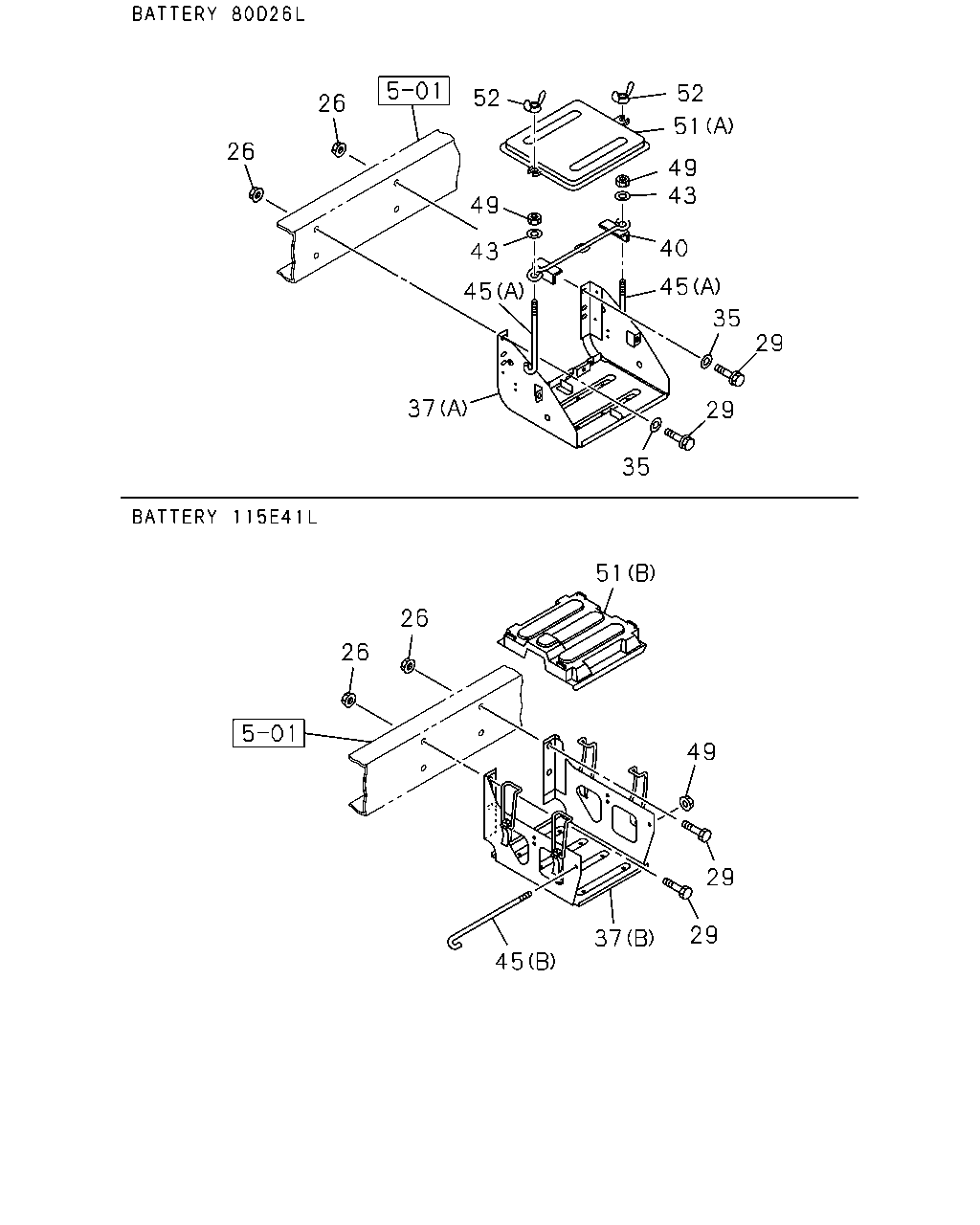

5-20 — BATTERY CARRIER
(#166392) — 14 parça
29
29
49
51
26
26
37
45
35
29
29
35
45
40
43
49
51
52
52
49
43
45
37
26
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
02.334 NUT; BRKT
WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE
0-91180-210-0
04
1
1509-
26
02.334 NUT; BRKT
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 04.085 M10 FLANGE
0-91180-210-0
03
1
1509-
29
02.334 BOLT; BRKT TO FRAME
03.023 M10X35 FLANGE
0-28661-035-0
04
1
1509-
35
02.334 WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1> 04.046 ID=10.5 OD=22 T=1.6
0-91610-610-0
04
1
1509-
37
02.333 BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-97384-067-2
01
1
1509-
37
02.333 BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98091-497-0
01
1
1509-
40
02.335 CLAMP; BATTERY
BATTERY 80D26L<TM1>
5-53615-004-1
01
1
1509-
43
02.334 WASHER; PL,CLAMP
BATTERY 80D26L<TM1> 02.277 ID=8.4 OD=22
0-91614-708-0
02
1
1509-
45
02.334 ROD; TENSION,BATTERY
BATTERY 80D26L<TM1> (A) L=120
9-53616-615-0
02
1
1509-
45
02.334 ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (B) L=430
8-97134-740-0
02
1
1509-
49
02.334 NUT; ROD,BATTERY
01.062 M8 FLANGE
0-91180-108-0
02
1
1509-
51
02.335 COVER; BATTERY
BATTERY 80D26L<TM1> (A)
8-97120-747-0
01
1
1509-
51
02.335 COVER; BATTERY
BATTERY 115E41L<8MA> (B)
1-53612-029-1
01
1
1509-
52
02.335 NUT; WING,COVER FIX
BATTERY 80D26L<TM1> M8 WING NUT
0-91118-408-0
02
1
1509-
