5-01 — FRAME AND OTHER PARTS (#166389) — 95 parça

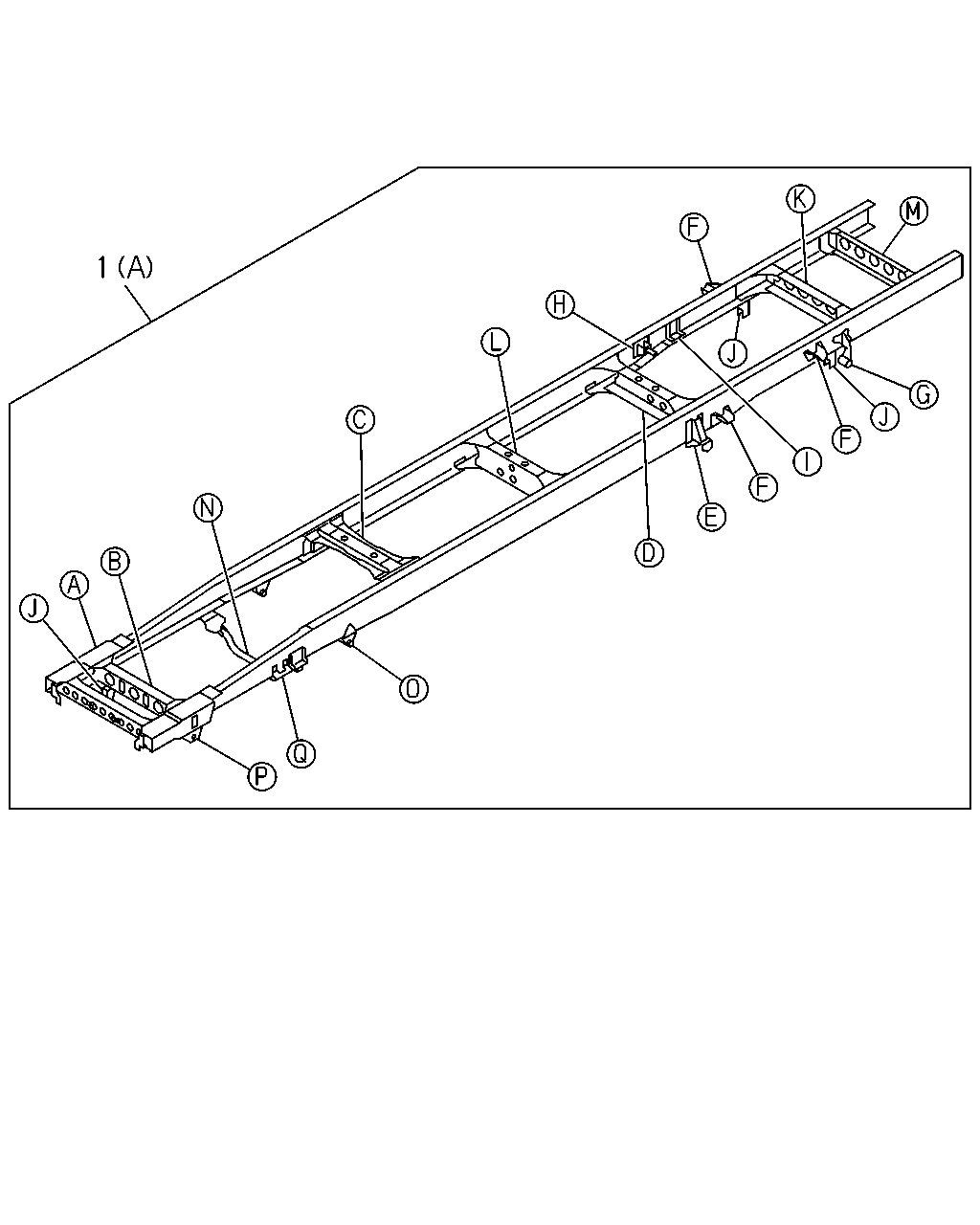

çizim 492816
1
BalonParca AdiParca NoAdetTipApplied Date
1 07.003 FRAME ASM
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98327-744-0 01 1 1509-
1 07.003 FRAME ASM
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> CATALYSIS CONTROL WITH DPD(8JM) EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98327-745-0 01 1 1509-
1 07.003 FRAME ASM
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98327-746-0 01 1 1509-
1 07.003 FRAME ASM
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> CATALYSIS CONTROL WITH DPD(8JM) EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98327-747-0 01 1 1509-
1 07.003 FRAME ASM
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98327-748-0 01 1 1509-
1 07.003 FRAME ASM
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> CATALYSIS CONTROL WITH DPD(8JM) EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98327-749-0 01 1 1509-
1 07.003 FRAME ASM
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>,NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-98304-019-0 01 1 1509-
1 07.003 FRAME ASM
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>,NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-98304-020-0 01 1 1509-
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98181-439-3 01 1 1509-
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL(6MZ) EXC. FRONT STABILIZER SHAFT<F59> (A) 		8-98304-017-0 01 1 1509-
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98181-443-3 01 1 1509-
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4100MM(41W) CATALYSIS CONTROL(6MZ) EXC. FRONT STABILIZER SHAFT<F59> (B) 		8-98304-018-0 01 1 1509-

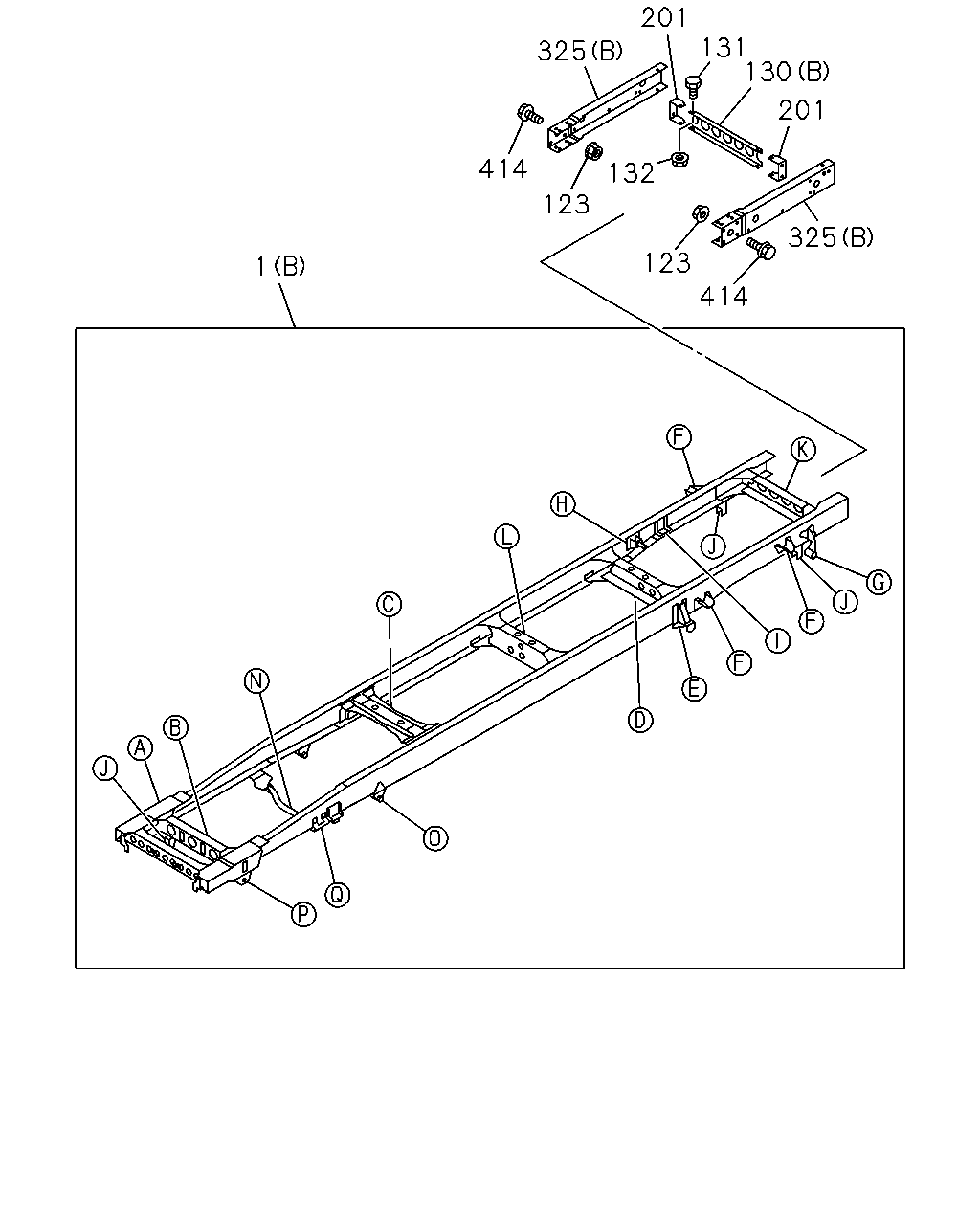

çizim 492830
1 414 132 123 414 123 325 201 130 131 201 325
BalonParca AdiParca NoAdetTipApplied Date
1 07.003 FRAME ASM
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98327-744-0 01 1 1509-
1 07.003 FRAME ASM
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> CATALYSIS CONTROL WITH DPD(8JM) EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98327-745-0 01 1 1509-
1 07.003 FRAME ASM
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98327-746-0 01 1 1509-
1 07.003 FRAME ASM
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> CATALYSIS CONTROL WITH DPD(8JM) EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98327-747-0 01 1 1509-
1 07.003 FRAME ASM
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98327-748-0 01 1 1509-
1 07.003 FRAME ASM
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> CATALYSIS CONTROL WITH DPD(8JM) EXC. POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98327-749-0 01 1 1509-
1 07.003 FRAME ASM
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>,NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-98304-019-0 01 1 1509-
1 07.003 FRAME ASM
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>,NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-98304-020-0 01 1 1509-
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98181-439-3 01 1 1509-
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL(6MZ) EXC. FRONT STABILIZER SHAFT<F59> (A) 		8-98304-017-0 01 1 1509-
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98181-443-3 01 1 1509-
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4100MM(41W) CATALYSIS CONTROL(6MZ) EXC. FRONT STABILIZER SHAFT<F59> (B) 		8-98304-018-0 01 1 1509-
123 07.039 NUT
WHEEL BASE 4100MM(41W) 07.395 M12 		8-97360-126-0 16 1 1509-
130 07.014 MEMBER; CROSS,END
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-97080-872-0 01 1 1509-
130 07.014 MEMBER; CROSS,END
WHEEL BASE 4100MM(41W) (B) 		8-97205-394-0 01 1 1509-
131 07.014 BOLT; END C/MBR
WHEEL BASE 4100MM(41W) 07.833 M10X25 FLANGE 		0-28661-025-0 08 1 1509-
132 07.014 NUT; END C/MBR
WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE 		0-91180-110-0 08 1 1509-
201 07.039 GUSSET; C/MBR 8-97096-871-0 02 1 1509-
325 07.039 EXTENSION; FRAME
(A) 		8-98073-346-0 01 1 1509-
325 07.039 EXTENSION; FRAME
(A) 		8-98196-152-0 01 1 1509-
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97222-891-1 01 1 1509-
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97222-892-1 01 1 1509-
414 07.011 BOLT
WHEEL BASE 4100MM(41W) 06.509 M12X30 FLANGE 		0-28661-230-0 12 1 1509-
414 07.011 BOLT
WHEEL BASE 4100MM(41W) M12X40 FLANGE 		0-28661-240-0 04 1 1509-

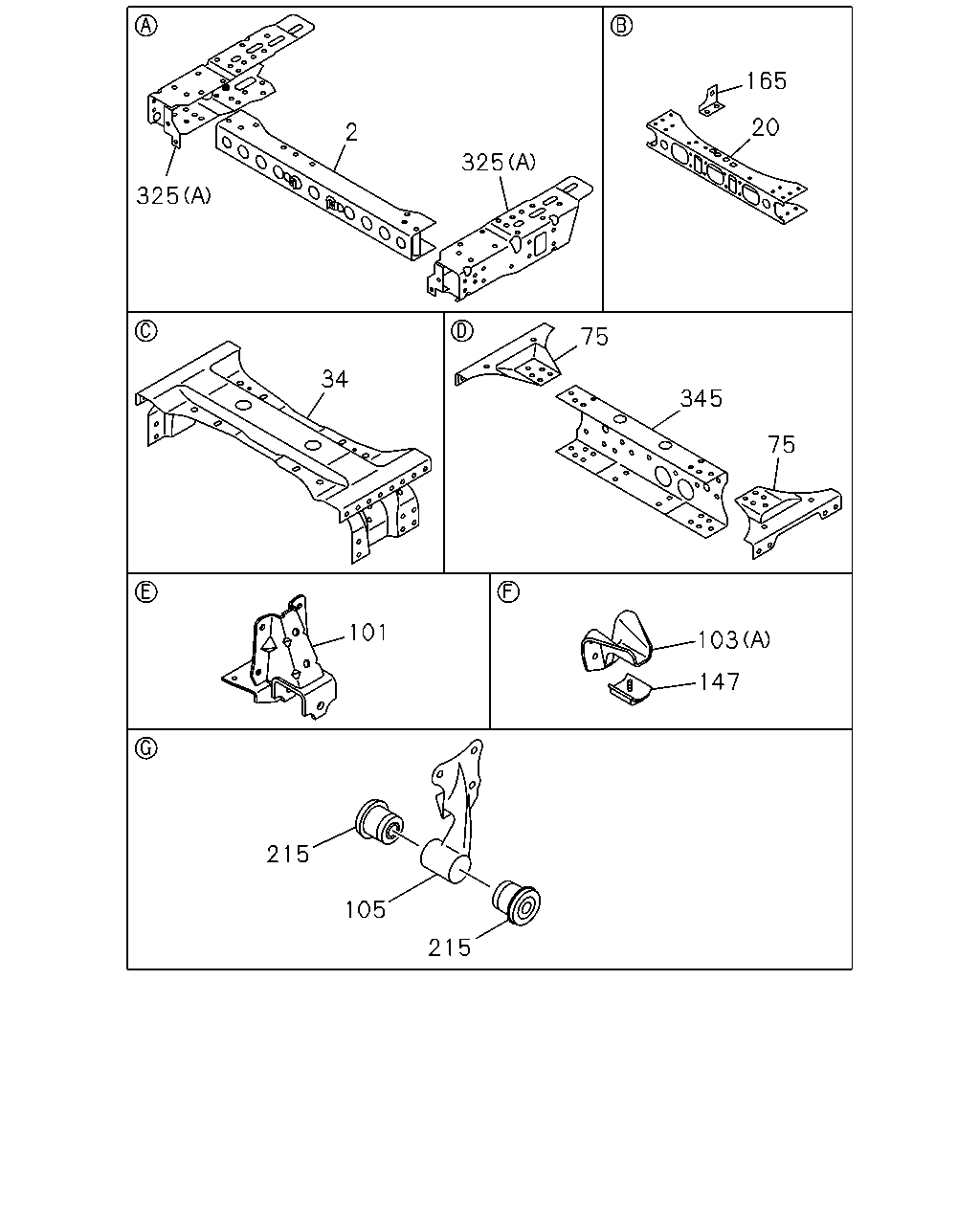

çizim 492847
2 325 165 20 75 345 75 34 101 215 105 215 325 103 147
BalonParca AdiParca NoAdetTipApplied Date
2 07.010 MEMBER; CROSS,1ST 8-97387-866-5 01 1 1509-
20 07.012 MEMBER; CROSS,2ND 8-98014-074-7 01 1 1509-
34 07.012 MEMBER; CROSS,3RD
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		8-98072-038-1 01 1 1509-
34 07.012 MEMBER; CROSS,3RD
M/T MYY6S(RST) 		8-98074-639-4 01 1 1509-
75 07.039 GUSSET; 5TH C/MBR
RH-UPPER,LH-LOWER 		8-98000-583-0 02 1 1509-
75 07.039 GUSSET; 5TH C/MBR
RH-LOWER,LH-UPPER 		8-98000-584-0 02 1 1509-
101 07.112 BRACKET; RR SPR,FRT 8-98202-857-0 02 1 1509-
103 07.420 STOPPER; SUB SPR
07.524 (B) 		8-97079-659-1 02 1 1509-
103 07.420 STOPPER; SUB SPR
(A) 		8-97223-748-0 04 1 1509-
105 07.112 BRACKET; RR SPR,RR 8-98032-488-0 01 1 1509-
105 07.112 BRACKET; RR SPR,RR 8-98032-489-0 01 1 1509-
147 07.535 RUBBER; SUB SPRING 8-97254-387-0 04 1 1509-
165 01.270 BRACKET; RAD STAY 8-98000-886-0 01 1 1509-
215 07.524 BUSHING; BRKT,RR SPRING 8-97184-699-1 04 1 1509-
325 07.039 EXTENSION; FRAME
(A) 		8-98073-346-0 01 1 1509-
325 07.039 EXTENSION; FRAME
(A) 		8-98196-152-0 01 1 1509-
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97222-891-1 01 1 1509-
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97222-892-1 01 1 1509-
345 07.012 MEMBER; CROSS,5TH 8-97175-993-3 01 1 1509-

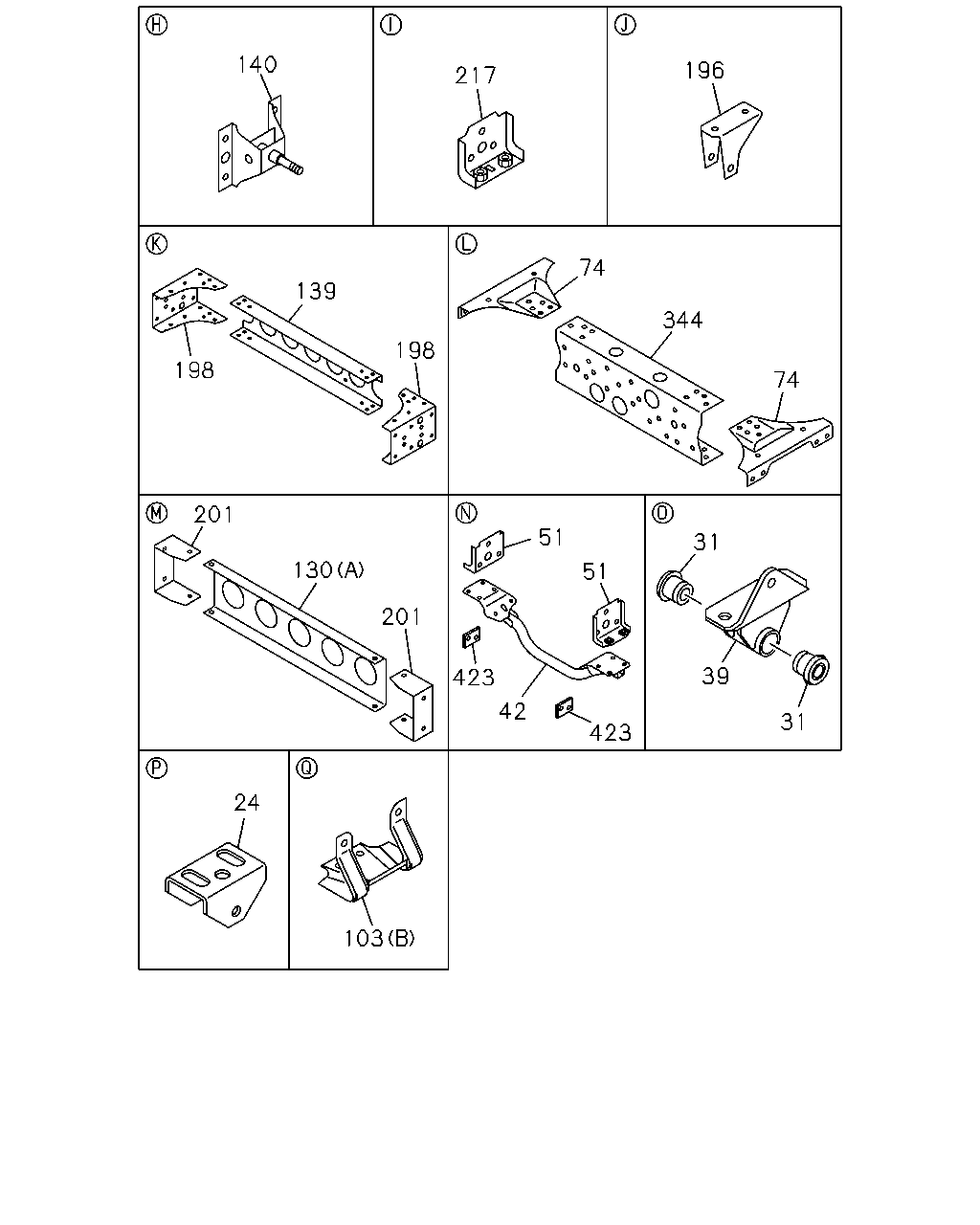

çizim 492878
140 217 196 344 74 74 198 139 198 201 130 201 423 42 423 51 51 31 39 31 103 24
BalonParca AdiParca NoAdetTipApplied Date
24 07.105 BRACKET; FRT SPR,FRT 8-98015-274-0 02 1 1509-
31 07.428 BUSHING; FRT SPR,RR
07.524 		8-97184-699-1 04 1 1509-
39 07.112 BRACKET; FRT SPR,RR 8-98014-125-0 02 1 1509-
42 07.011 MEMBER; CROSS,ENG MTG 8-98032-389-0 01 1 1509-
51 07.011 BRACKET; ENG SUPPORT,OUTER 8-98034-961-0 02 1 1509-
74 07.039 GUSSET; 4TH C/MBR
RH-LOWER,LH-UPPER 		8-98000-583-0 02 1 1509-
74 07.039 GUSSET; 4TH C/MBR
RH-UPPER,LH-LOWER 		8-98000-584-0 02 1 1509-
103 07.420 STOPPER; SUB SPR
07.524 (B) 		8-97079-659-1 02 1 1509-
103 07.420 STOPPER; SUB SPR
(A) 		8-97223-748-0 04 1 1509-
130 07.014 MEMBER; CROSS,END
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-97080-872-0 01 1 1509-
130 07.014 MEMBER; CROSS,END
WHEEL BASE 4100MM(41W) (B) 		8-97205-394-0 01 1 1509-
139 07.012 MEMBER; CROSS,6TH 8-97107-384-0 01 1 1509-
140 07.112 BRACKET; S/ABS,RR 8-97080-884-1 02 1 1509-
196 07.242 BRACKET; STAB TO FRAME
M/T MYY6S(RST) WHEEL BASE 3300MM(33W) 		8-98033-523-0 02 1 1509-
196 07.242 BRACKET; STAB TO FRAME
M/T MZZ6U(RSF),M/T MZZ6F(RSR) CATALYSIS CONTROL WITH DPD(8JM) 		8-98033-523-0 02 1 1509-
196 07.242 BRACKET; STAB TO FRAME
M/T MYY6S(RST) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD(8JM) 		8-98033-523-0 04 1 1509-
198 07.039 GUSSET; 6TH C/MBR 8-98092-777-1 01 1 1509-
198 07.039 GUSSET; 6TH C/MBR 8-98092-778-1 01 1 1509-
201 07.039 GUSSET; C/MBR 8-97096-871-0 02 1 1509-
217 07.535 BRACKET; HELPER RUBBER,RR SPRING 8-97202-417-0 02 1 1509-
344 07.012 MEMBER; CROSS,4TH 8-97175-993-3 01 1 1509-
423 07.039 PATCH 8-98163-494-0 02 1 1509-
çizim 492906
376 376 376 376 376 376 376 376 376 376 376 376 176 176 296 67 118
BalonParca AdiParca NoAdetTipApplied Date
67 07.011 NUT; C/MBR
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 04.085 M10 FLANGE 		0-91180-210-0 17 1 1509-
67 07.011 NUT; C/MBR
M/T MYY6S(RST) 04.085 M10 FLANGE 		0-91180-210-0 18 1 1509-
118 07.529 NUT; STOPPER
M8 LOCK NUT 		0-91370-008-0 02 1 1509-
176 04.085 BOLT; C/MBR,ENG MTG
03.890 (B) M10X30 FLANGE 		0-28051-030-0 04 1 1509-
176 04.085 BOLT; C/MBR,ENG MTG
00.029 (A) M10X25 FLANGE 		0-28651-025-0 04 1 1509-
296 07.039 BOLT; 3RD C/MBR
00.029 M10X30 FLANGE 		0-28651-030-0 16 1 1509-
376 07.039 RIVET; FRAME
07.011 (A) D8X24 TAPER END 		9-06750-824-0 AR 1 1509-
376 07.039 RIVET; FRAME
(B) D10X24 TAPER END 		9-06751-024-0 AR 1 1509-
376 07.039 RIVET; FRAME
(C) D10X26 TAPER END 		9-06751-026-0 AR 1 1509-
376 07.039 RIVET; FRAME
(D) D10X28 TAPER END 		9-06751-028-0 AR 1 1509-
376 07.039 RIVET; FRAME
(E) D10X30 TAPER END 		9-06751-030-0 AR 1 1509-
376 07.039 RIVET; FRAME
(F) D10X32 TAPER END 		9-06751-032-0 AR 1 1509-
376 07.039 RIVET; FRAME
(G) D10X36 TAPER END 		9-06751-036-0 AR 1 1509-
376 07.039 RIVET; FRAME
(H) D11X26 TAPER END 		9-06751-126-0 AR 1 1509-
376 07.039 RIVET; FRAME
(I) D11X30 TAPER END 		9-06751-130-0 AR 1 1509-
376 07.039 RIVET; FRAME
07.105 (J) D12X30 TAPER END 		9-06751-230-0 AR 1 1509-
376 07.039 RIVET; FRAME
07.428 (K) D12X36 TAPER END 		9-06751-236-0 AR 1 1509-
376 07.039 RIVET; FRAME
07.112 (L) D12X40 TAPER END 		9-06751-240-0 AR 1 1509-
