4-55 — FRONT LEAF SPRING (#166384) — 41 parça

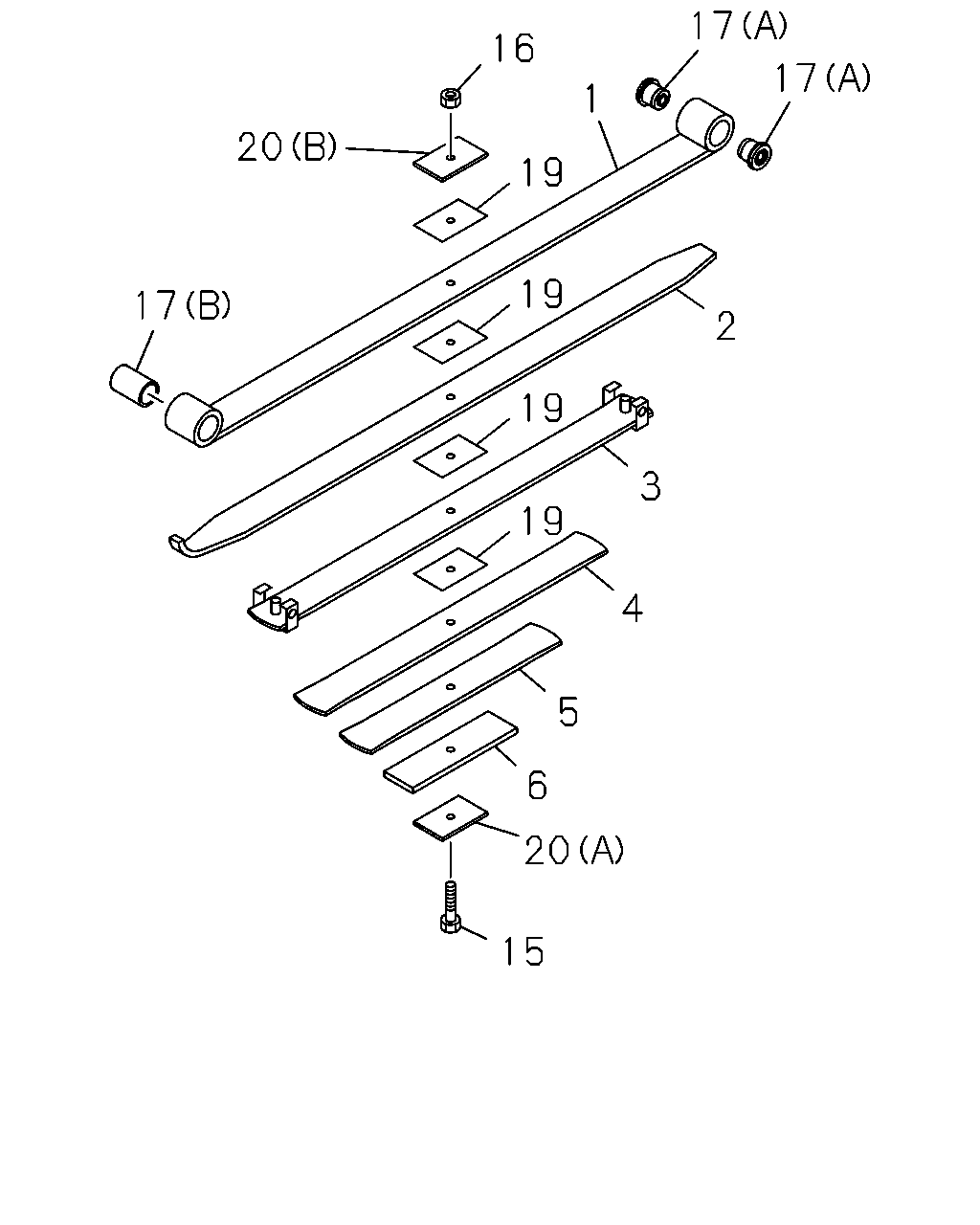

16 19 19 19 19 5 4 6 20 15 17 20 17 17 2 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: A = 8-98181-939-0, 98181939, C = 8-98181-942-0, 98181942	8-98081-370-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: B = 8-98181-941-0, 98181941, D = 8-98181-943-0, 98181943	8-98081-379-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: A = 8-98181-939-0, 98181939, C = 8-98181-942-0, 98181942	8-98081-371-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: B = 8-98181-941-0, 98181941, D = 8-98181-943-0, 98181943	8-98081-380-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: A = 8-98181-939-0, 98181939, C = 8-98181-942-0, 98181942	8-98081-372-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: B = 8-98181-941-0, 98181941, D = 8-98181-943-0, 98181943	8-98081-381-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: A = 8-98181-939-0, 98181939, C = 8-98181-942-0, 98181942	8-98081-373-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: B = 8-98181-941-0, 98181941, D = 8-98181-943-0, 98181943	8-98081-382-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: A = 8-98181-939-0, 98181939, C = 8-98181-942-0, 98181942	8-98081-374-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: B = 8-98181-941-0, 98181941, D = 8-98181-943-0, 98181943	8-98081-383-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: A = 8-98181-939-0, 98181939, C = 8-98181-942-0, 98181942	8-98081-375-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: B = 8-98181-941-0, 98181941, D = 8-98181-943-0, 98181943	8-98081-384-0	01	1	-
15	07.428 BOLT; CENTER,LEAF SPR,FRT L=100 ASM PART: A = 8-98181-939-0, 98181939, D = 8-98181-943-0, 98181943	8-98152-434-0	01	1	-
15	07.428 BOLT; CENTER,LEAF SPR,FRT L=95 ASM PART: B = 8-98181-941-0, 98181941, C = 8-98181-942-0, 98181942	8-98186-072-0	01	1	-
16	07.506 NUT; CENTER BOLT,LEAF SPR,FRT M10 ASM PART: A = 8-98181-939-0, 98181939, B = 8-98181-941-0, 98181941, C = 8-98181-942-0, 98181942, D = 8-98181-943-0, 98181943	1-09400-055-0	01	1	-
17	07.413 BUSHING; LEAF SPR,FRT 07.524, (A) ASM PART: A = 8-98181-939-0, 98181939, B = 8-98181-941-0, 98181941, C = 8-98181-942-0, 98181942, D = 8-98181-943-0, 98181943	8-94118-588-1	02	1	-
17	07.413 BUSHING; LEAF SPR,FRT 07.105, (B) ASM PART: A = 8-98181-939-0, 98181939, B = 8-98181-941-0, 98181941, C = 8-98181-942-0, 98181942, D = 8-98181-943-0, 98181943	8-94130-354-0	01	1	-
19	07.425 SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98181-939-0, 98181939, B = 8-98181-941-0, 98181941, C = 8-98181-942-0, 98181942, D = 8-98181-943-0, 98181943	8-97084-845-0	04	1	-
20	07.425 SEAT; LEAF SPR,FRT (A) ASM PART: B = 8-98181-941-0, 98181941, C = 8-98181-942-0, 98181942	8-98039-233-0	01	1	-
20	07.425 SEAT; LEAF SPR,FRT (B) ASM PART: A = 8-98181-939-0, 98181939, B = 8-98181-941-0, 98181941, C = 8-98181-942-0, 98181942, D = 8-98181-943-0, 98181943	8-98041-368-0	01	1	-

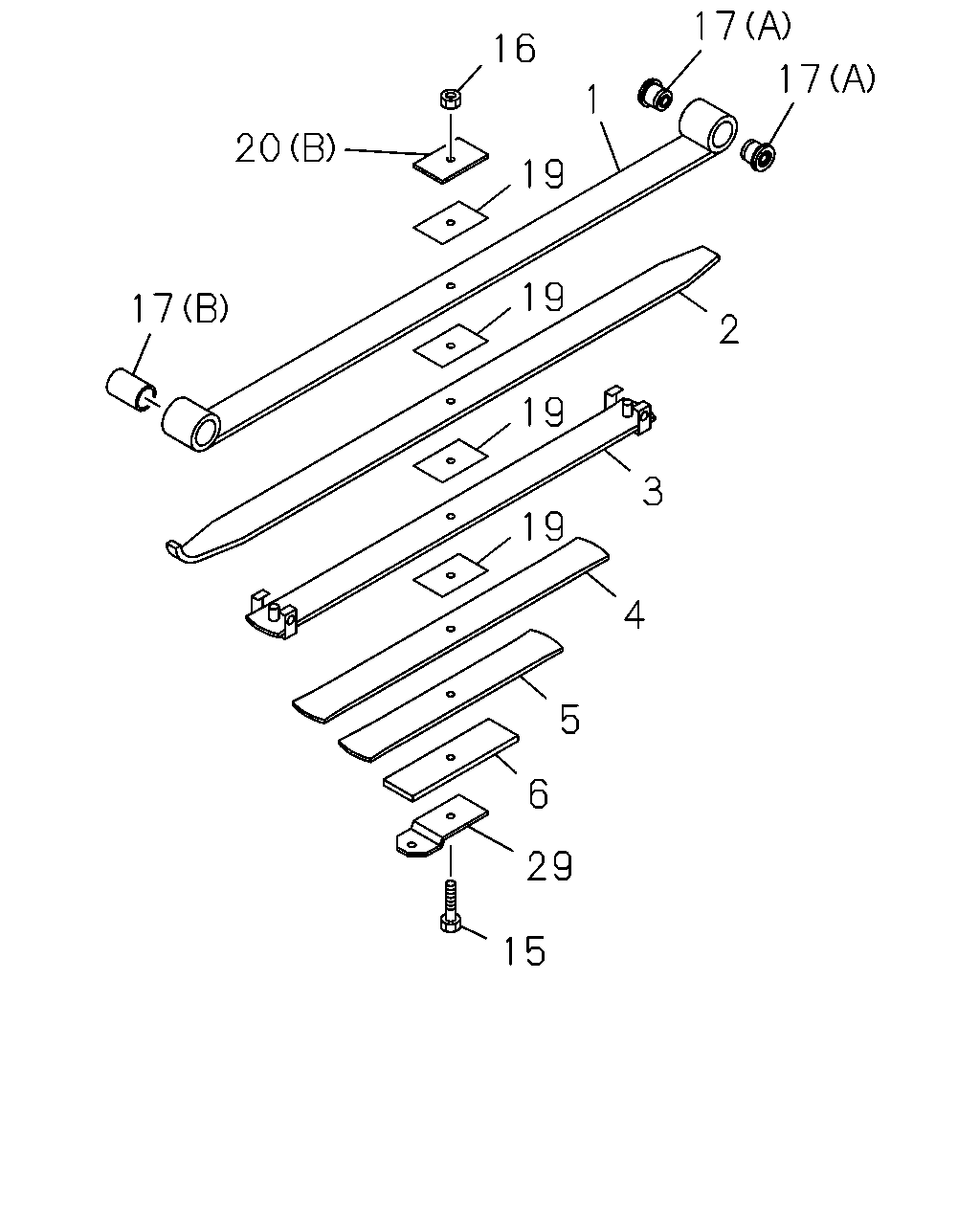

17 20 16 19 19 19 19 5 4 6 29 15 3 2 17 17 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: A = 8-98181-939-0, 98181939, C = 8-98181-942-0, 98181942	8-98081-370-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: B = 8-98181-941-0, 98181941, D = 8-98181-943-0, 98181943	8-98081-379-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: A = 8-98181-939-0, 98181939, C = 8-98181-942-0, 98181942	8-98081-371-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: B = 8-98181-941-0, 98181941, D = 8-98181-943-0, 98181943	8-98081-380-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: A = 8-98181-939-0, 98181939, C = 8-98181-942-0, 98181942	8-98081-372-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: B = 8-98181-941-0, 98181941, D = 8-98181-943-0, 98181943	8-98081-381-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: A = 8-98181-939-0, 98181939, C = 8-98181-942-0, 98181942	8-98081-373-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: B = 8-98181-941-0, 98181941, D = 8-98181-943-0, 98181943	8-98081-382-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: A = 8-98181-939-0, 98181939, C = 8-98181-942-0, 98181942	8-98081-374-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: B = 8-98181-941-0, 98181941, D = 8-98181-943-0, 98181943	8-98081-383-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: A = 8-98181-939-0, 98181939, C = 8-98181-942-0, 98181942	8-98081-375-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: B = 8-98181-941-0, 98181941, D = 8-98181-943-0, 98181943	8-98081-384-0	01	1	-
15	07.428 BOLT; CENTER,LEAF SPR,FRT L=100 ASM PART: A = 8-98181-939-0, 98181939, D = 8-98181-943-0, 98181943	8-98152-434-0	01	1	-
15	07.428 BOLT; CENTER,LEAF SPR,FRT L=95 ASM PART: B = 8-98181-941-0, 98181941, C = 8-98181-942-0, 98181942	8-98186-072-0	01	1	-
16	07.506 NUT; CENTER BOLT,LEAF SPR,FRT M10 ASM PART: A = 8-98181-939-0, 98181939, B = 8-98181-941-0, 98181941, C = 8-98181-942-0, 98181942, D = 8-98181-943-0, 98181943	1-09400-055-0	01	1	-
17	07.413 BUSHING; LEAF SPR,FRT 07.524, (A) ASM PART: A = 8-98181-939-0, 98181939, B = 8-98181-941-0, 98181941, C = 8-98181-942-0, 98181942, D = 8-98181-943-0, 98181943	8-94118-588-1	02	1	-
17	07.413 BUSHING; LEAF SPR,FRT 07.105, (B) ASM PART: A = 8-98181-939-0, 98181939, B = 8-98181-941-0, 98181941, C = 8-98181-942-0, 98181942, D = 8-98181-943-0, 98181943	8-94130-354-0	01	1	-
19	07.425 SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98181-939-0, 98181939, B = 8-98181-941-0, 98181941, C = 8-98181-942-0, 98181942, D = 8-98181-943-0, 98181943	8-97084-845-0	04	1	-
20	07.425 SEAT; LEAF SPR,FRT (A) ASM PART: B = 8-98181-941-0, 98181941, C = 8-98181-942-0, 98181942	8-98039-233-0	01	1	-
20	07.425 SEAT; LEAF SPR,FRT (B) ASM PART: A = 8-98181-939-0, 98181939, B = 8-98181-941-0, 98181941, C = 8-98181-942-0, 98181942, D = 8-98181-943-0, 98181943	8-98041-368-0	01	1	-
29	07.425 SUPPORTER; LEAF SPR,FRT ASM PART: A = 8-98181-939-0, 98181939, D = 8-98181-943-0, 98181943	8-98152-826-0	01	1	-
