4-50 — FRONT SUSPENSION (#166383) — 55 parça

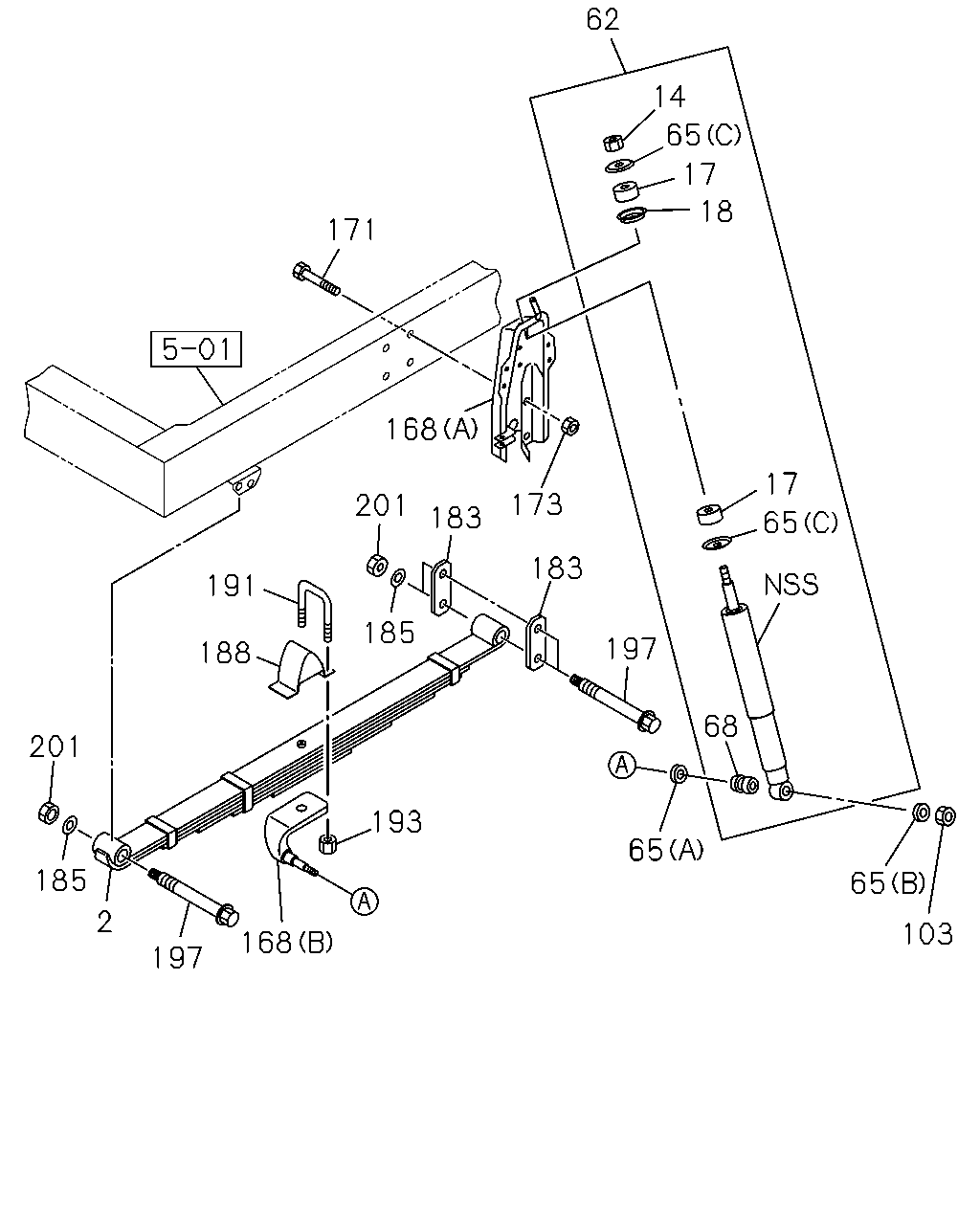

62 14 65 17 18 17 65 68 197 183 173 183 168 201 185 191 188 201 185 2 197 168 193 65 65 103 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 8.0-11.0TON(RQZ) 6-LEAF	8-98181-939-0	01	1	1509-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 8.0-11.0TON(RQZ) 6-LEAF	8-98181-943-0	01	1	1509-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-11.0TON(RQZ) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98181-941-0	01	1	1509-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-11.0TON(RQZ) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98181-942-0	01	1	1509-
14	07.389 NUT; S/ABS,UPR TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) G.V.W. 8.0-11.0TON(RQZ) M10 T=8	9-09640-020-0	02	1	1509-
17	07.388 BUSHING; RUBBER,S/ABS TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) G.V.W. 8.0-11.0TON(RQZ) TOKICO	9-51631-603-0	04	1	1509-
18	07.347 WASHER; CENTERING,S/ABS TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) G.V.W. 8.0-11.0TON(RQZ) TOKICO	8-94412-791-0	02	1	1509-
62	07.345 ABSORBER ASM; SHOCK,FRT TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) G.V.W. 8.0-11.0TON(RQZ)	8-98232-673-1	02	1	1509-
65	07.347 WASHER; S/ABS TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) G.V.W. 8.0-11.0TON(RQZ) (C) OD=40	9-51631-614-0	04	1	1509-
65	07.347 WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	1509-
65	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	1509-
68	07.388 BUSHING; S/ABS TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) G.V.W. 8.0-11.0TON(RQZ) TOKICO	8-94382-149-0	02	1	1509-
103	07.347 NUT; S/ABS TO LWR LINK 07.833 M14	0-91110-514-0	02	1	1509-
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-98180-782-2	01	1	1509-
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-98180-784-2	01	1	1509-
168	07.380 BRACKET; S/ABS,FRT SUSP (B)	8-98181-880-0	01	1	1509-
168	07.380 BRACKET; S/ABS,FRT SUSP (B)	8-98181-881-0	01	1	1509-
171	07.395 BOLT; S/ABS BRKT 09.003 M12X35 FLANGE	0-28651-235-0	08	1	1509-
173	07.395 NUT; S/ABS M12	8-97360-126-0	08	1	1509-
183	07.436 SHACKLE; FRT SUSP	8-94110-399-3	04	1	1509-
185	07.427 WASHER; LK,PIN KD PREPARATORY PACK<6HF> ID=16.5	8-98011-489-0	06	1	1509-
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	1509-
191	07.417 U-BOLT; FRT SPR G.V.W. 8.0-11.0TON(RQZ) L=165	9-51171-075-1	04	1	1509-
193	07.417 NUT; U BOLT M16	8-97360-121-0	08	1	1509-
197	07.427 PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122	8-98011-487-0	06	1	1509-
197	07.427 PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	1509-
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.509 M16	0-91110-516-0	06	1	1509-
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	1509-

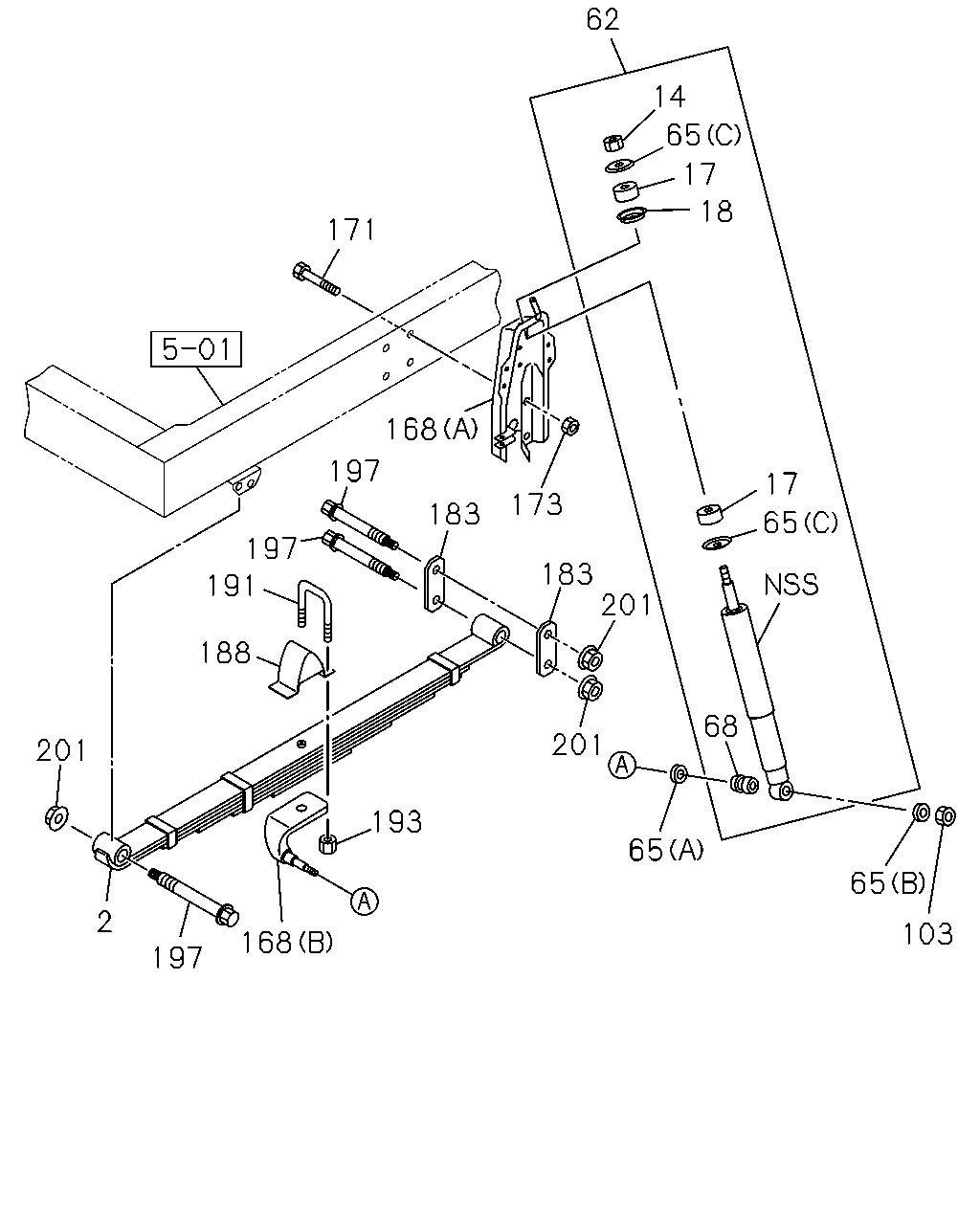

62 14 65 17 18 17 65 65 103 65 68 201 201 183 173 183 168 197 197 191 188 201 2 197 168 193 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 8.0-11.0TON(RQZ) 6-LEAF	8-98181-939-0	01	1	1509-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 8.0-11.0TON(RQZ) 6-LEAF	8-98181-943-0	01	1	1509-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-11.0TON(RQZ) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98181-941-0	01	1	1509-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-11.0TON(RQZ) EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98181-942-0	01	1	1509-
14	07.389 NUT; S/ABS,UPR TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) G.V.W. 8.0-11.0TON(RQZ) M10 T=8	9-09640-020-0	02	1	1509-
17	07.388 BUSHING; RUBBER,S/ABS TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) G.V.W. 8.0-11.0TON(RQZ) TOKICO	9-51631-603-0	04	1	1509-
18	07.347 WASHER; CENTERING,S/ABS TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) G.V.W. 8.0-11.0TON(RQZ) TOKICO	8-94412-791-0	02	1	1509-
62	07.345 ABSORBER ASM; SHOCK,FRT TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) G.V.W. 8.0-11.0TON(RQZ)	8-98232-673-1	02	1	1509-
65	07.347 WASHER; S/ABS TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) G.V.W. 8.0-11.0TON(RQZ) (C) OD=40	9-51631-614-0	04	1	1509-
65	07.347 WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	1509-
65	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	1509-
68	07.388 BUSHING; S/ABS TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) G.V.W. 8.0-11.0TON(RQZ) TOKICO	8-94382-149-0	02	1	1509-
103	07.347 NUT; S/ABS TO LWR LINK 07.833 M14	0-91110-514-0	02	1	1509-
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-98180-782-2	01	1	1509-
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-98180-784-2	01	1	1509-
168	07.380 BRACKET; S/ABS,FRT SUSP (B)	8-98181-880-0	01	1	1509-
168	07.380 BRACKET; S/ABS,FRT SUSP (B)	8-98181-881-0	01	1	1509-
171	07.395 BOLT; S/ABS BRKT 09.003 M12X35 FLANGE	0-28651-235-0	08	1	1509-
173	07.395 NUT; S/ABS M12	8-97360-126-0	08	1	1509-
183	07.436 SHACKLE; FRT SUSP	8-94110-399-3	04	1	1509-
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	1509-
191	07.417 U-BOLT; FRT SPR G.V.W. 8.0-11.0TON(RQZ) L=165	9-51171-075-1	04	1	1509-
193	07.417 NUT; U BOLT M16	8-97360-121-0	08	1	1509-
197	07.427 PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122	8-98011-487-0	06	1	1509-
197	07.427 PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	1509-
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.509 M16	0-91110-516-0	06	1	1509-
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	1509-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
