Isuzu WW
▶
TRUCKS
▶
NQR
▶
51637 - NQR AIR BRAKE LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-30 - STEERING WHEEL AND COWL
▶
4-30 — STEERING WHEEL AND COWL
(#166376) — 27 parça
◀

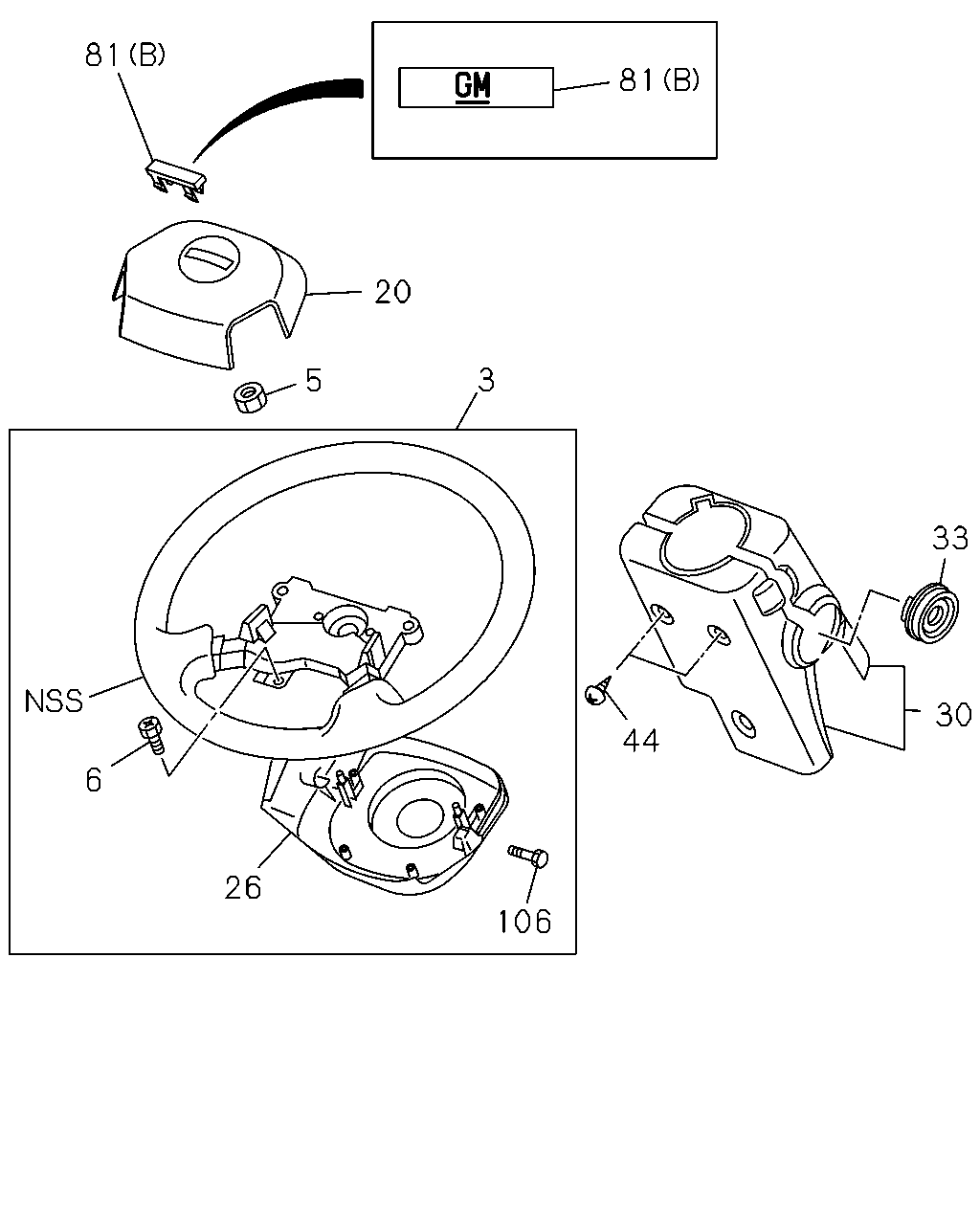

[430A] CHILE (14 parça)

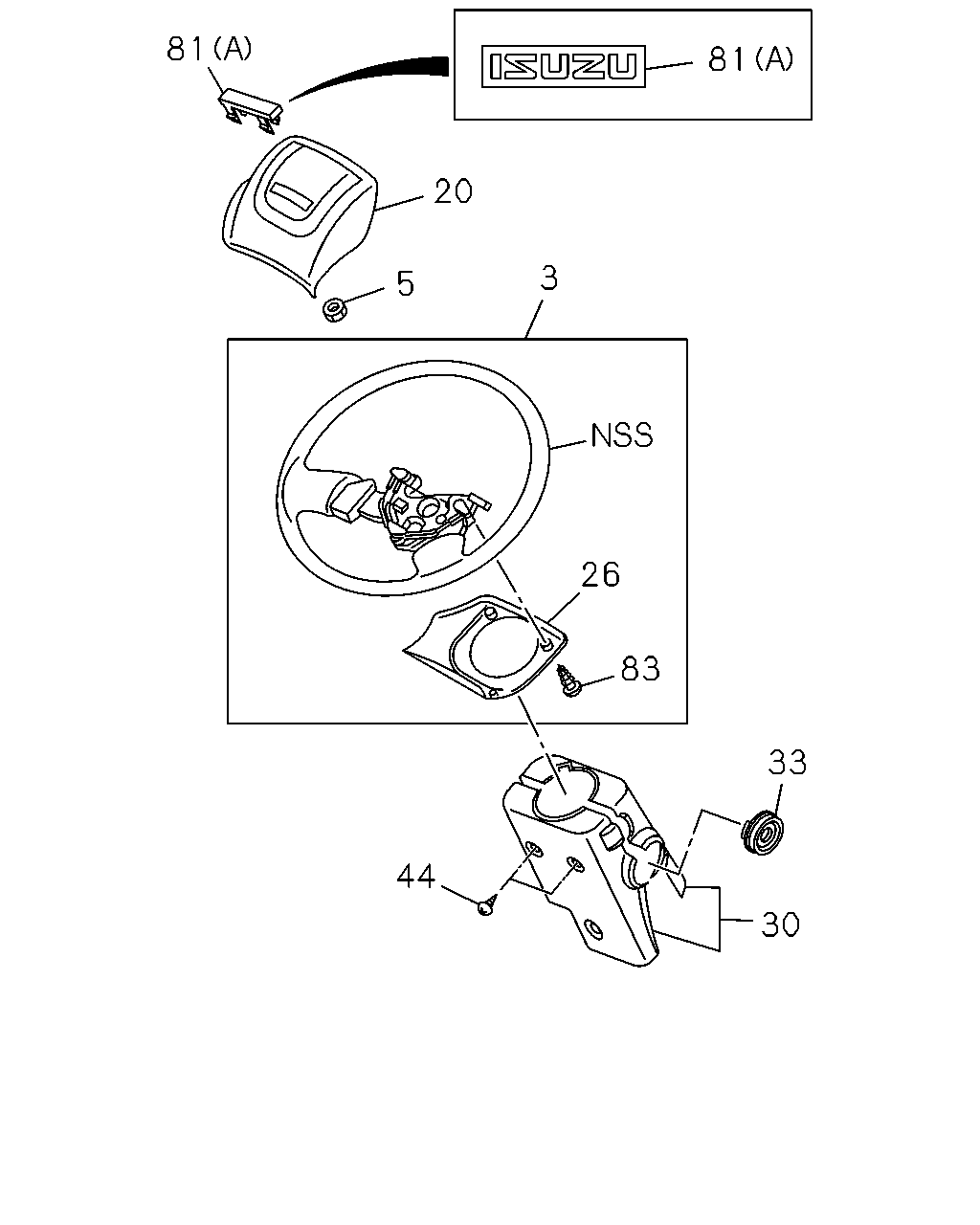

[430A] EXC.CHILE (13 parça)
▶
81
20
5
3
81
6
26
106
44
33
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
06.513 WHEEL; STRG
CHILE EQUIPMENT(KE1) DARK GRAY
8-97412-556-1
01
1
1509-
3
06.513 WHEEL; STRG
EXC. CHILE EQUIPMENT(KE1) DARK GRAY
8-97465-649-2
01
1
1509-
5
06.515 NUT; STRG WHEEL TO SHAFT
M14
0-91111-514-0
01
1
1509-
6
02.820 SCREW; HORN SPR CONTACT
CHILE EQUIPMENT(KE1) M4X12
8-97167-588-0
04
1
1509-
20
06.512 SHROUD; PAD,STRG WHEEL
CHILE EQUIPMENT(KE1) DARK GRAY
8-97405-985-1
01
1
1509-
20
06.512 SHROUD; PAD,STRG WHEEL
EXC. CHILE EQUIPMENT(KE1) DARK GRAY
8-97465-647-0
01
1
1509-
26
06.514 COVER; STRG WHEEL,LWR
CHILE EQUIPMENT(KE1) DARK GRAY
8-97409-275-2
01
1
1509-
26
06.514 COVER; STRG WHEEL,LWR
EXC. CHILE EQUIPMENT(KE1) DARK GRAY
8-97465-650-0
01
1
1509-
30
06.518 COWL; STEERING
DARK GRAY
8-97418-761-1
01
1
1509-
33
06.518 COVER; STRG COWL
DARK GRAY
8-97409-495-0
01
1
1509-
44
06.514 SCREW; STRG COWL
M5X12
0-38050-512-0
03
1
1509-
81
02.820 EMBLEM; STRG WHEEL
CHILE EQUIPMENT(KE1) EXC. ISUZU BRAND<7WL> (B) DARK GRAY
8-97405-987-0
01
1
1509-
81
02.820 EMBLEM; STRG WHEEL
ISUZU BRAND<7WL> EXC. CHILE EQUIPMENT(KE1) (A) DARK GRAY
8-97465-648-0
01
1
1509-
106
05.453 BOLT; TORX
CHILE EQUIPMENT(KE1)
8-98231-397-0
02
1
1509-
81
81
20
5
3
26
83
33
30
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
06.513 WHEEL; STRG
CHILE EQUIPMENT(KE1) DARK GRAY
8-97412-556-1
01
1
1509-
3
06.513 WHEEL; STRG
EXC. CHILE EQUIPMENT(KE1) DARK GRAY
8-97465-649-2
01
1
1509-
5
06.515 NUT; STRG WHEEL TO SHAFT
M14
0-91111-514-0
01
1
1509-
20
06.512 SHROUD; PAD,STRG WHEEL
CHILE EQUIPMENT(KE1) DARK GRAY
8-97405-985-1
01
1
1509-
20
06.512 SHROUD; PAD,STRG WHEEL
EXC. CHILE EQUIPMENT(KE1) DARK GRAY
8-97465-647-0
01
1
1509-
26
06.514 COVER; STRG WHEEL,LWR
CHILE EQUIPMENT(KE1) DARK GRAY
8-97409-275-2
01
1
1509-
26
06.514 COVER; STRG WHEEL,LWR
EXC. CHILE EQUIPMENT(KE1) DARK GRAY
8-97465-650-0
01
1
1509-
30
06.518 COWL; STEERING
DARK GRAY
8-97418-761-1
01
1
1509-
33
06.518 COVER; STRG COWL
DARK GRAY
8-97409-495-0
01
1
1509-
44
06.514 SCREW; STRG COWL
M5X12
0-38050-512-0
03
1
1509-
81
02.820 EMBLEM; STRG WHEEL
CHILE EQUIPMENT(KE1) EXC. ISUZU BRAND<7WL> (B) DARK GRAY
8-97405-987-0
01
1
1509-
81
02.820 EMBLEM; STRG WHEEL
ISUZU BRAND<7WL> EXC. CHILE EQUIPMENT(KE1) (A) DARK GRAY
8-97465-648-0
01
1
1509-
83
06.514 SCREW; LWR COVER TO WHEEL
EXC. CHILE EQUIPMENT(KE1) 09.242 M4X10 TAPPING
0-71240-410-0
03
1
1509-
