◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51637 - NQR AIR BRAKE LHD ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#166368) — 113 parça

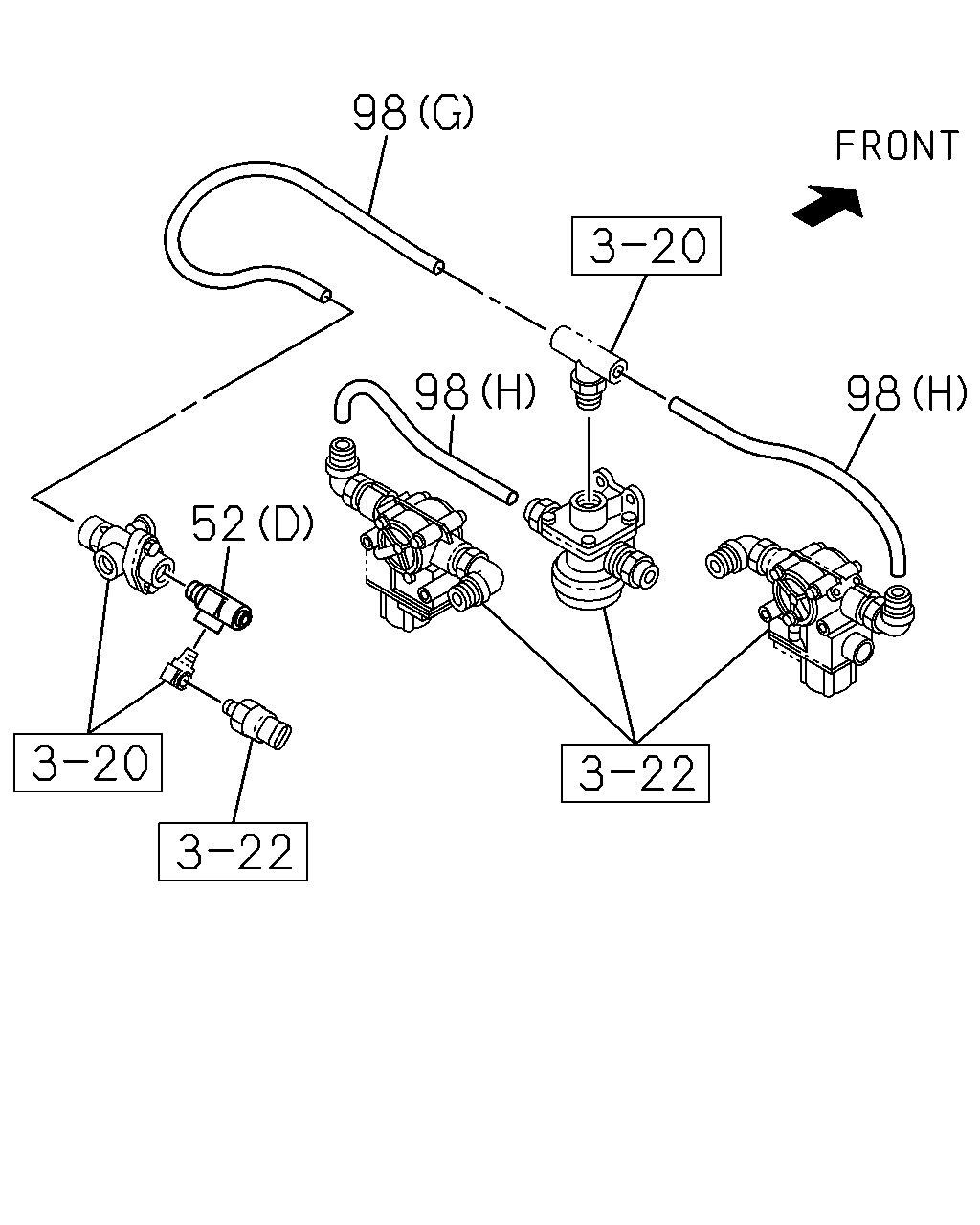

çizim 492504
98 98 52 98
BalonParca AdiParca NoAdetTipApplied Date
52 04.867 CONNECTOR; NYLON TUBE
(B) DIN12 ID=15.4 ELBOW 		1-09661-079-1 02 1 1509-
52 04.867 CONNECTOR; NYLON TUBE
(C) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1509-
52 04.867 CONNECTOR; NYLON TUBE
(A) 		8-98202-492-0 02 1 1509-
52 04.867 CONNECTOR; NYLON TUBE
(D) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-027-0 01 1 1509-
98 04.867 TUBE; NYLON
(D) SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 1509-
98 04.867 TUBE; NYLON
(E) SERVICED BY L=4000 OD=12 		1-87411-012-0 02 1 1509-
98 04.867 TUBE; NYLON
(A) 		8-98186-672-1 01 1 1509-
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98178-076-3 01 1 1509-
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-98181-107-1 02 1 1509-
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98274-198-0 01 1 1509-
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-98277-160-0 02 1 1509-
98 04.867 TUBE; NYLON
(G) 		8-98288-834-0 01 1 1509-
98 04.867 TUBE; NYLON
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98181-168-2 01 1 1509-
98 04.867 TUBE; NYLON
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98181-169-3 01 1 1509-
98 04.867 TUBE; NYLON
WHEEL BASE 3300MM(33W) (F) 		8-98269-743-1 01 1 1509-
98 04.867 TUBE; NYLON
WHEEL BASE 3800MM(38W) (F) 		8-98269-744-1 01 1 1509-
98 04.867 TUBE; NYLON
WHEEL BASE 4100MM(41W) (F) 		8-98269-745-1 01 1 1509-
çizim 492507
159 96 96
BalonParca AdiParca NoAdetTipApplied Date
96 04.867 TUBE ASM; NYLON AIR VLV TO UNION 8-98169-682-0 01 1 1509-
159 04.866 CLIP; NYLON TUBE
02.559 (A) L=251 		8-97619-917-0 03 1 1509-
159 04.866 CLIP; NYLON TUBE
04.128 (B) L=213.5 		8-98000-506-1 05 1 1509-
159 04.866 CLIP; NYLON TUBE
04.439 (C) L=200 		8-98081-183-0 01 1 1509-
159 04.866 CLIP; NYLON TUBE
(D) 		8-98179-225-0 01 1 1509-

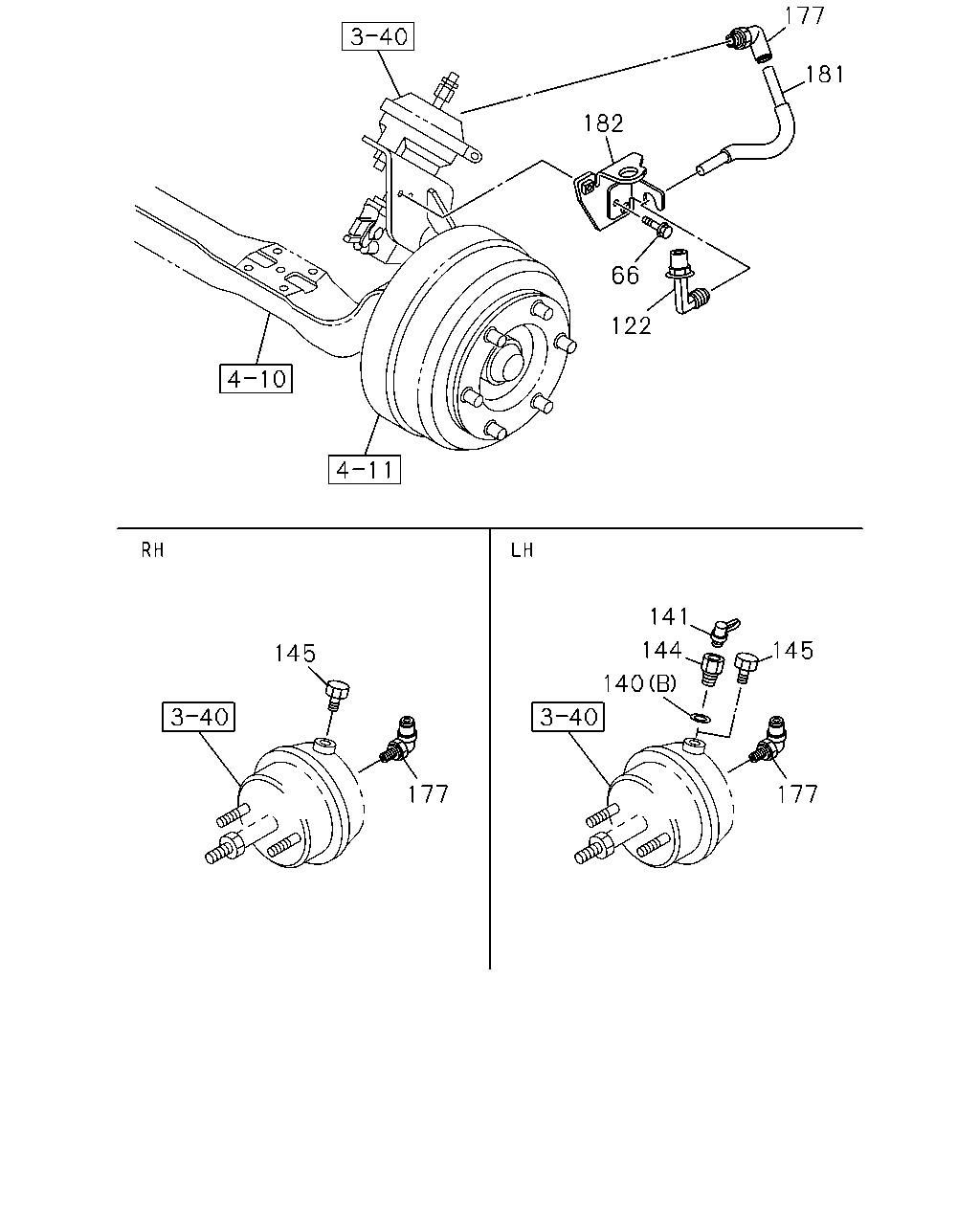

çizim 492871
145 177 141 144 145 140 177 66 122 181 177 182
BalonParca AdiParca NoAdetTipApplied Date
66 04.686 BOLT; HOSE BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1509-
122 04.866 CONNECTOR; FLEX HOSE 8-98179-488-0 02 1 1509-
140 04.868 GASKET; CONNECTOR
(A) ID=11 OD=18 		9-09572-510-0 04 1 1509-
140 04.868 GASKET; CONNECTOR
BRAKE REGULATION ECE(TDV) 01.252 (B) ID=16.2 OD=24 		9-09571-416-0 01 1 1509-
141 04.868 CONNECTOR; TEST
BRAKE REGULATION ECE(TDV) 04.866 R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1509-
144 04.866 ADAPTER
BRAKE REGULATION ECE(TDV) 		1-09661-821-0 01 1 1509-
145 04.868 PLUG
BRAKE REGULATION ECE(TDV) 		1-09661-522-0 01 1 1509-
145 04.868 PLUG
EXC. BRAKE REGULATION ECE(TDV) 		1-09661-522-0 02 1 1509-
177 04.866 CONNECTOR 1-09661-496-0 02 1 1509-
181 04.866 TUBE; CHAMBER,BRK 8-98182-142-0 02 1 1509-
182 04.866 BRACKET; CONNECTOR 8-98238-363-0 01 1 1509-
182 04.866 BRACKET; CONNECTOR 8-98238-364-0 01 1 1509-

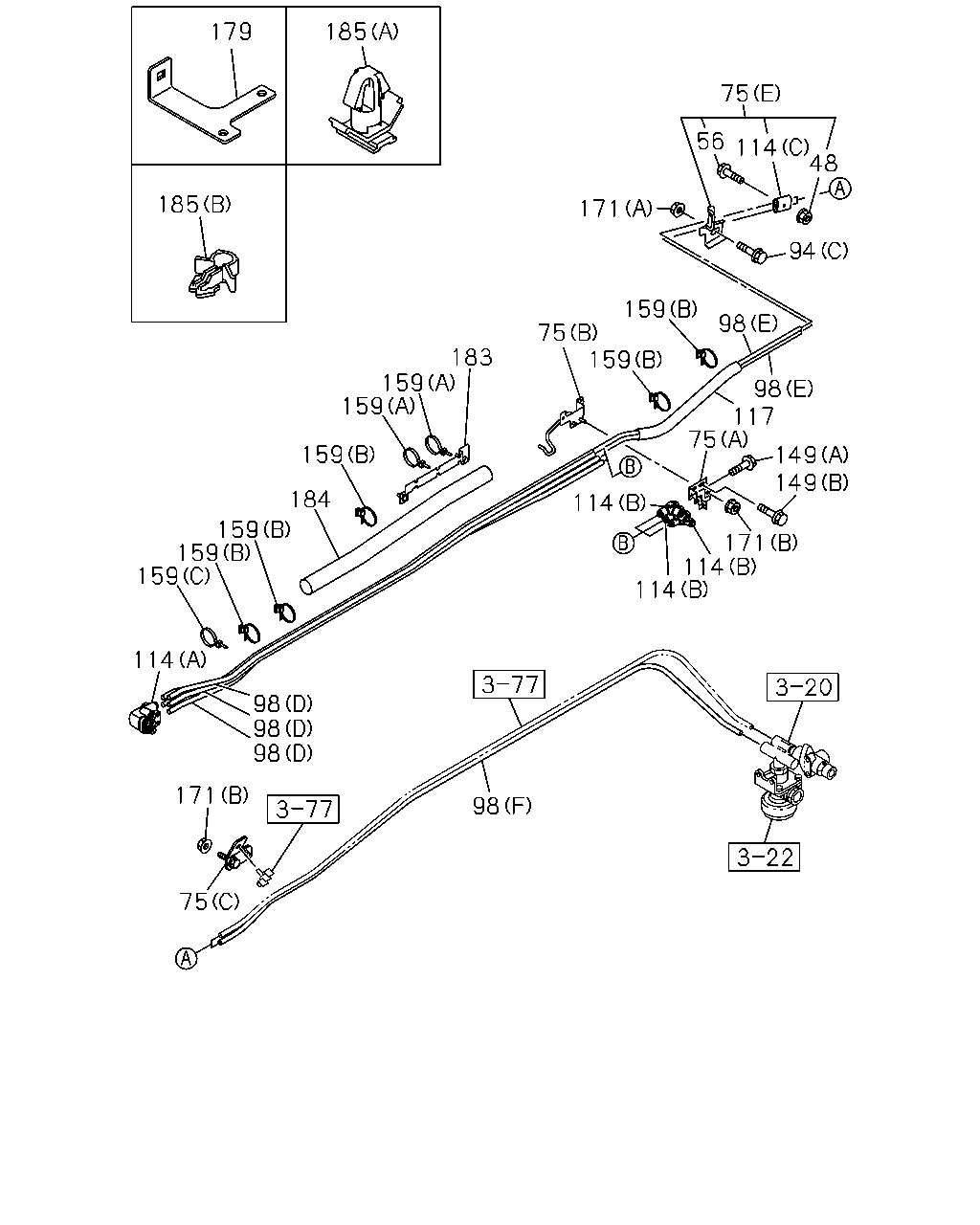

çizim 493125
179 185 185 159 159 159 184 114 171 75 98 98 98 98 114 114 171 114 149 149 75 117 98 159 75 159 171 94 48 114 56 75 183 159 159 159 98
BalonParca AdiParca NoAdetTipApplied Date
48 04.866 NUT; UNION BRKT
01.062 M6 FLANGE 		0-91180-106-0 01 1 1509-
56 04.866 BOLT; UNION BRKT
03.330 M6X35 FLANGE 		0-28050-635-0 01 1 1509-
75 04.866 BRACKET; UNION
(D) 		8-98178-160-2 01 1 1509-
75 04.866 BRACKET; UNION
(B) 		8-98197-668-1 01 1 1509-
75 04.866 BRACKET; UNION
(A) 		8-98197-669-0 01 1 1509-
75 04.866 BRACKET; UNION
(C) 		8-98196-436-0 01 1 1509-
75 04.866 BRACKET; UNION
(E) 		8-98284-449-0 01 1 1509-
94 04.866 BOLT; BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1509-
94 04.866 BOLT; BRKT
00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 1509-
94 04.866 BOLT; BRKT
00.029 (C) M10X30 FLANGE 		0-28651-030-0 01 1 1509-
98 04.867 TUBE; NYLON
(D) SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 1509-
98 04.867 TUBE; NYLON
(E) SERVICED BY L=4000 OD=12 		1-87411-012-0 02 1 1509-
98 04.867 TUBE; NYLON
(A) 		8-98186-672-1 01 1 1509-
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98178-076-3 01 1 1509-
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-98181-107-1 02 1 1509-
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98274-198-0 01 1 1509-
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-98277-160-0 02 1 1509-
98 04.867 TUBE; NYLON
(G) 		8-98288-834-0 01 1 1509-
98 04.867 TUBE; NYLON
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98181-168-2 01 1 1509-
98 04.867 TUBE; NYLON
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98181-169-3 01 1 1509-
98 04.867 TUBE; NYLON
WHEEL BASE 3300MM(33W) (F) 		8-98269-743-1 01 1 1509-
98 04.867 TUBE; NYLON
WHEEL BASE 3800MM(38W) (F) 		8-98269-744-1 01 1 1509-
98 04.867 TUBE; NYLON
WHEEL BASE 4100MM(41W) (F) 		8-98269-745-1 01 1 1509-
114 04.866 UNION; NYLON TUBE
(B) 		8-98187-030-0 03 1 1509-
114 04.866 UNION; NYLON TUBE
(A) 		8-98201-091-0 01 1 1509-
114 04.866 UNION; NYLON TUBE
04.032 (C) 		8-98284-448-0 01 1 1509-
117 04.867 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 1509-
149 04.866 BOLT; UNION
02.343 (A) M8X12 FLANGE 		0-28050-812-0 03 1 1509-
149 04.866 BOLT; UNION
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1509-
159 04.866 CLIP; NYLON TUBE
02.559 (A) L=251 		8-97619-917-0 03 1 1509-
159 04.866 CLIP; NYLON TUBE
04.128 (B) L=213.5 		8-98000-506-1 05 1 1509-
159 04.866 CLIP; NYLON TUBE
04.439 (C) L=200 		8-98081-183-0 01 1 1509-
159 04.866 CLIP; NYLON TUBE
(D) 		8-98179-225-0 01 1 1509-
171 04.866 NUT; BRACKET
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1509-
171 04.866 NUT; BRACKET
01.062 (B) M8 FLANGE 		0-91180-108-0 04 1 1509-
171 04.866 NUT; BRACKET
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509-
179 04.866 BRACKET; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98186-509-1 01 1 1509-
183 04.866 BRACKET; NYLON TUBE 8-98179-681-3 01 1 1509-
184 04.866 PROTECTOR; HEAT,NYLON TUBE 8-98187-615-2 01 1 1509-
185 04.681 CLIP; AIR BRAKE CHAS HARNESS
02.559 (A) OD=9 H=6 		1-09709-178-0 01 1 1509-
185 04.681 CLIP; AIR BRAKE CHAS HARNESS
02.559 (B) ID=9 		8-97063-874-0 01 1 1509-

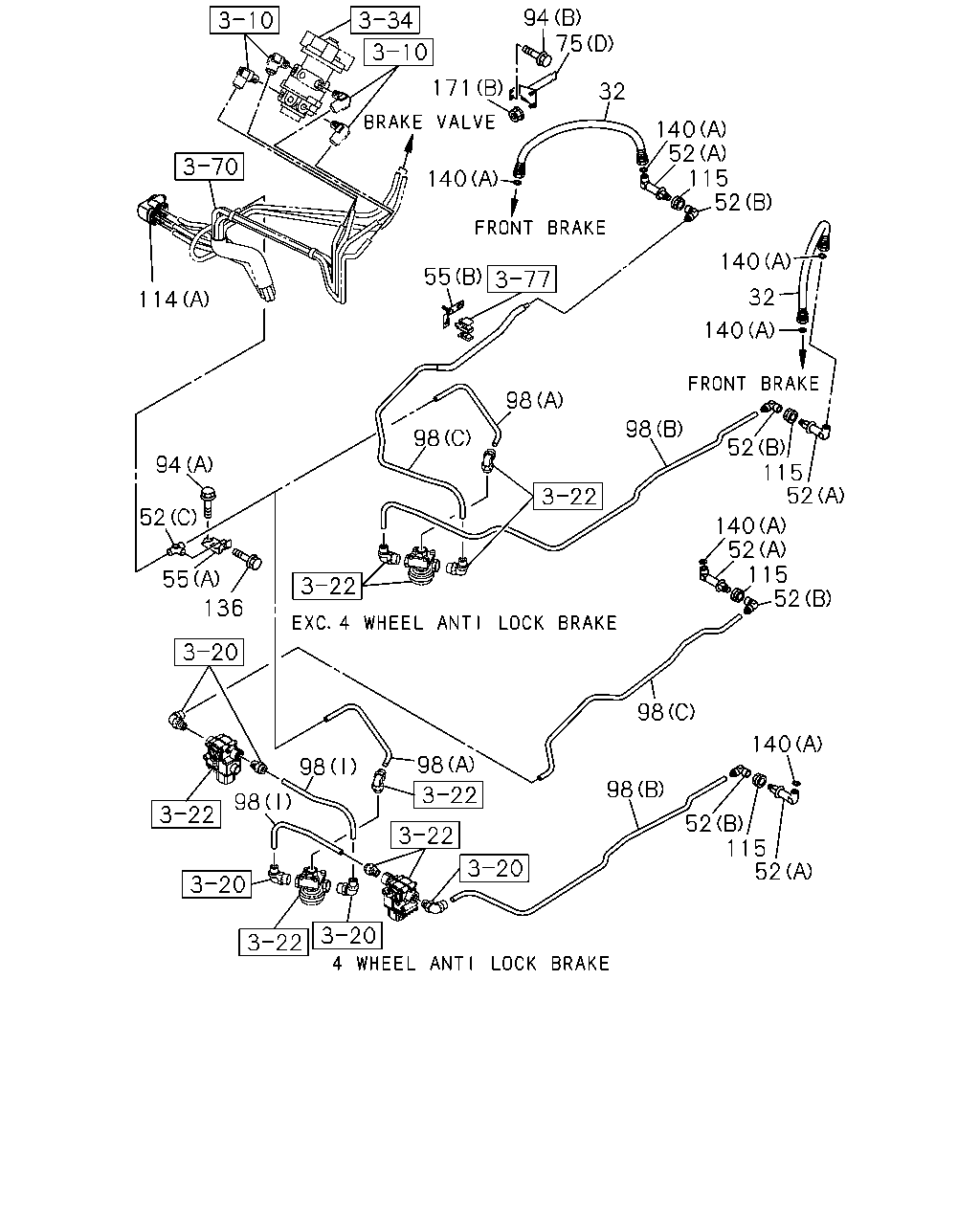

çizim 494551
114 94 52 55 136 98 98 98 98 98 52 115 52 140 52 115 52 140 52 115 52 98 140 32 140 52 115 52 140 32 94 75 171 140 98 55 98
BalonParca AdiParca NoAdetTipApplied Date
32 04.867 HOSE; FLEX,FRT 8-98186-512-0 02 1 1509-
52 04.867 CONNECTOR; NYLON TUBE
(B) DIN12 ID=15.4 ELBOW 		1-09661-079-1 02 1 1509-
52 04.867 CONNECTOR; NYLON TUBE
(C) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1509-
52 04.867 CONNECTOR; NYLON TUBE
(A) 		8-98202-492-0 02 1 1509-
52 04.867 CONNECTOR; NYLON TUBE
(D) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-027-0 01 1 1509-
55 04.866 BRACKET; TUBE UNION
(A) 		8-98186-684-1 01 1 1509-
55 04.866 BRACKET; TUBE UNION
(B) 		8-98203-066-0 01 1 1509-
75 04.866 BRACKET; UNION
(D) 		8-98178-160-2 01 1 1509-
75 04.866 BRACKET; UNION
(B) 		8-98197-668-1 01 1 1509-
75 04.866 BRACKET; UNION
(A) 		8-98197-669-0 01 1 1509-
75 04.866 BRACKET; UNION
(C) 		8-98196-436-0 01 1 1509-
75 04.866 BRACKET; UNION
(E) 		8-98284-449-0 01 1 1509-
94 04.866 BOLT; BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1509-
94 04.866 BOLT; BRKT
00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 1509-
94 04.866 BOLT; BRKT
00.029 (C) M10X30 FLANGE 		0-28651-030-0 01 1 1509-
98 04.867 TUBE; NYLON
(D) SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 1509-
98 04.867 TUBE; NYLON
(E) SERVICED BY L=4000 OD=12 		1-87411-012-0 02 1 1509-
98 04.867 TUBE; NYLON
(A) 		8-98186-672-1 01 1 1509-
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98178-076-3 01 1 1509-
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-98181-107-1 02 1 1509-
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98274-198-0 01 1 1509-
98 04.867 TUBE; NYLON
4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-98277-160-0 02 1 1509-
98 04.867 TUBE; NYLON
(G) 		8-98288-834-0 01 1 1509-
98 04.867 TUBE; NYLON
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98181-168-2 01 1 1509-
98 04.867 TUBE; NYLON
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98181-169-3 01 1 1509-
98 04.867 TUBE; NYLON
WHEEL BASE 3300MM(33W) (F) 		8-98269-743-1 01 1 1509-
98 04.867 TUBE; NYLON
WHEEL BASE 3800MM(38W) (F) 		8-98269-744-1 01 1 1509-
98 04.867 TUBE; NYLON
WHEEL BASE 4100MM(41W) (F) 		8-98269-745-1 01 1 1509-
114 04.866 UNION; NYLON TUBE
(B) 		8-98187-030-0 03 1 1509-
114 04.866 UNION; NYLON TUBE
(A) 		8-98201-091-0 01 1 1509-
114 04.866 UNION; NYLON TUBE
04.032 (C) 		8-98284-448-0 01 1 1509-
115 04.866 NUT; TUBE UNION 8-98201-087-0 02 1 1509-
136 04.866 BOLT; CONNECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1509-
140 04.868 GASKET; CONNECTOR
(A) ID=11 OD=18 		9-09572-510-0 04 1 1509-
140 04.868 GASKET; CONNECTOR
BRAKE REGULATION ECE(TDV) 01.252 (B) ID=16.2 OD=24 		9-09571-416-0 01 1 1509-
171 04.866 NUT; BRACKET
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1509-
171 04.866 NUT; BRACKET
01.062 (B) M8 FLANGE 		0-91180-108-0 04 1 1509-
171 04.866 NUT; BRACKET
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1509-
