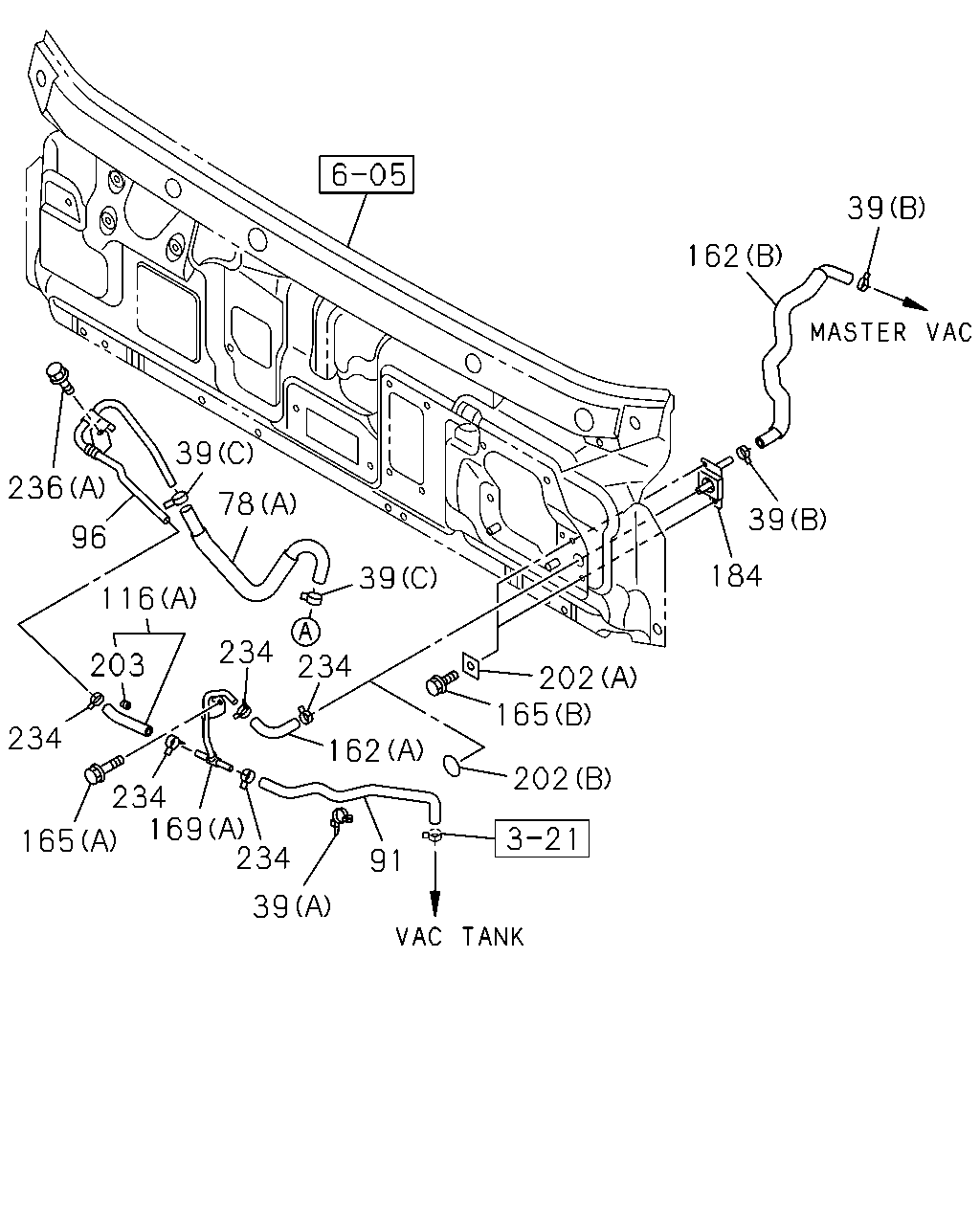

3-60 — BRAKE PIPING; VACUUM (#166366) — 80 parça

162 39 39 184 202 165 202 162 91 234 39 169 234 165 234 203 116 234 234 39 78 39 96 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (C) ID=16	8-97329-628-0	02	1	1509-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1509-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1509-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98081-681-2	01	1	1509-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98189-106-0	01	1	1509-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98197-253-0	01	1	1509-
91	04.931 HOSE; VAC,RESERVE TANK POWER ASSIST CLUTCH(S2T)	8-98174-537-2	01	1	1509-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T)	8-98181-382-1	01	1	1509-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1509-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98174-560-0	01	1	1509-
116	04.931 HOSE; VAC,M/VAC (B)	8-98178-956-0	01	1	1509-
116	04.931 HOSE; VAC,M/VAC CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=180 SERVICED BY L=3000	0-08258-300-0	01	1	1509-
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (B)	8-98169-697-0	01	1	1509-
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (A)	8-98174-561-0	01	1	1509-
165	04.686 BOLT; BRKT POWER ASSIST CLUTCH(S2T) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1509-
165	04.686 BOLT; BRKT POWER ASSIST CLUTCH(S2T) 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1509-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL(6MZ) (C)	8-98181-501-3	01	1	1509-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98180-911-2	01	1	1509-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98179-003-4	01	1	1509-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98174-523-2	01	1	1509-
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T),CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98180-963-3	01	1	1509-
169	04.930 PIPE; VAC,BOOSTER SIDE CATALYSIS CONTROL WITH DPD(8JM) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-965-4	01	1	1509-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T)	8-98169-731-1	01	1	1509-
202	04.686 SEAL POWER ASSIST CLUTCH(S2T) 08.845 (A)	8-97856-616-0	02	1	1509-
202	04.686 SEAL EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98201-038-0	01	1	1509-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T)	8-94104-021-0	01	1	1509-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	05	1	1509-
236	04.930 BOLT; PIPE POWER ASSIST CLUTCH(S2T) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1509-
236	04.930 BOLT; PIPE WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1509-
236	04.930 BOLT; PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1509-
236	04.930 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1509-

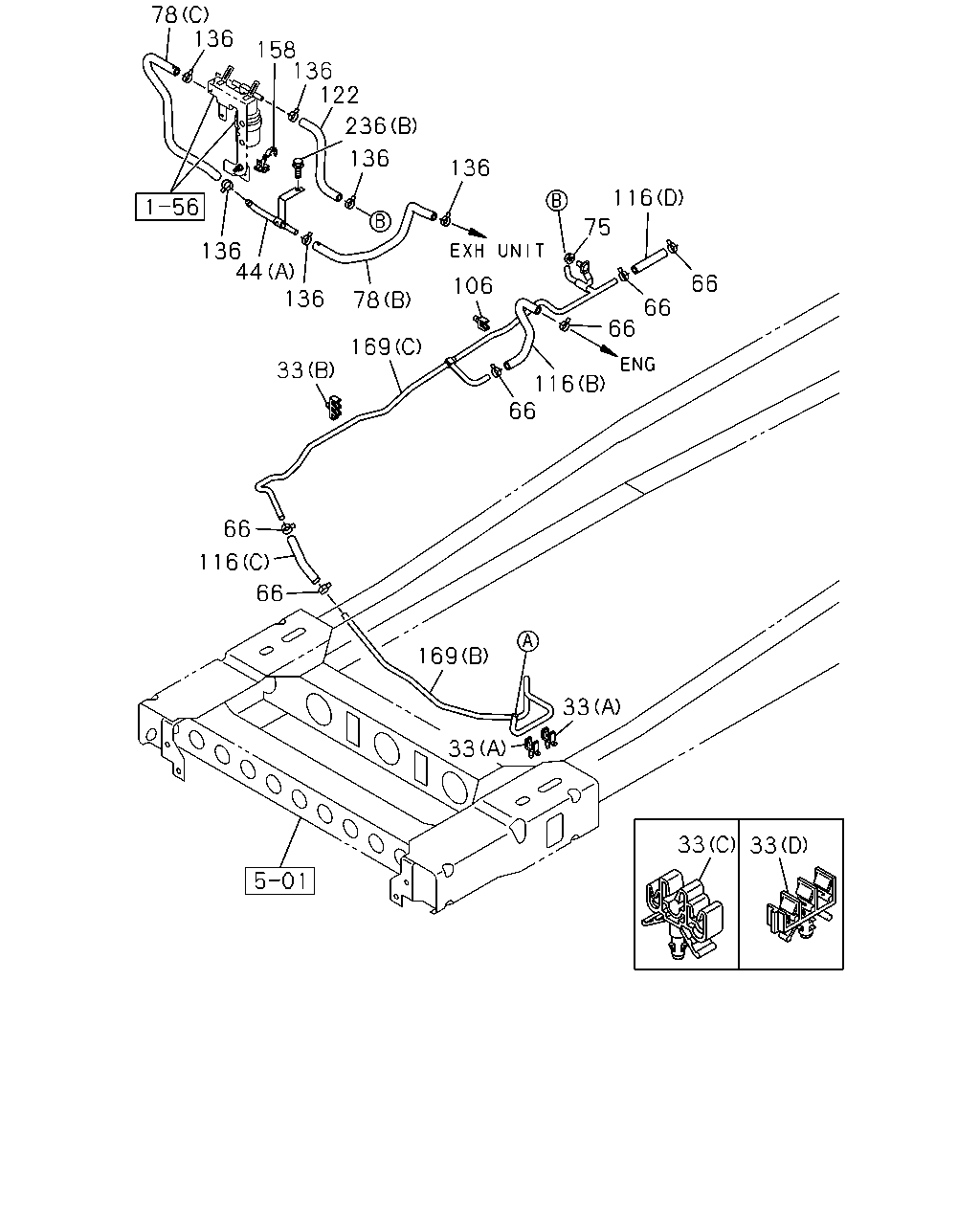

78 158 136 122 136 236 136 136 116 66 66 66 75 106 116 66 78 169 33 136 44 136 66 116 66 169 33 33 33 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	04.930 CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) (A) ID=10 H=40	8-94462-219-0	02	1	1509-
33	04.930 CLIP; VAC PIPE 03.162 (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1509-
33	04.930 CLIP; VAC PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	03	1	1509-
33	04.930 CLIP; VAC PIPE 03.162 (C) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	03	1	1509-
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98040-807-1	01	1	1509-
44	04.930 PIPE; VAC,MAG VLV (A)	8-98034-281-1	01	1	1509-
66	04.930 CLIP; VAC HOSE,M/VAC POWER ASSIST CLUTCH(S2T) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	04	1	1509-
66	04.930 CLIP; VAC HOSE,M/VAC EXC. POWER ASSIST CLUTCH(S2T),CATALYSIS CONTROL(6MZ) 03.162 ID=16	8-98008-098-0	04	1	1509-
66	04.930 CLIP; VAC HOSE,M/VAC POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1509-
66	04.930 CLIP; VAC HOSE,M/VAC EXC. POWER ASSIST CLUTCH(S2T),CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	02	1	1509-
75	04.930 NUT; CLIP,VAC HOSE 03.162 M10 FLANGE	0-91180-110-0	01	1	1509-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98081-681-2	01	1	1509-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98189-106-0	01	1	1509-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98197-253-0	01	1	1509-
106	04.930 CLIP; PIPE CATALYSIS CONTROL WITH DPD(8JM) ID=10 H=40	8-94462-219-0	03	1	1509-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1509-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98174-560-0	01	1	1509-
116	04.931 HOSE; VAC,M/VAC (B)	8-98178-956-0	01	1	1509-
116	04.931 HOSE; VAC,M/VAC CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=180 SERVICED BY L=3000	0-08258-300-0	01	1	1509-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98179-179-1	01	1	1509-
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	1509-
158	04.681 CLIP; HOSE 02.559 ID=14-20	8-97061-603-0	01	1	1509-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL(6MZ) (C)	8-98181-501-3	01	1	1509-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98180-911-2	01	1	1509-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98179-003-4	01	1	1509-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98174-523-2	01	1	1509-
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T),CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98180-963-3	01	1	1509-
169	04.930 PIPE; VAC,BOOSTER SIDE CATALYSIS CONTROL WITH DPD(8JM) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-965-4	01	1	1509-
236	04.930 BOLT; PIPE POWER ASSIST CLUTCH(S2T) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1509-
236	04.930 BOLT; PIPE WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1509-
236	04.930 BOLT; PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1509-
236	04.930 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1509-

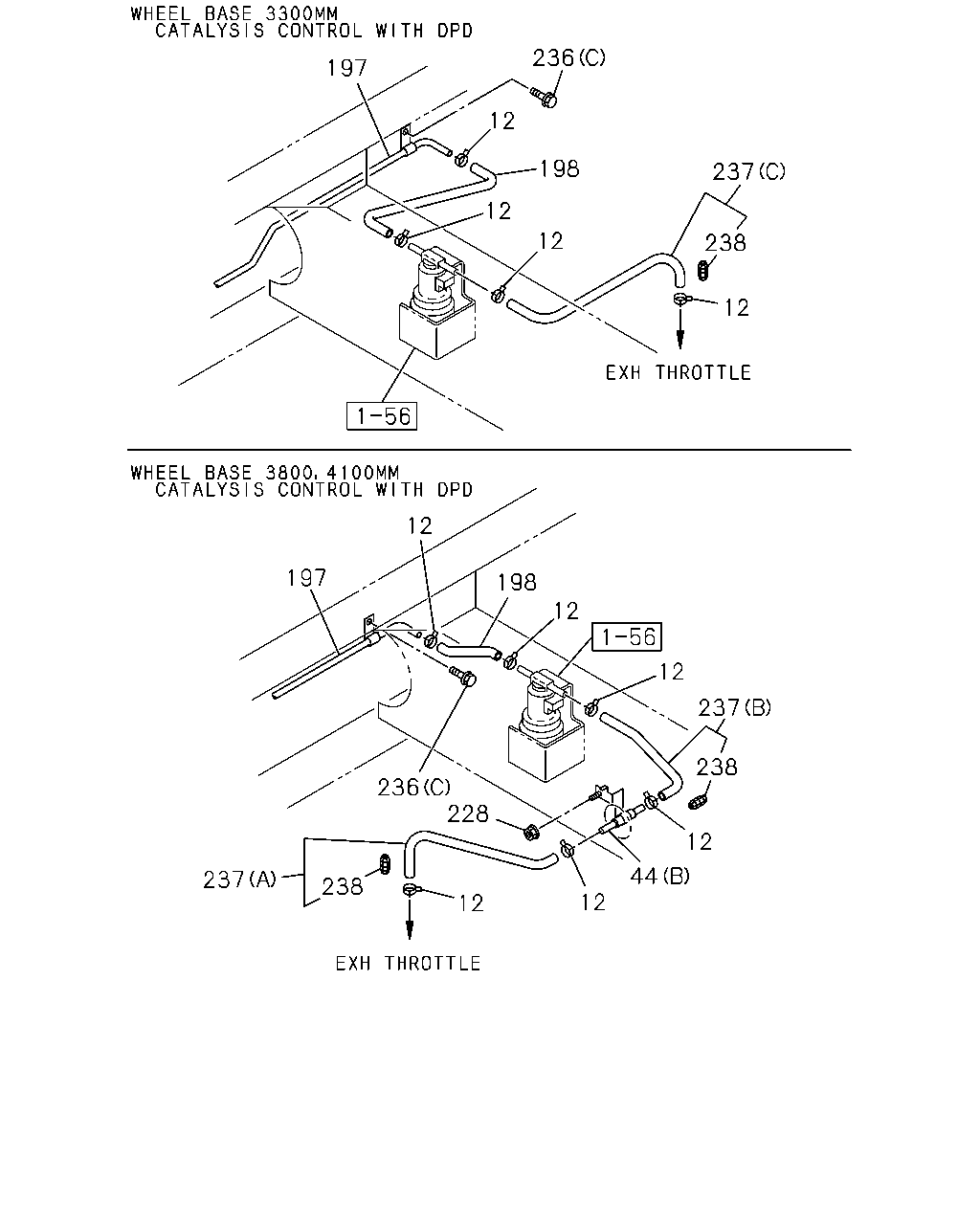

197 12 236 198 12 12 237 238 12 12 198 12 197 236 228 12 238 237 12 12 238 237 12 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	04	1	1509-
12	04.681 CLIP; HOSE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1509-
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98040-807-1	01	1	1509-
44	04.930 PIPE; VAC,MAG VLV (A)	8-98034-281-1	01	1	1509-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM)	8-98181-077-4	01	1	1509-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM)	8-98179-118-4	01	1	1509-
198	04.931 HOSE; VAC,PIPE TO MAG VLV CATALYSIS CONTROL WITH DPD(8JM)	8-98206-671-0	01	1	1509-
228	04.930 NUT; PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE	0-91180-110-0	01	1	1509-
236	04.930 BOLT; PIPE POWER ASSIST CLUTCH(S2T) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1509-
236	04.930 BOLT; PIPE WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1509-
236	04.930 BOLT; PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	1509-
236	04.930 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1509-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97378-772-0	01	1	1509-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97378-771-0	01	1	1509-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98040-785-1	01	1	1509-
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM)	8-97377-521-0	01	1	1509-
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM)	8-97377-521-0	02	1	1509-
