Isuzu WW
▶
TRUCKS
▶
NQR
▶
51637 - NQR AIR BRAKE LHD
▶
3 - Brakes, Brake System
▶
3-50 - BRAKE PIPING; OIL,MASTER CYLINDER
▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER
(#166364) — 13 parça
◀

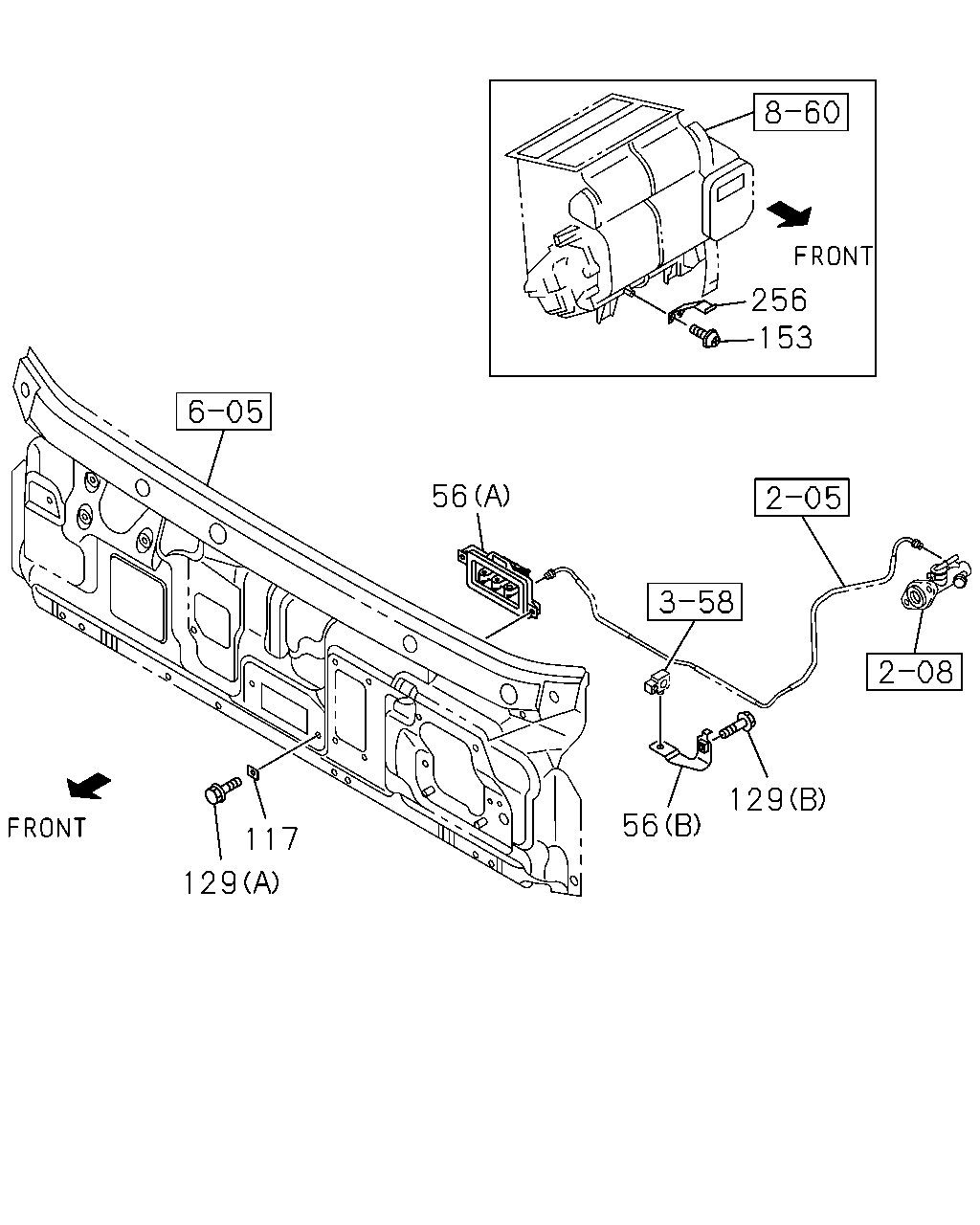

[350A] CAB SIDE (7 parça)
[350A] FRAME SIDE (6 parça)
▶
256
153
56
56
129
117
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
56
04.686 BRACKET; UNION,BRK
(B)
8-98169-698-0
01
1
1509-
56
04.686 BRACKET; UNION,BRK
(A)
8-98169-732-1
01
1
1509-
117
04.686 SEAL; UNION,BRK PIPE JOINT
08.845
8-97856-616-0
02
1
1509-
129
04.710 BOLT; BRKT
01.531 (B) M8X20 FLANGE
0-28650-820-0
01
1
1509-
129
04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER
8-98081-030-0
02
1
1509-
153
04.730 SCREW; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
01
1
1509-
256
04.840 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>
8-98163-521-0
01
1
1509-
143
123
143
131
130
130
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
123
04.730 NUT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE
0-91180-108-0
02
1
1509-
130
04.686 BRACKET; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> (A)
8-97080-060-2
02
1
1509-
130
04.686 BRACKET; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> (B)
8-98182-120-1
01
1
1509-
131
04.710 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE
0-28050-812-0
02
1
1509-
143
04.710 CLIP; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 (A) ID=11 L=20
0-95235-035-0
02
1
1509-
143
04.710 CLIP; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 (B) ID=5-12 L=14.5
1-09987-221-0
04
1
1509-
