Isuzu WW
▶
TRUCKS
▶
NQR
▶
51637 - NQR AIR BRAKE LHD
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#166363) — 40 parça
◀

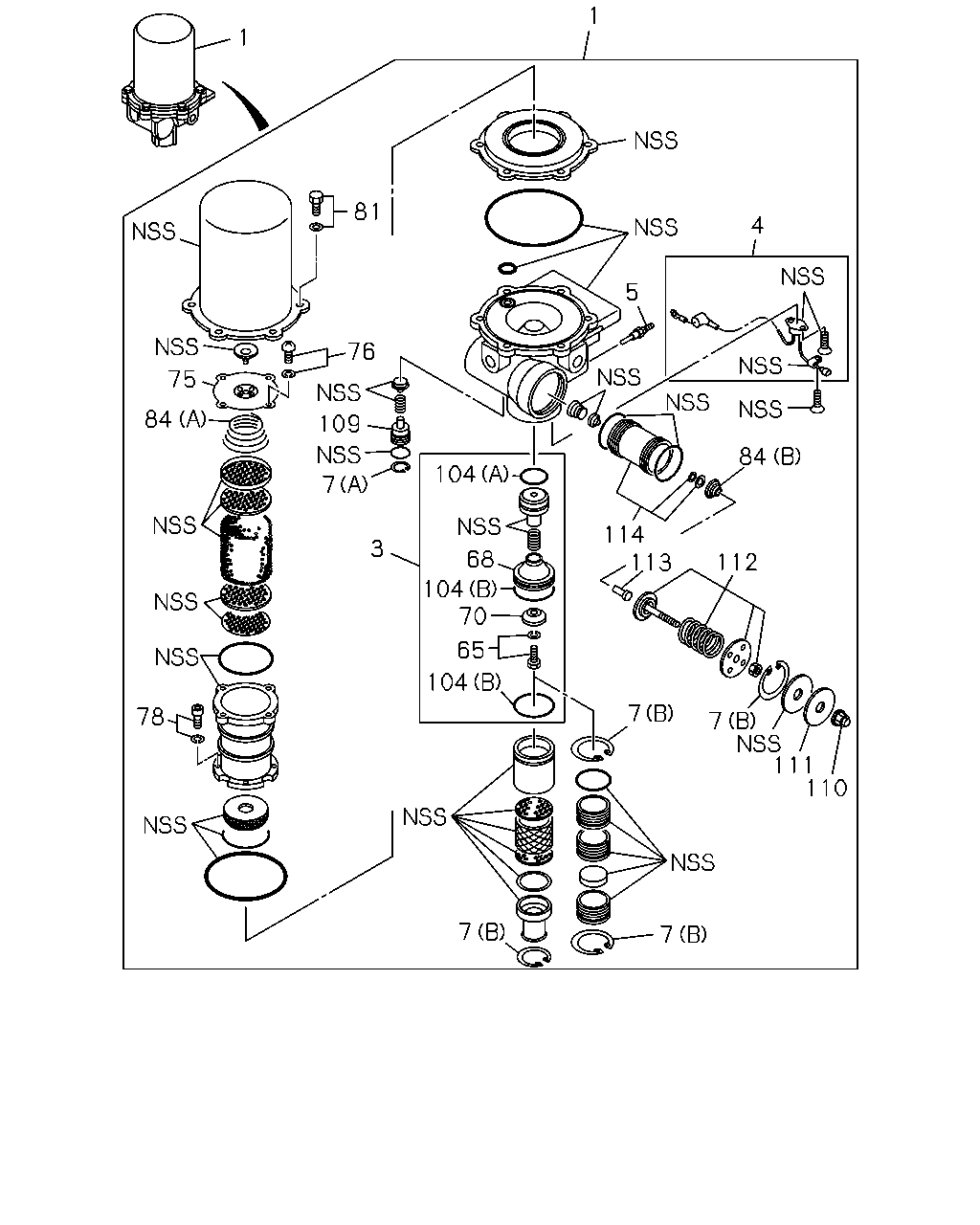

[346A] COMPONENT (25 parça)

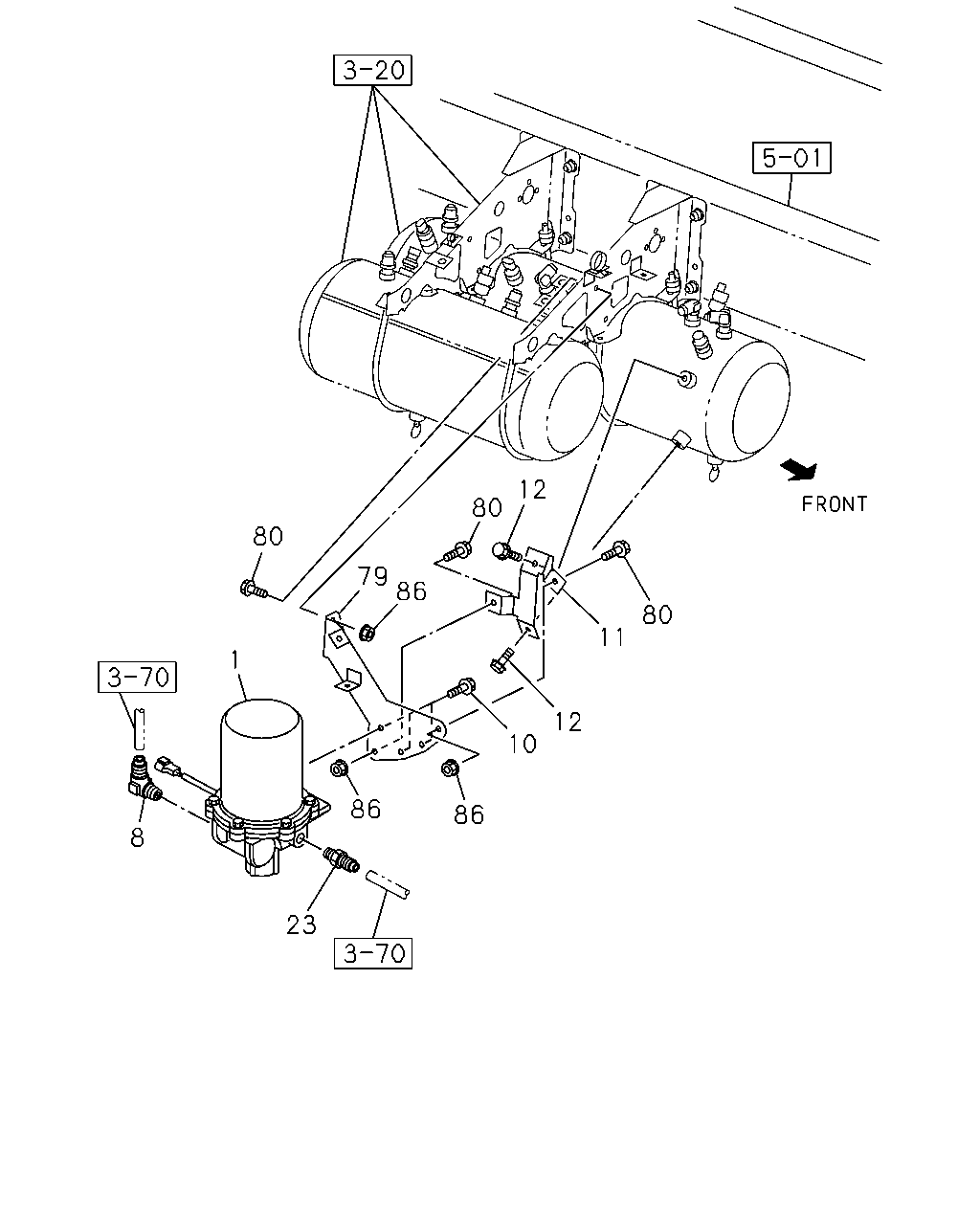

[346A] FIXING (10 parça)

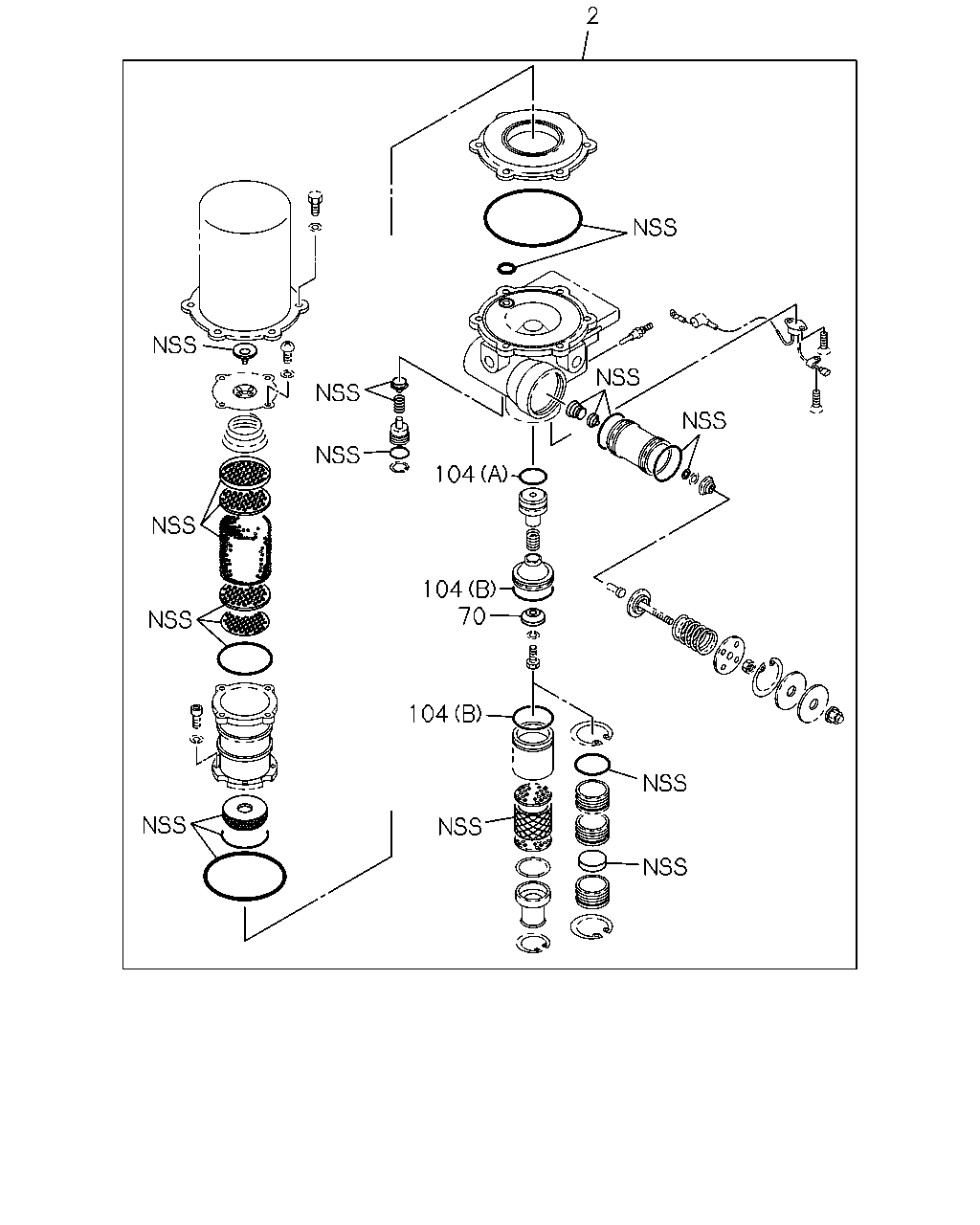

[346A] REPAIR KIT (5 parça)
▶
1
1
81
75
84
78
76
7
3
104
68
104
70
65
104
7
7
7
7
111
110
112
113
114
84
5
4
109
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.846 DRYER; AIR
NOISE PACK FOR REGULATION VAR.2<7TF>
8-98225-701-0
01
1
1509-
1
04.846 DRYER; AIR
EXC. NOISE PACK FOR REGULATION VAR.2<7TF>
8-98225-700-0
01
1
1509-
3
04.846 PISTON KIT; AIR DRYER
8-98226-322-0
01
1
1509-
4
04.846 THERMOSTAT KIT; AIR DRYER
1-85576-443-0
01
1
1509-
5
04.846 HEATER ASM; AIR DRYER
1-48199-530-0
01
1
1509-
7
04.846 RING; SNAP,AIR DRYER
(A)
1-48199-529-0
01
1
1509-
7
04.846 RING; SNAP,AIR DRYER
NOISE PACK FOR REGULATION VAR.2<7TF> (B)
1-48199-520-0
03
1
1509-
7
04.846 RING; SNAP,AIR DRYER
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B)
1-48199-520-0
02
1
1509-
65
04.846 BOLT; PURGE VLV
1-48199-517-0
01
1
1509-
68
04.846 BODY; VALVE
1-48199-515-0
01
1
1509-
70
04.846 VALVE; AIR DRYER
1-48199-504-0
01
1
1509-
75
04.846 COVER; CASE,AIR DRYER
1-48199-427-0
01
1
1509-
76
04.846 BOLT; COVER,AIR DRYER
1-48199-412-0
04
1
1509-
78
04.846 BOLT; OIL FILTER,AIR DRYER
1-48199-417-0
04
1
1509-
81
04.846 BOLT; CASE,AIR DRYER
1-48199-436-0
06
1
1509-
84
04.846 SPRING; AIR DRYER
(A)
1-48199-425-0
01
1
1509-
84
04.846 SPRING; AIR DRYER
(B)
1-48199-523-0
01
1
1509-
104
04.846 GASKET
(B)
1-48199-496-0
02
1
1509-
104
04.846 GASKET
(A)
8-98226-321-0
01
1
1509-
109
04.846 STOPPER; CHECK VALVE
1-48199-539-0
01
1
1509-
110
04.846 NUT; CAP
1-48199-527-0
01
1
1509-
111
04.846 PLATE; GOVERNOR
1-48199-526-0
01
1
1509-
112
04.846 SCREW & SPRING ASM; AIR DRYER
1-48199-524-0
01
1
1509-
113
04.846 STEM; EXHAUST
1-48199-522-0
01
1
1509-
114
04.846 PISTON ASM; GOVERNOR
1-48199-521-0
01
1
1509-
12
80
80
11
12
10
86
86
23
8
1
80
79
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.846 DRYER; AIR
NOISE PACK FOR REGULATION VAR.2<7TF>
8-98225-701-0
01
1
1509-
1
04.846 DRYER; AIR
EXC. NOISE PACK FOR REGULATION VAR.2<7TF>
8-98225-700-0
01
1
1509-
8
04.846 CONNECTOR; OUT,AIR DRYER
04.642 DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
1509-
10
04.846 BOLT; AIR DRYER
09.171 M10X25 FLANGE
0-28051-025-0
03
1
1509-
11
04.846 BRACKET; AIR DRYER
8-98176-286-2
01
1
1509-
12
04.846 BOLT; BRKT
01.531 M8X20 FLANGE
0-28650-820-0
02
1
1509-
23
04.846 CONNECTOR; AIR TANK
M22 & PT1/2 FLARE
0-92121-815-0
01
1
1509-
79
04.846 BRACKET; AIR DRYER
8-98176-285-3
01
1
1509-
80
04.846 BOLT; BRKT
00.029 M10X30 FLANGE
0-28651-030-0
03
1
1509-
86
04.846 NUT; BRKT
03.162 M10 FLANGE
0-91180-110-0
04
1
1509-
2
104
104
70
104
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
04.846 REPAIR KIT; AIR DRYER
NOISE PACK FOR REGULATION VAR.2<7TF>
8-98226-325-0
01
1
1509-
2
04.846 REPAIR KIT; AIR DRYER
EXC. NOISE PACK FOR REGULATION VAR.2<7TF>
8-98226-324-0
01
1
1509-
70
04.846 VALVE; AIR DRYER
1-48199-504-0
01
1
1509-
104
04.846 GASKET
(B)
1-48199-496-0
02
1
1509-
104
04.846 GASKET
(A)
8-98226-321-0
01
1
1509-
