Isuzu WW
▶
TRUCKS
▶
NQR
▶
51637 - NQR AIR BRAKE LHD
▶
3 - Brakes, Brake System
▶
3-22 - AIR CONTROL PARTS
▶
3-22 — AIR CONTROL PARTS
(#166359) — 85 parça
◀

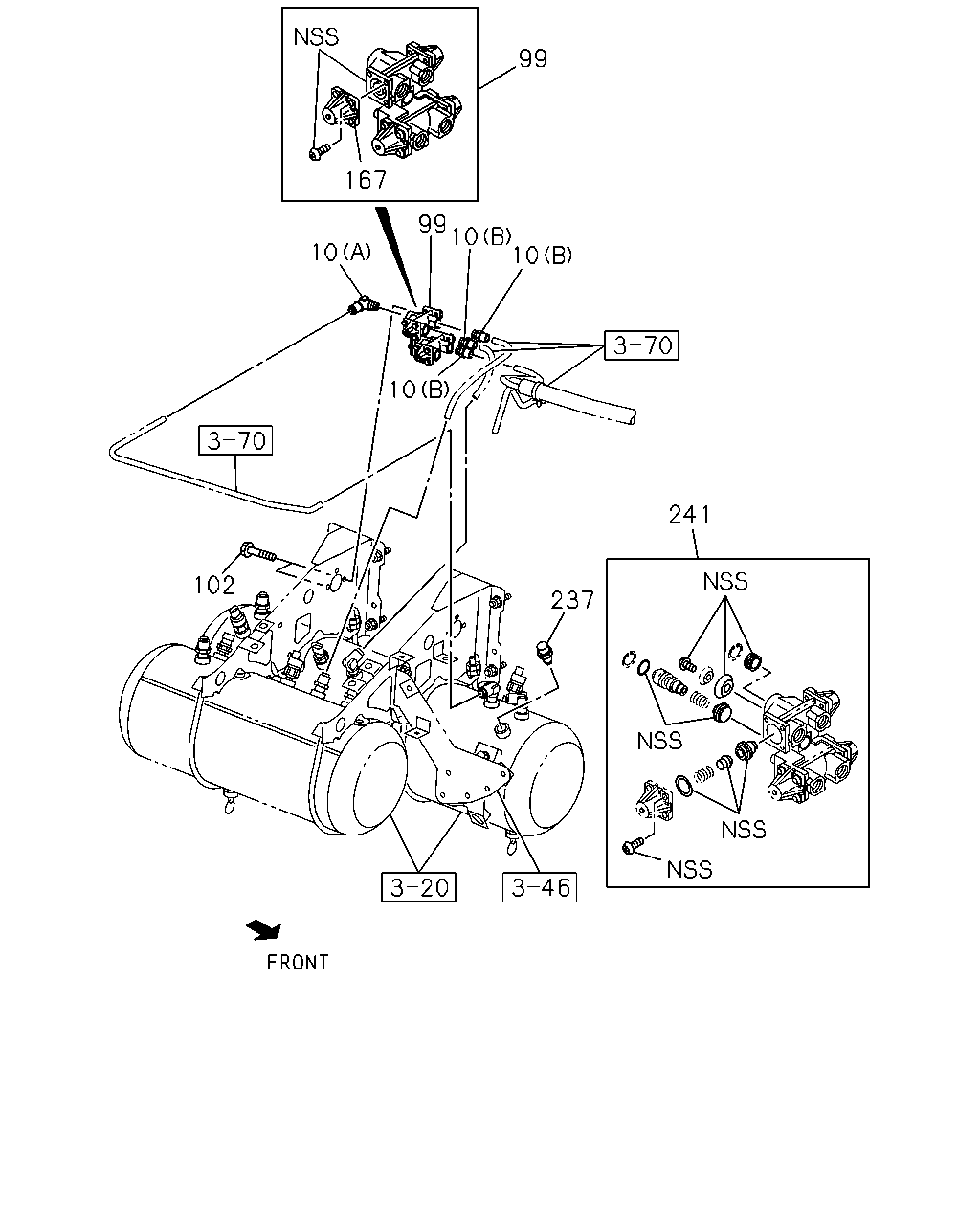

[322A] AIR TANK SIDE (7 parça)

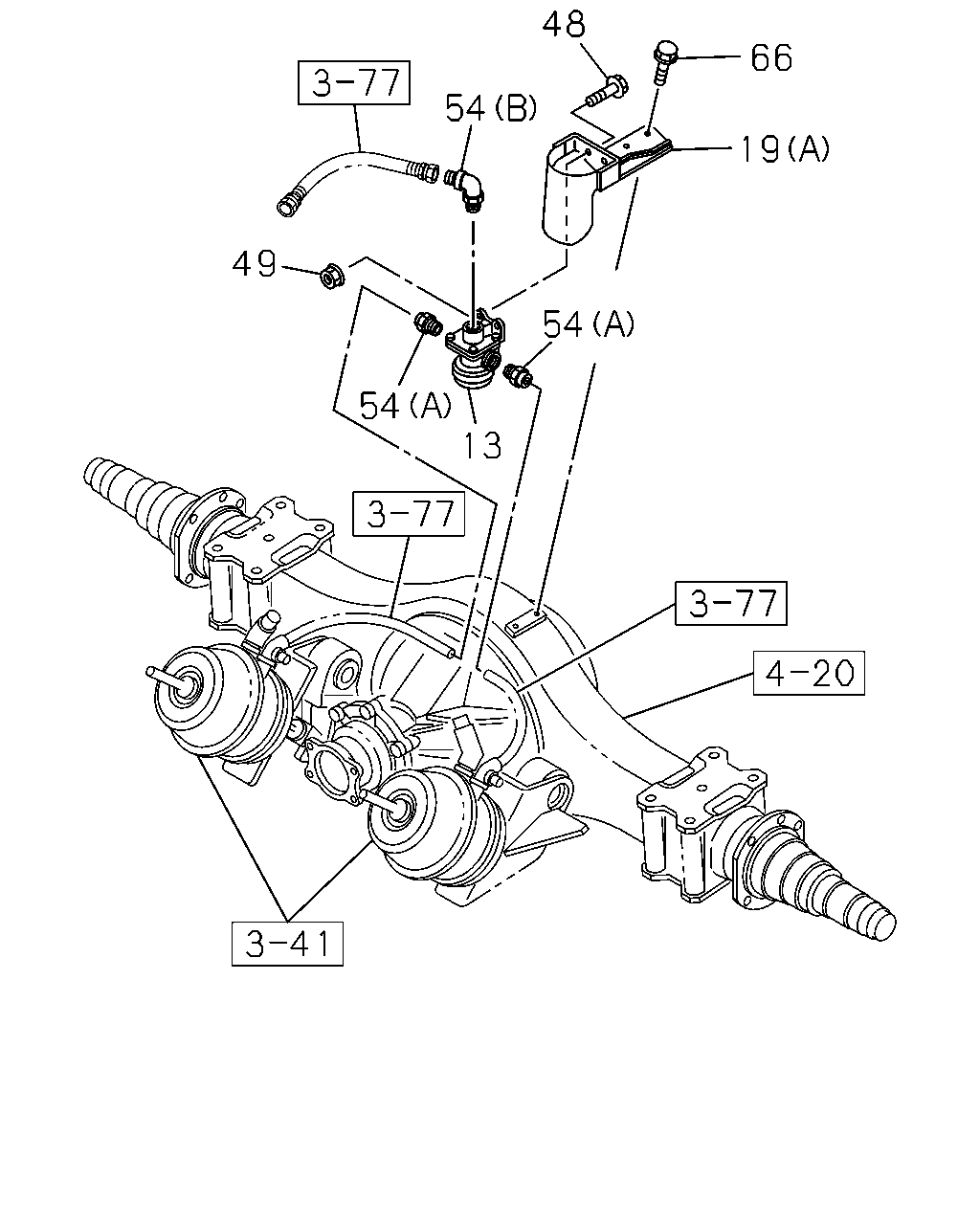

[322A] REAR AXLE SIDE (14 parça)

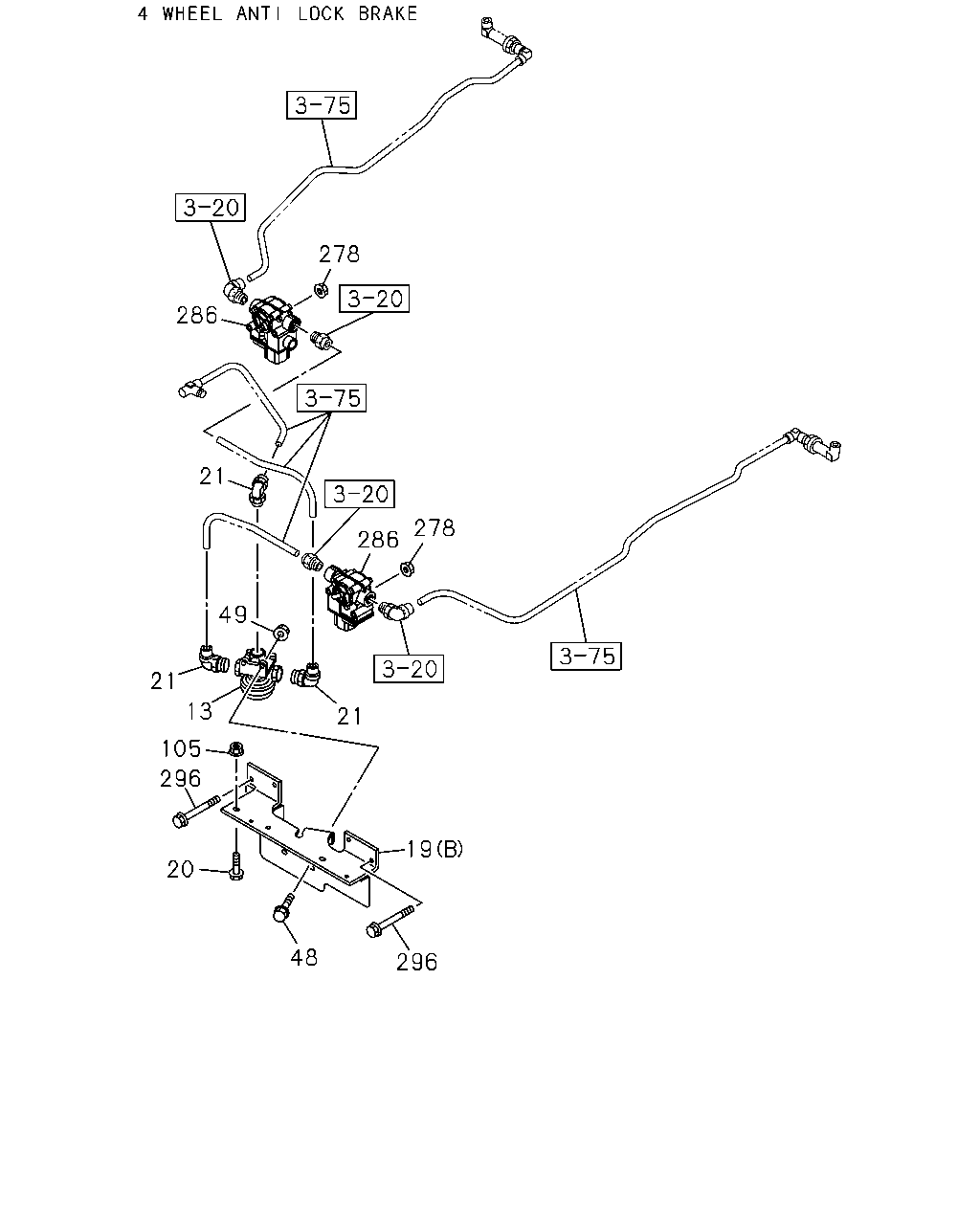

[322A] FRONT NO.2 (17 parça)

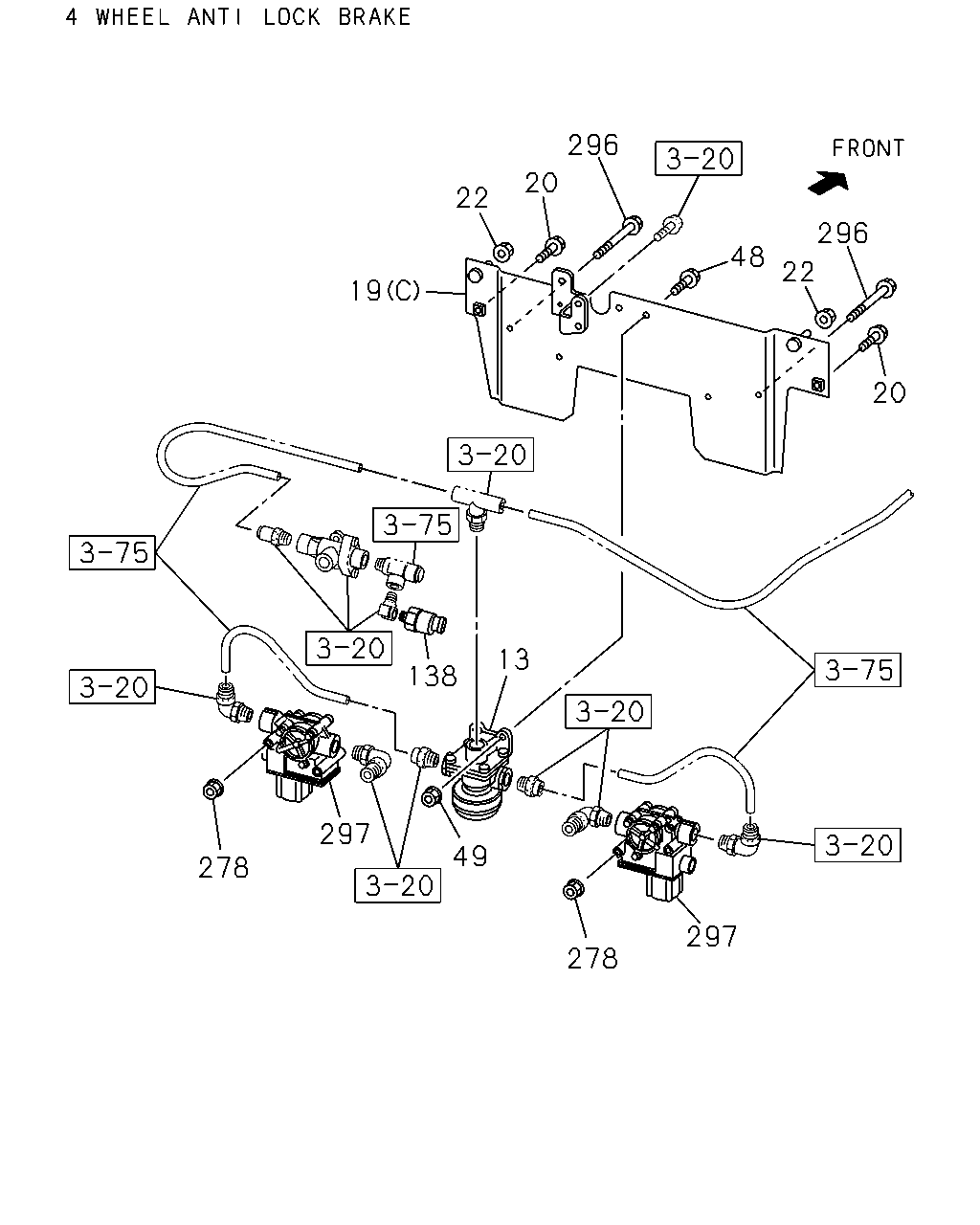

[322A] REAR NO.2 (18 parça)
[322A] REAR NO.1 (15 parça)
[322A] FRONT NO.1 (14 parça)
▶
99
167
10
99
10
10
10
102
237
241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
04.642 CONNECTOR
(A) DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
1509-
10
04.642 CONNECTOR
04.866 (B) DIN12 & R3/8 STRAIGHT
1-09660-965-0
03
1
1509-
99
04.644 VALVE; PROTECTION
8-98241-586-2
01
1
1509-
102
04.644 BOLT; PROTECTION VALVE
01.531 M8X20 FLANGE
0-28650-820-0
02
1
1509-
167
04.644 COVER; VALVE
1-48119-625-0
04
1
1509-
237
04.661 VALVE; SAFETY
04.955
1-48320-012-2
01
1
1509-
241
04.872 REPAIR KIT; PROTECTION VALVE
1-85576-451-2
01
1
1509-
49
54
48
66
19
54
13
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
04.644 VALVE ASM; QUICK RELEASE
NOISE PACK FOR REGULATION VAR.2<7TF>
8-98172-212-0
03
1
1509-
13
04.644 VALVE ASM; QUICK RELEASE
EXC. NOISE PACK FOR REGULATION VAR.2<7TF>
8-98172-213-0
03
1
1509-
19
04.644 BRACKET; QUICK RELEASE VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (C)
8-98274-201-0
01
1
1509-
19
04.644 BRACKET; QUICK RELEASE VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (B)
8-98274-211-0
01
1
1509-
19
04.644 BRACKET; QUICK RELEASE VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)
8-98289-461-0
01
1
1509-
19
04.644 BRACKET; QUICK RELEASE VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)
8-98181-090-0
01
1
1509-
19
04.644 BRACKET; QUICK RELEASE VLV
(A)
8-98187-192-1
01
1
1509-
48
04.642 BOLT; QUICK RELEASE VLV
06.216 M8X25 FLANGE
0-28650-825-0
04
1
1509-
48
04.642 BOLT; QUICK RELEASE VLV
06.216 M8X25 FLANGE
0-28650-825-0
02
1
1509-
49
04.642 NUT; QUICK RELEASE VLV
01.062 M8 FLANGE
0-91180-108-0
04
1
1509-
49
04.642 NUT; QUICK RELEASE VLV
01.062 M8 FLANGE
0-91180-108-0
02
1
1509-
54
04.661 CONNECTOR; QUICK RELEASE VLV
04.642 (A) DIN12 & M22 STRAIGHT
1-09661-050-0
02
1
1509-
54
04.661 CONNECTOR; QUICK RELEASE VLV
04.642 (B)
8-98179-494-0
01
1
1509-
66
04.642 BOLT; BRKT,RELAY VLV RR
02.343 M8X12 FLANGE
0-28050-812-0
02
1
1509-
278
286
21
286
278
49
21
13
21
105
296
20
48
296
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
04.644 VALVE ASM; QUICK RELEASE
NOISE PACK FOR REGULATION VAR.2<7TF>
8-98172-212-0
03
1
1509-
13
04.644 VALVE ASM; QUICK RELEASE
EXC. NOISE PACK FOR REGULATION VAR.2<7TF>
8-98172-213-0
03
1
1509-
19
04.644 BRACKET; QUICK RELEASE VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (C)
8-98274-201-0
01
1
1509-
19
04.644 BRACKET; QUICK RELEASE VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (B)
8-98274-211-0
01
1
1509-
19
04.644 BRACKET; QUICK RELEASE VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)
8-98289-461-0
01
1
1509-
19
04.644 BRACKET; QUICK RELEASE VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)
8-98181-090-0
01
1
1509-
19
04.644 BRACKET; QUICK RELEASE VLV
(A)
8-98187-192-1
01
1
1509-
20
04.661 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
05
1
1509-
21
04.661 CONNECTOR; QUICK RELEASE VLV
04.642 DIN12 & M22 ELBOW
1-09661-497-0
03
1
1509-
48
04.642 BOLT; QUICK RELEASE VLV
06.216 M8X25 FLANGE
0-28650-825-0
04
1
1509-
48
04.642 BOLT; QUICK RELEASE VLV
06.216 M8X25 FLANGE
0-28650-825-0
02
1
1509-
49
04.642 NUT; QUICK RELEASE VLV
01.062 M8 FLANGE
0-91180-108-0
04
1
1509-
49
04.642 NUT; QUICK RELEASE VLV
01.062 M8 FLANGE
0-91180-108-0
02
1
1509-
105
04.661 NUT; BRKT,VALVE
01.062 M8 FLANGE
0-91180-108-0
01
1
1509-
278
04.680 NUT; MODULATOR
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE
0-91180-108-0
08
1
1509-
286
04.680 MODULATOR; FRT
4 WHEEL ANTI LOCK BRAKE<JE5>
8-98215-454-0
02
1
1509-
296
04.680 BOLT; MODULATOR
4 WHEEL ANTI LOCK BRAKE<JE5> 01.252 M8X85 FLANGE
8-97023-062-0
08
1
1509-
296
20
22
19
48
296
22
20
297
278
49
297
278
138
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
04.644 VALVE ASM; QUICK RELEASE
NOISE PACK FOR REGULATION VAR.2<7TF>
8-98172-212-0
03
1
1509-
13
04.644 VALVE ASM; QUICK RELEASE
EXC. NOISE PACK FOR REGULATION VAR.2<7TF>
8-98172-213-0
03
1
1509-
19
04.644 BRACKET; QUICK RELEASE VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (C)
8-98274-201-0
01
1
1509-
19
04.644 BRACKET; QUICK RELEASE VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (B)
8-98274-211-0
01
1
1509-
19
04.644 BRACKET; QUICK RELEASE VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)
8-98289-461-0
01
1
1509-
19
04.644 BRACKET; QUICK RELEASE VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)
8-98181-090-0
01
1
1509-
19
04.644 BRACKET; QUICK RELEASE VLV
(A)
8-98187-192-1
01
1
1509-
20
04.661 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
05
1
1509-
22
04.661 NUT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE
0-91180-108-0
02
1
1509-
22
04.661 NUT; BRKT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE
0-91180-108-0
01
1
1509-
48
04.642 BOLT; QUICK RELEASE VLV
06.216 M8X25 FLANGE
0-28650-825-0
04
1
1509-
48
04.642 BOLT; QUICK RELEASE VLV
06.216 M8X25 FLANGE
0-28650-825-0
02
1
1509-
49
04.642 NUT; QUICK RELEASE VLV
01.062 M8 FLANGE
0-91180-108-0
04
1
1509-
49
04.642 NUT; QUICK RELEASE VLV
01.062 M8 FLANGE
0-91180-108-0
02
1
1509-
138
04.439 SWITCH; RELAY VALVE
04.642 STAMP 2.0
8-98010-856-2
01
1
1509-
278
04.680 NUT; MODULATOR
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE
0-91180-108-0
08
1
1509-
296
04.680 BOLT; MODULATOR
4 WHEEL ANTI LOCK BRAKE<JE5> 01.252 M8X85 FLANGE
8-97023-062-0
08
1
1509-
297
04.680 MODULATOR; RR
4 WHEEL ANTI LOCK BRAKE<JE5>
8-98215-454-0
02
1
1509-
22
20
48
19
13
49
138
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
04.644 VALVE ASM; QUICK RELEASE
NOISE PACK FOR REGULATION VAR.2<7TF>
8-98172-212-0
03
1
1509-
13
04.644 VALVE ASM; QUICK RELEASE
EXC. NOISE PACK FOR REGULATION VAR.2<7TF>
8-98172-213-0
03
1
1509-
19
04.644 BRACKET; QUICK RELEASE VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (C)
8-98274-201-0
01
1
1509-
19
04.644 BRACKET; QUICK RELEASE VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (B)
8-98274-211-0
01
1
1509-
19
04.644 BRACKET; QUICK RELEASE VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)
8-98289-461-0
01
1
1509-
19
04.644 BRACKET; QUICK RELEASE VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)
8-98181-090-0
01
1
1509-
19
04.644 BRACKET; QUICK RELEASE VLV
(A)
8-98187-192-1
01
1
1509-
20
04.661 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
05
1
1509-
22
04.661 NUT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE
0-91180-108-0
02
1
1509-
22
04.661 NUT; BRKT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE
0-91180-108-0
01
1
1509-
48
04.642 BOLT; QUICK RELEASE VLV
06.216 M8X25 FLANGE
0-28650-825-0
04
1
1509-
48
04.642 BOLT; QUICK RELEASE VLV
06.216 M8X25 FLANGE
0-28650-825-0
02
1
1509-
49
04.642 NUT; QUICK RELEASE VLV
01.062 M8 FLANGE
0-91180-108-0
04
1
1509-
49
04.642 NUT; QUICK RELEASE VLV
01.062 M8 FLANGE
0-91180-108-0
02
1
1509-
138
04.439 SWITCH; RELAY VALVE
04.642 STAMP 2.0
8-98010-856-2
01
1
1509-
21
21
105
20
48
19
13
21
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
04.644 VALVE ASM; QUICK RELEASE
NOISE PACK FOR REGULATION VAR.2<7TF>
8-98172-212-0
03
1
1509-
13
04.644 VALVE ASM; QUICK RELEASE
EXC. NOISE PACK FOR REGULATION VAR.2<7TF>
8-98172-213-0
03
1
1509-
19
04.644 BRACKET; QUICK RELEASE VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (C)
8-98274-201-0
01
1
1509-
19
04.644 BRACKET; QUICK RELEASE VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (B)
8-98274-211-0
01
1
1509-
19
04.644 BRACKET; QUICK RELEASE VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)
8-98289-461-0
01
1
1509-
19
04.644 BRACKET; QUICK RELEASE VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)
8-98181-090-0
01
1
1509-
19
04.644 BRACKET; QUICK RELEASE VLV
(A)
8-98187-192-1
01
1
1509-
20
04.661 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
05
1
1509-
21
04.661 CONNECTOR; QUICK RELEASE VLV
04.642 DIN12 & M22 ELBOW
1-09661-497-0
03
1
1509-
48
04.642 BOLT; QUICK RELEASE VLV
06.216 M8X25 FLANGE
0-28650-825-0
04
1
1509-
48
04.642 BOLT; QUICK RELEASE VLV
06.216 M8X25 FLANGE
0-28650-825-0
02
1
1509-
49
04.642 NUT; QUICK RELEASE VLV
01.062 M8 FLANGE
0-91180-108-0
04
1
1509-
49
04.642 NUT; QUICK RELEASE VLV
01.062 M8 FLANGE
0-91180-108-0
02
1
1509-
105
04.661 NUT; BRKT,VALVE
01.062 M8 FLANGE
0-91180-108-0
01
1
1509-
