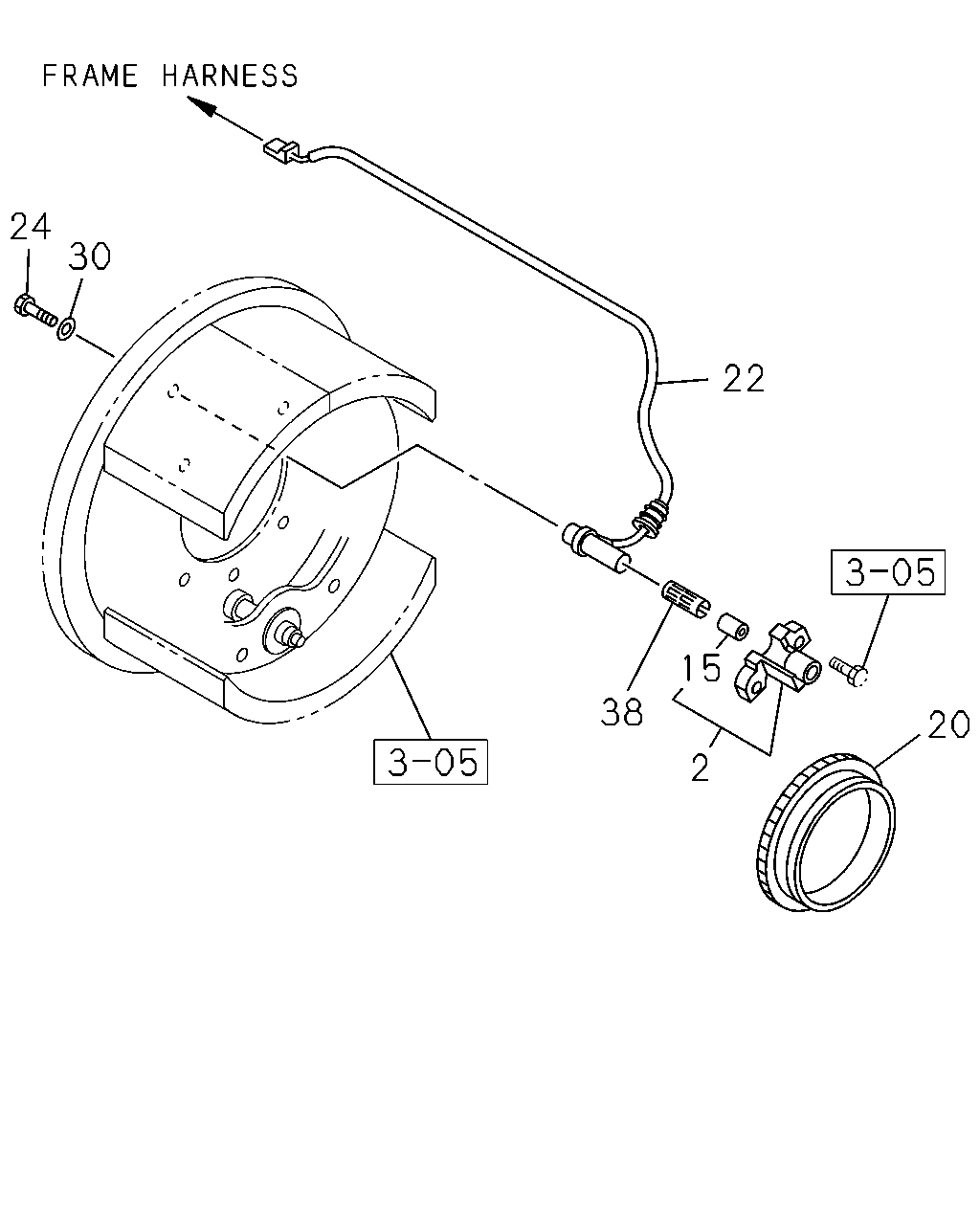

3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#166356) — 7 parça

24 30 2 38 20 22 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	04.730 BRACKET; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98186-628-0	02	1	1509-
15	04.710 COVER; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	1-83129-471-0	02	1	1509-
20	04.710 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 05.822	1-42319-169-1	02	1	1509-
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98171-005-0	02	1	1509-
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1509-
30	04.730 WASHER 4 WHEEL ANTI LOCK BRAKE<JE5> 03.613 ID=8 OD=18 T=3	8-94174-537-0	02	1	1509-
38	04.710 HOLDER; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	1-83129-260-1	02	1	1509-
