Isuzu WW
▶
TRUCKS
▶
NQR
▶
51637 - NQR AIR BRAKE LHD
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶
3-10 — BRAKE PEDAL AND CONTROL
(#166354) — 31 parça
◀
[310A] N0.1 (6 parça)
[310A] N0.2 (19 parça)
[310A] N0.3 (6 parça)
▶

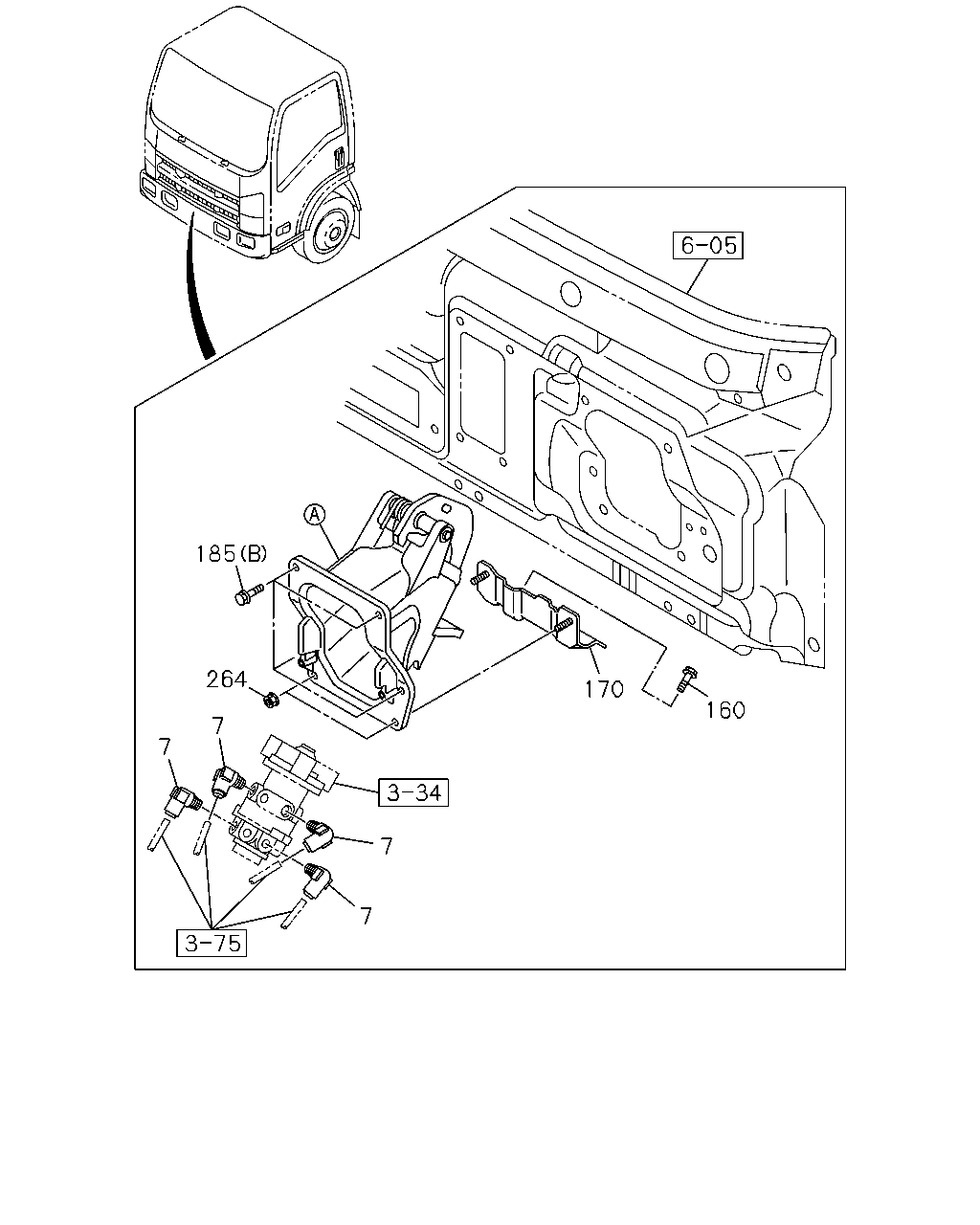

160
170
7
7
7
264
185
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
04.866 CONNECTOR; BRK VALVE
04.902 DIN12 & R3/8 ELBOW
1-09660-959-0
04
1
1509-
160
04.634 BOLT; BRK PEDAL
00.833 M10X22 W/PL WASHER
8-97313-188-0
01
1
1509-
170
04.634 BRACKET; SUPPORT,PEDAL
8-98168-721-0
01
1
1509-
185
04.634 BOLT; BRKT
03.680 (A) M8X30 FLANGE
0-28660-830-0
04
1
1509-
185
04.634 BOLT; BRKT
(B) M8X25 FLANGE
8-98057-109-0
04
1
1509-
264
04.634 NUT; BRKT,COLUMN SUPT TO B.PDL
01.540 M8 FLANGE
0-91180-208-0
02
1
1509-

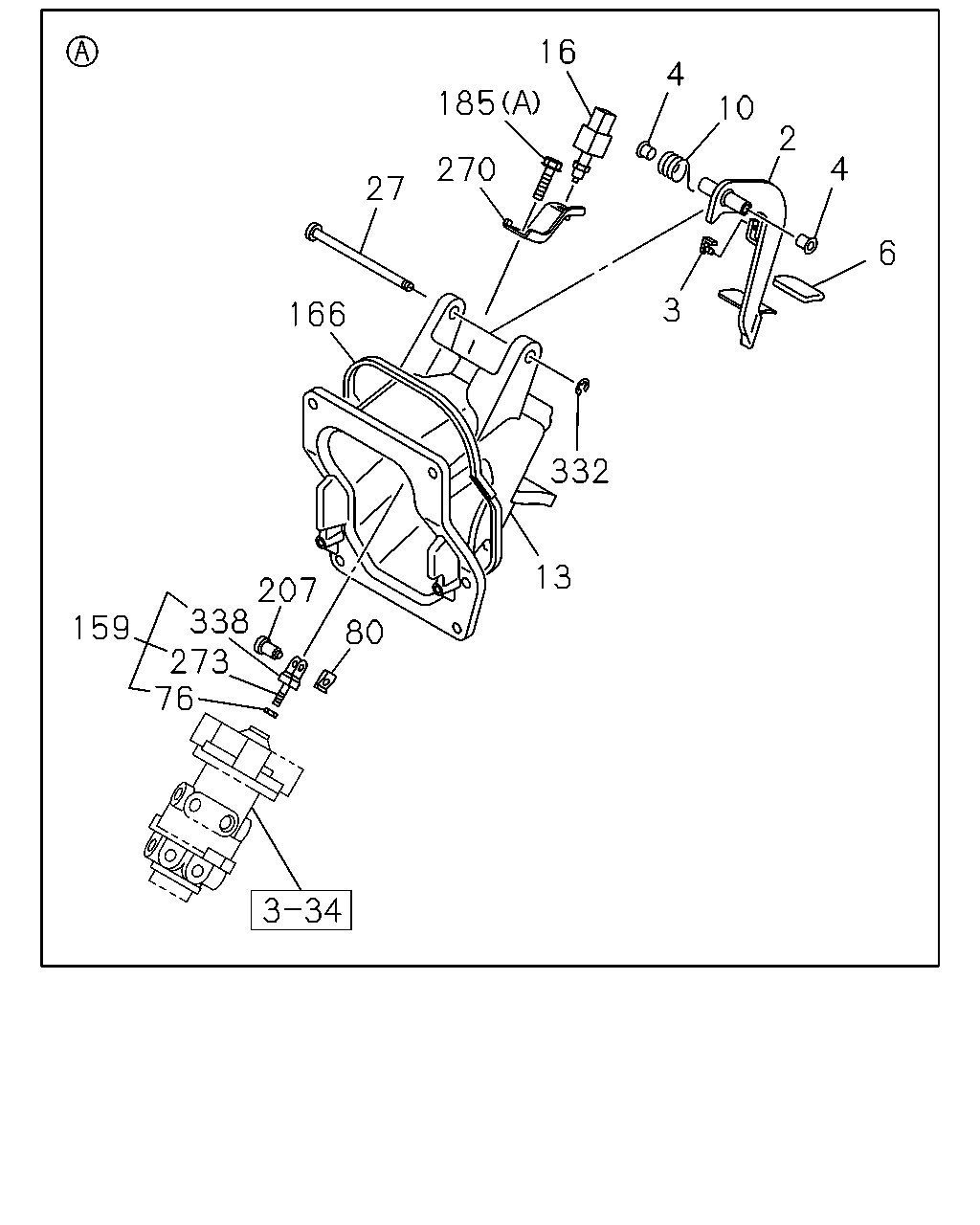

3
4
2
6
4
10
16
185
270
27
166
332
13
80
207
338
159
273
76
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
04.625 PEDAL; BRK
8-98197-235-0
01
1
1509-
3
04.634 STOPPER; BRK PEDAL
00.829
8-97853-534-1
01
1
1509-
4
04.634 BUSHING; BRK PEDAL
04.792
8-94238-596-0
02
1
1509-
6
04.630 COVER; BRK PEDAL
8-98056-865-0
01
1
1509-
10
04.639 SPRING; RETURN,BRK PEDAL
8-98057-232-1
01
1
1509-
13
04.634 BRACKET; BRK PEDAL
8-98171-262-1
01
1
1509-
16
02.447 SWITCH; STOP LAMP
8-98000-028-0
01
1
1509-
27
04.634 SHAFT; BRK PEDAL
8-98197-236-0
01
1
1509-
76
00.841 NUT; PUSH ROD
01.062 M8 FLANGE
0-91180-108-0
01
1
1509-
80
04.634 PIN; SNAP,BRK PEDAL
00.833
8-98007-161-0
01
1
1509-
159
04.634 ROD ASM; PUSH,BRK
8-98057-234-0
01
1
1509-
166
04.634 GASKET; PEDAL BRKT
8-98171-265-0
01
1
1509-
185
04.634 BOLT; BRKT
03.680 (A) M8X30 FLANGE
0-28660-830-0
04
1
1509-
185
04.634 BOLT; BRKT
(B) M8X25 FLANGE
8-98057-109-0
04
1
1509-
207
04.634 PIN; JOINT,BRK PEDAL LINK
8-98147-657-0
01
1
1509-
270
04.642 BRACKET ASM; BRK SW
8-98171-267-0
01
1
1509-
273
04.634 ROD; PULL
8-98057-233-0
01
1
1509-
332
04.634 RING; SNAP
04.790 ID=12
0-91805-512-0
01
1
1509-
338
04.634 CLEVIS
00.777
8-97167-770-0
01
1
1509-

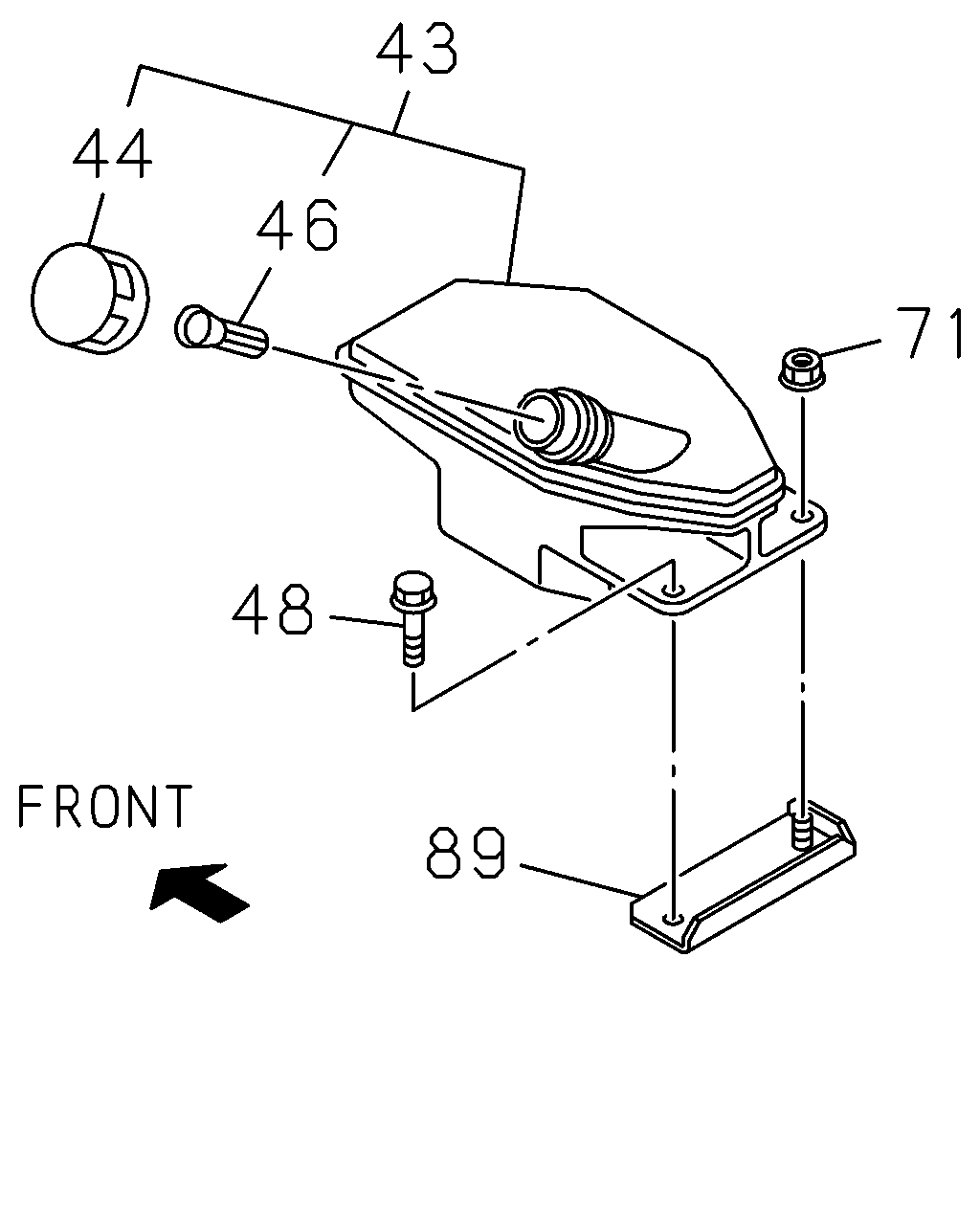

71
43
46
44
48
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
43
04.651 TANK ASM; OIL
8-98182-497-0
01
1
1509-
44
04.651 CAP; OIL TANK
8-98022-268-0
01
1
1509-
46
04.651 FILTER; RESERVOIR,BRK
8-98022-269-0
01
1
1509-
48
04.651 BOLT; OIL TANK TO BRKT
08.077 M6X20 W/PL WASHER
8-97370-668-0
01
1
1509-
71
04.650 NUT; BRK M/CYL
01.062 M6 FLANGE
0-91180-106-0
01
1
1509-
89
04.901 BRACKET; M/CYL
8-98005-493-1
01
1
1509-
