51637 - NQR AIR BRAKE LHD
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

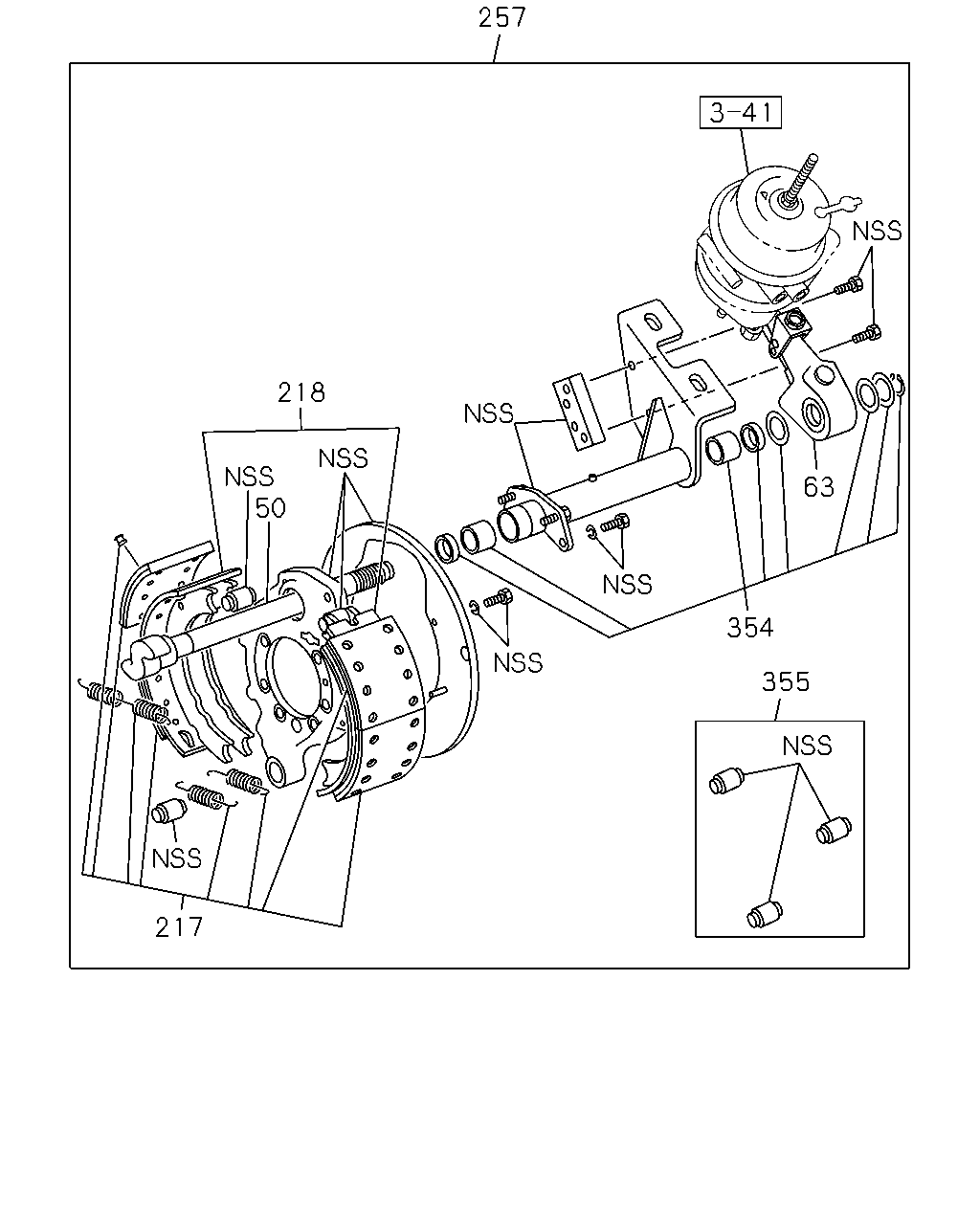

3-05 — REAR WHEEL BRAKE
(#166352) — 11 parça
63
354
355
217
50
218
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
05.130 CAMSHAFT; BRK,RR BRK
8-98205-501-0
01
1
1509-
50
05.130 CAMSHAFT; BRK,RR BRK
8-98205-502-0
01
1
1509-
63
05.125 ADJUSTER ASM; SLACK,RR BRK
04.666
8-98229-020-0
02
1
1509-
217
05.018 LINING KIT; RR BRK
8-98241-912-0
01
1
1509-
218
05.017 SHOE KIT; BRK,RR
8-98241-913-1
04
1
1509-
257
05.017 BRAKE ASM; REAR
4 WHEEL ANTI LOCK BRAKE<JE5>
8-98241-670-1
01
1
1509-
257
05.017 BRAKE ASM; REAR
4 WHEEL ANTI LOCK BRAKE<JE5>
8-98241-671-1
01
1
1509-
257
05.017 BRAKE ASM; REAR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-98241-673-1
01
1
1509-
257
05.017 BRAKE ASM; REAR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-98241-675-1
01
1
1509-
354
04.667 REPAIR KIT; S CAM BRACKET
8-98239-348-0
02
1
1509-
355
04.667 REPAIR KIT; ROLLER AND ANCHOR PI
8-98205-456-0
02
1
1509-
