2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#166350) — 48 parça

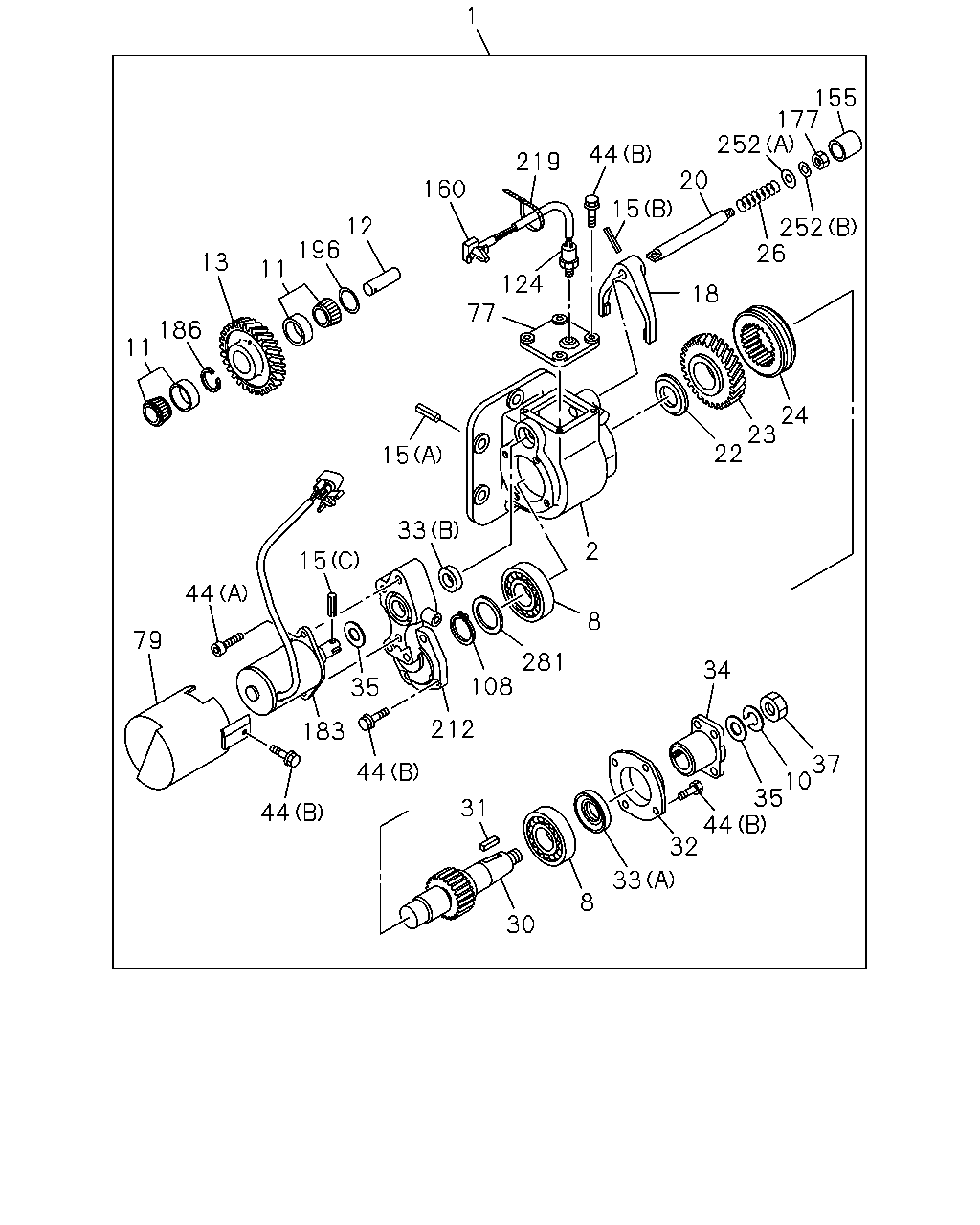

çizim 493349
1 219 160 12 196 11 13 186 11 15 15 44 79 183 44 35 33 108 212 44 31 30 33 8 32 35 44 34 37 10 8 281 2 77 124 18 15 44 252 177 155 252 26 20 24 23 22
BalonParca AdiParca NoAdetTipApplied Date
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YT 		8-98233-785-1 01 1 1509-
2 04.439 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-98282-383-0 01 1 1509-
8 04.439 BEARING; OUTPUT SHAFT,TRANS SIDE
PTO TRANSMISSION SIDE(V66) ID=25 OD=62 		8-94343-031-1 02 1 1509-
10 04.439 WASHER; OUTPUT SHAFT COVER,SIDE
PTO TRANSMISSION SIDE(V66) 06.174 ID=14.2 		0-91510-814-0 01 1 1509-
11 04.439 BEARING; IDLE GEAR,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66) NSK 		8-97106-734-0 02 1 1509-
12 04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		9-38211-606-0 01 1 1509-
13 04.439 GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) Z=31 		8-97308-700-0 01 1 1509-
15 04.439 PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 04.303 (B) L=25 OD=5 		8-94135-771-0 01 1 1509-
15 04.439 PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) (C) L=14 		8-97175-890-0 01 1 1509-
15 04.439 PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) (A) L=16 		9-09878-613-0 01 1 1509-
18 04.439 ARM; GEAR SHIFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-98088-695-0 01 1 1509-
20 04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-97308-709-1 01 1 1509-
22 04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS
PTO TRANSMISSION SIDE(V66) 		9-38245-603-1 01 1 1509-
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) Z=27 		8-98120-609-0 01 1 1509-
24 04.439 SLEEVE; DOG CLU,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-97231-316-1 01 1 1509-
26 04.439 SPRING; SHIFTER ROD,TRANS SIDE P
PTO TRANSMISSION SIDE(V66) 		8-97175-987-0 01 1 1509-
30 04.439 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-98233-777-0 01 1 1509-
31 04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) L=25 		8-98068-088-0 01 1 1509-
32 04.439 COVER; RR,OUTPUT SHAFT,TRANS SID
PTO TRANSMISSION SIDE(V66) 		8-97305-794-0 01 1 1509-
33 04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID
PTO TRANSMISSION SIDE(V66) (A) 		1-38159-007-0 01 1 1509-
33 04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID
PTO TRANSMISSION SIDE(V66) (B) 		8-98028-789-0 01 1 1509-
34 04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 		8-98223-519-0 01 1 1509-
35 04.439 WASHER; PL,FLANGE FIX,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 04.634 ID=15 		0-91610-514-0 02 1 1509-
37 04.439 NUT; FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 06.515 M14 		0-91111-514-0 01 1 1509-
44 04.439 BOLT; COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 04.338 (B) M8X20 FLANGE 		0-28050-820-0 15 1 1509-
44 04.439 BOLT; COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 00.004 (A) M8X16 HEX SOCKET 		0-58330-816-0 03 1 1509-
77 04.439 COVER; OUTPUT,RR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-97308-719-0 01 1 1509-
79 04.439 COVER; DUST,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) 		8-97308-728-0 01 1 1509-
108 04.439 RING; SNAP,OUTPUT SHAFT,TRANS SI
PTO TRANSMISSION SIDE(V66) 08.934 ID=23.2 		9-09180-025-0 01 1 1509-
124 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) 		8-98031-760-1 01 1 1509-
155 04.439 PLUG; SHIFTER ROD
PTO TRANSMISSION SIDE(V66) 		8-98037-770-0 01 1 1509-
160 04.439 CLIP; PTO A/T SIDE
PTO TRANSMISSION SIDE(V66) 02.559 L=15 		8-94315-436-1 01 1 1509-
177 04.439 NUT; SHIFT ROD
PTO TRANSMISSION SIDE(V66) 02.334 M8 		0-91110-508-0 01 1 1509-
183 04.439 SOLENOID ASM; PTO
PTO TRANSMISSION SIDE(V66) 		8-98136-076-1 01 1 1509-
186 04.439 RING; SNAP,IDLE GEAR,TRANS SIDE
PTO TRANSMISSION SIDE(V66) 		8-97106-730-0 01 1 1509-
196 04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) T=1.50 		8-97106-724-0 02 1 1509-
196 04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) T=1.60 		8-97106-725-0 02 1 1509-
196 04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) T=1.65 		8-97106-726-0 02 1 1509-
196 04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) T=1.70 		8-97106-727-0 02 1 1509-
196 04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) T=1.80 		8-97106-728-0 02 1 1509-
196 04.439 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) T=1.85 		8-97106-729-0 02 1 1509-
212 04.439 ADAPTER; SOLENOID
PTO TRANSMISSION SIDE(V66) 		8-98233-779-0 01 1 1509-
219 04.439 CLIP; CABLE
PTO TRANSMISSION SIDE(V66) 		8-97221-218-0 02 1 1509-
252 04.439 WASHER; PL,SHIFTER ROD
PTO TRANSMISSION SIDE(V66) 03.417 (B) ID=8.4 OD=16 		0-91610-508-0 01 1 1509-
252 04.439 WASHER; PL,SHIFTER ROD
PTO TRANSMISSION SIDE(V66) (A) 		8-97308-737-1 01 1 1509-
281 04.439 SHIM; OUTPUT SHAFT
PTO TRANSMISSION SIDE(V66) T=1.85 		8-97106-729-0 01 1 1509-

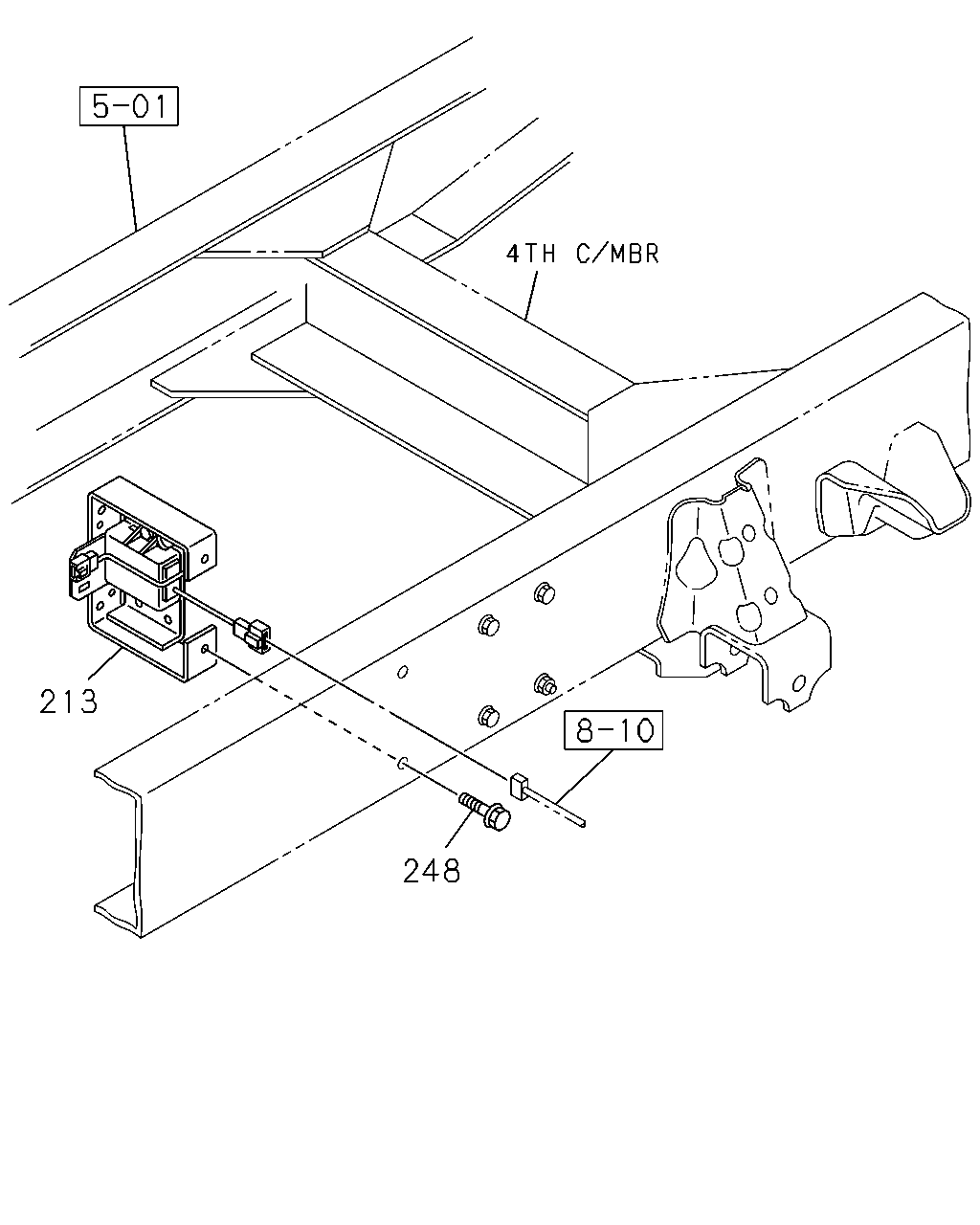

çizim 493460
248 213
BalonParca AdiParca NoAdetTipApplied Date
213 04.439 CONTROL UNIT; PTO
PTO TRANSMISSION SIDE(V66) 		8-98039-755-2 01 1 1509-
248 04.439 BOLT; PTO CONT
PTO TRANSMISSION SIDE(V66) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509-
