2-25 — SPEEDOMETER DRIVEN GEAR (#166344) — 17 parça

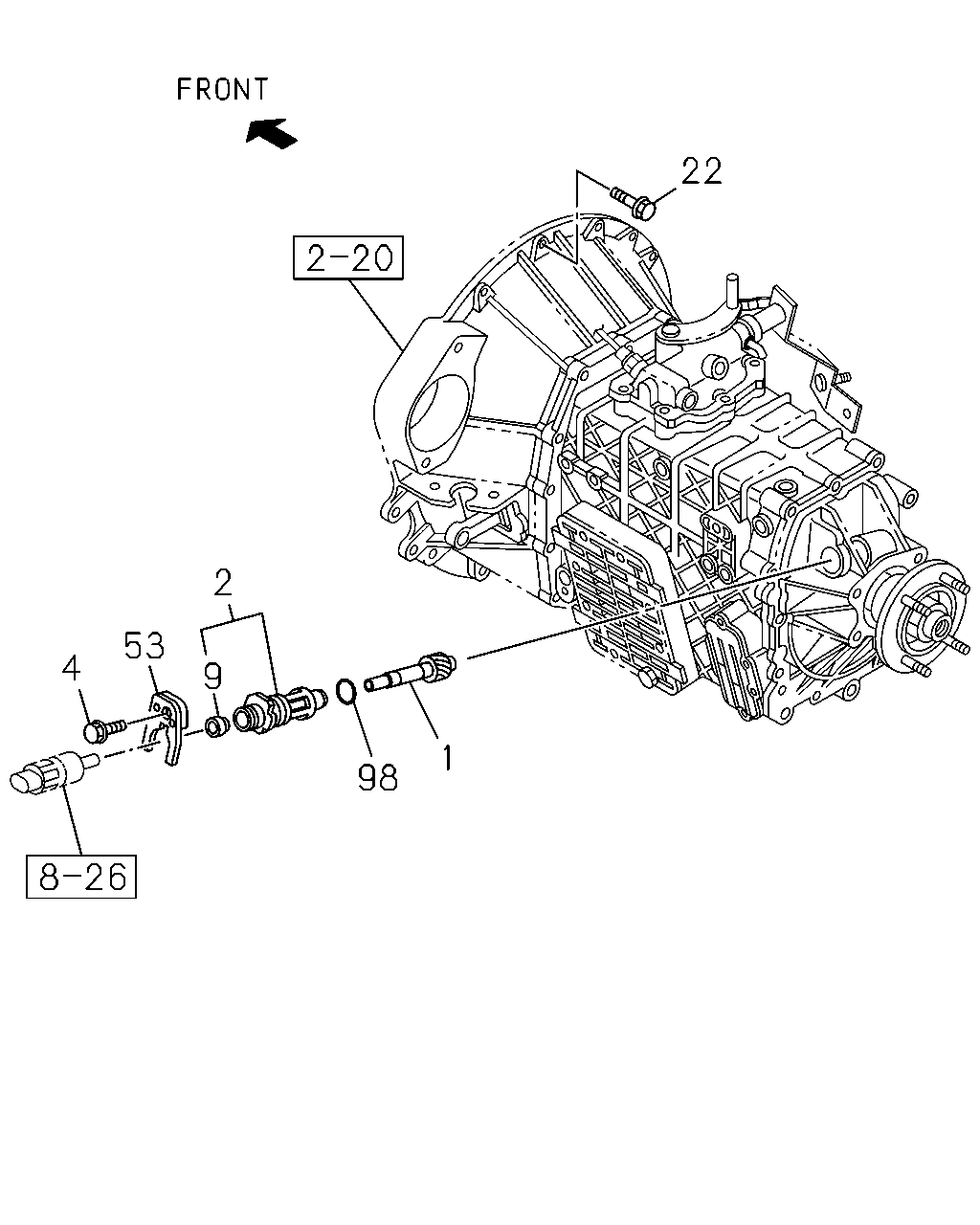

çizim 493144
22 2 9 98 53 1 4
BalonParca AdiParca NoAdetTipApplied Date
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) Z=16 		8-97329-097-1 01 1 1509-
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/10(GT5) F&R 225/75R17.5(BS)17.5X6.00-127 SILVER(CWZ) Z=10 		8-97253-579-1 01 1 1509-
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/9(HC6) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127SILVER(CRV) Z=12 		8-97253-563-1 01 1 1509-
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/9(HC6) F&R 225/75R17.5(BS)17.5X6.00-127 SILVER(CWZ) Z=11 		8-97253-559-1 01 1 1509-
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/10(S7C) Z=11 		8-97253-559-1 01 1 1509-
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) Z=13 		8-97253-562-1 01 1 1509-
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) MARK "10,11,16,17" 		8-97253-124-0 01 1 1509-
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/9(HC6) F&R 225/75R17.5(BS)17.5X6.00-127 SILVER(CWZ) MARK "10,11,16,17" 		8-97253-124-0 01 1 1509-
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/8(RU1) MARK "12,13,14,15" 		8-97253-125-0 01 1 1509-
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/9(HC6) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127SILVER(CRV) MARK "12,13,14,15" 		8-97253-125-0 01 1 1509-
4 04.338 BOLT; RET,DRIVEN GEAR
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1509-
9 04.338 SEAL; OIL,DRIVEN GEAR
NOK 		8-97131-328-1 01 1 1509-
22 00.685 BOLT; TRANS CASE TO ENG
09.171 M10X30 FLANGE 		0-28151-030-0 04 1 1509-
22 00.685 BOLT; TRANS CASE TO ENG
03.670 M10X35 FLANGE 		0-28151-035-0 03 1 1509-
22 00.685 BOLT; TRANS CASE TO ENG
00.683 M10X55 FLANGE 		8-97365-449-0 02 1 1509-
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-98046-217-0 01 1 1509-
98 04.338 SEAL; OIL,BUSH
04.439 		9-09561-324-0 01 1 1509-
