◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51637 - NQR AIR BRAKE LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#166336) — 39 parça

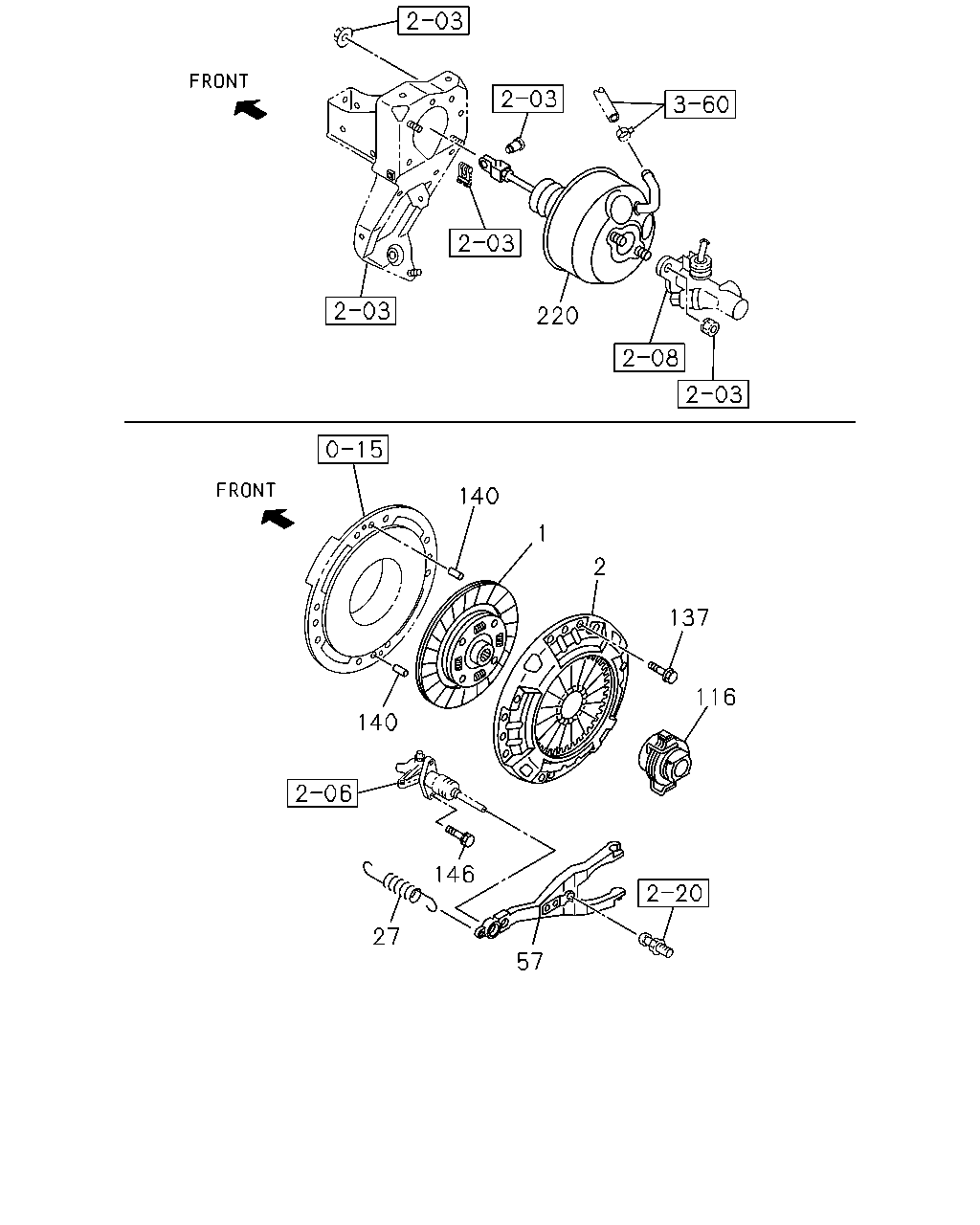

çizim 492304
220 140 1 2 137 116 140 146 57 27
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.886 DISC; CLUTCH 8-98255-140-1 01 1 1509- ●
1 00.886 DISC; CLUTCH 8-98164-917-1 01 1 1509- ● ●
1 00.886 DISC; CLUTCH
BEST VALUE PARTS 		5-87610-080-1 01 1 1509- ●
1 00.886 DISC; CLUTCH
BEST VALUE PARTS 		5-87610-092-0 01 1 1509- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97038-831-2 01 1 1509- ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		5-87610-104-0 01 1 1509- ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-98025-314-0 01 1 1509- ● ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-98025-313-0 01 1 1509- ●
57 00.795 FORK; SHIFT,CLU 8-97255-303-0 01 1 1509- ●
57 00.795 FORK; SHIFT,CLU 8-97310-456-1 01 1 1509- ● ●
116 00.799 BLOCK; SHIFT,CLU 8-97255-313-0 01 1 1509- ●
116 00.799 BLOCK; SHIFT,CLU
BEST VALUE PARTS 		5-87610-110-0 01 1 1509- ●
137 00.862 BOLT; CLU COVER
02.483 M10X16 FLANGE 		0-28051-016-0 10 1 1509- ● ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 1509- ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1509- ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-98033-837-0 01 1 1509- ● ● ●

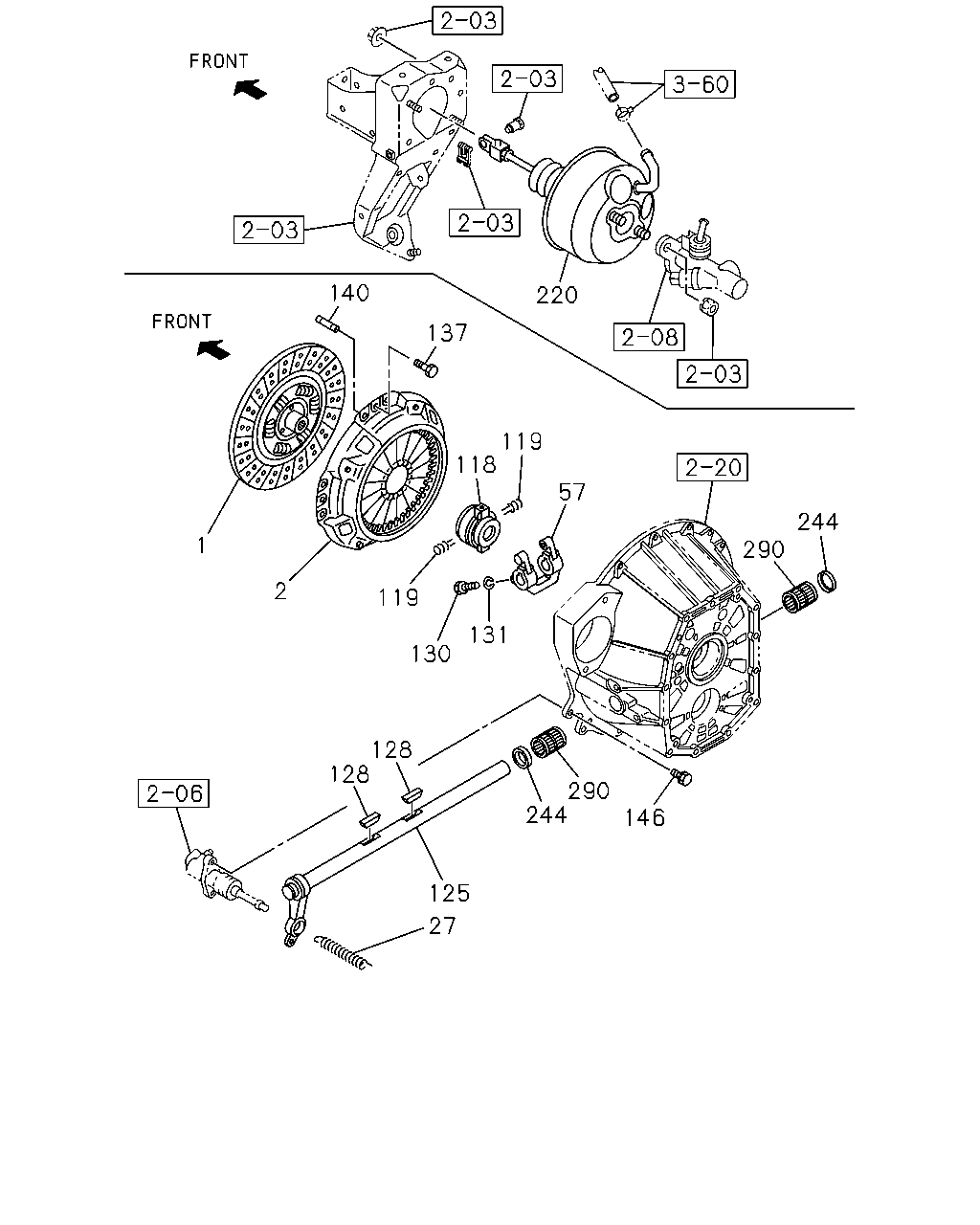

çizim 492360
220 137 140 1 2 119 130 118 119 57 131 290 244 146 290 244 128 128 125 27
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.886 DISC; CLUTCH 8-98255-140-1 01 1 1509- ●
1 00.886 DISC; CLUTCH 8-98164-917-1 01 1 1509- ● ●
1 00.886 DISC; CLUTCH
BEST VALUE PARTS 		5-87610-080-1 01 1 1509- ●
1 00.886 DISC; CLUTCH
BEST VALUE PARTS 		5-87610-092-0 01 1 1509- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97038-831-2 01 1 1509- ● ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		5-87610-104-0 01 1 1509- ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-98025-314-0 01 1 1509- ● ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-98025-313-0 01 1 1509- ●
57 00.795 FORK; SHIFT,CLU 8-97255-303-0 01 1 1509- ●
57 00.795 FORK; SHIFT,CLU 8-97310-456-1 01 1 1509- ● ●
118 00.799 BEARING; CLU RELEASE 1-31310-012-0 01 1 1509- ● ●
118 00.799 BEARING; CLU RELEASE
BEST VALUE PARTS 		1-87610-110-0 01 1 1509- ● ●
119 00.797 SPRING; SHIFT FORK 1-31329-024-0 02 1 1509- ● ●
125 00.805 SHAFT; CLU 8-97310-435-0 01 1 1509- ● ●
128 00.833 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 1509- ● ●
130 00.833 SCREW; SHIFT FORK
M8X14 		0-61200-814-0 01 1 1509- ● ●
131 00.833 WASHER; LK,SHIFT FORK
04.439 ID=8.2 		0-91510-508-0 01 1 1509- ● ●
137 00.862 BOLT; CLU COVER
02.483 M10X16 FLANGE 		0-28051-016-0 10 1 1509- ● ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 1509- ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1509- ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-98033-837-0 01 1 1509- ● ● ●
244 00.805 SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T). 00.797 		1-09625-002-0 02 1 1509- ● ●
290 00.862 BEARING; NEEDLE
00.683 NTN 		1-09811-002-1 02 1 1509- ● ●
