Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#166333) — 176 parça

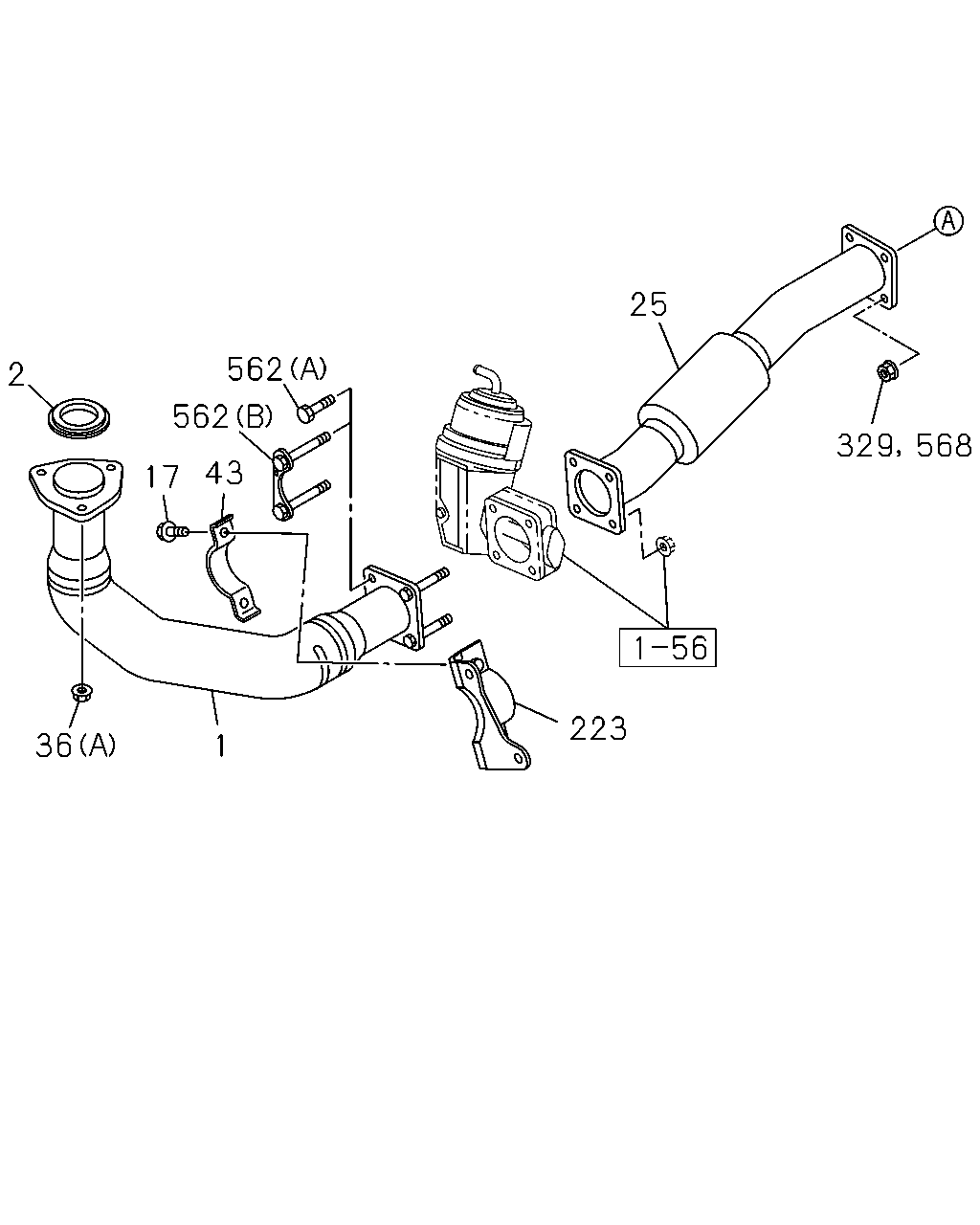

562 562 17 2 43 1 36 223 25 329 568

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH CATALYSIS CONTROL(6MZ)	8-98149-676-0	01	1	1509-
1	03.609 PIPE; EXH CATALYSIS CONTROL WITH DPD(8JM)	8-98006-765-2	01	1	1509-
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	1509-
17	03.613 BOLT; EXH PIPE 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1509-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER CATALYSIS CONTROL(6MZ)	8-98292-549-0	01	1	1509-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER CATALYSIS CONTROL WITH DPD(8JM)	8-98006-766-0	01	1	1509-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1509-
36	03.613 NUT; EXH PIPE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1509-
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	1509-
223	03.706 BRACKET; EXH PIPE 03.613	8-98020-555-0	01	1	1509-
329	03.613 NUT; EXH PIPE TO PIPE CATALYSIS CONTROL(6MZ) 03.162 M10 FLANGE	0-91180-110-0	04	1	1509-
562	03.690 PLATE; STUD,BOLT CATALYSIS CONTROL(6MZ) 00.206 (A) M8X70 FLANGE	0-28050-870-0	02	1	1509-
562	03.690 PLATE; STUD,BOLT CATALYSIS CONTROL WITH DPD(8JM) 03.613 (C)	1-22131-962-0	02	1	1509-
562	03.690 PLATE; STUD,BOLT CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98030-175-0	01	1	1509-
568	03.704 NUT; DPD CATALYSIS CONTROL WITH DPD(8JM) 02.042 M12 FLANGE	0-91180-112-0	04	1	1509-

38 94 126 610 627 167 629 105 104 95 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	04	1	1509-
94	03.704 BOLT; CLAMP CATALYSIS CONTROL(6MZ) 00.685 M10X45 FLANGE	0-28051-045-0	02	1	1509-
94	03.704 BOLT; CLAMP CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1509-
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1509-
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1509-
105	03.704 NUT; CLAMP CATALYSIS CONTROL(6MZ) 00.833 M10	0-91110-510-0	02	1	1509-
105	03.704 NUT; CLAMP CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE	0-91180-110-0	01	1	1509-
126	03.705 PIPE; EXH,RR CATALYSIS CONTROL(6MZ)	8-98292-545-0	01	1	1509-
126	03.705 PIPE; EXH,RR CATALYSIS CONTROL WITH DPD(8JM)	8-98181-928-0	01	1	1509-
137	03.706 BRACKET; TAIL PIPE CATALYSIS CONTROL(6MZ)	8-98095-054-0	01	1	1509-
137	03.706 BRACKET; TAIL PIPE CATALYSIS CONTROL WITH DPD(8JM)	8-98203-438-0	01	1	1509-
167	03.706 HANGER; EXH PIPE CATALYSIS CONTROL(6MZ)	8-98032-149-0	01	1	1509-
167	03.706 HANGER; EXH PIPE CATALYSIS CONTROL WITH DPD(8JM)	8-98032-150-0	01	1	1509-
610	03.704 BOLT; HANGER 00.685 M10X45 FLANGE	0-28051-045-0	01	1	1509-
627	03.706 WASHER; HANGER 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1509-
629	03.706 SPACER; HANGER CATALYSIS CONTROL(6MZ) (A) L=37.5	9-22151-217-0	02	1	1509-
629	03.706 SPACER; HANGER (B) L=23	8-98006-011-0	01	1	1509-
629	03.706 SPACER; HANGER CATALYSIS CONTROL WITH DPD(8JM) (A) L=37.5	9-22151-217-0	03	1	1509-

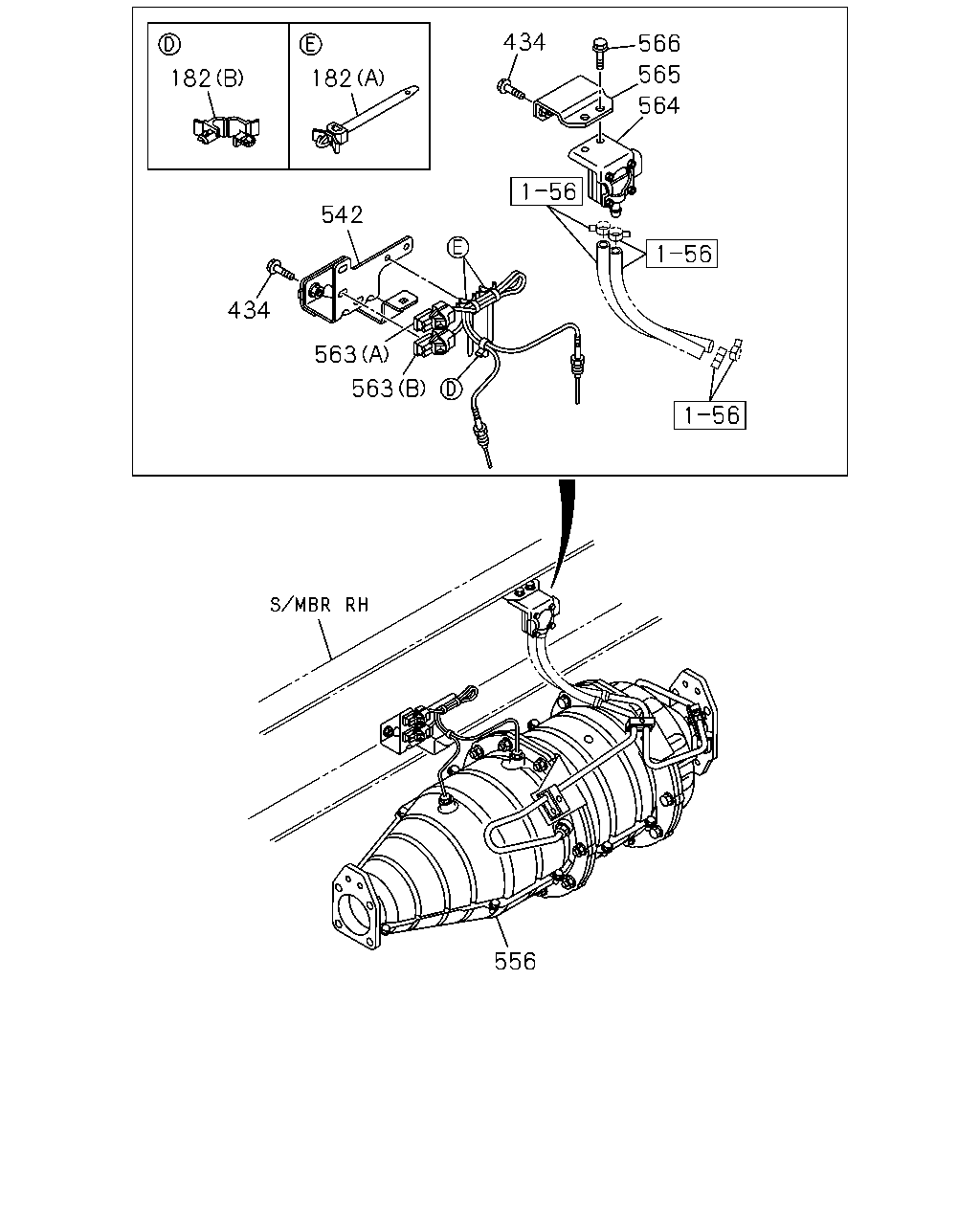

182 182 542 434 563 563 434 566 565 564 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
182	03.682 CLIP; HARNESS EXC. CATALYSIS CONTROL(6MZ) 02.587 (A) L=112	8-94232-618-0	02	1	1509-
182	03.682 CLIP; HARNESS 4HK1-TCS ENG(RJS) CATALYSIS CONTROL(6MZ) EXC. KD PREPARATORY PACK<6HF> 02.587 (A) L=112	8-94232-618-0	02	1	1509-
182	03.682 CLIP; HARNESS EXC. CATALYSIS CONTROL(6MZ) (B) ID=7 L=7.5	8-97369-561-0	01	1	1509-
434	03.613 BOLT; BRKT EXC. CATALYSIS CONTROL(6MZ) 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1509-
542	03.704 BRACKET EXC. CATALYSIS CONTROL(6MZ)	8-98039-602-0	01	1	1509-
556	03.701 DPD ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98084-602-4	01	1	1509-
563	01.150 SENSOR; TEMPERATURE,DPD EXC. CATALYSIS CONTROL(6MZ) (A)	8-98004-329-0	01	1	1509-
563	01.150 SENSOR; TEMPERATURE,DPD EXC. CATALYSIS CONTROL(6MZ) (B)	8-98004-330-0	01	1	1509-
564	01.150 SENSOR; PRESSURE,DPD EXC. CATALYSIS CONTROL(6MZ)	8-97359-985-2	01	1	1509-
565	03.706 BRACKET; SENSOR,PRESSURE EXC. CATALYSIS CONTROL(6MZ)	8-98029-348-0	01	1	1509-
566	03.706 BOLT; SENSOR EXC. CATALYSIS CONTROL(6MZ) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1509-

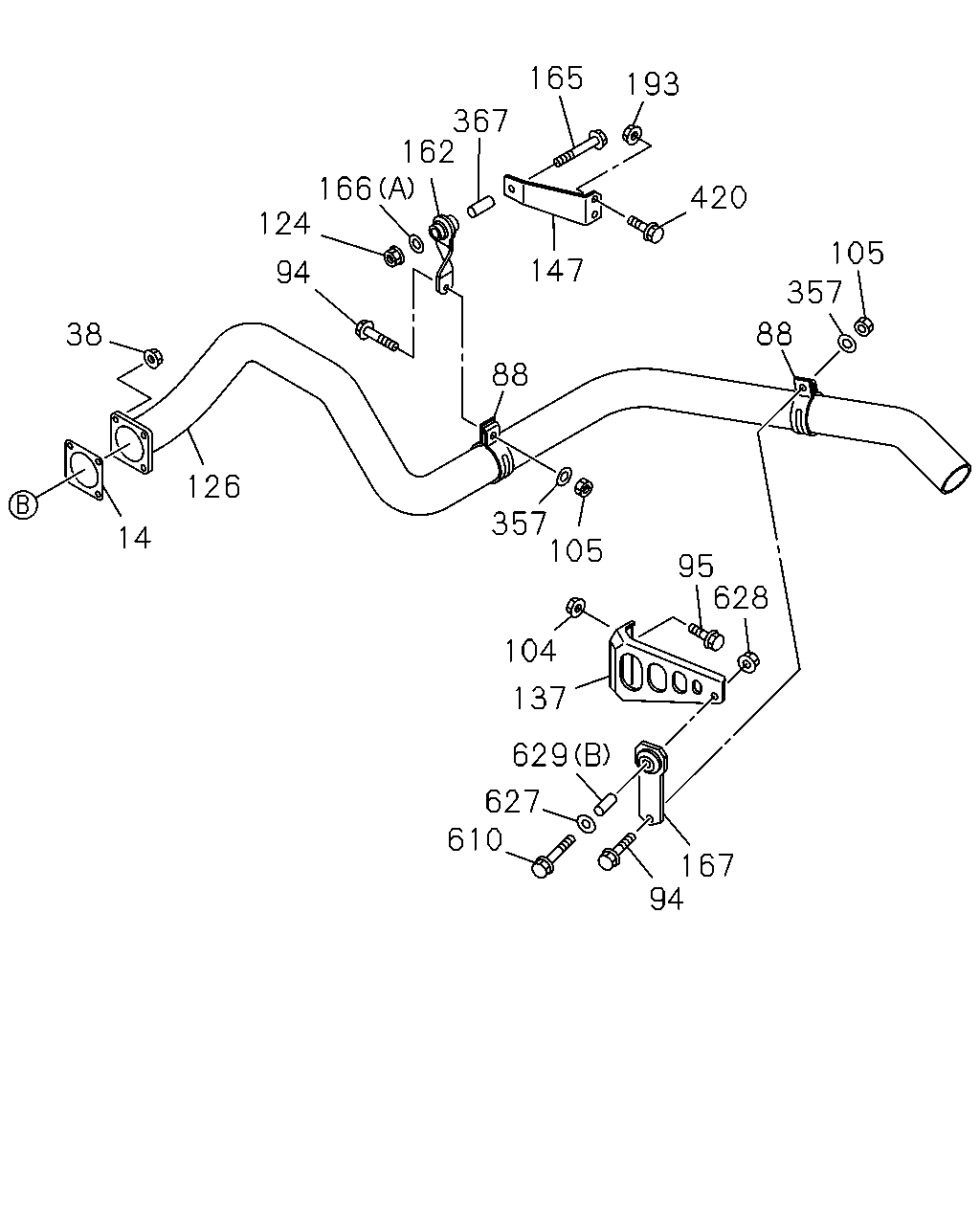

367 165 193 420 105 357 88 147 162 166 124 38 94 88 357 105 95 628 104 137 629 627 610 167 94 126 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	03.704 GASKET; SILENCER TO EXH PIPE ID=85.8	1-22116-043-0	01	1	1509-
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	04	1	1509-
88	03.708 CLAMP; EXH PIPE CATALYSIS CONTROL(6MZ)	8-98034-766-0	02	1	1509-
94	03.704 BOLT; CLAMP CATALYSIS CONTROL(6MZ) 00.685 M10X45 FLANGE	0-28051-045-0	02	1	1509-
94	03.704 BOLT; CLAMP CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1509-
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1509-
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1509-
105	03.704 NUT; CLAMP CATALYSIS CONTROL(6MZ) 00.833 M10	0-91110-510-0	02	1	1509-
105	03.704 NUT; CLAMP CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE	0-91180-110-0	01	1	1509-
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1509-
126	03.705 PIPE; EXH,RR CATALYSIS CONTROL(6MZ)	8-98292-545-0	01	1	1509-
126	03.705 PIPE; EXH,RR CATALYSIS CONTROL WITH DPD(8JM)	8-98181-928-0	01	1	1509-
137	03.706 BRACKET; TAIL PIPE CATALYSIS CONTROL(6MZ)	8-98095-054-0	01	1	1509-
137	03.706 BRACKET; TAIL PIPE CATALYSIS CONTROL WITH DPD(8JM)	8-98203-438-0	01	1	1509-
147	03.704 BRACKET; VERTICAL PIPE CATALYSIS CONTROL(6MZ)	8-98149-703-1	01	1	1509-
162	03.706 RUBBER; SUPPORT,TAIL PIPE CATALYSIS CONTROL(6MZ) L=115	8-98034-765-0	01	1	1509-
165	03.706 BOLT; SUPPORT RUBBER CATALYSIS CONTROL(6MZ) M10X70 FLANGE	0-28051-070-0	01	1	1509-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI CATALYSIS CONTROL(6MZ) 00.002 (A) ID=10.5 OD=32	0-91614-810-0	01	1	1509-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI CATALYSIS CONTROL(6MZ) 03.704 (B) OD=55	9-09852-169-0	02	1	1509-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI CATALYSIS CONTROL WITH DPD(8JM) 03.704 (B) OD=55	9-09852-169-0	03	1	1509-
167	03.706 HANGER; EXH PIPE CATALYSIS CONTROL(6MZ)	8-98032-149-0	01	1	1509-
167	03.706 HANGER; EXH PIPE CATALYSIS CONTROL WITH DPD(8JM)	8-98032-150-0	01	1	1509-
193	03.704 NUT; BRKT,VERTICAL PIPE CATALYSIS CONTROL(6MZ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1509-
357	03.708 WASHER; PL,CLAMP CATALYSIS CONTROL(6MZ) 00.002 ID=10.5 OD=22	0-91614-610-0	02	1	1509-
367	03.704 COLLAR; DIST,SUPPORT RUBBER CATALYSIS CONTROL(6MZ) 03.706 L=37.5	9-22151-217-0	01	1	1509-
420	03.704 BOLT; BRKT,VERTICAL PIPE CATALYSIS CONTROL(6MZ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1509-
610	03.704 BOLT; HANGER 00.685 M10X45 FLANGE	0-28051-045-0	01	1	1509-
627	03.706 WASHER; HANGER 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1509-
628	03.275 NUT; HANGER CATALYSIS CONTROL(6MZ) 03.162 M10 FLANGE	0-91180-110-0	01	1	1509-
629	03.706 SPACER; HANGER CATALYSIS CONTROL(6MZ) (A) L=37.5	9-22151-217-0	02	1	1509-
629	03.706 SPACER; HANGER (B) L=23	8-98006-011-0	01	1	1509-
629	03.706 SPACER; HANGER CATALYSIS CONTROL WITH DPD(8JM) (A) L=37.5	9-22151-217-0	03	1	1509-

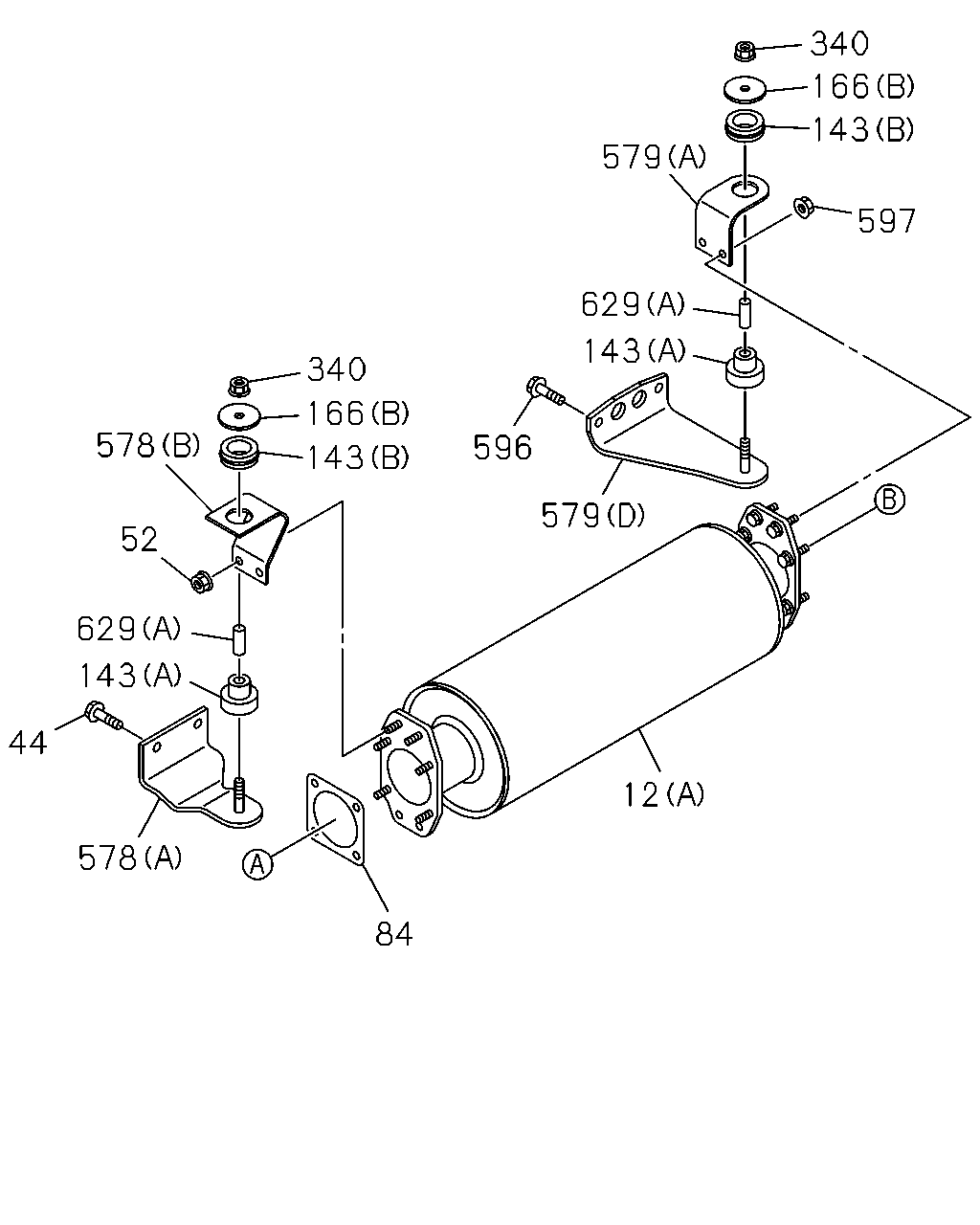

340 166 143 597 579 629 143 596 579 12 84 578 143 44 52 629 578 340 166 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	03.701 SILENCER ASM; EXH CATALYSIS CONTROL(6MZ) (A)	8-98292-548-0	01	1	1509-
12	03.701 SILENCER ASM; EXH CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98181-935-0	01	1	1509-
44	03.613 BOLT; BRKT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1509-
44	03.613 BOLT; BRKT CATALYSIS CONTROL WITH DPD(8JM) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	1509-
52	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1509-
84	03.611 GASKET; EXH PIPE 03.704 ID=85.8	1-22116-043-0	01	1	1509-
143	03.704 RUBBER; SUPPORT CATALYSIS CONTROL(6MZ) (A)	8-94457-277-1	02	1	1509-
143	03.704 RUBBER; SUPPORT CATALYSIS CONTROL(6MZ) (B)	8-94457-278-1	02	1	1509-
143	03.704 RUBBER; SUPPORT CATALYSIS CONTROL WITH DPD(8JM) (A)	8-94457-277-1	04	1	1509-
143	03.704 RUBBER; SUPPORT CATALYSIS CONTROL WITH DPD(8JM) (B)	8-94457-278-1	04	1	1509-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI CATALYSIS CONTROL(6MZ) 00.002 (A) ID=10.5 OD=32	0-91614-810-0	01	1	1509-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI CATALYSIS CONTROL(6MZ) 03.704 (B) OD=55	9-09852-169-0	02	1	1509-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI CATALYSIS CONTROL WITH DPD(8JM) 03.704 (B) OD=55	9-09852-169-0	03	1	1509-
340	03.706 NUT; RUBBER,SUPPORT CATALYSIS CONTROL(6MZ) 07.874 M10 FLANGE	5-09440-006-0	02	1	1509-
340	03.706 NUT; RUBBER,SUPPORT CATALYSIS CONTROL WITH DPD(8JM) 07.874 M10 FLANGE	5-09440-006-0	03	1	1509-
578	03.706 BRACKET; DPD FRT CATALYSIS CONTROL(6MZ) 03.704 (B)	8-98149-700-0	01	1	1509-
578	03.706 BRACKET; DPD FRT CATALYSIS CONTROL(6MZ) (A)	8-98292-550-0	01	1	1509-
578	03.706 BRACKET; DPD FRT CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98006-770-0	01	1	1509-
578	03.706 BRACKET; DPD FRT CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98048-296-0	01	1	1509-
579	03.704 BRACKET; DPD RR CATALYSIS CONTROL(6MZ) (A)	8-98149-709-0	01	1	1509-
579	03.704 BRACKET; DPD RR CATALYSIS CONTROL(6MZ) (D)	8-98292-551-0	01	1	1509-
579	03.704 BRACKET; DPD RR CATALYSIS CONTROL WITH DPD(8JM) 03.706 (B)	8-98048-292-1	01	1	1509-
579	03.704 BRACKET; DPD RR CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98048-300-1	01	1	1509-
596	03.704 BOLT; BRKT,DPD 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1509-
597	03.704 NUT; BRKT,DPD 03.162 M10 FLANGE	0-91180-110-0	02	1	1509-
629	03.706 SPACER; HANGER CATALYSIS CONTROL(6MZ) (A) L=37.5	9-22151-217-0	02	1	1509-
629	03.706 SPACER; HANGER (B) L=23	8-98006-011-0	01	1	1509-
629	03.706 SPACER; HANGER CATALYSIS CONTROL WITH DPD(8JM) (A) L=37.5	9-22151-217-0	03	1	1509-

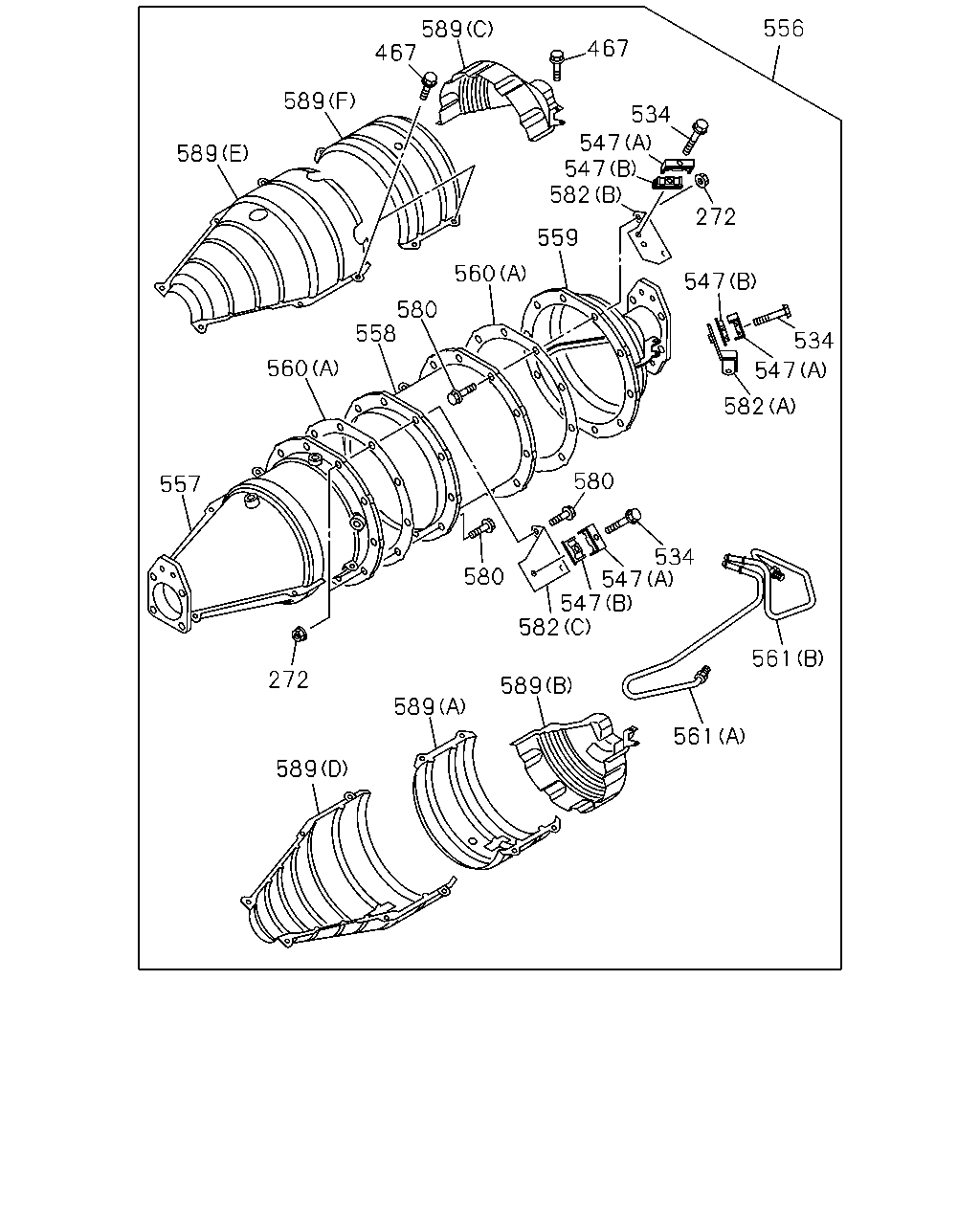

589 467 589 589 560 558 580 560 559 582 547 547 534 467 556 272 547 534 547 582 557 272 580 580 534 547 547 582 589 589 589 561 561

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
272	03.685 NUT; FLANGE CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	20	1	1509-
467	03.685 BOLT; PROTECTOR CATALYSIS CONTROL WITH DPD(8JM) M6X16	8-98019-179-0	14	1	1509-
534	03.704 BOLT; CLIP CATALYSIS CONTROL WITH DPD(8JM) 03.162 M6X35 FLANGE	0-28650-635-0	03	1	1509-
547	03.682 CLIP; PIPE CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97381-635-0	03	1	1509-
547	03.682 CLIP; PIPE CATALYSIS CONTROL WITH DPD(8JM) (B)	8-97381-636-0	03	1	1509-
556	03.701 DPD ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98084-602-4	01	1	1509-
557	03.701 CATALYST ASM CATALYSIS CONTROL WITH DPD(8JM)	8-97608-055-8	01	1	1509-
558	03.634 FILTER ASM CATALYSIS CONTROL WITH DPD(8JM)	8-97608-057-3	01	1	1509-
559	03.602 COVER; RR CATALYSIS CONTROL WITH DPD(8JM)	8-97622-887-0	01	1	1509-
560	03.611 GASKET; DPD CATALYSIS CONTROL WITH DPD(8JM) (B)	1-22116-040-0	01	1	1509-
560	03.611 GASKET; DPD CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97611-080-0	02	1	1509-
561	03.609 PIPE; DPD CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98084-603-0	01	1	1509-
561	03.609 PIPE; DPD CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98084-604-0	01	1	1509-
580	03.704 BOLT; FLANGE CATALYSIS CONTROL WITH DPD(8JM) 01.060 M8X35 FLANGE	0-28650-835-0	20	1	1509-
582	03.706 BRACKET; PIPE CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97611-083-0	01	1	1509-
582	03.706 BRACKET; PIPE CATALYSIS CONTROL WITH DPD(8JM) (B)	8-97611-084-0	01	1	1509-
582	03.706 BRACKET; PIPE CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97611-085-0	01	1	1509-
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (F)	8-97605-172-0	01	1	1509-
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (E)	8-97611-086-0	01	1	1509-
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (D)	8-97611-087-0	01	1	1509-
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97611-088-0	01	1	1509-
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (B)	8-97611-089-0	01	1	1509-
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97613-390-0	01	1	1509-

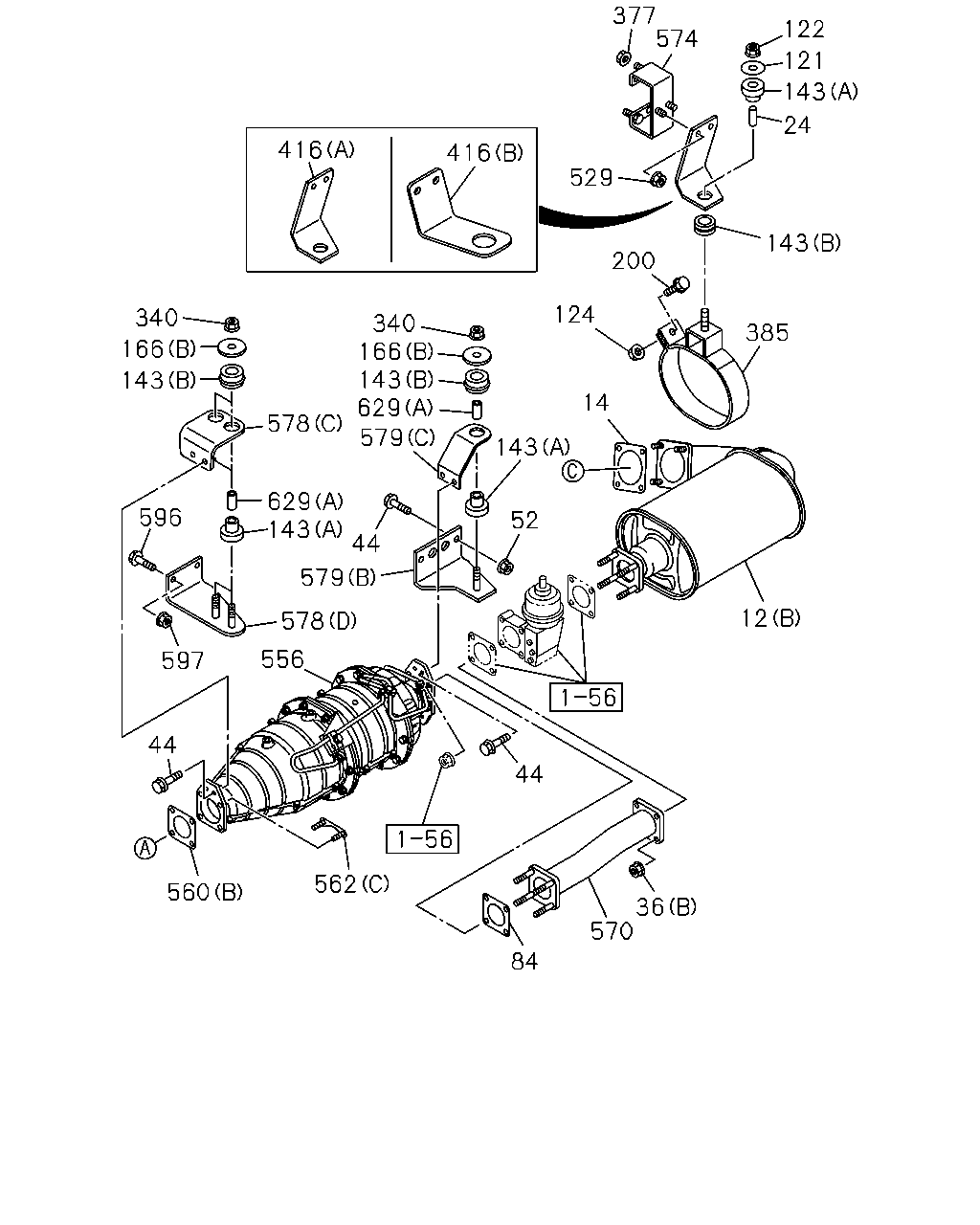

416 416 529 377 200 24 143 121 122 574 143 385 12 52 143 124 14 340 166 143 629 579 578 143 166 340 596 629 143 579 578 556 597 44 560 562 44 84 570 44 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	03.701 SILENCER ASM; EXH CATALYSIS CONTROL(6MZ) (A)	8-98292-548-0	01	1	1509-
12	03.701 SILENCER ASM; EXH CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98181-935-0	01	1	1509-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=85.8	1-22116-043-0	01	1	1509-
24	03.613 COLLAR; DIST,CLAMP CATALYSIS CONTROL WITH DPD(8JM) 03.706 L=37.5	9-22151-217-0	01	1	1509-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1509-
36	03.613 NUT; EXH PIPE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1509-
44	03.613 BOLT; BRKT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1509-
44	03.613 BOLT; BRKT CATALYSIS CONTROL WITH DPD(8JM) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	1509-
52	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1509-
84	03.611 GASKET; EXH PIPE 03.704 ID=85.8	1-22116-043-0	01	1	1509-
121	03.704 WASHER; PL,BRKT CATALYSIS CONTROL WITH DPD(8JM) OD=55	9-09852-169-0	01	1	1509-
122	03.275 NUT; HANGER BRKT CATALYSIS CONTROL WITH DPD(8JM) 07.874 M10 FLANGE	5-09440-006-0	01	1	1509-
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1509-
143	03.704 RUBBER; SUPPORT CATALYSIS CONTROL(6MZ) (A)	8-94457-277-1	02	1	1509-
143	03.704 RUBBER; SUPPORT CATALYSIS CONTROL(6MZ) (B)	8-94457-278-1	02	1	1509-
143	03.704 RUBBER; SUPPORT CATALYSIS CONTROL WITH DPD(8JM) (A)	8-94457-277-1	04	1	1509-
143	03.704 RUBBER; SUPPORT CATALYSIS CONTROL WITH DPD(8JM) (B)	8-94457-278-1	04	1	1509-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI CATALYSIS CONTROL(6MZ) 00.002 (A) ID=10.5 OD=32	0-91614-810-0	01	1	1509-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI CATALYSIS CONTROL(6MZ) 03.704 (B) OD=55	9-09852-169-0	02	1	1509-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI CATALYSIS CONTROL WITH DPD(8JM) 03.704 (B) OD=55	9-09852-169-0	03	1	1509-
200	03.704 BOLT; SUPPORT RUBBER CATALYSIS CONTROL WITH DPD(8JM) 00.685 M10X40 FLANGE	0-28051-040-0	01	1	1509-
340	03.706 NUT; RUBBER,SUPPORT CATALYSIS CONTROL(6MZ) 07.874 M10 FLANGE	5-09440-006-0	02	1	1509-
340	03.706 NUT; RUBBER,SUPPORT CATALYSIS CONTROL WITH DPD(8JM) 07.874 M10 FLANGE	5-09440-006-0	03	1	1509-
377	03.704 NUT; BRKT CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE	0-91180-110-0	02	1	1509-
385	03.704 BRACKET; SILENCER MTG CATALYSIS CONTROL WITH DPD(8JM)	8-98006-776-1	01	1	1509-
416	03.706 BRACKET; RR EXH PIPE WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.704 (B)	8-98006-774-0	01	1	1509-
416	03.706 BRACKET; RR EXH PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.704 (A)	8-98073-376-0	01	1	1509-
529	03.704 NUT; BRKT,EXH PIPE CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE	0-91180-110-0	02	1	1509-
556	03.701 DPD ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98084-602-4	01	1	1509-
560	03.611 GASKET; DPD CATALYSIS CONTROL WITH DPD(8JM) (B)	1-22116-040-0	01	1	1509-
560	03.611 GASKET; DPD CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97611-080-0	02	1	1509-
562	03.690 PLATE; STUD,BOLT CATALYSIS CONTROL(6MZ) 00.206 (A) M8X70 FLANGE	0-28050-870-0	02	1	1509-
562	03.690 PLATE; STUD,BOLT CATALYSIS CONTROL WITH DPD(8JM) 03.613 (C)	1-22131-962-0	02	1	1509-
562	03.690 PLATE; STUD,BOLT CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98030-175-0	01	1	1509-
570	03.704 ADAPTER; EXH PIPE CATALYSIS CONTROL WITH DPD(8JM)	8-98073-373-0	01	1	1509-
574	03.706 SPACER; DPD CATALYSIS CONTROL WITH DPD(8JM)	8-98044-774-0	01	1	1509-
578	03.706 BRACKET; DPD FRT CATALYSIS CONTROL(6MZ) 03.704 (B)	8-98149-700-0	01	1	1509-
578	03.706 BRACKET; DPD FRT CATALYSIS CONTROL(6MZ) (A)	8-98292-550-0	01	1	1509-
578	03.706 BRACKET; DPD FRT CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98006-770-0	01	1	1509-
578	03.706 BRACKET; DPD FRT CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98048-296-0	01	1	1509-
579	03.704 BRACKET; DPD RR CATALYSIS CONTROL(6MZ) (A)	8-98149-709-0	01	1	1509-
579	03.704 BRACKET; DPD RR CATALYSIS CONTROL(6MZ) (D)	8-98292-551-0	01	1	1509-
579	03.704 BRACKET; DPD RR CATALYSIS CONTROL WITH DPD(8JM) 03.706 (B)	8-98048-292-1	01	1	1509-
579	03.704 BRACKET; DPD RR CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98048-300-1	01	1	1509-
596	03.704 BOLT; BRKT,DPD 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1509-
597	03.704 NUT; BRKT,DPD 03.162 M10 FLANGE	0-91180-110-0	02	1	1509-
629	03.706 SPACER; HANGER CATALYSIS CONTROL(6MZ) (A) L=37.5	9-22151-217-0	02	1	1509-
629	03.706 SPACER; HANGER (B) L=23	8-98006-011-0	01	1	1509-
629	03.706 SPACER; HANGER CATALYSIS CONTROL WITH DPD(8JM) (A) L=37.5	9-22151-217-0	03	1	1509-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
