6-47 — MUD GUARD AND INSULATOR
(#16633) — 67 parça
Tümü
A - NKB5SC
B - NKC5SC
C - NKC5SF
◀

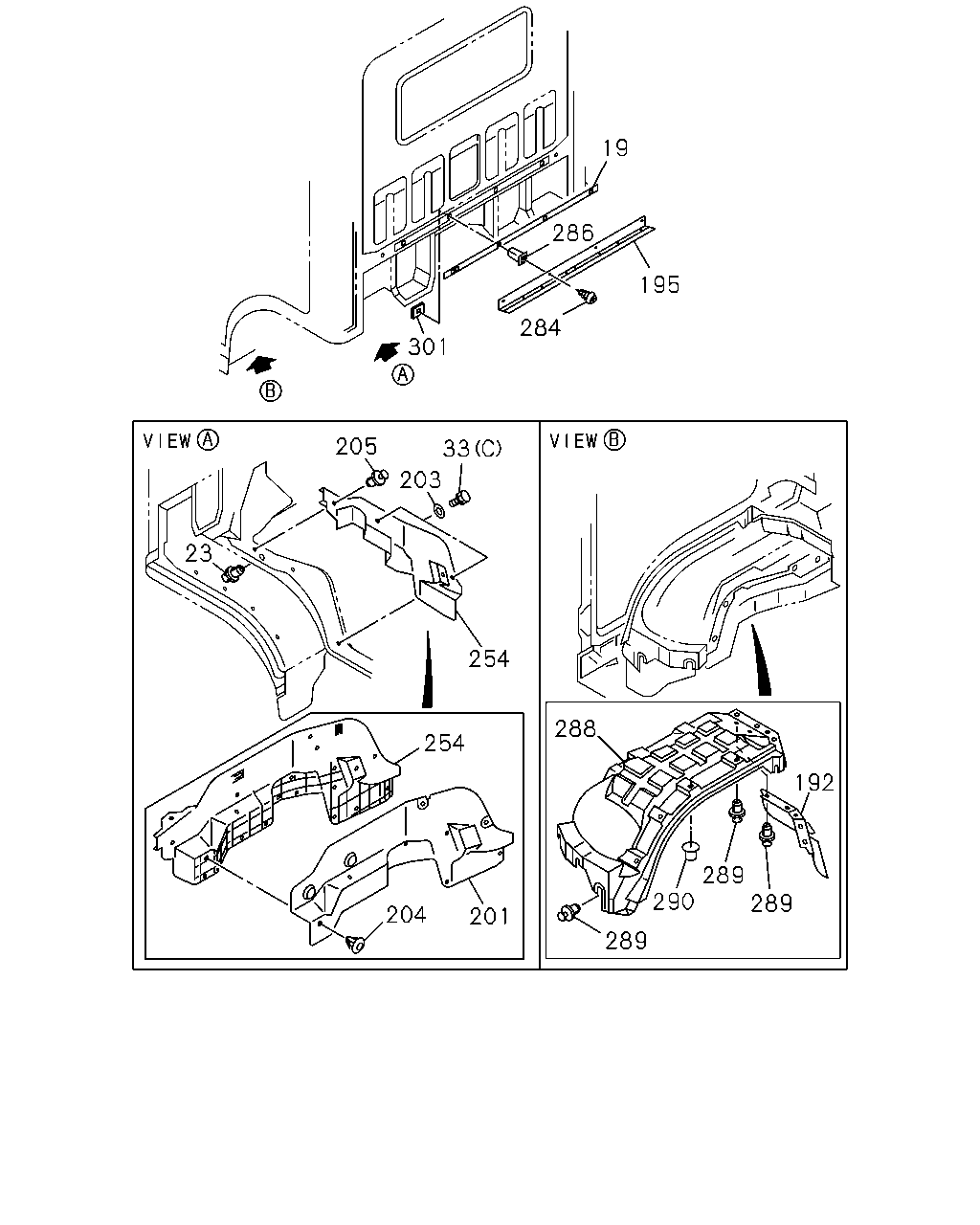

[647A] INSULATOR AND OTHER PARTS (31 parça)
[647A] SIDE COVER (7 parça)

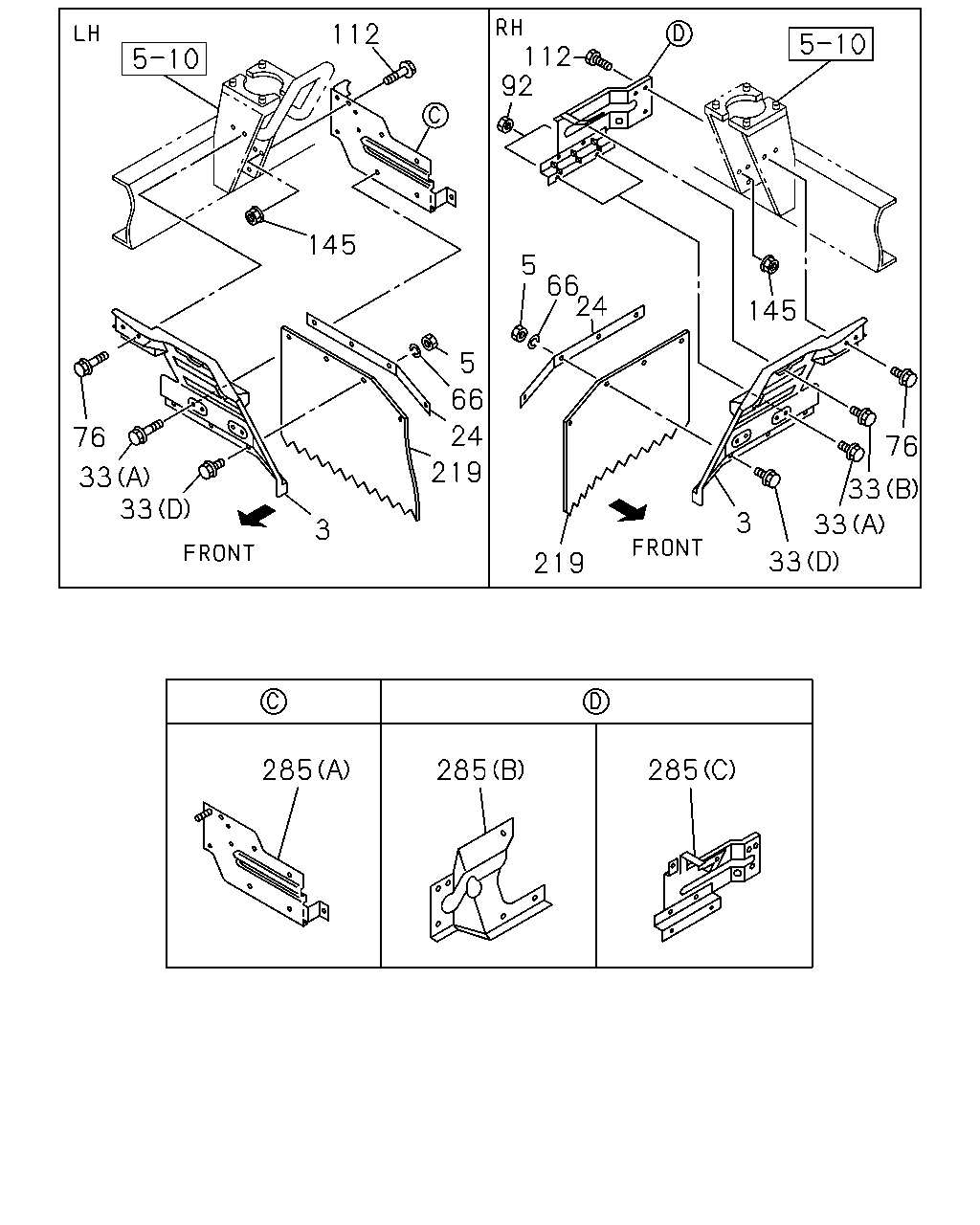

[647A] MUD COVER (29 parça)
▶
19
286
195
284
301
205
33
203
23
254
288
254
192
289
290
289
204
201
289
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
19
SHEET; HEAT PROTECTOR,CAB BACK
8-97856-016-0
01
1
0508-
●
●
23
FASTENER; MUD COVER
OD=8.3
8-97997-832-0
06
1
0508-
●
●
●
33
BOLT; MUD COVER
(C) M6X25 FLANGE THA
0-28650-625-0
04
1
0601-0611
●
●
●
33
BOLT; MUD COVER
(C) M6X25 FLANGE THA
0-28650-625-0
08
1
0612-
●
●
●
33
BOLT; MUD COVER
(A) M8X20 FLANGE
0-28080-820-0
05
1
0508-0611
●
●
●
33
BOLT; MUD COVER
(A) M8X20 FLANGE THA
0-28050-820-0
05
1
0612-
●
●
●
33
BOLT; MUD COVER
(B) M8X20 W/LK&PL WASHER
8-94279-104-0
01
1
0508-0805
●
●
●
33
BOLT; MUD COVER
(B) M8X20 W/LK&PL WASHER
8-97359-709-0
01
1
0806-
●
●
●
33
BOLT; MUD COVER
(D) M6X16 FLANGE
0-28080-616-0
08
1
0508-0512
●
●
●
33
BOLT; MUD COVER
(D) M6X16 FLANGE THA
0-28050-616-0
08
1
0601-
●
●
●
33
BOLT; MUD COVER
(C) M6X25 FLANGE
0-28680-625-0
04
1
0508-0510
●
●
●
33
BOLT; MUD COVER
(C) M6X25 FLANGE
0-28680-625-0
08
1
0511-0512
●
●
●
33
BOLT; MUD COVER
(C) M6X25 FLANGE
0-28680-625-0
04
1
0601-0611
●
●
●
192
SEAL; MUD COVER
8-97857-297-4
02
1
0508-1106
●
●
●
192
SEAL; MUD COVER
8-98192-031-0
02
1
1107-
●
●
●
195
PROTECTOR; HEAT
8-97035-834-3
01
1
0508-
●
195
PROTECTOR; HEAT
8-97094-833-2
01
1
0508-
●
201
INSULATOR; VALANCE
8-97853-116-3
01
1
0508-
●
●
●
201
INSULATOR; VALANCE
8-97853-117-3
01
1
0508-
●
●
●
203
WASHER; PL,VALANCE
ID=6.4 OD=22
8-94279-631-0
04
1
0508-
●
●
●
204
CLIP; VALANCE,INSULATOR
OD=18 L=17
8-94279-702-0
10
1
0508-
●
●
●
205
FASTENER; MUD COVER
D=5.8 SCREW & GROMMET NYLON
8-94242-150-0
02
1
0508-
●
●
●
254
COVER; MUD,VALANCE
8-97853-071-4
01
1
0508-
●
●
●
254
COVER; MUD,VALANCE
8-97853-072-4
01
1
0508-
●
●
●
284
SCREW; HEAT PROTECTOR
M5X16 TAPPING W/PL WASHER
8-94496-177-1
04
1
0508-
●
●
286
GROMMET; SCREW,HEAT PROTECTOR
8-97994-312-0
04
1
0508-
●
●
●
288
LINER; TIRE HOUSE
8-97581-240-0
01
1
0508-
●
●
●
288
LINER; TIRE HOUSE
8-97581-241-0
01
1
0508-
●
●
●
289
FASTENER; LINER
OD=8.3
8-94279-989-0
18
1
0508-
●
●
●
290
NUT; LINER
CAP NUT BLACK
8-94279-526-0
08
1
0508-
●
●
●
301
HOLDER; HEAT PROTECTOR
8-97994-313-0
04
1
0508-
●
●
●
140
150
140
139
140
140
150
139
140
140
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
139
PANEL; SIDE
4JB1-TC ENG<RDT> (B)
8-97078-381-1
01
1
0508-
●
●
139
PANEL; SIDE
4JB1-TC ENG<RDT> (A)
8-97035-774-3
01
1
0508-
●
●
139
PANEL; SIDE
4HG1-T ENG<RDP> (A)
8-97035-774-3
01
1
0508-
●
139
PANEL; SIDE
4HG1-T ENG<RDP> (B)
8-97078-382-1
01
1
0508-
●
140
BOLT; SIDE PANEL
M8X25 FLANGE
0-28680-825-0
07
1
0508-0611
●
●
●
140
BOLT; SIDE PANEL
M8X25 FLANGE THA
0-28650-825-0
07
1
0612-
●
●
●
150
NUT; SIDE PANEL
M8 FLANGE
0-91150-108-0
01
1
0508-
●
●
●
112
92
112
145
5
66
24
145
5
66
24
76
76
219
33
33
33
3
33
3
33
219
285
285
285
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
3
GUARD; MUD,RR
THA
8-97912-557-0
01
1
0508-
●
●
●
3
GUARD; MUD,RR
THA
8-97912-558-0
01
1
0508-
●
●
●
5
NUT; FLAP RUBBER
M6
9-09111-406-0
08
1
0508-0512
●
●
●
5
NUT; FLAP RUBBER
M6
0-91111-506-0
08
1
0601-
●
●
●
24
PLATE; MUD COVER
THA
8-97916-499-1
02
1
0508-
●
●
●
33
BOLT; MUD COVER
(C) M6X25 FLANGE THA
0-28650-625-0
04
1
0601-0611
●
●
●
33
BOLT; MUD COVER
(C) M6X25 FLANGE THA
0-28650-625-0
08
1
0612-
●
●
●
33
BOLT; MUD COVER
(A) M8X20 FLANGE
0-28080-820-0
05
1
0508-0611
●
●
●
33
BOLT; MUD COVER
(A) M8X20 FLANGE THA
0-28050-820-0
05
1
0612-
●
●
●
33
BOLT; MUD COVER
(B) M8X20 W/LK&PL WASHER
8-94279-104-0
01
1
0508-0805
●
●
●
33
BOLT; MUD COVER
(B) M8X20 W/LK&PL WASHER
8-97359-709-0
01
1
0806-
●
●
●
33
BOLT; MUD COVER
(D) M6X16 FLANGE
0-28080-616-0
08
1
0508-0512
●
●
●
33
BOLT; MUD COVER
(D) M6X16 FLANGE THA
0-28050-616-0
08
1
0601-
●
●
●
33
BOLT; MUD COVER
(C) M6X25 FLANGE
0-28680-625-0
04
1
0508-0510
●
●
●
33
BOLT; MUD COVER
(C) M6X25 FLANGE
0-28680-625-0
08
1
0511-0512
●
●
●
33
BOLT; MUD COVER
(C) M6X25 FLANGE
0-28680-625-0
04
1
0601-0611
●
●
●
66
WASHER; LK
ID=6.1
9-09150-506-0
08
1
0508-0601
●
●
●
66
WASHER; LK
ID=6.1
0-91510-506-0
08
1
0602-
●
●
●
76
BOLT; MUD GUARD
M8X20 FLANGE
0-28080-820-0
02
1
0508-0611
●
●
●
76
BOLT; MUD GUARD
M8X20 FLANGE THA
0-28050-820-0
02
1
0612-
●
●
●
92
NUT; MUD COVER
M8 FLANGE
0-91150-108-0
02
1
0508-
●
●
●
112
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
05
1
0508-0611
●
●
●
112
BOLT; BRKT
M8X25 FLANGE THA
0-28650-825-0
05
1
0612-
●
●
●
145
NUT; BRKT
M8 FLANGE
0-91150-108-0
06
1
0508-
●
●
●
219
FLAP; MUD GUARD
THA
8-97916-761-0
02
1
0508-
●
●
●
285
BRACKET; MUD COVER
4JB1-TC ENG<RDT> (B)
8-97089-653-2
01
1
0508-
●
●
285
BRACKET; MUD COVER
4JB1-TC ENG<RDT> (A)
8-97225-272-1
01
1
0508-
●
●
285
BRACKET; MUD COVER
4HG1-T ENG<RDP> (C)
8-97035-778-4
01
1
0508-
●
285
BRACKET; MUD COVER
4HG1-T ENG<RDP> (A)
8-97092-037-2
01
1
0508-
●
