Sayfa 1-31 - Isuzu EPC

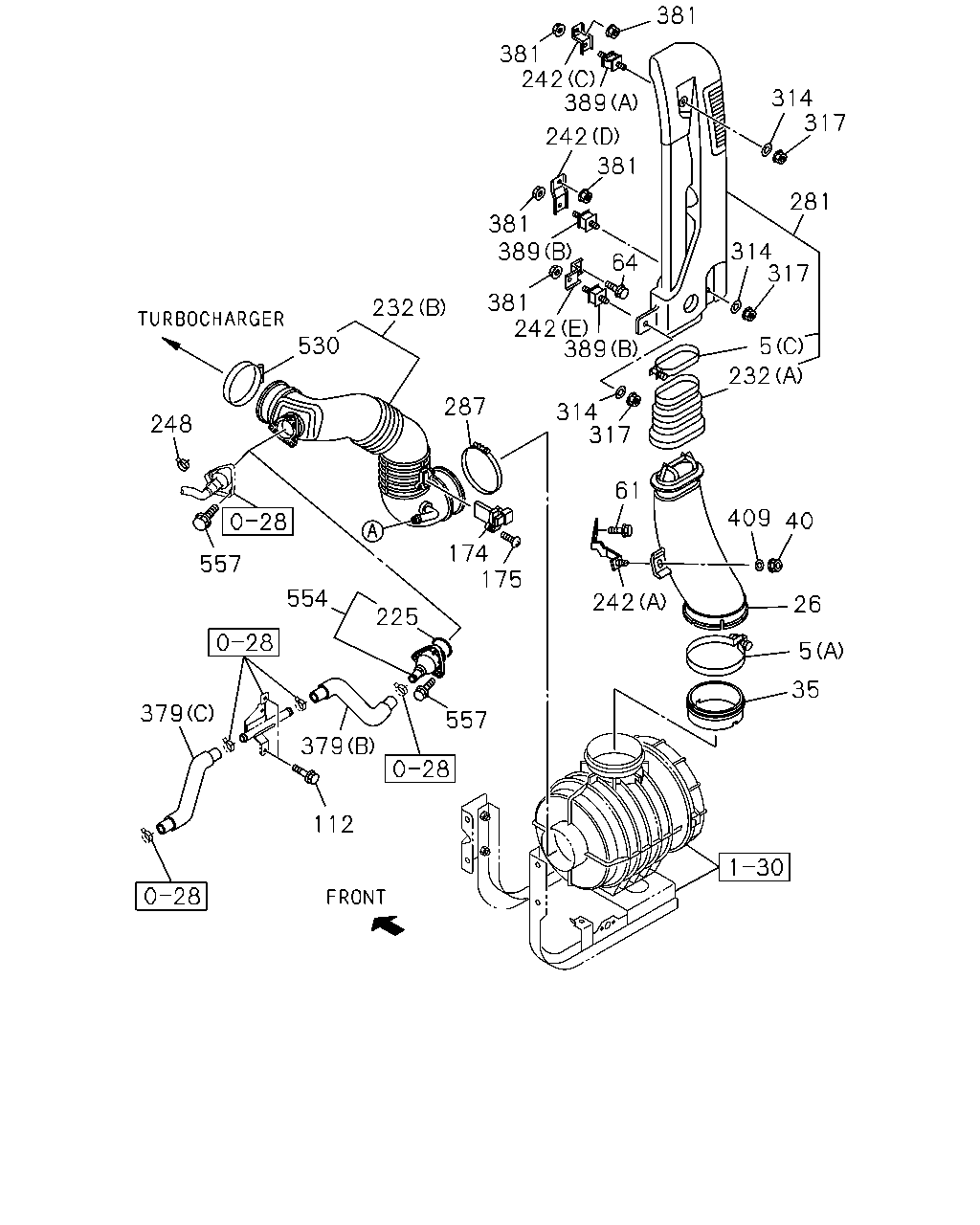

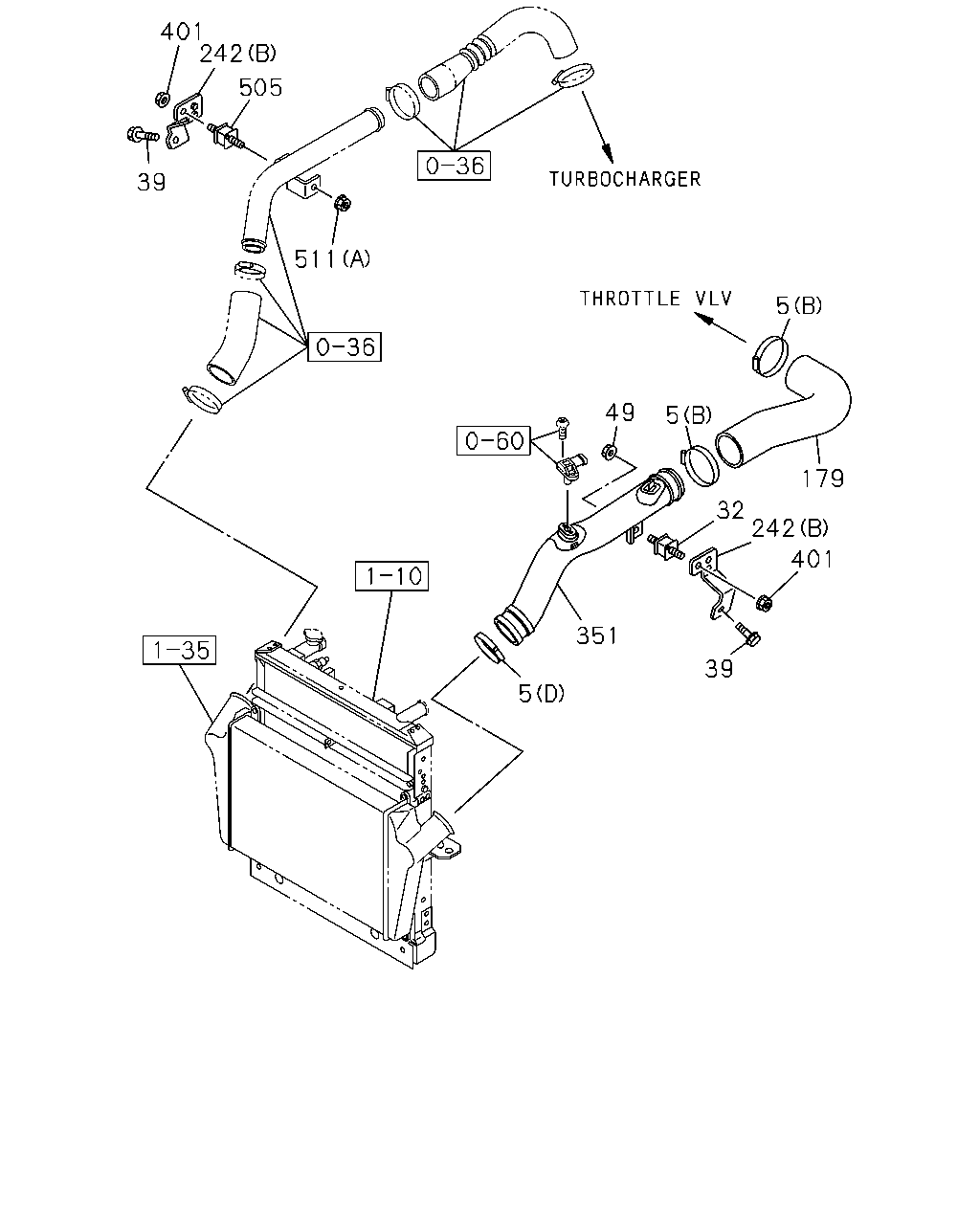

1-31 — AIR DUCT (#166329) — 71 parça

357 357 379 511 424 159 357 379 357

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
159	03.417 BOLT; AIR PIPE 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1509-
357	03.417 CLIP; RUBBER HOSE 01.153 ID=24	8-98025-921-0	04	1	1509-
379	03.675 HOSE; RUBBER (D)	8-98177-584-0	01	1	1509-
379	03.675 HOSE; RUBBER (A)	8-98180-671-2	01	1	1509-
379	03.675 HOSE; RUBBER FRIGID ZONE(YL3) (B)	8-98153-093-1	01	1	1509-
379	03.675 HOSE; RUBBER FRIGID ZONE(YL3) 03.975 (C)	8-98153-119-0	01	1	1509-
424	03.417 PIPE; AIR,INL	8-98180-496-2	01	1	1509-
511	03.417 NUT; PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1509-
511	03.417 NUT; PIPE 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1509-

401 505 242 511 39 5 5 49 179 401 32 242 39 351 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1509-
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1509-
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1509-
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1509-
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1509-
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1509-
32	03.417 RUBBER; AIR DUCT MTG	8-97081-886-0	01	1	1509-
39	03.417 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1509-
49	03.417 NUT; AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-
179	03.417 HOSE; AIR INT	8-98117-928-2	01	1	1509-
242	03.417 BRACKET; AIR DUCT (B)	8-98175-754-0	01	1	1509-
242	03.417 BRACKET; AIR DUCT (B)	8-98175-755-0	01	1	1509-
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1509-
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1509-
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1509-
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1509-
351	03.407 DUCT; AIR CATALYSIS CONTROL(6MZ)	8-98298-687-0	01	1	1509-
351	03.407 DUCT; AIR CATALYSIS CONTROL WITH DPD(8JM)	8-98105-722-1	01	1	1509-
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-
505	03.406 RUBBER; MTG 03.417	8-97081-886-0	01	1	1509-
511	03.417 NUT; PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1509-
511	03.417 NUT; PIPE 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1509-

381 314 317 281 314 317 5 232 317 314 389 242 381 389 381 64 381 242 389 242 381 232 530 287 174 175 225 554 557 248 379 379 112 557 242 61 409 40 26 5 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	1509-
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	1509-
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	1509-
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	1509-
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1509-
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1509-
26	03.417 DUCT; AIR INT	8-98025-626-0	01	1	1509-
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1509-
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1509-
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1509-
112	03.417 BOLT; CLIP FRIGID ZONE(YL3) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1509-
112	03.417 BOLT; CLIP FRIGID ZONE(YL3) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1509-
174	03.682 SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	1509-
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1509-
225	03.417 GASKET; AIR PIPE FRIGID ZONE(YL3) 01.097 ID=43.7	9-09561-344-0	01	1	1509-
232	03.417 HOSE; CONN (A)	8-98231-785-0	01	1	1509-
232	03.417 HOSE; CONN (B)	8-98281-174-0	01	1	1509-
242	03.417 BRACKET; AIR DUCT (B)	8-98175-754-0	01	1	1509-
242	03.417 BRACKET; AIR DUCT (B)	8-98175-755-0	01	1	1509-
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1509-
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1509-
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1509-
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1509-
248	03.417 CLIP; RUBBER HOSE 08.846 ID=21.7	8-97203-074-0	01	1	1509-
281	03.417 DUCT; AIR,VERTICAL INT	8-98080-929-2	01	1	1509-
287	03.417 CLIP; AIR DUCT 03.407 ID=112	9-09915-074-1	01	1	1509-
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1509-
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1509-
379	03.675 HOSE; RUBBER (D)	8-98177-584-0	01	1	1509-
379	03.675 HOSE; RUBBER (A)	8-98180-671-2	01	1	1509-
379	03.675 HOSE; RUBBER FRIGID ZONE(YL3) (B)	8-98153-093-1	01	1	1509-
379	03.675 HOSE; RUBBER FRIGID ZONE(YL3) 03.975 (C)	8-98153-119-0	01	1	1509-
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	05	1	1509-
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1509-
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1509-
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1509-
530	03.407 CLAMP; AIR DUCT ID=77-99	1-09707-141-0	01	1	1509-
554	04.439 FLANGE; PIPE,PCV FRIGID ZONE(YL3)	8-98038-208-0	01	1	1509-
557	03.403 BOLT; HOSE CLIP 00.386 M6X20 FLANGE	0-28050-620-0	03	1	1509-
