1-10 — RADIATOR (#166326) — 34 parça

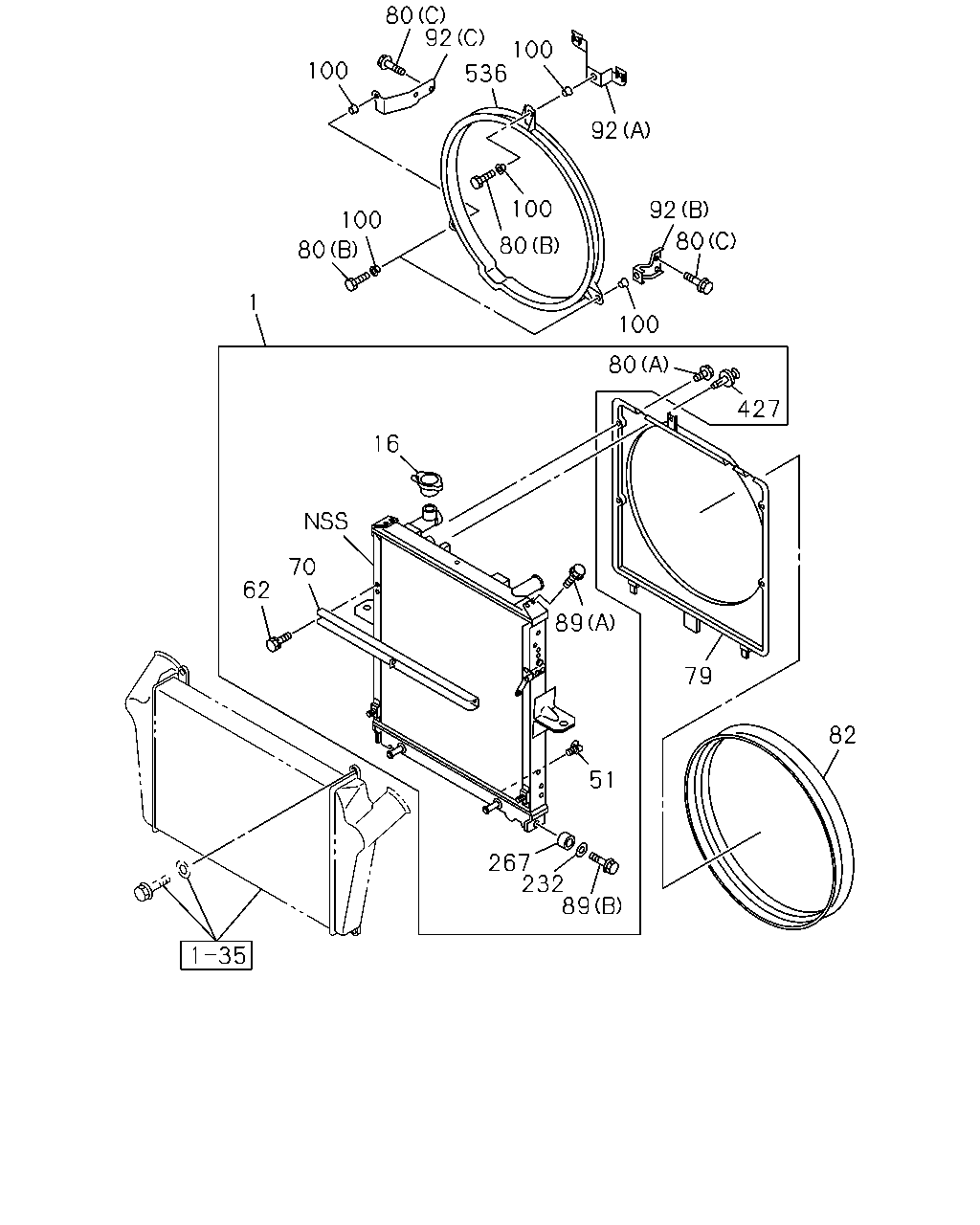

1 80 100 100 80 92 536 100 100 80 92 92 80 100 80 427 79 82 89 232 267 51 89 62 70 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 RADIATOR ASM CATALYSIS CONTROL(6MZ)	8-98205-710-0	01	1	1509-
1	01.219 RADIATOR ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98095-595-0	01	1	1509-
16	01.203 CAP; RAD CATALYSIS CONTROL(6MZ)	8-98096-226-0	01	1	1509-
16	01.203 CAP; RAD CATALYSIS CONTROL WITH DPD(8JM)	8-97239-187-0	01	1	1509-
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1509-
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1509-
70	01.271 STAY; RAD	8-98018-941-0	01	1	1509-
79	01.277 GUIDE; FAN,RAD	8-98006-477-0	01	1	1509-
80	01.277 BOLT; FAN GUIDE (A) M6X16	1-21559-481-0	04	1	1509-
80	01.277 BOLT; FAN GUIDE 03.417 (C) M10X20 FLANGE	0-28151-020-0	04	1	1509-
80	01.277 BOLT; FAN GUIDE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1509-
82	01.277 COVER; FAN,RAD	8-98006-478-0	01	1	1509-
89	01.277 BOLT 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1509-
89	01.277 BOLT 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1509-
92	01.277 BRACKET; FAN GUIDE (A)	8-97382-827-2	01	1	1509-
92	01.277 BRACKET; FAN GUIDE (B)	8-97386-233-0	01	1	1509-
92	01.277 BRACKET; FAN GUIDE (C)	8-98032-526-0	01	1	1509-
100	01.277 RUBBER; MTG	1-09337-027-0	06	1	1509-
232	01.540 COLLAR; DIST,CUSHION RUBBER CATALYSIS CONTROL(6MZ)	8-98141-232-0	02	1	1509-
232	01.540 COLLAR; DIST,CUSHION RUBBER CATALYSIS CONTROL WITH DPD(8JM)	1-87410-723-0	02	1	1509-
267	01.277 RUBBER; CUSHION	1-21467-023-0	02	1	1509-
427	01.240 CLIP; FAN GUIDE 01.277	1-09470-009-0	01	1	1509-
536	01.020 SHROUD; FAN 01.277	8-97350-995-0	01	1	1509-

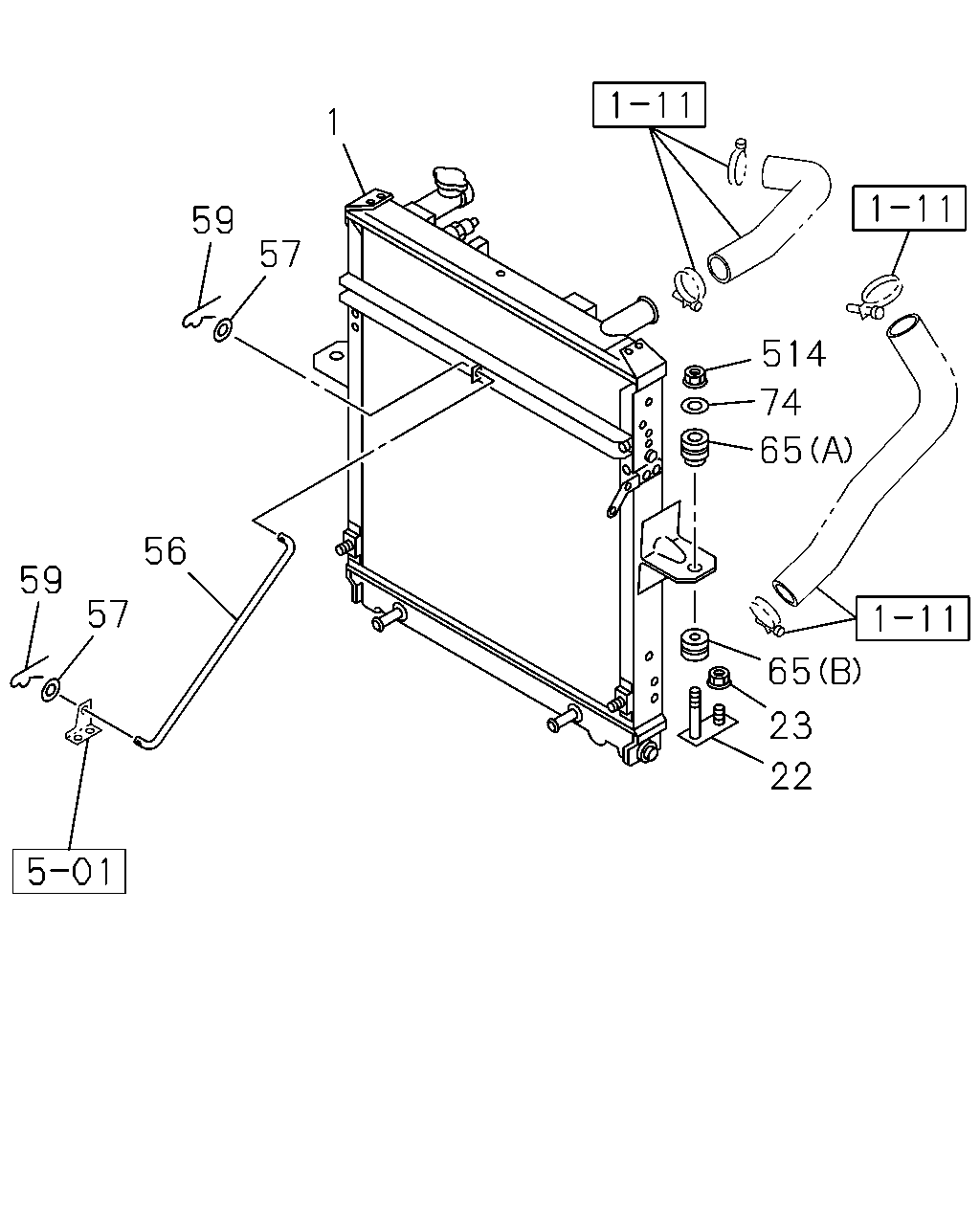

1 59 57 59 56 57 514 74 65 65 23 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 RADIATOR ASM CATALYSIS CONTROL(6MZ)	8-98205-710-0	01	1	1509-
1	01.219 RADIATOR ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98095-595-0	01	1	1509-
22	01.270 BRACKET; RAD MTG 01.277	8-97330-527-1	02	1	1509-
23	01.271 NUT; RAD MTG 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-
56	01.270 STAY; RAD	8-98049-051-0	01	1	1509-
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	1509-
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1509-
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1509-
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1509-
74	01.270 WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	1509-
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-
