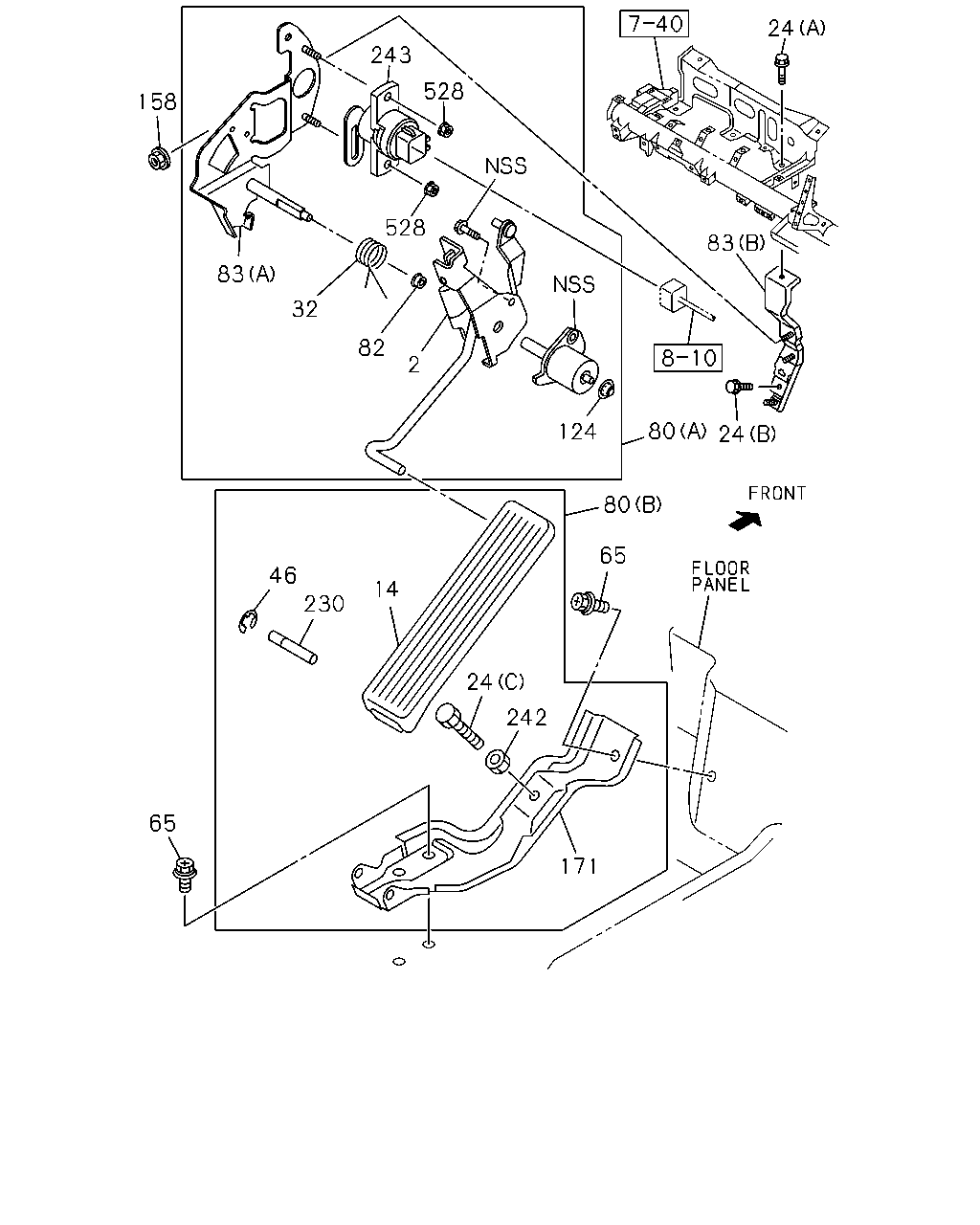

1-01 — ACCELERATOR PEDAL AND CONTROL (#166325) — 23 parça

243 158 83 82 32 2 528 124 80 80 24 65 14 230 46 242 24 171 65 83 24 528

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	03.454 LEVER; ENG CONT	8-98002-158-2	01	1	1509-
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	1509-
24	03.483 BOLT; BRKT 07.833 (A) M10X25 FLANGE	0-28661-025-0	01	1	1509-
24	03.483 BOLT; BRKT 00.833 (B) M10X22 W/PL WASHER	8-97313-188-0	01	1	1509-
24	03.483 BOLT; BRKT 09.173 (C) M8X35 FLANGE	8-98049-562-0	01	1	1509-
32	03.459 SPRING; RETURN,ACCEL PEDAL	8-98031-665-0	01	1	1509-
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	1509-
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	1509-
80	03.452 LINK ASM; ENG CONT (A)	8-97387-358-3	01	1	1509-
80	03.452 LINK ASM; ENG CONT 03.459 (B)	8-98006-714-1	01	1	1509-
82	03.463 BUSHING; ENG CONT LVR	8-97581-053-0	01	1	1509-
83	03.452 BRACKET; CONT LINK (A)	8-98023-885-2	01	1	1509-
83	03.452 BRACKET; CONT LINK (B)	8-98171-885-0	01	1	1509-
124	03.463 NUT; LEVER 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	1509-
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	1509-
171	03.483 BRACKET ASM; ACCEL PEDAL	8-98006-716-1	01	1	1509-
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-98026-806-0	01	1	1509-
242	03.483 NUT; ACCEL PEDAL 02.559 M8 FLANGE	8-98040-024-0	01	1	1509-
243	03.425 SENSOR; ACCEL	8-98131-263-0	01	1	1509-
528	03.463 NUT; ACCEL SENSOR 12.183 M5	8-94169-022-0	02	1	1509-

262 773 170

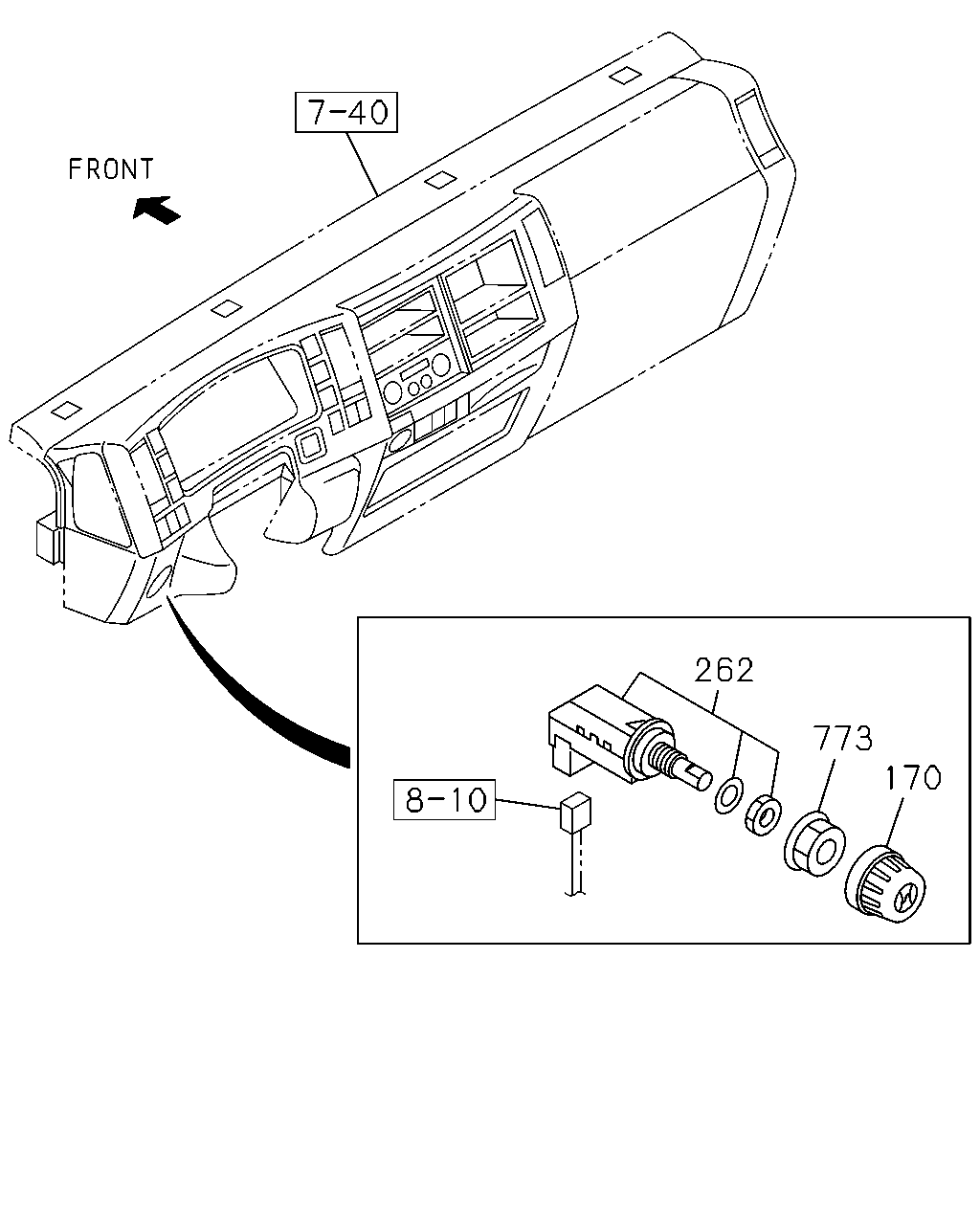

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
170	03.480 KNOB	8-98013-420-0	01	1	1509-
262	03.452 SWITCH; ACCEL,IDLE	8-98013-418-0	01	1	1509-
773	03.452 HOLDER; ACCEL PEDAL	8-97352-127-0	01	1	1509-
