◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51637 - NQR AIR BRAKE LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#166320) — 56 parça

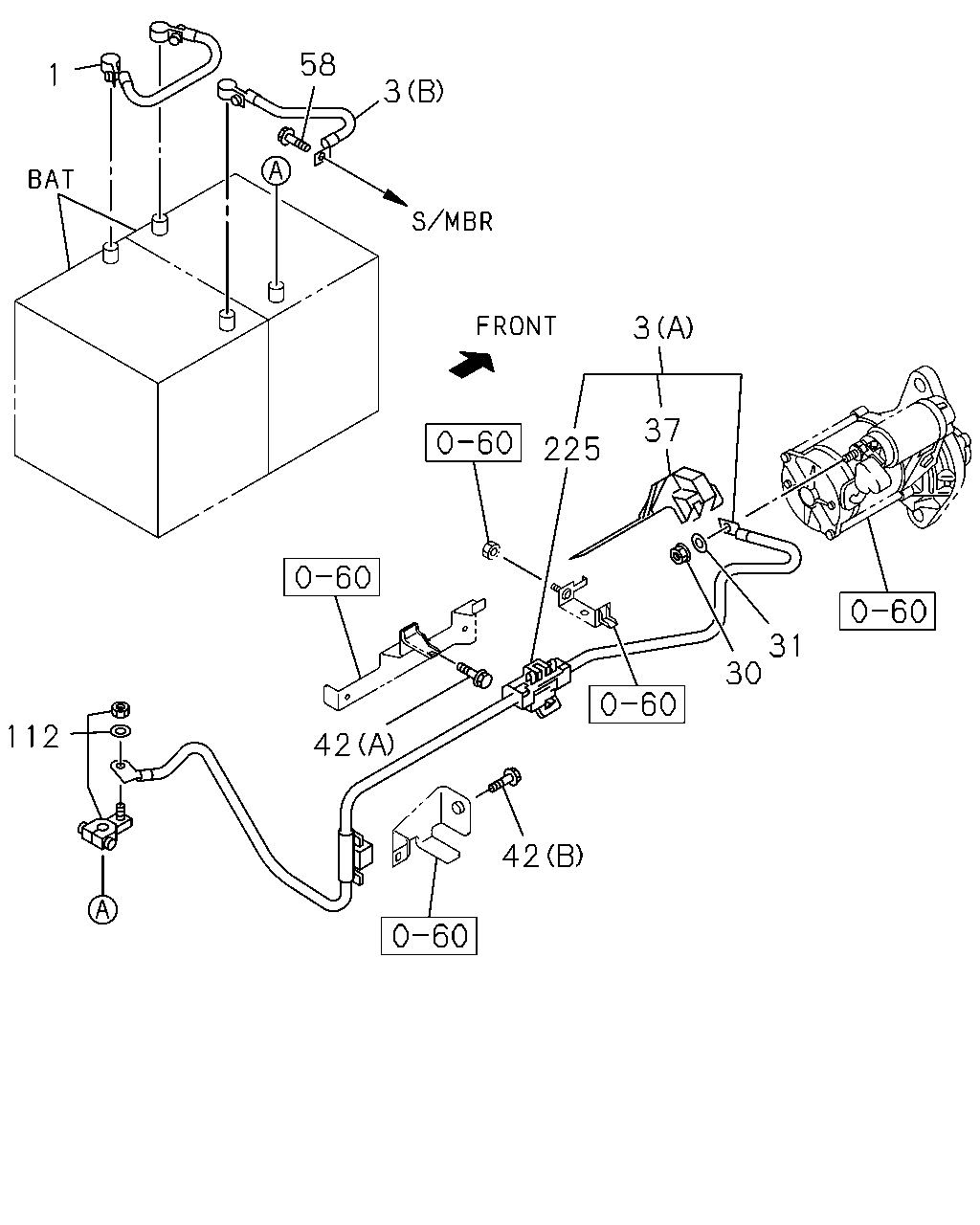

çizim 492199
1 58 3 3 225 37 30 31 42 42 112
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> (A) 		8-98294-764-0 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> (A) 		8-98294-756-0 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> (C) 		8-98294-757-0 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> (A) 		8-98294-765-0 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> (C) 		8-98294-766-0 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> (A) 		8-98294-754-0 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> (D) L=400 		8-98201-105-0 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> (C) 		8-98294-755-0 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> (A) 		8-98294-758-0 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> (C) 		8-98294-769-0 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> (A) 		8-98294-771-0 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> (C) 		8-98294-761-0 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> (B) L=200 		8-98056-337-1 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BATTERY 80D26L<TM1> (B) L=250 		8-98056-338-1 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BATTERY 115E41L<8MA> (D) 		8-98201-106-0 01 1 1509- ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1509- ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1509- ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1509- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 1509- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 1509- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1509- ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1509- ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1509- ● ●
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1509- ● ●

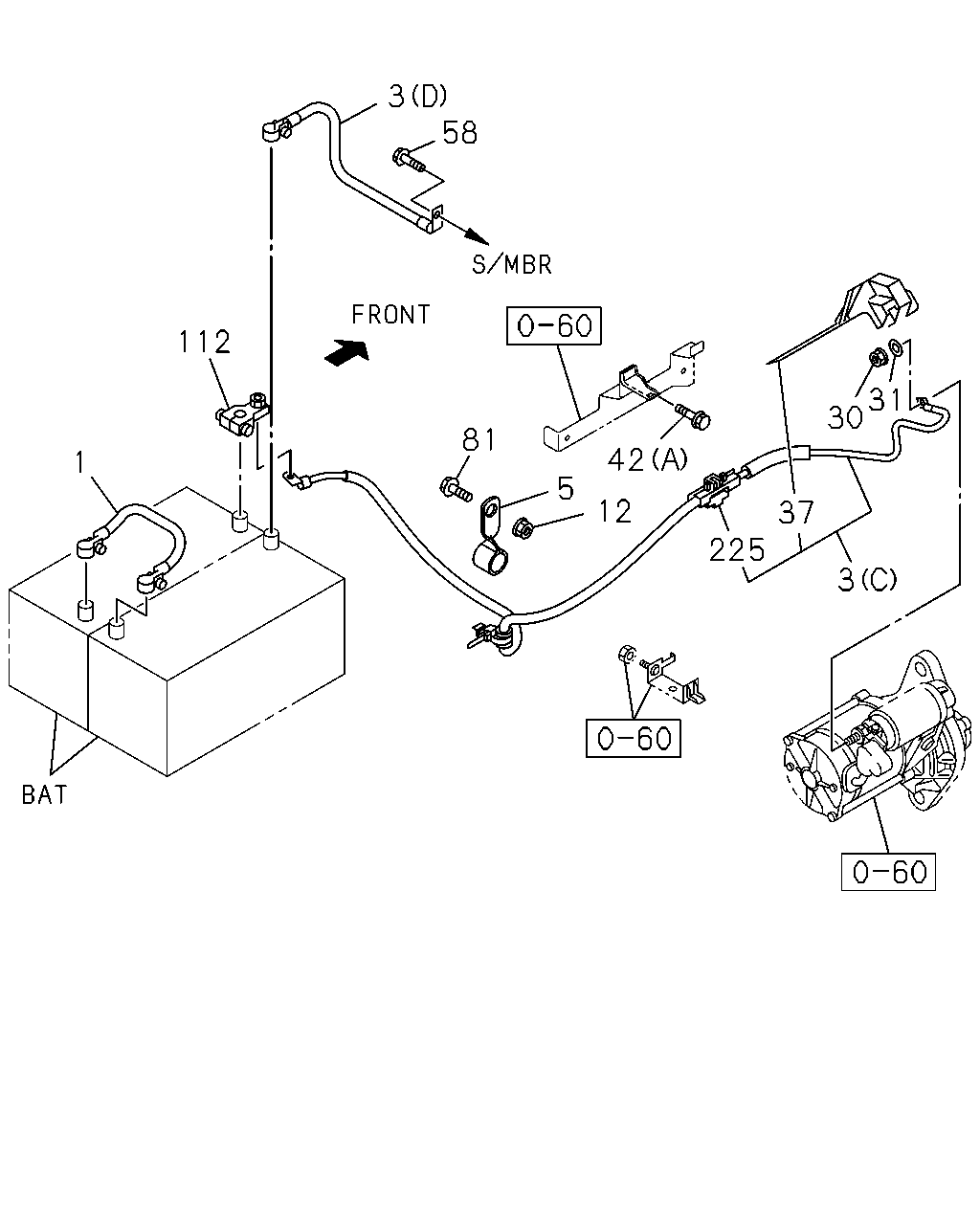

çizim 492204
1 112 3 58 42 12 5 225 37 30 31 81 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> (A) 		8-98294-764-0 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> (A) 		8-98294-756-0 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> (C) 		8-98294-757-0 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> (A) 		8-98294-765-0 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> (C) 		8-98294-766-0 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> (A) 		8-98294-754-0 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> (D) L=400 		8-98201-105-0 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> (C) 		8-98294-755-0 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> (A) 		8-98294-758-0 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> (C) 		8-98294-769-0 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> (A) 		8-98294-771-0 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> (C) 		8-98294-761-0 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> (B) L=200 		8-98056-337-1 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BATTERY 80D26L<TM1> (B) L=250 		8-98056-338-1 01 1 1509- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BATTERY 115E41L<8MA> (D) 		8-98201-106-0 01 1 1509- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BATTERY 115E41L<8MA> ID=19 L=58 		1-09700-733-1 01 1 1509- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> ID=19 L=58 		1-09700-733-1 01 1 1509- ● ●
12 02.343 NUT; BATTERY CABLE CLIP
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
12 02.343 NUT; BATTERY CABLE CLIP
M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1509- ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1509- ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1509- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
FUEL TANK 100 LITTER<N02> BATTERY 80D26L<TM1> 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 1509- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> BATTERY 80D26L<TM1> 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 1509- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1509- ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1509- ● ●
81 02.559 BOLT; BATTERY CABLE
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BATTERY 115E41L<8MA> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ●
81 02.559 BOLT; BATTERY CABLE
M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> BATTERY 115E41L<8MA> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1509- ● ●
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
