0-52 — OIL AND VACUUM PIPING; ENGINE (#166317) — 28 parça

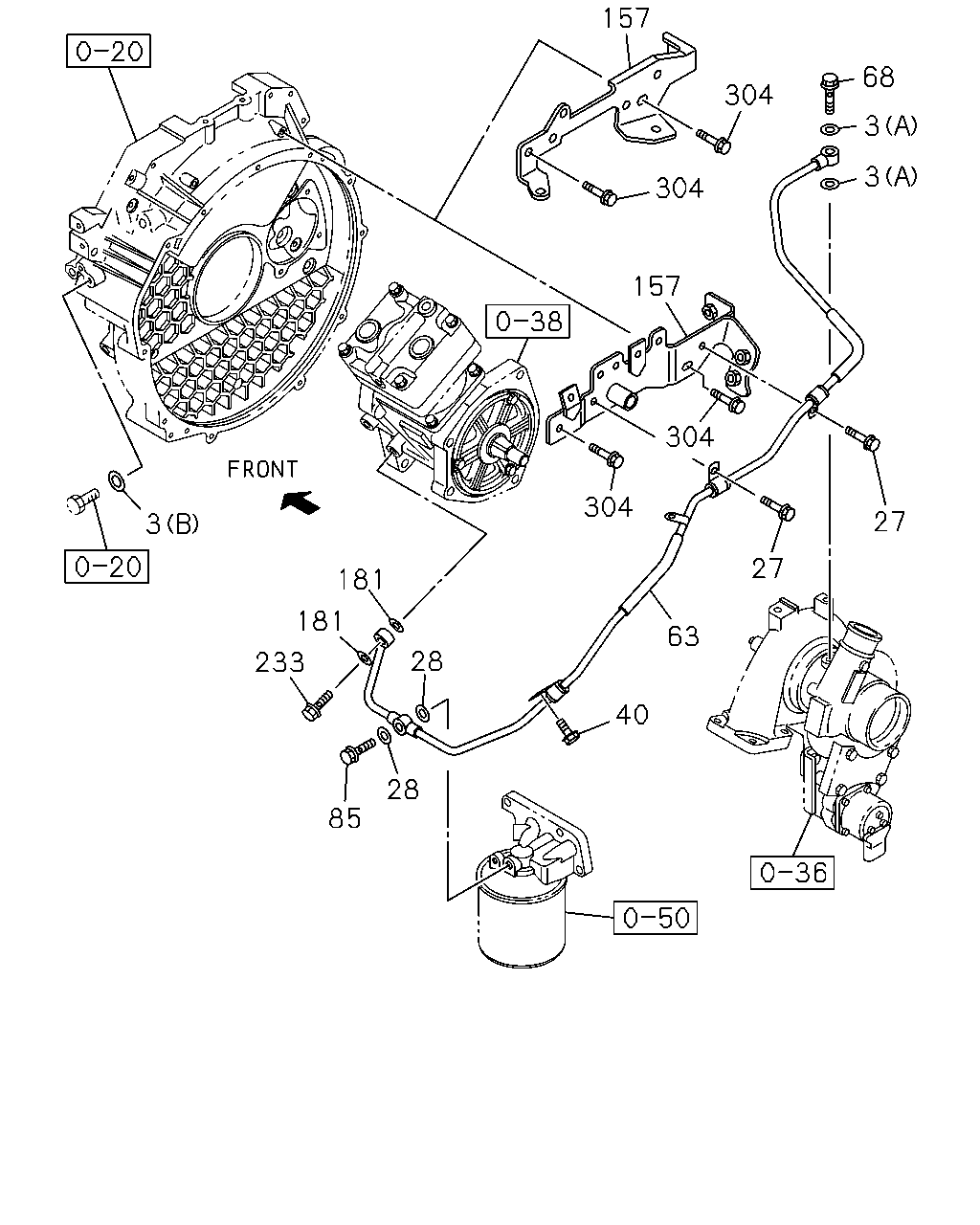

3 157 304 304 68 3 3 157 27 27 304 304 63 40 28 28 85 181 181 233

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	1509-	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=10.2 OD=16.0	9-09571-410-0	02	1	1509-	●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1509-	●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	02	1	1509-	●	●
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1509-	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED ANTI EROSION SPEC<7XK>	8-98259-162-1	01	1	1509-	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EXC. ANTI EROSION SPEC<7XK>	8-98172-865-2	01	1	1509-1509	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EXC. ANTI EROSION SPEC<7XK>	8-98331-127-0	01	1	1510-	●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M10X26	8-98037-825-0	01	1	1509-	●	●
85	01.531 BOLT; EYE,OIL PIPE FIX M10X28	8-98037-823-0	01	1	1509-	●	●
157	01.519 BRACKET; OIL PIPE ANTI EROSION SPEC<7XK> FRIGID ZONE(YL3)	8-98153-091-0	01	1	1509-	●	●
157	01.519 BRACKET; OIL PIPE EXC. ANTI EROSION SPEC<7XK>	8-98190-337-0	01	1	1509-	●	●
157	01.519 BRACKET; OIL PIPE ANTI EROSION SPEC<7XK> EXC. FRIGID ZONE(YL3)	8-98190-337-0	01	1	1509-	●	●
181	01.531 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	02	1	1509-	●	●
233	01.531 BOLT; EYE M10X22	1-09675-028-0	01	1	1509-	●	●
304	01.540 BOLT; BRKT,OIL PIPE 03.417 M10X20 FLANGE	0-28151-020-0	02	1	1509-	●	●

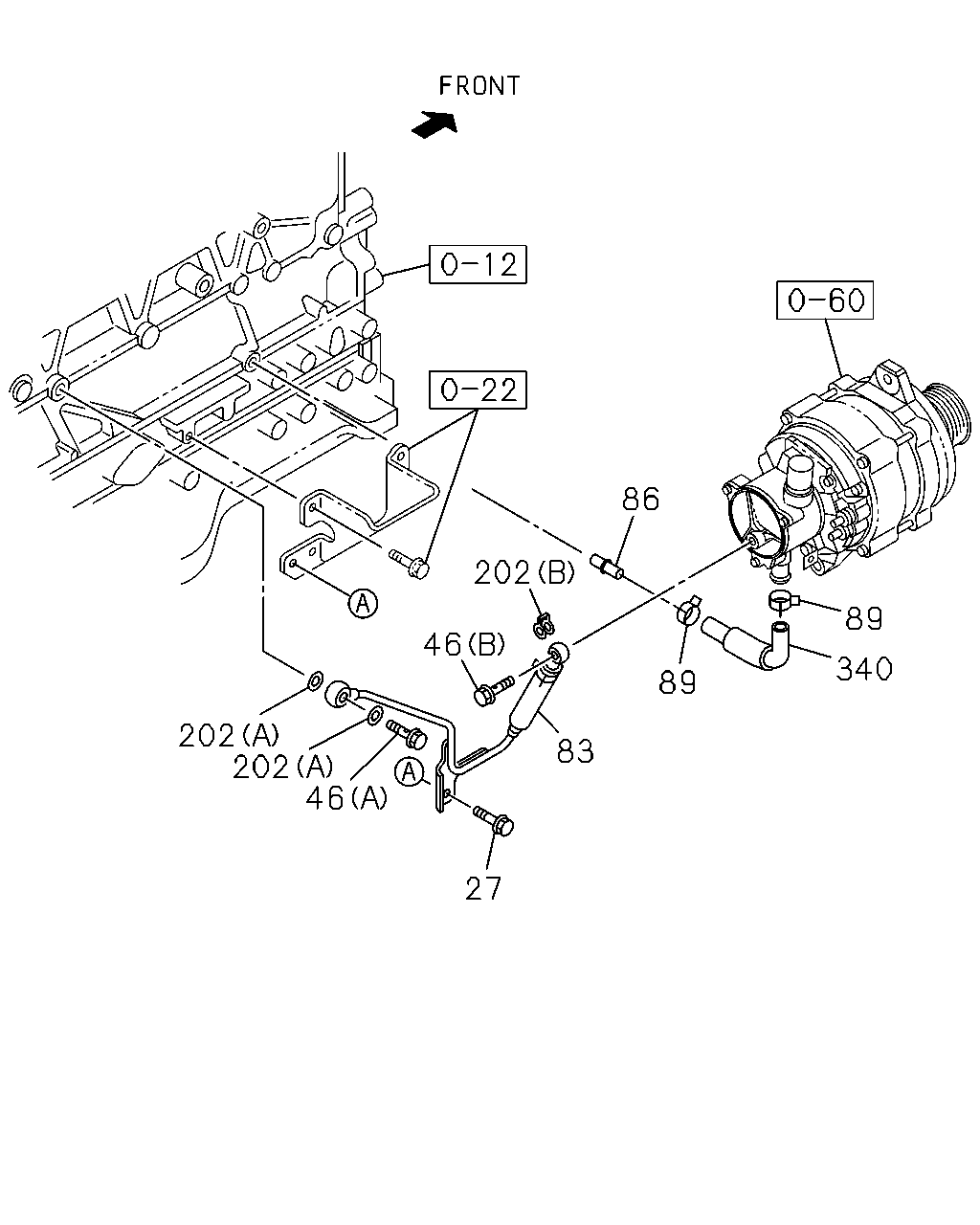

86 89 340 89 202 83 46 27 46 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	01.531 BOLT; OIL PIPE FIX 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1509-	●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU 03.162 (A) M14X27 FLANGE	1-09675-086-0	01	1	1509-	●	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU (B) M10X21 FLANGE	8-97372-239-0	01	1	1509-	●	●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98190-349-1	01	1	1509-	●	●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	1509-	●	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	1509-	●	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	1509-	●	●
202	01.531 GASKET; OIL PIPE (B) ID=10.2	8-97365-390-0	01	1	1509-	●	●
202	01.531 GASKET; OIL PIPE (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1509-	●	●
340	03.280 HOSE; VAC PUMP,RETURN	8-98176-281-0	01	1	1509-	●	●
