0-42 — FUEL PUMP AND PIPE (#166314) — 26 parça

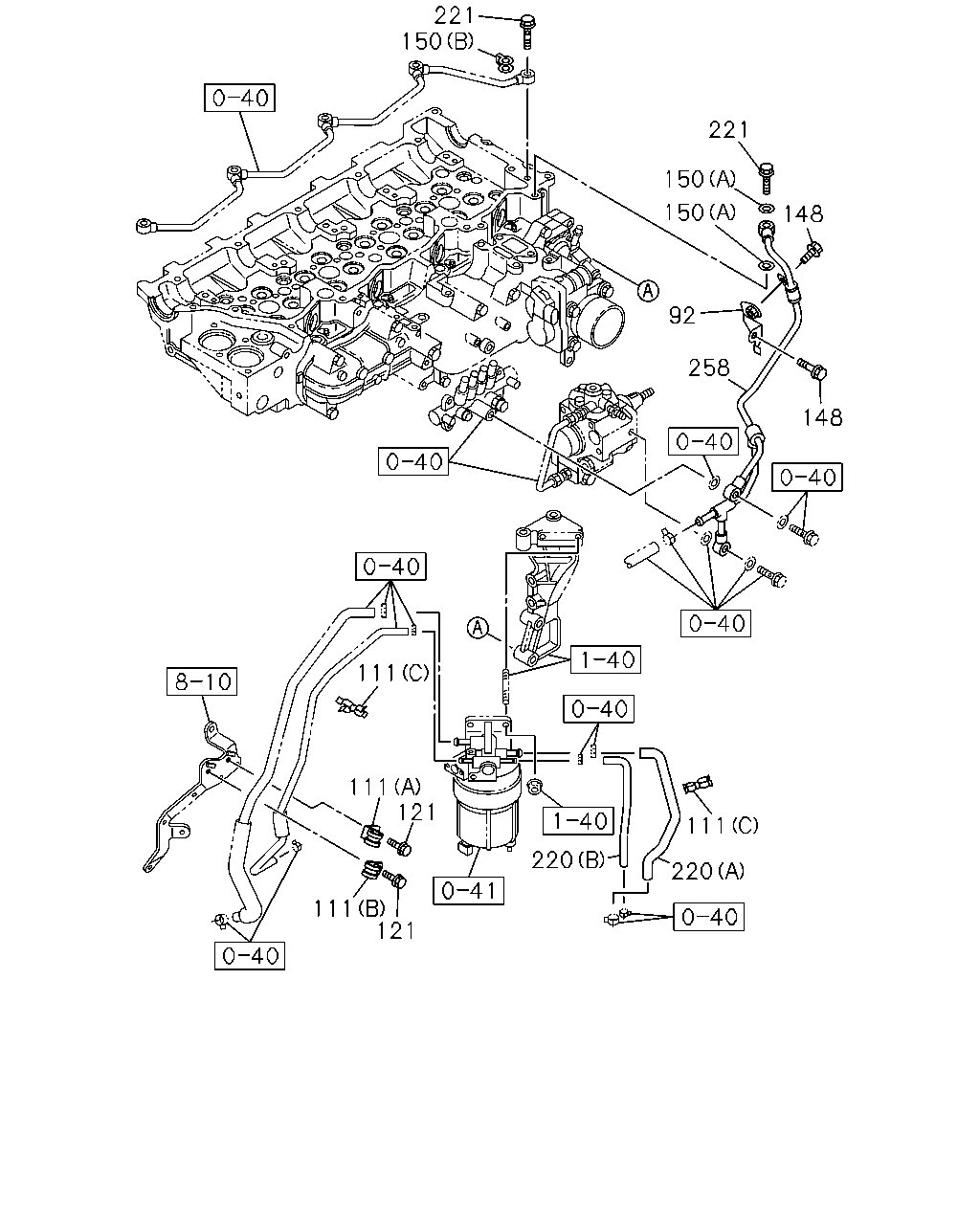

111 111 121 121 220 220 111 111 258 92 148 150 150 221 148 150 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
92	03.162 BRACKET; FUEL PIPE	8-98045-008-1	01	1	1509-	●	●
111	03.162 CLIP; FUEL PIPE 03.342 (A) ID=16 H=25 L=25	1-09701-162-0	01	1	1509-	●	●
111	03.162 CLIP; FUEL PIPE (B) ID=19 L=24	1-09701-259-0	01	1	1509-	●	●
111	03.162 CLIP; FUEL PIPE 02.589 (C) ID=13 & 16.5	8-94169-028-0	03	1	1509-	●	●
121	03.162 BOLT; CLIP 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1509-	●	●
148	03.162 BOLT; BRKT M6X12 FLANGE	0-28050-612-0	02	1	1509-	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.531 (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1509-	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17	8-98079-755-0	01	1	1509-	●	●
220	03.163 HOSE; FUEL (A)	8-98172-555-2	01	1	1509-	●	●
220	03.163 HOSE; FUEL (B)	8-98172-557-1	01	1	1509-	●	●
221	03.163 BOLT; FUEL PIPE 01.531 M10X21 FLANGE	8-94396-711-0	02	1	1509-	●	●
258	03.163 PIPE ASM; FUEL,LEAK OFF ANTI EROSION SPEC<7XK>	8-98240-473-0	01	1	1509-	●	●
258	03.163 PIPE ASM; FUEL,LEAK OFF EXC. ANTI EROSION SPEC<7XK>	8-98089-667-0	01	1	1509-	●	●

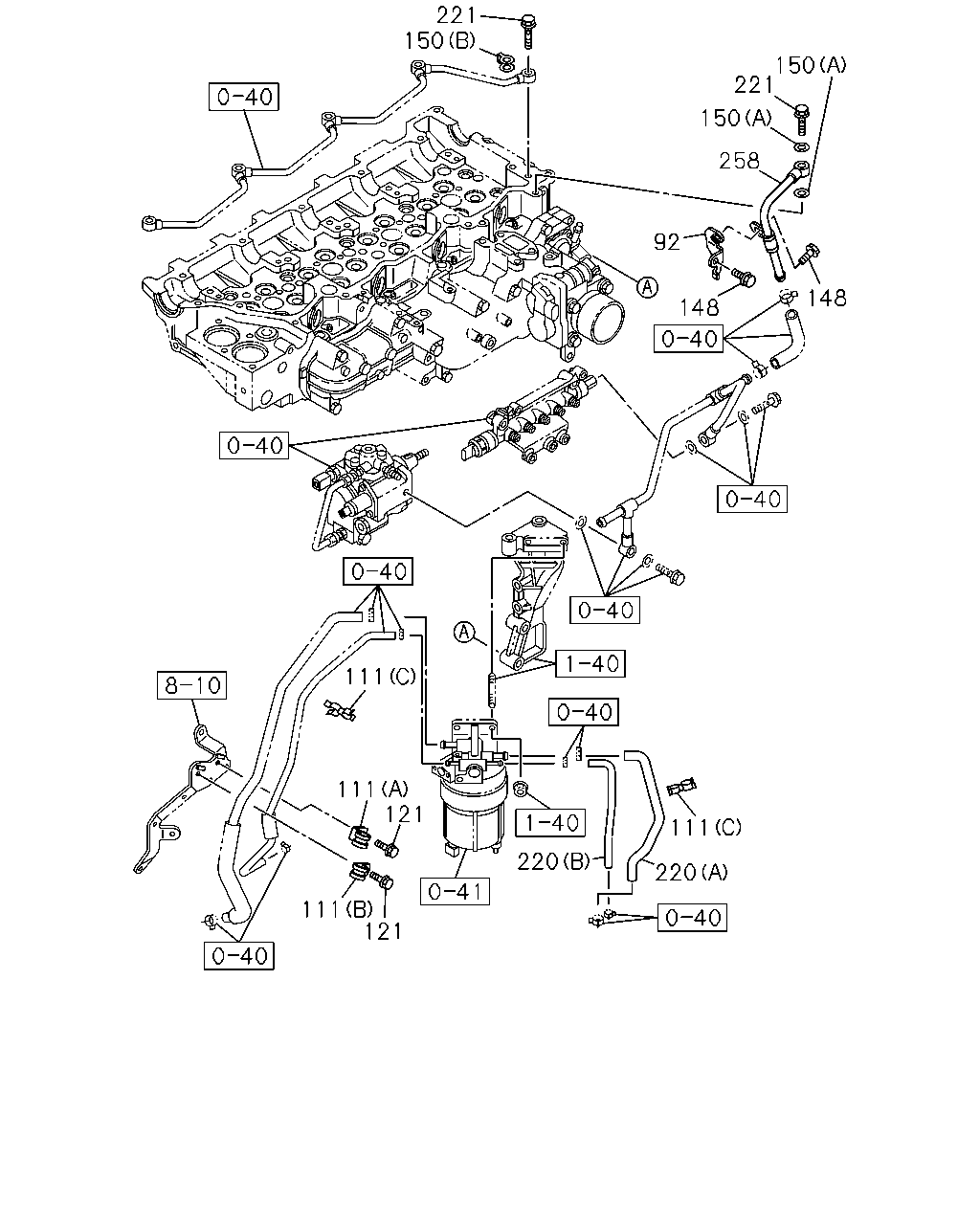

258 148 148 221 150 92 150 221 150 111 111 121 111 121 220 111 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
92	03.162 BRACKET; FUEL PIPE	8-98045-008-1	01	1	1509-	●	●
111	03.162 CLIP; FUEL PIPE 03.342 (A) ID=16 H=25 L=25	1-09701-162-0	01	1	1509-	●	●
111	03.162 CLIP; FUEL PIPE (B) ID=19 L=24	1-09701-259-0	01	1	1509-	●	●
111	03.162 CLIP; FUEL PIPE 02.589 (C) ID=13 & 16.5	8-94169-028-0	03	1	1509-	●	●
121	03.162 BOLT; CLIP 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1509-	●	●
148	03.162 BOLT; BRKT M6X12 FLANGE	0-28050-612-0	02	1	1509-	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.531 (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1509-	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17	8-98079-755-0	01	1	1509-	●	●
220	03.163 HOSE; FUEL (A)	8-98172-555-2	01	1	1509-	●	●
220	03.163 HOSE; FUEL (B)	8-98172-557-1	01	1	1509-	●	●
221	03.163 BOLT; FUEL PIPE 01.531 M10X21 FLANGE	8-94396-711-0	02	1	1509-	●	●
258	03.163 PIPE ASM; FUEL,LEAK OFF ANTI EROSION SPEC<7XK>	8-98240-473-0	01	1	1509-	●	●
258	03.163 PIPE ASM; FUEL,LEAK OFF EXC. ANTI EROSION SPEC<7XK>	8-98089-667-0	01	1	1509-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
