◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51637 - NQR AIR BRAKE LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#166312) — 182 parça

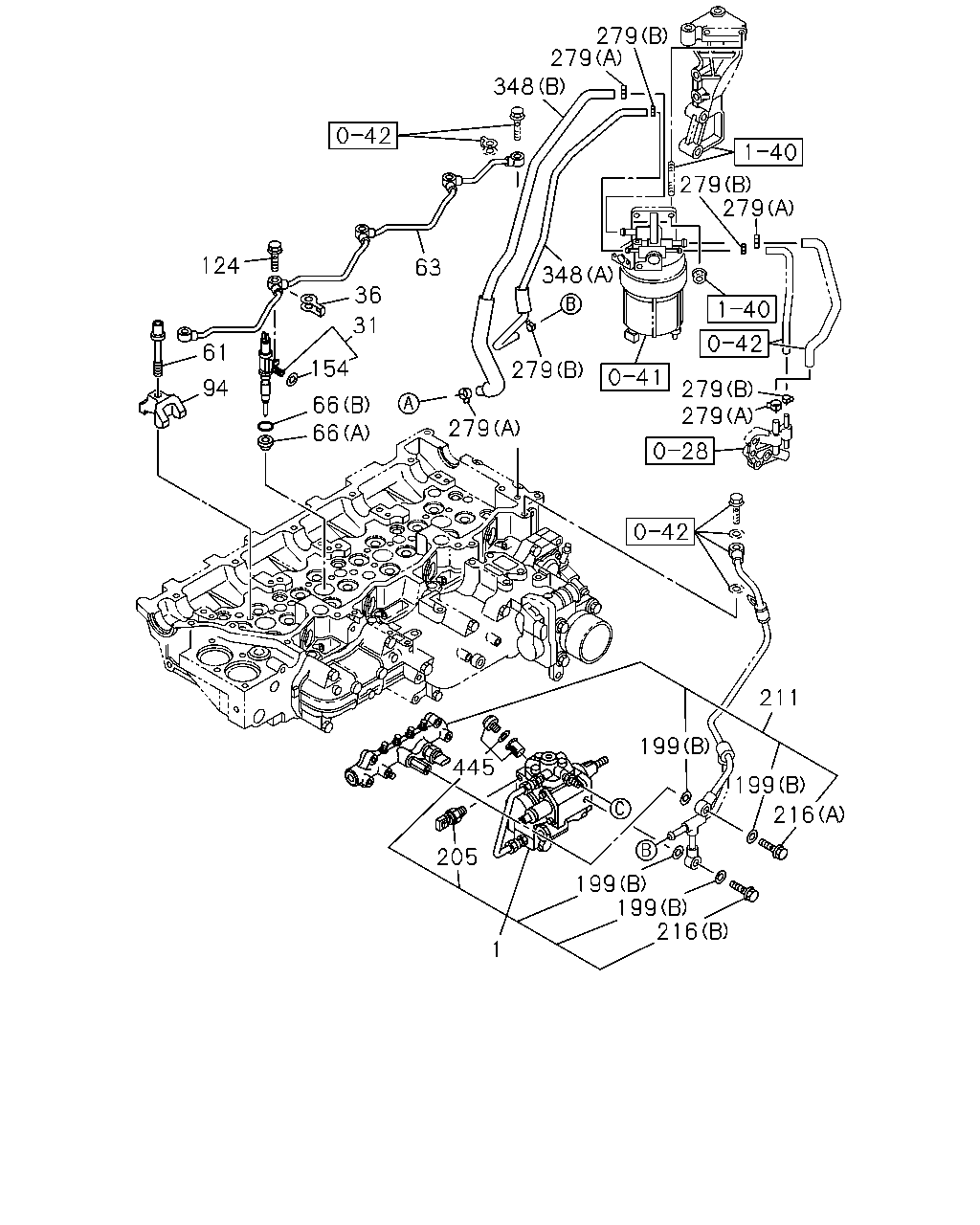

çizim 492126
348 279 279 63 36 31 154 61 124 94 66 66 279 279 348 279 279 279 211 199 199 216 199 199 216 205 445 1 279
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.306 PUMP ASM; INJ
ANTI EROSION SPEC<7XK> 		8-98168-006-0 01 1 1509- ● ●
1 03.306 PUMP ASM; INJ
EXC. ANTI EROSION SPEC<7XK> 		8-97386-557-5 01 1 1509- ● ●
31 03.332 NOZZLE ASM; INJ
ANTI EROSION SPEC<7XK> 		8-98207-435-0 04 1 1509- ● ●
31 03.332 NOZZLE ASM; INJ
EXC. ANTI EROSION SPEC<7XK> 		8-97609-788-6 04 1 1509- ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1509- ● ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 1509- ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1509- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (B) ID=23.3 		8-94173-412-0 04 1 1509- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 1509- ● ●
94 03.330 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1509- ● ●
124 03.162 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1509- ● ●
154 03.332 GASKET; CONNECTOR
ID=11.0 		0-95690-111-0 04 1 1509- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1509- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1509- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1509- ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1509- ● ●
211 03.331 RAIL ASM; COMMON
ANTI EROSION SPEC<7XK> 		8-98077-001-1 01 1 1509- ● ●
211 03.331 RAIL ASM; COMMON
EXC. ANTI EROSION SPEC<7XK> 		8-98011-888-2 01 1 1509- ● ●
216 03.162 BOLT; EYE
ANTI EROSION SPEC<7XK> (A) 		8-98035-828-0 01 1 1509- ● ●
216 03.162 BOLT; EYE
(C) 		5-15759-003-0 01 1 1509- ● ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1509- ● ●
216 03.162 BOLT; EYE
EXC. ANTI EROSION SPEC<7XK> (A) 		8-98043-033-0 01 1 1509- ● ●
279 03.162 CLIP; FUEL HOSE
01.097 (A) ID=16 		8-97329-628-0 04 1 1509- ● ●
279 03.162 CLIP; FUEL HOSE
01.153 (B) ID=11.5 		8-97375-638-0 04 1 1509- ● ●
348 03.163 HOSE; FUEL
ANTI EROSION SPEC<7XK> (B) 		8-98259-173-1 01 1 1509- ● ●
348 03.163 HOSE; FUEL
(A) 		8-98173-967-1 01 1 1509- ● ●
348 03.163 HOSE; FUEL
EXC. ANTI EROSION SPEC<7XK> (B) 		8-98173-968-1 01 1 1509- ● ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 1509- ● ●

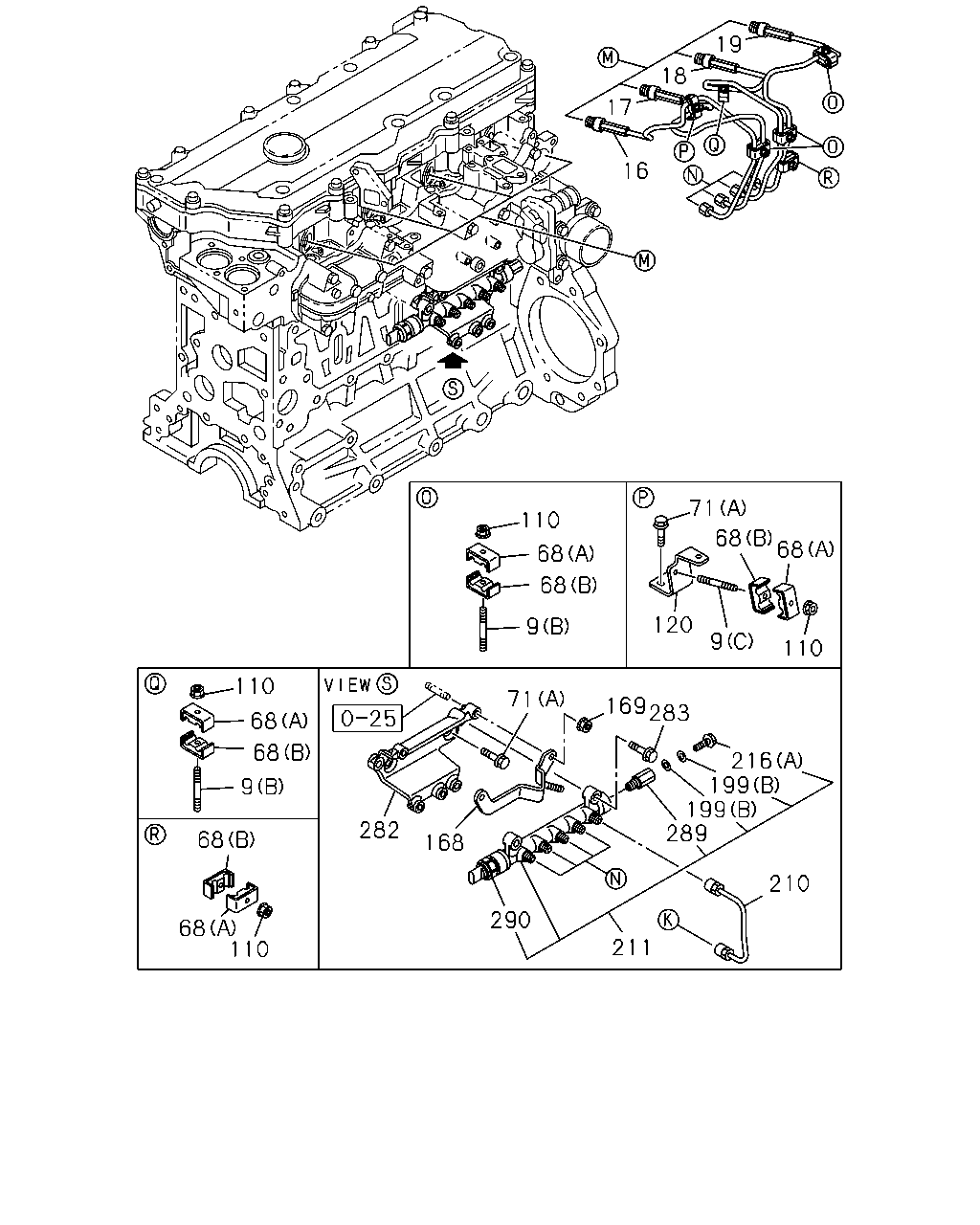

çizim 492129
19 18 17 16 71 68 68 110 9 120 110 68 68 9 71 169 283 216 199 199 289 210 211 290 168 282 110 68 68 9 68 68 110
BalonParca AdiParca NoAdetTipApplied Date A B
9 03.340 STUD; CLIP
ANTI EROSION SPEC<7XK> 03.278 (C) M6X40 L=50 		0-41010-640-0 02 1 1509- ● ●
9 03.340 STUD; CLIP
ANTI EROSION SPEC<7XK> 00.413 (B) M6X35 L=43 		8-97203-278-0 03 1 1509- ● ●
9 03.340 STUD; CLIP
00.413 (A) M6X30 L=38 		0-41010-630-0 04 1 1509- ● ●
9 03.340 STUD; CLIP
EXC. ANTI EROSION SPEC<7XK> 00.413 (B) M6X35 L=43 		8-97203-278-0 01 1 1509- ● ●
16 03.330 PIPE; INJ NO.1
ANTI EROSION SPEC<7XK> 		8-98242-502-0 01 1 1509- ● ●
16 03.330 PIPE; INJ NO.1
EXC. ANTI EROSION SPEC<7XK> 		8-98298-628-0 01 1 1509- ● ●
17 03.330 PIPE; INJ NO.2
ANTI EROSION SPEC<7XK> 		8-98242-503-0 01 1 1509- ● ●
17 03.330 PIPE; INJ NO.2
EXC. ANTI EROSION SPEC<7XK> 		8-98298-629-0 01 1 1509- ● ●
18 03.330 PIPE; INJ NO.3
ANTI EROSION SPEC<7XK> 		8-98242-504-0 01 1 1509- ● ●
18 03.330 PIPE; INJ NO.3
EXC. ANTI EROSION SPEC<7XK> 		8-98298-630-0 01 1 1509- ● ●
19 03.330 PIPE; INJ NO.4
ANTI EROSION SPEC<7XK> 		8-98242-505-0 01 1 1509- ● ●
19 03.330 PIPE; INJ NO.4
EXC. ANTI EROSION SPEC<7XK> 		8-98298-631-0 01 1 1509- ● ●
68 03.162 CLIP; INJ PIPE
ANTI EROSION SPEC<7XK> (B) ID=7 & 7 L=22 		8-97330-118-3 05 1 1509- ● ●
68 03.162 CLIP; INJ PIPE
ANTI EROSION SPEC<7XK> (A) ID=7 & 7 L=22 		8-97330-119-3 05 1 1509- ● ●
68 03.162 CLIP; INJ PIPE
EXC. ANTI EROSION SPEC<7XK> (C) ID=11 & 11 L=19 		8-98148-996-2 10 1 1509- ● ●
71 03.162 BOLT; BRKT
ANTI EROSION SPEC<7XK> 02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 1509- ● ●
71 03.162 BOLT; BRKT
EXC. ANTI EROSION SPEC<7XK> 02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1509- ● ●
71 03.162 BOLT; BRKT
EXC. ANTI EROSION SPEC<7XK> 04.686 (B) M8X60 FLANGE 		0-28050-860-0 02 1 1509- ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 05 1 1509- ● ●
120 03.330 BRACKET; INJ PIPE 8-98041-601-0 01 1 1509- ● ●
168 03.890 BRACKET; FUEL PIPE
ANTI EROSION SPEC<7XK> 		8-98273-168-0 01 1 1509-1509 ● ●
169 03.890 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1509- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1509- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1509- ● ●
210 03.330 PIPE; INJ,C/R
ANTI EROSION SPEC<7XK> 		8-98242-506-1 01 1 1509- ● ●
210 03.330 PIPE; INJ,C/R
EXC. ANTI EROSION SPEC<7XK> 		8-98087-940-0 01 1 1509- ● ●
211 03.331 RAIL ASM; COMMON
ANTI EROSION SPEC<7XK> 		8-98077-001-1 01 1 1509- ● ●
211 03.331 RAIL ASM; COMMON
EXC. ANTI EROSION SPEC<7XK> 		8-98011-888-2 01 1 1509- ● ●
216 03.162 BOLT; EYE
ANTI EROSION SPEC<7XK> (A) 		8-98035-828-0 01 1 1509- ● ●
216 03.162 BOLT; EYE
(C) 		5-15759-003-0 01 1 1509- ● ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1509- ● ●
216 03.162 BOLT; EYE
EXC. ANTI EROSION SPEC<7XK> (A) 		8-98043-033-0 01 1 1509- ● ●
282 03.163 BRACKET; COMMON RAIL
ANTI EROSION SPEC<7XK> 		8-98200-778-0 01 1 1509- ● ●
282 03.163 BRACKET; COMMON RAIL
EXC. ANTI EROSION SPEC<7XK> 		8-98106-661-1 01 1 1509- ● ●
283 03.330 BOLT; COMMON RAIL
ANTI EROSION SPEC<7XK> 03.670 M10X35 FLANGE 		0-28151-035-0 02 1 1509- ● ●
283 03.330 BOLT; COMMON RAIL
EXC. ANTI EROSION SPEC<7XK> 04.338 M8X20 FLANGE 		0-28050-820-0 02 1 1509- ● ●
289 03.331 LIMITER; FUEL PRESS
ANTI EROSION SPEC<7XK> 		8-98138-695-0 01 1 1509- ● ●
289 03.331 LIMITER; FUEL PRESS
EXC. ANTI EROSION SPEC<7XK> 		8-98032-549-0 01 1 1509- ● ●
290 03.331 SENSOR; PRESS
ANTI EROSION SPEC<7XK> 		8-98138-736-0 01 1 1509- ● ●
290 03.331 SENSOR; PRESS
EXC. ANTI EROSION SPEC<7XK> 		8-98119-790-0 01 1 1509- ● ●

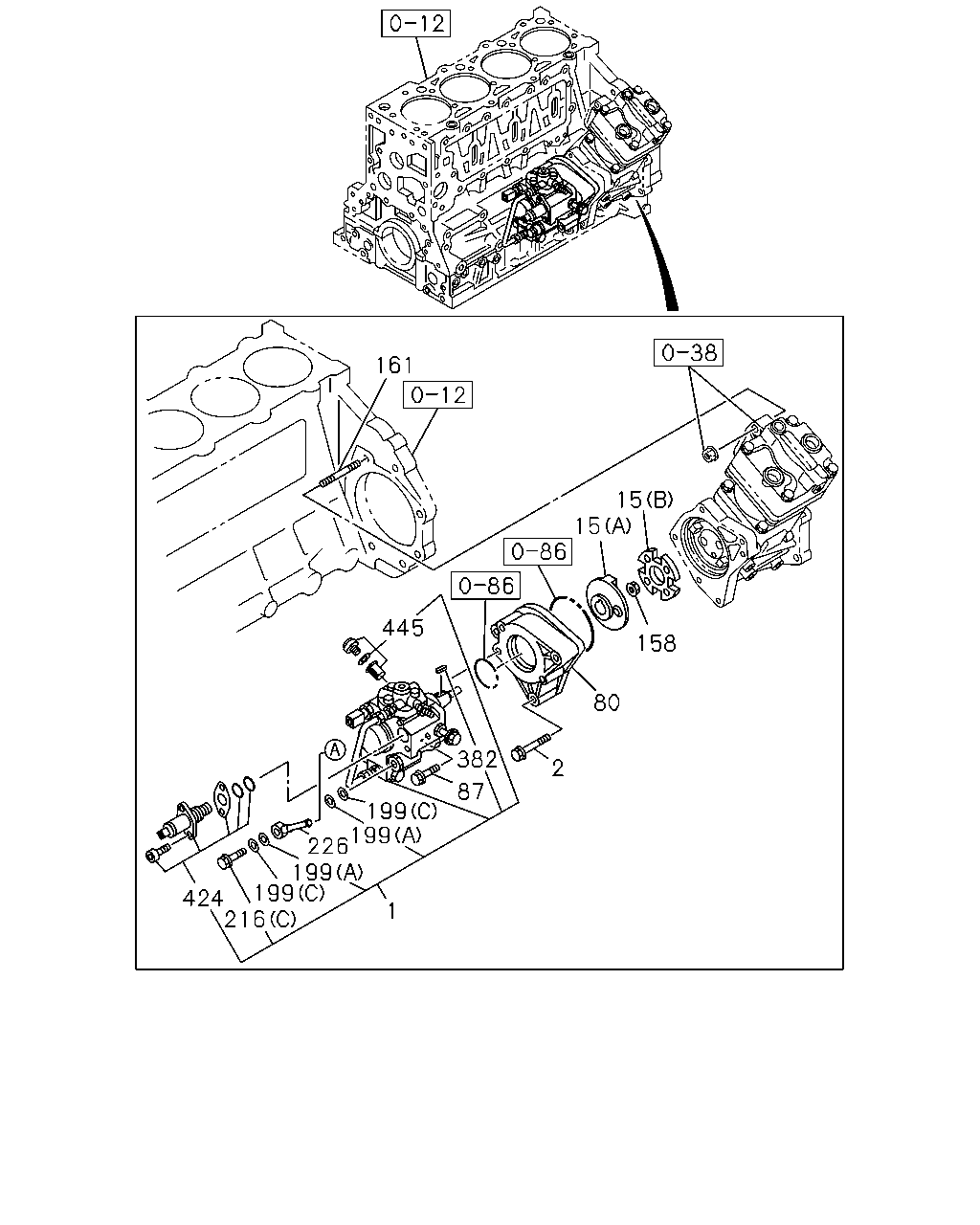

çizim 492133
161 15 15 158 80 2 382 87 445 199 199 226 199 199 216 424 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.306 PUMP ASM; INJ
ANTI EROSION SPEC<7XK> 		8-98168-006-0 01 1 1509- ● ●
1 03.306 PUMP ASM; INJ
EXC. ANTI EROSION SPEC<7XK> 		8-97386-557-5 01 1 1509- ● ●
2 03.330 BOLT; INJ PUMP
00.685 M10X60 FLANGE 		0-28051-060-0 03 1 1509- ● ●
15 03.340 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 1509- ● ●
15 03.340 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 1509- ● ●
80 03.306 BRACKET; PUMP 8-98061-699-0 01 1 1509- ● ●
87 03.330 BOLT; PUMP
03.403 M8X30 FLANGE 		0-28650-830-0 03 1 1509- ● ●
158 03.330 NUT; INJ PUMP
07.529 M14 FLANGE 		0-91180-114-0 01 1 1509- ● ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 1509- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1509- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1509- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1509- ● ●
216 03.162 BOLT; EYE
ANTI EROSION SPEC<7XK> (A) 		8-98035-828-0 01 1 1509- ● ●
216 03.162 BOLT; EYE
(C) 		5-15759-003-0 01 1 1509- ● ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1509- ● ●
216 03.162 BOLT; EYE
EXC. ANTI EROSION SPEC<7XK> (A) 		8-98043-033-0 01 1 1509- ● ●
226 03.163 PIPE; FUEL 8-98185-140-0 01 1 1509- ● ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1509- ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1509- ● ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 1509- ● ●

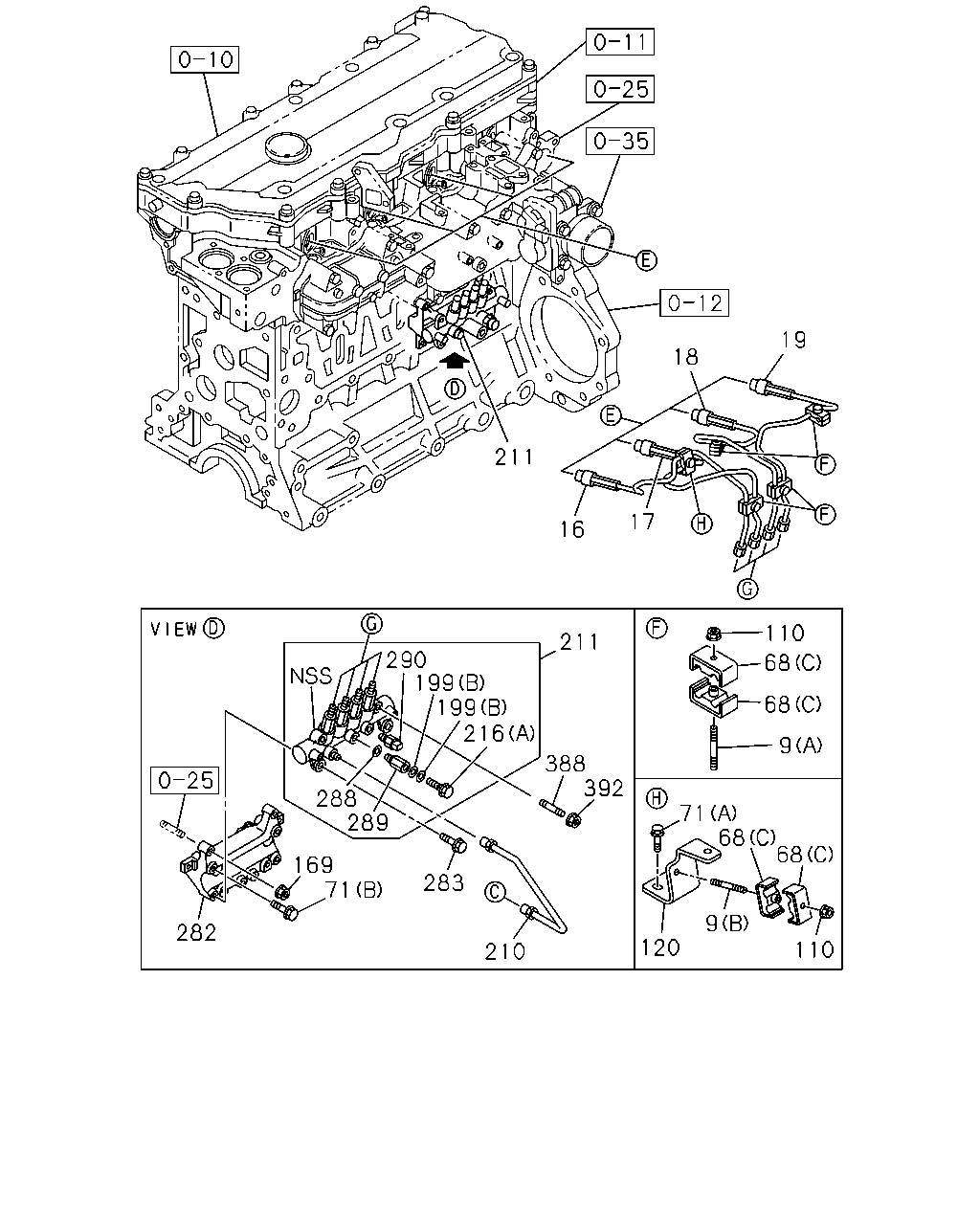

çizim 492139
19 18 211 16 17 110 68 68 9 71 68 68 110 9 120 210 283 388 392 216 199 199 290 289 288 71 169 282 211
BalonParca AdiParca NoAdetTipApplied Date A B
9 03.340 STUD; CLIP
ANTI EROSION SPEC<7XK> 03.278 (C) M6X40 L=50 		0-41010-640-0 02 1 1509- ● ●
9 03.340 STUD; CLIP
ANTI EROSION SPEC<7XK> 00.413 (B) M6X35 L=43 		8-97203-278-0 03 1 1509- ● ●
9 03.340 STUD; CLIP
00.413 (A) M6X30 L=38 		0-41010-630-0 04 1 1509- ● ●
9 03.340 STUD; CLIP
EXC. ANTI EROSION SPEC<7XK> 00.413 (B) M6X35 L=43 		8-97203-278-0 01 1 1509- ● ●
16 03.330 PIPE; INJ NO.1
ANTI EROSION SPEC<7XK> 		8-98242-502-0 01 1 1509- ● ●
16 03.330 PIPE; INJ NO.1
EXC. ANTI EROSION SPEC<7XK> 		8-98298-628-0 01 1 1509- ● ●
17 03.330 PIPE; INJ NO.2
ANTI EROSION SPEC<7XK> 		8-98242-503-0 01 1 1509- ● ●
17 03.330 PIPE; INJ NO.2
EXC. ANTI EROSION SPEC<7XK> 		8-98298-629-0 01 1 1509- ● ●
18 03.330 PIPE; INJ NO.3
ANTI EROSION SPEC<7XK> 		8-98242-504-0 01 1 1509- ● ●
18 03.330 PIPE; INJ NO.3
EXC. ANTI EROSION SPEC<7XK> 		8-98298-630-0 01 1 1509- ● ●
19 03.330 PIPE; INJ NO.4
ANTI EROSION SPEC<7XK> 		8-98242-505-0 01 1 1509- ● ●
19 03.330 PIPE; INJ NO.4
EXC. ANTI EROSION SPEC<7XK> 		8-98298-631-0 01 1 1509- ● ●
68 03.162 CLIP; INJ PIPE
ANTI EROSION SPEC<7XK> (B) ID=7 & 7 L=22 		8-97330-118-3 05 1 1509- ● ●
68 03.162 CLIP; INJ PIPE
ANTI EROSION SPEC<7XK> (A) ID=7 & 7 L=22 		8-97330-119-3 05 1 1509- ● ●
68 03.162 CLIP; INJ PIPE
EXC. ANTI EROSION SPEC<7XK> (C) ID=11 & 11 L=19 		8-98148-996-2 10 1 1509- ● ●
71 03.162 BOLT; BRKT
ANTI EROSION SPEC<7XK> 02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 1509- ● ●
71 03.162 BOLT; BRKT
EXC. ANTI EROSION SPEC<7XK> 02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1509- ● ●
71 03.162 BOLT; BRKT
EXC. ANTI EROSION SPEC<7XK> 04.686 (B) M8X60 FLANGE 		0-28050-860-0 02 1 1509- ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 05 1 1509- ● ●
120 03.330 BRACKET; INJ PIPE 8-98041-601-0 01 1 1509- ● ●
169 03.890 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1509- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1509- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1509- ● ●
210 03.330 PIPE; INJ,C/R
ANTI EROSION SPEC<7XK> 		8-98242-506-1 01 1 1509- ● ●
210 03.330 PIPE; INJ,C/R
EXC. ANTI EROSION SPEC<7XK> 		8-98087-940-0 01 1 1509- ● ●
211 03.331 RAIL ASM; COMMON
ANTI EROSION SPEC<7XK> 		8-98077-001-1 01 1 1509- ● ●
211 03.331 RAIL ASM; COMMON
EXC. ANTI EROSION SPEC<7XK> 		8-98011-888-2 01 1 1509- ● ●
216 03.162 BOLT; EYE
ANTI EROSION SPEC<7XK> (A) 		8-98035-828-0 01 1 1509- ● ●
216 03.162 BOLT; EYE
(C) 		5-15759-003-0 01 1 1509- ● ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1509- ● ●
216 03.162 BOLT; EYE
EXC. ANTI EROSION SPEC<7XK> (A) 		8-98043-033-0 01 1 1509- ● ●
282 03.163 BRACKET; COMMON RAIL
ANTI EROSION SPEC<7XK> 		8-98200-778-0 01 1 1509- ● ●
282 03.163 BRACKET; COMMON RAIL
EXC. ANTI EROSION SPEC<7XK> 		8-98106-661-1 01 1 1509- ● ●
283 03.330 BOLT; COMMON RAIL
ANTI EROSION SPEC<7XK> 03.670 M10X35 FLANGE 		0-28151-035-0 02 1 1509- ● ●
283 03.330 BOLT; COMMON RAIL
EXC. ANTI EROSION SPEC<7XK> 04.338 M8X20 FLANGE 		0-28050-820-0 02 1 1509- ● ●
288 03.331 GASKET
EXC. ANTI EROSION SPEC<7XK> ID=11 OD=16.3 		1-15641-046-0 01 1 1509- ● ●
289 03.331 LIMITER; FUEL PRESS
ANTI EROSION SPEC<7XK> 		8-98138-695-0 01 1 1509- ● ●
289 03.331 LIMITER; FUEL PRESS
EXC. ANTI EROSION SPEC<7XK> 		8-98032-549-0 01 1 1509- ● ●
290 03.331 SENSOR; PRESS
ANTI EROSION SPEC<7XK> 		8-98138-736-0 01 1 1509- ● ●
290 03.331 SENSOR; PRESS
EXC. ANTI EROSION SPEC<7XK> 		8-98119-790-0 01 1 1509- ● ●
388 03.332 STUD; RAIL
EXC. ANTI EROSION SPEC<7XK> 03.278 M8X35 L=53 		0-49140-835-0 02 1 1509- ● ●
392 03.330 NUT; RAIL ASM
EXC. ANTI EROSION SPEC<7XK> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1509- ● ●

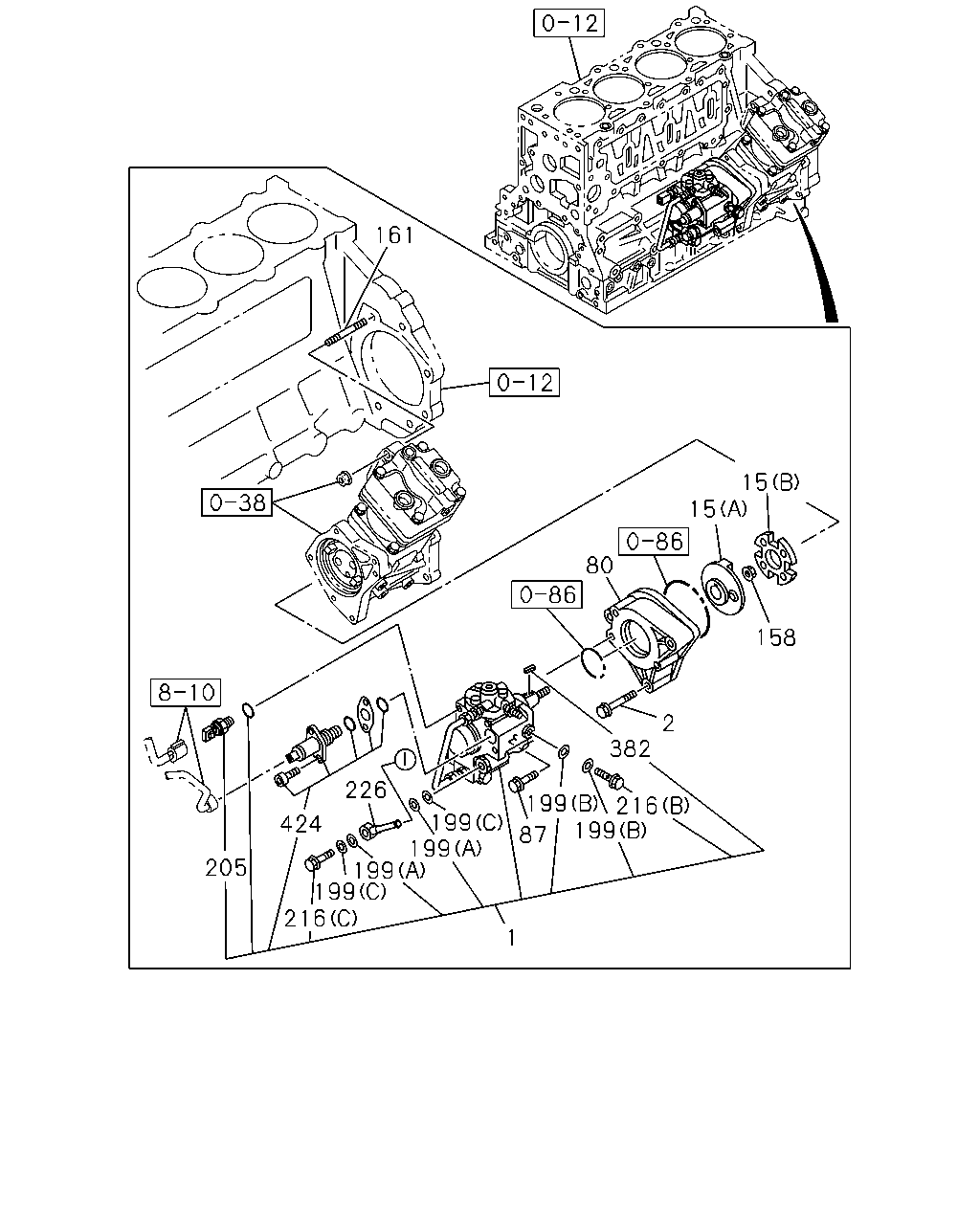

çizim 492143
161 15 15 80 158 2 382 216 199 199 87 199 199 199 226 424 205 216 199 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.306 PUMP ASM; INJ
ANTI EROSION SPEC<7XK> 		8-98168-006-0 01 1 1509- ● ●
1 03.306 PUMP ASM; INJ
EXC. ANTI EROSION SPEC<7XK> 		8-97386-557-5 01 1 1509- ● ●
2 03.330 BOLT; INJ PUMP
00.685 M10X60 FLANGE 		0-28051-060-0 03 1 1509- ● ●
15 03.340 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 1509- ● ●
15 03.340 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 1509- ● ●
80 03.306 BRACKET; PUMP 8-98061-699-0 01 1 1509- ● ●
87 03.330 BOLT; PUMP
03.403 M8X30 FLANGE 		0-28650-830-0 03 1 1509- ● ●
158 03.330 NUT; INJ PUMP
07.529 M14 FLANGE 		0-91180-114-0 01 1 1509- ● ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 1509- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1509- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1509- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1509- ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1509- ● ●
216 03.162 BOLT; EYE
ANTI EROSION SPEC<7XK> (A) 		8-98035-828-0 01 1 1509- ● ●
216 03.162 BOLT; EYE
(C) 		5-15759-003-0 01 1 1509- ● ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1509- ● ●
216 03.162 BOLT; EYE
EXC. ANTI EROSION SPEC<7XK> (A) 		8-98043-033-0 01 1 1509- ● ●
226 03.163 PIPE; FUEL 8-98185-140-0 01 1 1509- ● ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1509- ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1509- ● ●

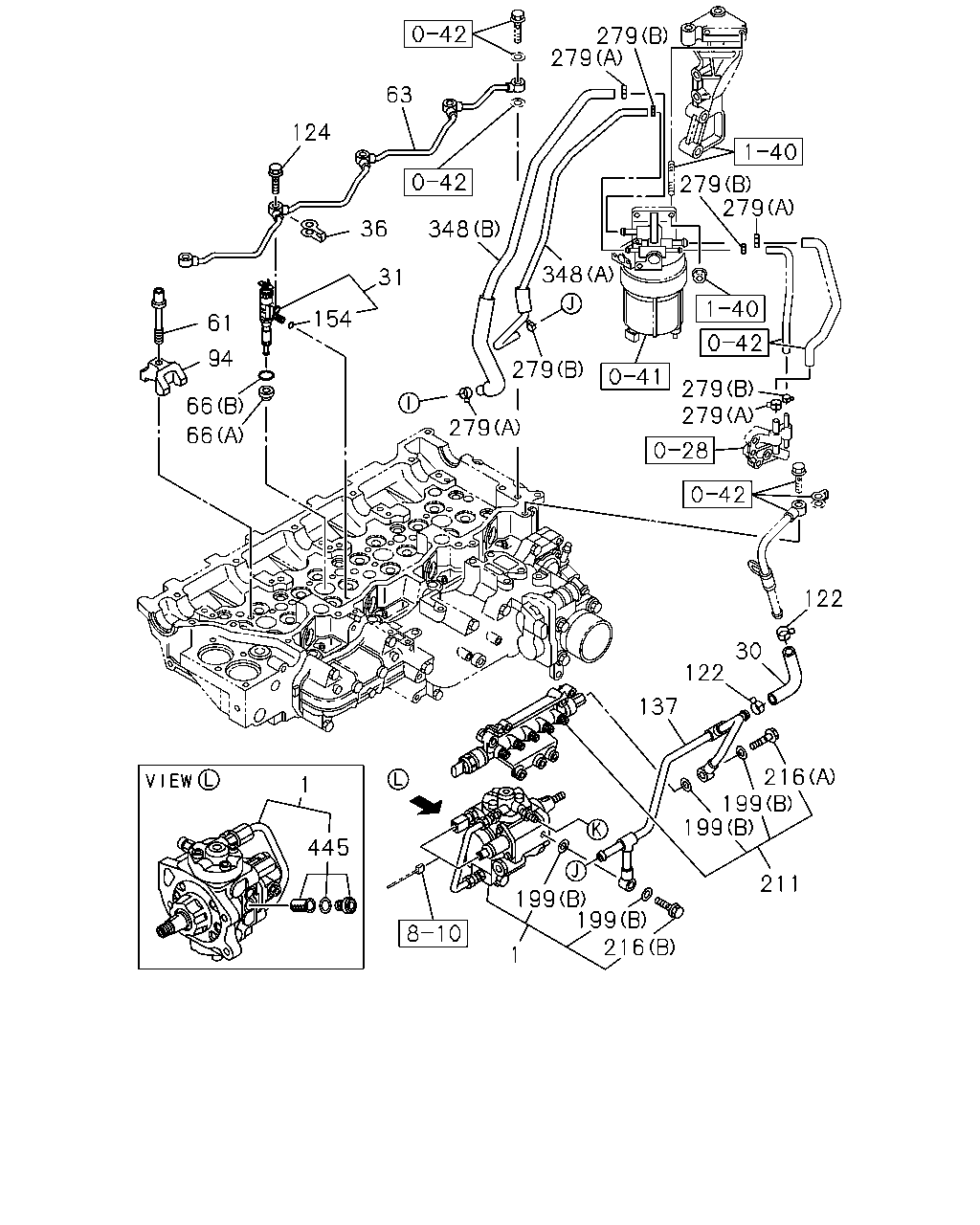

çizim 493367
63 124 36 31 348 154 61 94 66 66 279 279 348 279 279 279 279 279 279 122 30 122 137 216 199 199 211 216 199 199 1 445 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.306 PUMP ASM; INJ
ANTI EROSION SPEC<7XK> 		8-98168-006-0 01 1 1509- ● ●
1 03.306 PUMP ASM; INJ
EXC. ANTI EROSION SPEC<7XK> 		8-97386-557-5 01 1 1509- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
ANTI EROSION SPEC<7XK> 		8-98257-390-0 01 1 1509- ● ●
31 03.332 NOZZLE ASM; INJ
ANTI EROSION SPEC<7XK> 		8-98207-435-0 04 1 1509- ● ●
31 03.332 NOZZLE ASM; INJ
EXC. ANTI EROSION SPEC<7XK> 		8-97609-788-6 04 1 1509- ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1509- ● ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 1509- ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1509- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (B) ID=23.3 		8-94173-412-0 04 1 1509- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 1509- ● ●
94 03.330 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1509- ● ●
122 03.162 CLIP; LEAK OFF PIPE
ANTI EROSION SPEC<7XK> 01.153 ID=11.5 		8-97375-638-0 02 1 1509- ● ●
124 03.162 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1509- ● ●
137 03.163 PIPE ASM; LEAK OFF
ANTI EROSION SPEC<7XK> 		8-98289-285-0 01 1 1509- ● ●
154 03.332 GASKET; CONNECTOR
ID=11.0 		0-95690-111-0 04 1 1509- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1509- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1509- ● ●
199 03.332 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1509- ● ●
211 03.331 RAIL ASM; COMMON
ANTI EROSION SPEC<7XK> 		8-98077-001-1 01 1 1509- ● ●
211 03.331 RAIL ASM; COMMON
EXC. ANTI EROSION SPEC<7XK> 		8-98011-888-2 01 1 1509- ● ●
216 03.162 BOLT; EYE
ANTI EROSION SPEC<7XK> (A) 		8-98035-828-0 01 1 1509- ● ●
216 03.162 BOLT; EYE
(C) 		5-15759-003-0 01 1 1509- ● ●
216 03.162 BOLT; EYE
(B) 		8-97351-388-0 01 1 1509- ● ●
216 03.162 BOLT; EYE
EXC. ANTI EROSION SPEC<7XK> (A) 		8-98043-033-0 01 1 1509- ● ●
279 03.162 CLIP; FUEL HOSE
01.097 (A) ID=16 		8-97329-628-0 04 1 1509- ● ●
279 03.162 CLIP; FUEL HOSE
01.153 (B) ID=11.5 		8-97375-638-0 04 1 1509- ● ●
348 03.163 HOSE; FUEL
ANTI EROSION SPEC<7XK> (B) 		8-98259-173-1 01 1 1509- ● ●
348 03.163 HOSE; FUEL
(A) 		8-98173-967-1 01 1 1509- ● ●
348 03.163 HOSE; FUEL
EXC. ANTI EROSION SPEC<7XK> (B) 		8-98173-968-1 01 1 1509- ● ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 1509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
