Sayfa 0-36 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51637 - NQR AIR BRAKE LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-36 - TURBOCHARGER SYSTEM ▶

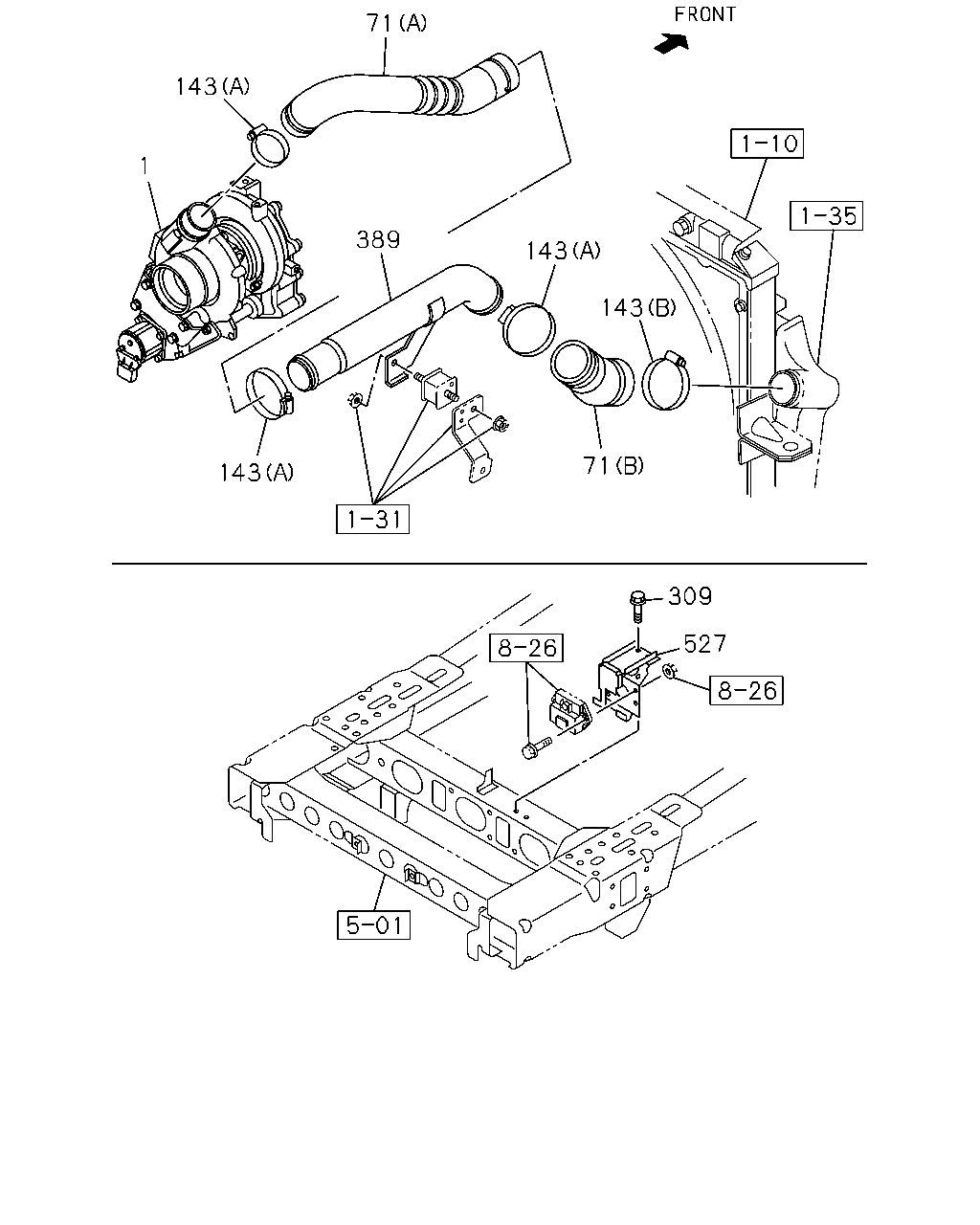

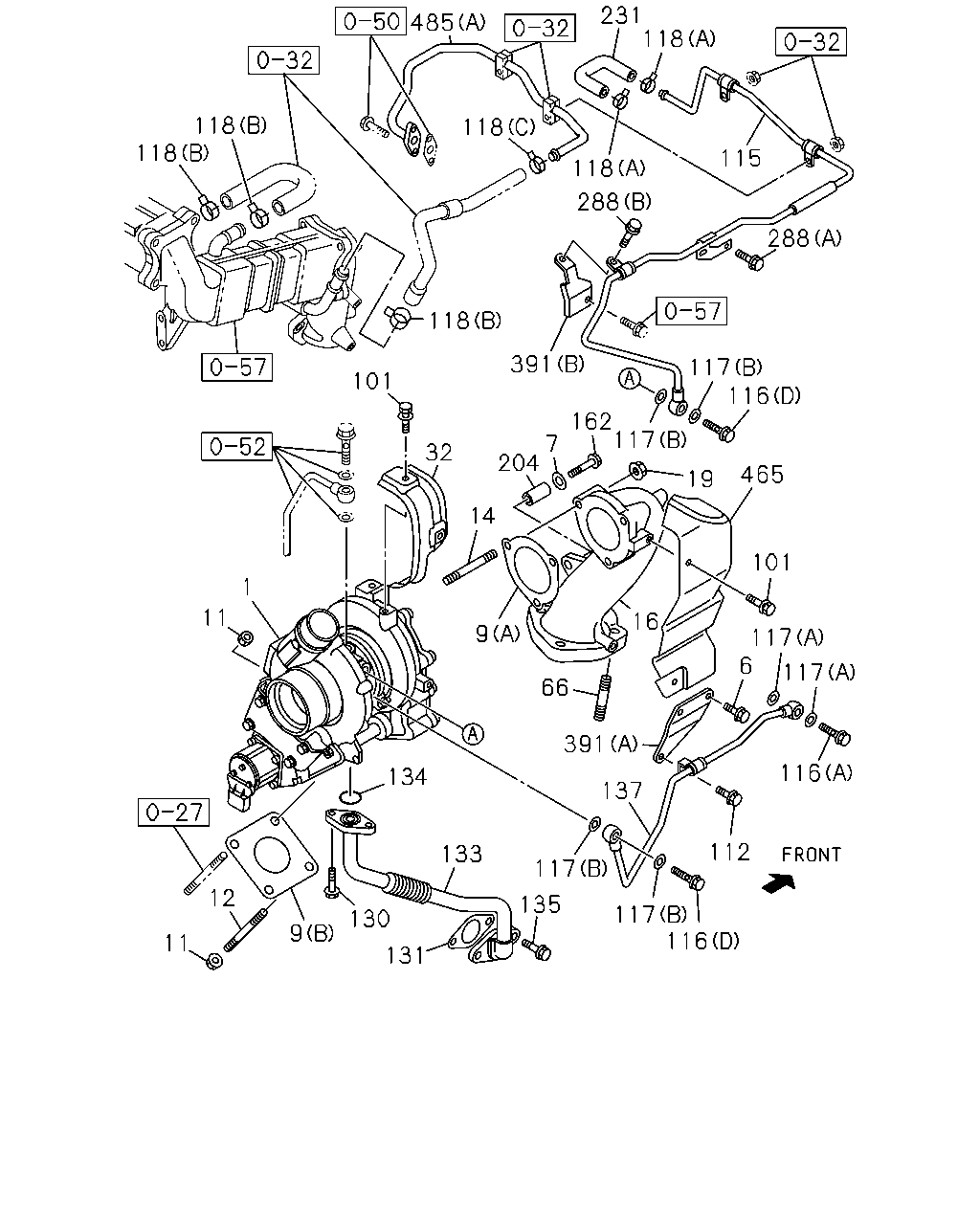

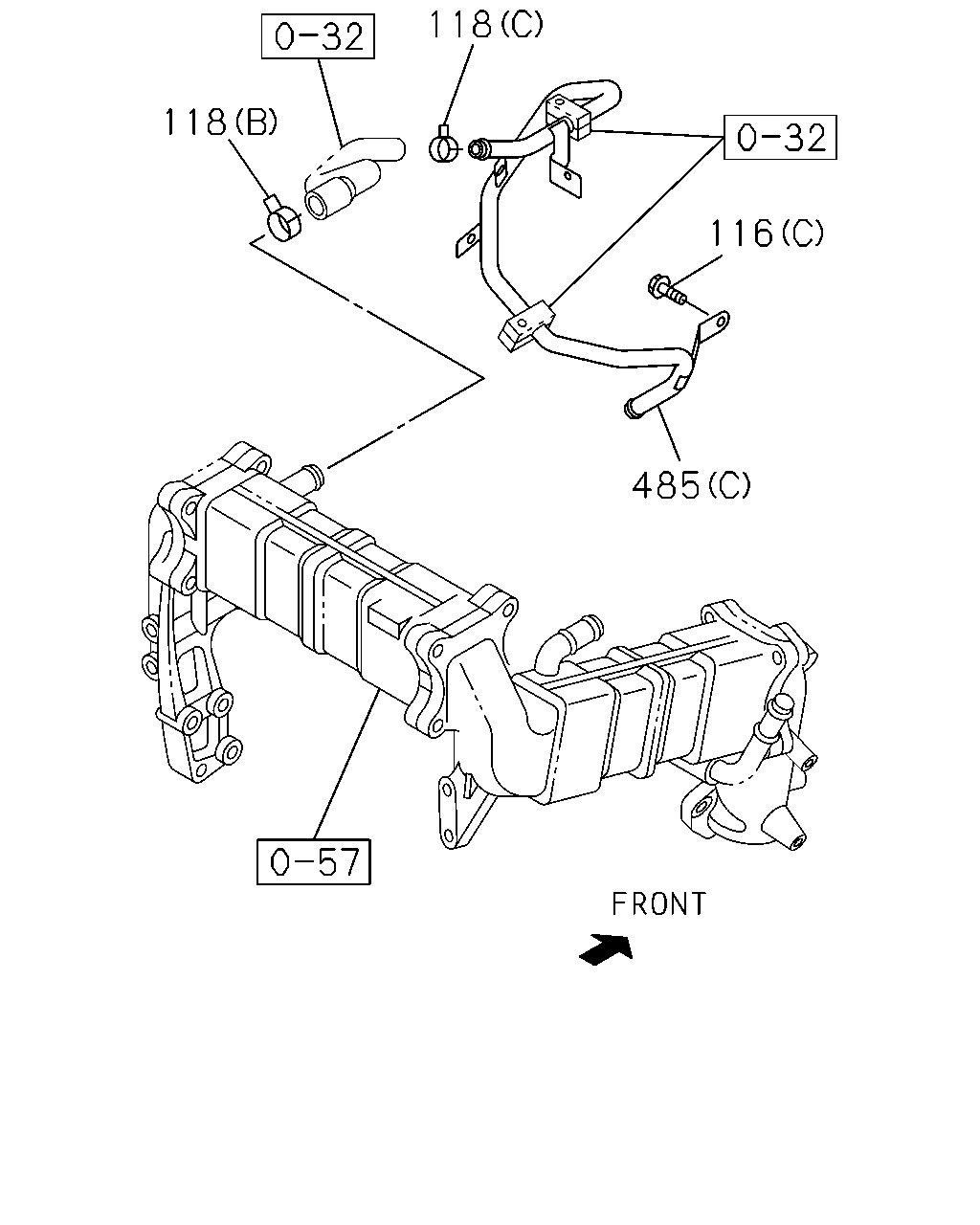

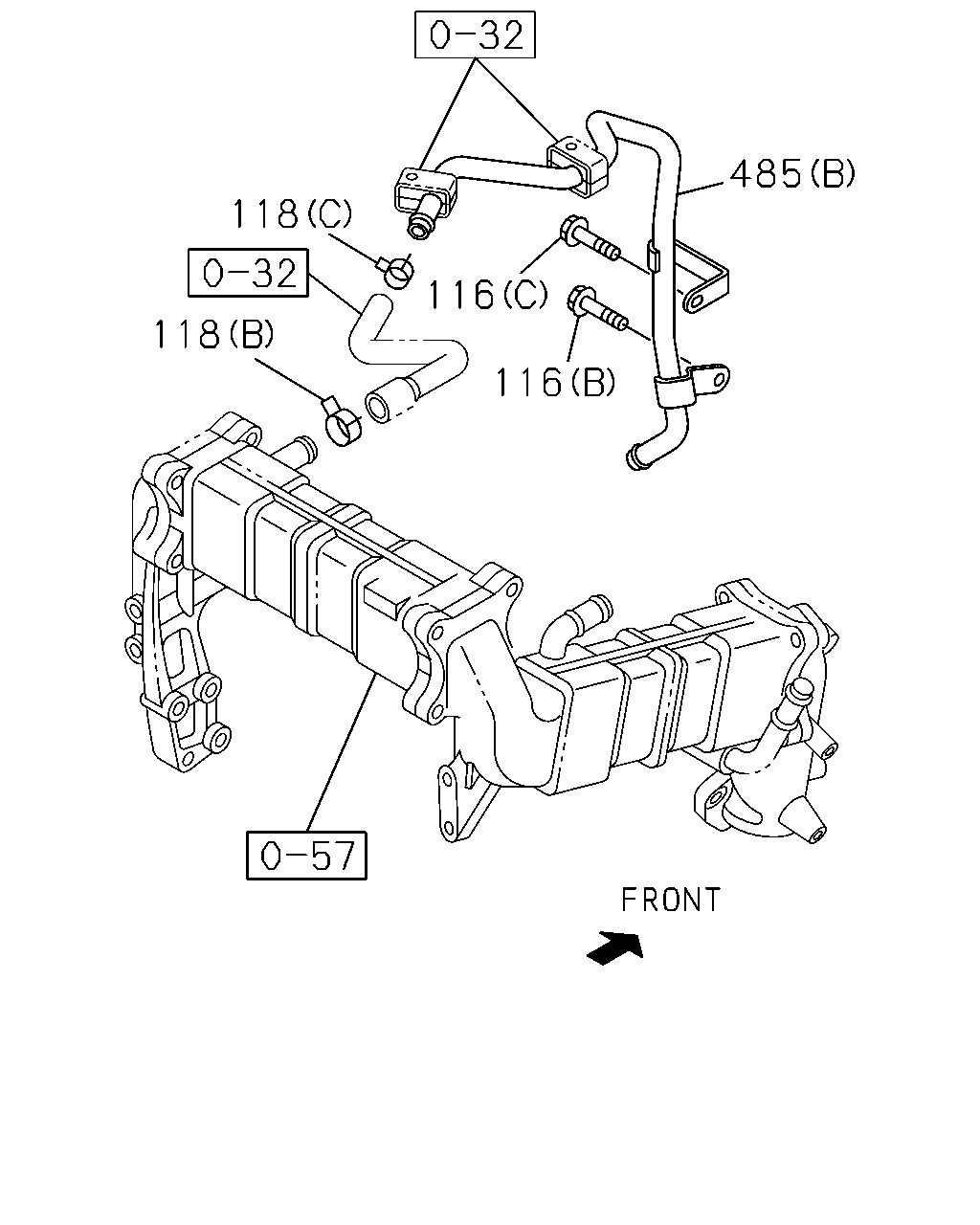

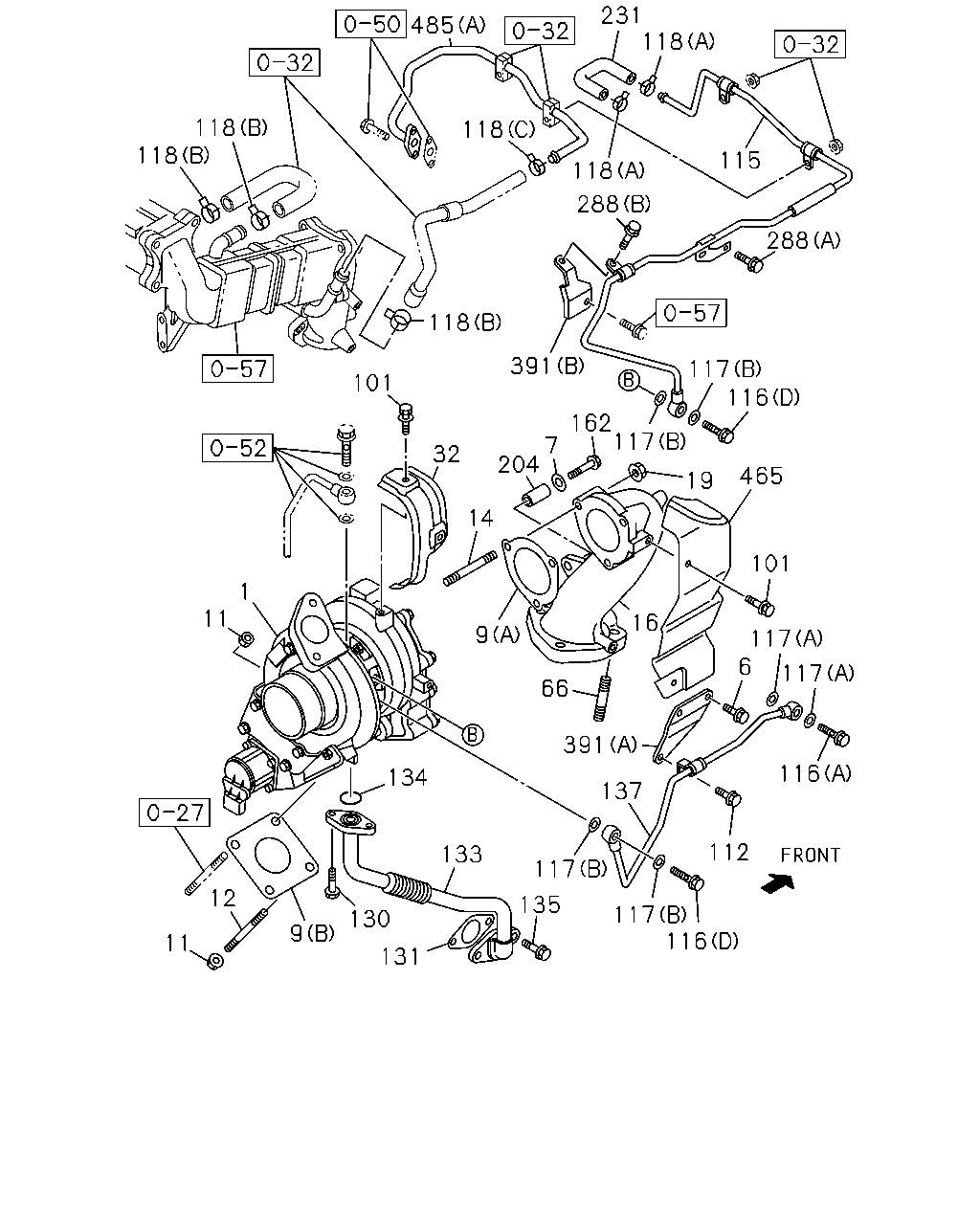

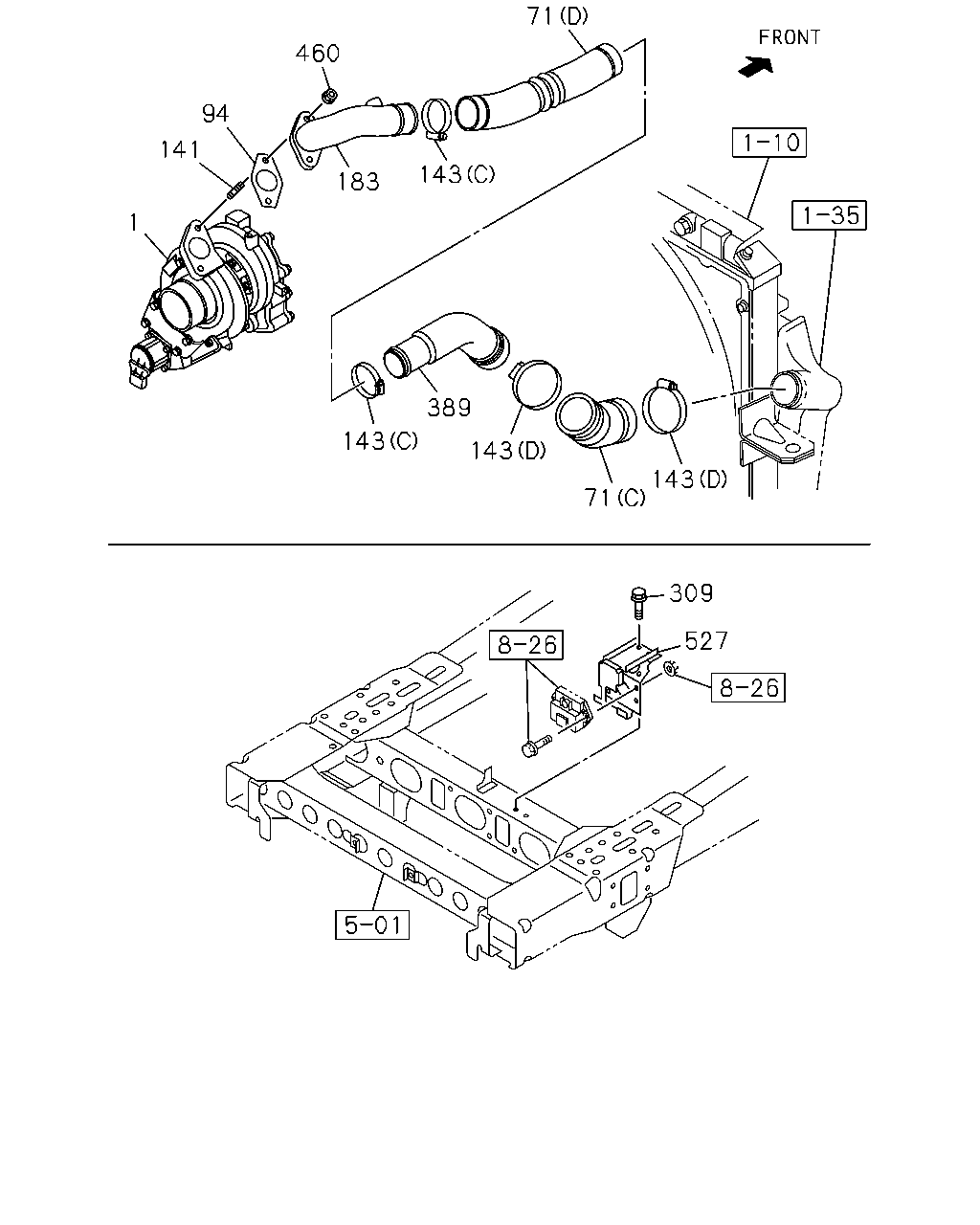

0-36 — TURBOCHARGER SYSTEM (#166309) — 149 parça

71 143 1 389 143 143 71 143 309 527

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM ANTI EROSION SPEC<7XK>	8-98203-610-0	01	1	1509-	●	●
1	03.342 TURBOCHARGER ASM EXC. ANTI EROSION SPEC<7XK>	8-98027-772-5	01	1	1509-1509	●	●
1	03.342 TURBOCHARGER ASM EXC. ANTI EROSION SPEC<7XK> SEE FIG-NO 0-37 FOR COMPONENT.	8-98322-481-0	01	1	1510-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL(6MZ) (C)	8-98205-323-2	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL(6MZ) (D)	8-98205-324-2	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98006-133-2	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98039-732-3	01	1	1509-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL(6MZ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	02	1	1509-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=45-65	8-98133-348-0	02	1	1509-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	1509-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD(8JM) (A) ID=60-65	8-98096-418-0	01	1	1509-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=70-90	8-98122-372-0	01	1	1509-	●	●
309	03.342 BOLT; TURBOCHARGER 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1509-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CATALYSIS CONTROL(6MZ)	8-98298-682-0	01	1	1509-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CATALYSIS CONTROL WITH DPD(8JM)	8-98042-688-1	01	1	1509-	●	●
527	03.373 BRACKET; TURBOCHARGER	8-98060-887-2	01	1	1509-	●	●

1 141 94 460 183 143 71 143 71 143 389 143 309 527

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM ANTI EROSION SPEC<7XK>	8-98203-610-0	01	1	1509-	●	●
1	03.342 TURBOCHARGER ASM EXC. ANTI EROSION SPEC<7XK>	8-98027-772-5	01	1	1509-1509	●	●
1	03.342 TURBOCHARGER ASM EXC. ANTI EROSION SPEC<7XK> SEE FIG-NO 0-37 FOR COMPONENT.	8-98322-481-0	01	1	1510-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL(6MZ) (C)	8-98205-323-2	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL(6MZ) (D)	8-98205-324-2	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98006-133-2	01	1	1509-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98039-732-3	01	1	1509-	●	●
94	01.531 GASKET; INL PIPE ANTI EROSION SPEC<7XK> ID=56	8-98107-962-0	01	1	1509-	●	●
141	03.417 STUD; INL PIPE TO BRKT ANTI EROSION SPEC<7XK> M10X28 L=43	0-44011-028-0	02	1	1509-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL(6MZ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	02	1	1509-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=45-65	8-98133-348-0	02	1	1509-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	1509-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD(8JM) (A) ID=60-65	8-98096-418-0	01	1	1509-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=70-90	8-98122-372-0	01	1	1509-	●	●
183	03.358 PIPE; INL,TURBOCHARGER ANTI EROSION SPEC<7XK>	8-98239-380-0	01	1	1509-	●	●
309	03.342 BOLT; TURBOCHARGER 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1509-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CATALYSIS CONTROL(6MZ)	8-98298-682-0	01	1	1509-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CATALYSIS CONTROL WITH DPD(8JM)	8-98042-688-1	01	1	1509-	●	●
460	03.374 NUT; PIPE ANTI EROSION SPEC<7XK> 03.162 M10 FLANGE	0-91180-110-0	02	1	1509-	●	●
527	03.373 BRACKET; TURBOCHARGER	8-98060-887-2	01	1	1509-	●	●

231 118 115 118 288 118 485 288 118 118 118 391 117 116 162 117 19 465 101 117 117 101 32 7 204 14 1 11 9 66 16 6 116 112 116 117 137 391 117 135 133 134 130 131 9 12 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM ANTI EROSION SPEC<7XK>	8-98203-610-0	01	1	1509-	●	●
1	03.342 TURBOCHARGER ASM EXC. ANTI EROSION SPEC<7XK>	8-98027-772-5	01	1	1509-1509	●	●
1	03.342 TURBOCHARGER ASM EXC. ANTI EROSION SPEC<7XK> SEE FIG-NO 0-37 FOR COMPONENT.	8-98322-481-0	01	1	1510-	●	●
6	03.417 BOLT; BRKT TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1509-	●	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1509-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=54	8-97376-758-0	01	1	1509-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=49	8-98046-241-0	01	1	1509-	●	●
11	03.342 NUT; TURBOCHARGER 03.604 M10 FLANGE	8-97381-617-0	04	1	1509-	●	●
12	03.342 STUD; TURBOCHARGER M10X30 L=45	1-09302-106-0	02	1	1509-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X49 L=63	8-97019-478-0	03	1	1509-	●	●
16	03.609 ADAPTER; EXH PIPE	8-98030-080-3	01	1	1509-	●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	03	1	1509-	●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-98031-888-3	01	1	1509-	●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1509-	●	●
101	03.602 BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	1509-	●	●
112	03.417 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1509-	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98085-187-0	01	1	1509-	●	●
116	03.342 BOLT; WATER PIPE 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●
116	03.342 BOLT; WATER PIPE 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1509-	●	●
116	03.342 BOLT; WATER PIPE 01.531 (D) M12X24 EYE-BOLT	1-09675-081-0	02	1	1509-	●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1509-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1509-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=24	8-98025-921-0	04	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	06	1	1509-	●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	1509-	●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1509-	●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-661-0	01	1	1509-	●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1509-	●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1509-	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97387-271-0	01	1	1509-	●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1509-	●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1509-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1509-	●	●
288	03.342 BOLT; WATER PIPE CLIP 03.407 (B) M8X10 FLANGE	0-28050-810-0	01	1	1509-	●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1509-	●	●
391	03.342 BRACKET; WATER PIPE (A)	8-97371-730-0	01	1	1509-	●	●
391	03.342 BRACKET; WATER PIPE (B)	8-98013-958-0	01	1	1509-	●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER 03.417	8-98052-394-0	01	1	1509-	●	●
485	01.097 PIPE; WATER EGR ANTI EROSION SPEC<7XK> (C)	8-98245-197-1	01	1	1509-1509	●	●
485	01.097 PIPE; WATER EGR ANTI EROSION SPEC<7XK> (C)	8-98330-116-0	01	1	1509-	●	●
485	01.097 PIPE; WATER EGR (A)	8-98032-267-0	01	1	1509-	●	●
485	01.097 PIPE; WATER EGR EXC. ANTI EROSION SPEC<7XK> (B)	8-98041-637-1	01	1	1509-	●	●

131 130 133 135 117 134 11 1 12 11 9 9 14 32 101 118 391 162 204 7 16 66 391 137 117 116 112 116 117 117 6 101 19 117 117 116 465 118 118 118 485 231 118 118 288 115 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM ANTI EROSION SPEC<7XK>	8-98203-610-0	01	1	1509-	●	●
1	03.342 TURBOCHARGER ASM EXC. ANTI EROSION SPEC<7XK>	8-98027-772-5	01	1	1509-1509	●	●
1	03.342 TURBOCHARGER ASM EXC. ANTI EROSION SPEC<7XK> SEE FIG-NO 0-37 FOR COMPONENT.	8-98322-481-0	01	1	1510-	●	●
6	03.417 BOLT; BRKT TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1509-	●	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1509-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=54	8-97376-758-0	01	1	1509-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=49	8-98046-241-0	01	1	1509-	●	●
11	03.342 NUT; TURBOCHARGER 03.604 M10 FLANGE	8-97381-617-0	04	1	1509-	●	●
12	03.342 STUD; TURBOCHARGER M10X30 L=45	1-09302-106-0	02	1	1509-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X49 L=63	8-97019-478-0	03	1	1509-	●	●
16	03.609 ADAPTER; EXH PIPE	8-98030-080-3	01	1	1509-	●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	03	1	1509-	●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-98031-888-3	01	1	1509-	●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1509-	●	●
101	03.602 BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	1509-	●	●
112	03.417 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1509-	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98085-187-0	01	1	1509-	●	●
116	03.342 BOLT; WATER PIPE 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●
116	03.342 BOLT; WATER PIPE 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1509-	●	●
116	03.342 BOLT; WATER PIPE 01.531 (D) M12X24 EYE-BOLT	1-09675-081-0	02	1	1509-	●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1509-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1509-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=24	8-98025-921-0	04	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	06	1	1509-	●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	1509-	●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1509-	●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-661-0	01	1	1509-	●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1509-	●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1509-	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97387-271-0	01	1	1509-	●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1509-	●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1509-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1509-	●	●
288	03.342 BOLT; WATER PIPE CLIP 03.407 (B) M8X10 FLANGE	0-28050-810-0	01	1	1509-	●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1509-	●	●
391	03.342 BRACKET; WATER PIPE (A)	8-97371-730-0	01	1	1509-	●	●
391	03.342 BRACKET; WATER PIPE (B)	8-98013-958-0	01	1	1509-	●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER 03.417	8-98052-394-0	01	1	1509-	●	●
485	01.097 PIPE; WATER EGR ANTI EROSION SPEC<7XK> (C)	8-98245-197-1	01	1	1509-1509	●	●
485	01.097 PIPE; WATER EGR ANTI EROSION SPEC<7XK> (C)	8-98330-116-0	01	1	1509-	●	●
485	01.097 PIPE; WATER EGR (A)	8-98032-267-0	01	1	1509-	●	●
485	01.097 PIPE; WATER EGR EXC. ANTI EROSION SPEC<7XK> (B)	8-98041-637-1	01	1	1509-	●	●

118 118 118 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
118	03.342 CLIP; WATER HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=24	8-98025-921-0	04	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	06	1	1509-	●	●

118 118 116 116 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
116	03.342 BOLT; WATER PIPE 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●
116	03.342 BOLT; WATER PIPE 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1509-	●	●
116	03.342 BOLT; WATER PIPE 01.531 (D) M12X24 EYE-BOLT	1-09675-081-0	02	1	1509-	●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=24	8-98025-921-0	04	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	06	1	1509-	●	●
485	01.097 PIPE; WATER EGR ANTI EROSION SPEC<7XK> (C)	8-98245-197-1	01	1	1509-1509	●	●
485	01.097 PIPE; WATER EGR ANTI EROSION SPEC<7XK> (C)	8-98330-116-0	01	1	1509-	●	●
485	01.097 PIPE; WATER EGR (A)	8-98032-267-0	01	1	1509-	●	●
485	01.097 PIPE; WATER EGR EXC. ANTI EROSION SPEC<7XK> (B)	8-98041-637-1	01	1	1509-	●	●

118 118 116 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
116	03.342 BOLT; WATER PIPE 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●	●
116	03.342 BOLT; WATER PIPE 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1509-	●	●
116	03.342 BOLT; WATER PIPE 01.531 (D) M12X24 EYE-BOLT	1-09675-081-0	02	1	1509-	●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 01.153 (B) ID=24	8-98025-921-0	04	1	1509-	●	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	06	1	1509-	●	●
485	01.097 PIPE; WATER EGR ANTI EROSION SPEC<7XK> (C)	8-98245-197-1	01	1	1509-1509	●	●
485	01.097 PIPE; WATER EGR ANTI EROSION SPEC<7XK> (C)	8-98330-116-0	01	1	1509-	●	●
485	01.097 PIPE; WATER EGR (A)	8-98032-267-0	01	1	1509-	●	●
485	01.097 PIPE; WATER EGR EXC. ANTI EROSION SPEC<7XK> (B)	8-98041-637-1	01	1	1509-	●	●
