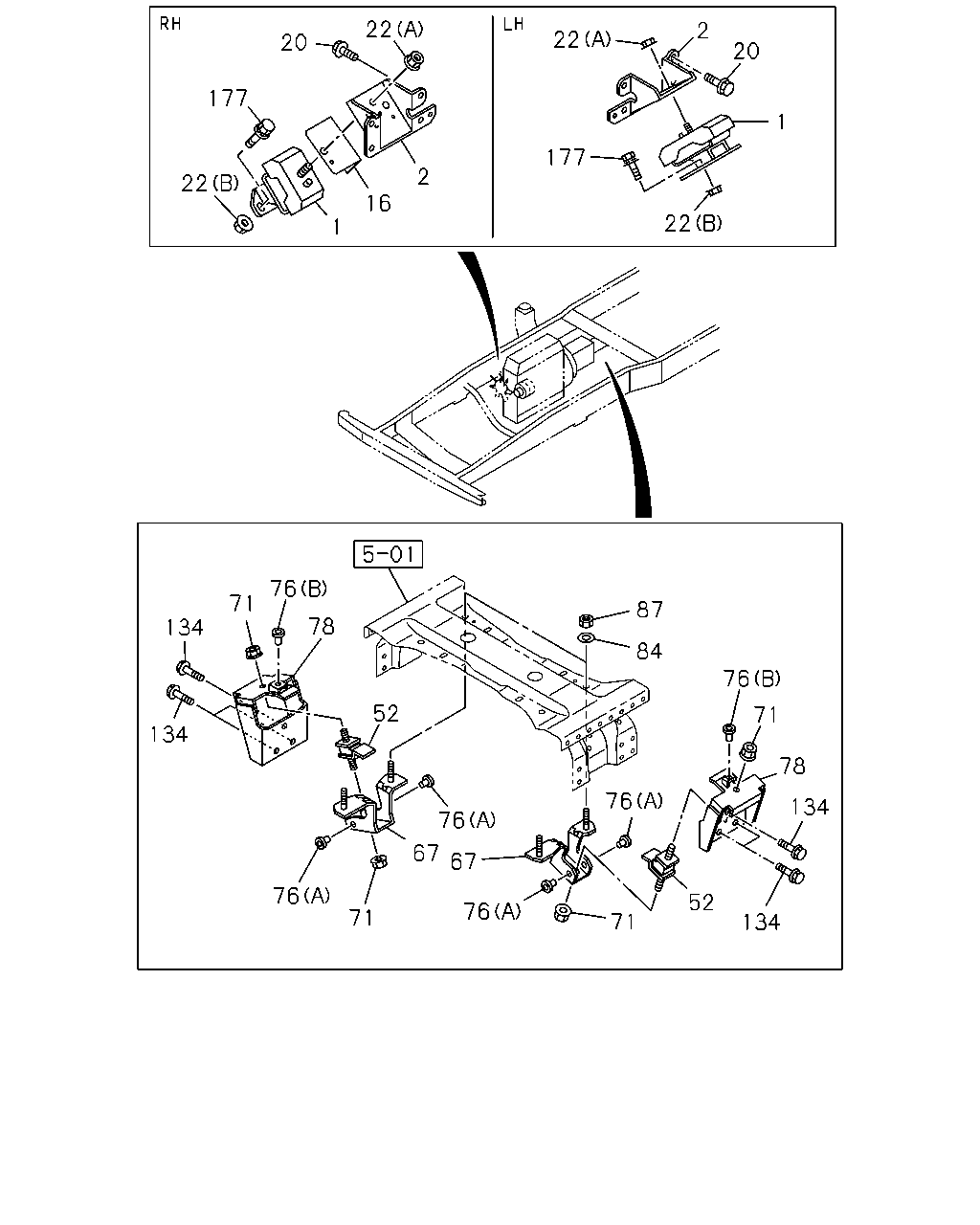

0-22 — ENGINE MOUNTING (#166300) — 23 parça

87 84 76 71 78 134 134 52 76 71 76 67 67 71 76 76 52 76 78 71 134 134 22 177 20 22 2 16 1 22 177 2 22 20 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.027 RUBBER; ENG FOOT,FRT	8-98203-633-0	01	1	1509-	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-98203-634-0	01	1	1509-	●	●
2	00.029 FOOT; ENG	8-97228-669-2	02	1	1509-	●	●
16	07.039 PROTECTOR; HEAT,ENG MTG,FRT	8-97209-564-0	01	1	1509-	●	●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28161-020-0	08	1	1509-	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 02.042 (A) M12 FLANGE	0-91180-112-0	02	1	1509-	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 04.085 (B) M10 FLANGE	0-91180-210-0	04	1	1509-	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MZZ6U(RSF),M/T MZZ6F(RSR)	8-97039-277-0	02	1	1509-	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MYY6S(RST)	8-94111-903-1	02	1	1509-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR M/T MZZ6U(RSF),M/T MZZ6F(RSR)	8-97180-457-0	01	1	1509-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR M/T MZZ6U(RSF),M/T MZZ6F(RSR)	8-97180-458-0	01	1	1509-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR M/T MYY6S(RST)	8-97255-776-1	01	1	1509-	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR M/T MYY6S(RST)	8-97255-778-1	01	1	1509-	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	1509-	●	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (B)	8-94111-904-0	02	1	1509-	●	●
76	00.002 STOPPER; ENG MTG RUBBER (A)	8-97039-947-1	04	1	1509-	●	●
78	00.029 BRACKET; ENG MTG,RR M/T MZZ6U(RSF),M/T MZZ6F(RSR)	8-97211-475-0	01	1	1509-	●	●
78	00.029 BRACKET; ENG MTG,RR M/T MZZ6U(RSF),M/T MZZ6F(RSR)	8-97234-719-0	01	1	1509-	●	●
78	00.029 BRACKET; ENG MTG,RR M/T MYY6S(RST)	8-97255-756-1	02	1	1509-	●	●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	1509-	●	●
87	00.029 NUT; ENG MTG RR 03.162 M10 FLANGE	0-91180-110-0	04	1	1509-	●	●
134	00.029 BOLT; SUPPORT BRKT 09.181 M12X25 FLANGE	0-28751-225-0	06	1	1509-	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	1509-	●	●
