◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10634 - FSS/FTS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#1663) — 65 parça

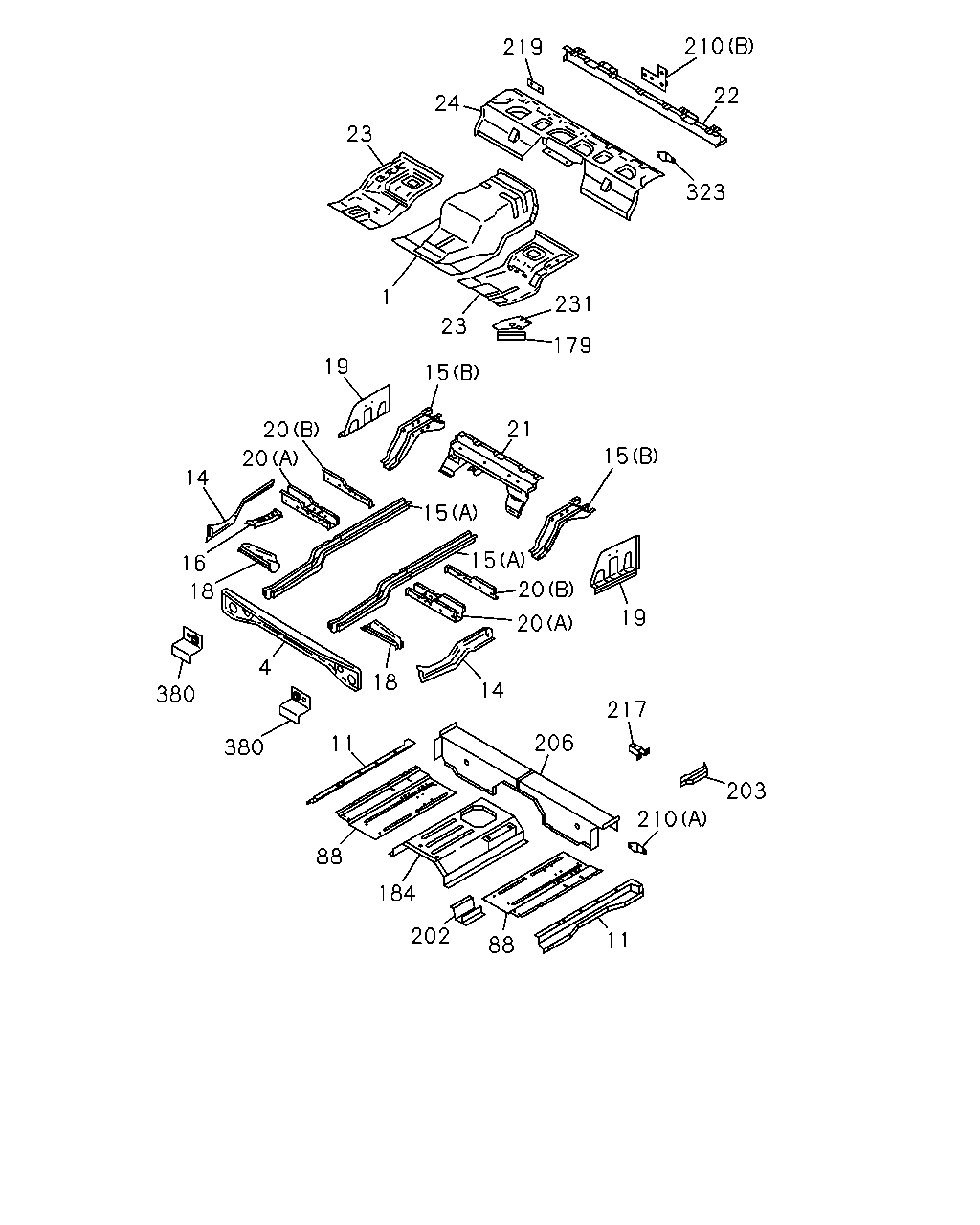

çizim 29674
210 22 323 219 24 23 1 23 231 179 15 19 21 15 20 20 15 15 20 20 19 14 16 18 380 380 4 18 11 14 88 184 202 88 11 206 217 210 203
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PANEL; FLOOR 1-62182-796-2 01 1 9207- ● ● ● ●
1 PANEL; FLOOR 1-62182-812-3 01 1 9207-9209 ●
1 PANEL; FLOOR 1-62182-736-3 01 1 9210- ●
4 FRAME; FLOOR,FRT 1-62482-792-9 01 1 9207-9209 ● ● ● ●
4 FRAME; FLOOR,FRT 1-62482-792-9 01 1 9210- ● ● ● ● ●
4 FRAME; FLOOR,FRT 1-62482-936-0 01 1 9207-9209 ●
11 PANEL; FLOOR SIDE RR 1-62482-448-0 01 1 9207- ●
11 PANEL; FLOOR SIDE RR 1-62482-447-0 01 1 9207- ●
14 PANEL; FLOOR SIDE,FRT 1-62482-657-1 01 1 9207- ● ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-656-1 01 1 9207- ● ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-747-1 01 1 9207- ●
14 PANEL; FLOOR SIDE,FRT 1-62482-746-1 01 1 9207- ●
15 FRAME; UNDER
(A) 		1-62482-099-8 01 1 9207- ● ● ● ●
15 FRAME; UNDER
(A) 		1-62482-326-6 01 1 9207- ● ● ● ●
15 FRAME; UNDER
(B) 		1-62482-207-3 01 1 9207- ● ● ● ● ●
15 FRAME; UNDER
(B) 		1-62482-208-3 01 1 9207- ● ● ● ● ●
15 FRAME; UNDER
(A) 		1-62482-732-1 01 1 9207-9209 ●
15 FRAME; UNDER
(A) 		1-62482-347-3 01 1 9210- ●
15 FRAME; UNDER
(A) 		1-62482-152-2 01 1 9207-9209 ●
15 FRAME; UNDER
(A) 		1-62482-153-3 01 1 9210- ●
16 PANEL; SUPPORT CHANNEL,FLOOR PANEL FRT 1-62482-297-2 01 1 9207- ● ● ● ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-078-4 01 1 9207- ● ● ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-077-4 01 1 9207- ● ● ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-168-3 01 1 9207- ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-167-3 01 1 9207- ●
19 PANEL; FLOOR SIDE,REAR 1-62482-661-0 01 1 9207- ● ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-660-0 01 1 9207- ● ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-192-2 01 1 9207- ●
19 PANEL; FLOOR SIDE,REAR 1-62482-191-3 01 1 9207- ●
20 FRAME; FLOOR SIDE,REAR
(B) 		1-62482-302-3 01 1 9207- ●
20 FRAME; FLOOR SIDE,REAR
(B) 		1-62482-303-3 01 1 9207- ●
20 FRAME; FLOOR SIDE,REAR
(A) 		1-62482-315-3 01 1 9207- ●
20 FRAME; FLOOR SIDE,REAR
(A) 		1-62482-778-1 01 1 9207- ●
21 FRAME; FLOOR CENTER 1-62482-648-1 01 1 9207- ● ● ● ●
22 FRAME; FLOOR REAR 1-62482-066-5 01 1 9207- ● ● ● ● ●
23 PANEL; FLOOR,SIDE 1-62182-061-8 01 1 9207- ● ● ● ●
23 PANEL; FLOOR,SIDE
EXC. DUMP CONTROL LEVER<RC4> 		1-62182-536-5 01 1 9207- ● ● ● ●
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> 		1-62182-537-3 01 1 9207- ● ●
23 PANEL; FLOOR,SIDE 1-62182-808-3 01 1 9207-9209 ●
23 PANEL; FLOOR,SIDE 1-62182-170-7 01 1 9210- ●
23 PANEL; FLOOR,SIDE 1-62182-806-3 01 1 9207-9209 ●
23 PANEL; FLOOR,SIDE 1-62182-169-9 01 1 9210- ●
24 PANEL; BED PAN 1-62182-685-4 01 1 9207- ● ● ● ●
88 BOARD ASM; FLOOR 1-62182-814-0 01 1 9207-9209 ●
88 BOARD ASM; FLOOR 1-62182-258-2 01 1 9210- ●
88 BOARD ASM; FLOOR 1-62182-815-0 01 1 9207-9209 ●
88 BOARD ASM; FLOOR 1-62182-259-3 01 1 9210- ●
179 GUSSET; POWER CYL,CAB TILT 1-62482-175-2 02 1 9207- ●
184 HOOD ASM; ENG RR 1-62182-818-0 01 1 9207-9209 ●
184 HOOD ASM; ENG RR 1-62182-742-1 01 1 9210- ●
202 PANEL; CENTER MTG REINF 1-62482-254-3 01 1 9207- ●
202 PANEL; CENTER MTG REINF 1-62482-253-2 01 1 9207- ●
203 PANEL; CLOSING,BACK CORNER,BACK PANEL 1-62482-313-0 01 1 9207- ●
203 PANEL; CLOSING,BACK CORNER,BACK PANEL 1-62482-312-0 01 1 9207- ●
206 PANEL; FLOOR BOARD RR 1-62182-689-0 01 1 9207- ●
210 PANEL; HAND BRAKE LEVER BRKT
(B) 		1-62182-361-1 01 1 9207- ● ● ● ● ●
210 PANEL; HAND BRAKE LEVER BRKT
(A) 		1-62182-085-0 01 1 9207- ●
217 PANEL; SEAT STAND
WO/NUT 		1-62482-181-2 03 1 9207- ●
217 PANEL; SEAT STAND
W/NUT 		1-62482-425-0 01 1 9207- ●
219 PATCH; AIR DUCT LWR 1-62182-197-0 01 1 9207- ● ● ● ● ●
231 PLATE; POWER CYL,CAB TILT 1-62482-177-2 01 1 9207- ●
231 PLATE; POWER CYL,CAB TILT 1-62482-176-2 01 1 9207- ●
323 PATCH; HAND LEVER 1-62182-085-0 01 1 9207- ● ● ● ● ●
380 BRACKET; HEAD LAMP 1-62482-788-0 01 1 9207- ● ● ● ● ●
380 BRACKET; HEAD LAMP 1-62482-789-0 01 1 9207- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
