◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51637 - NQR AIR BRAKE LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#166292) — 9 parça

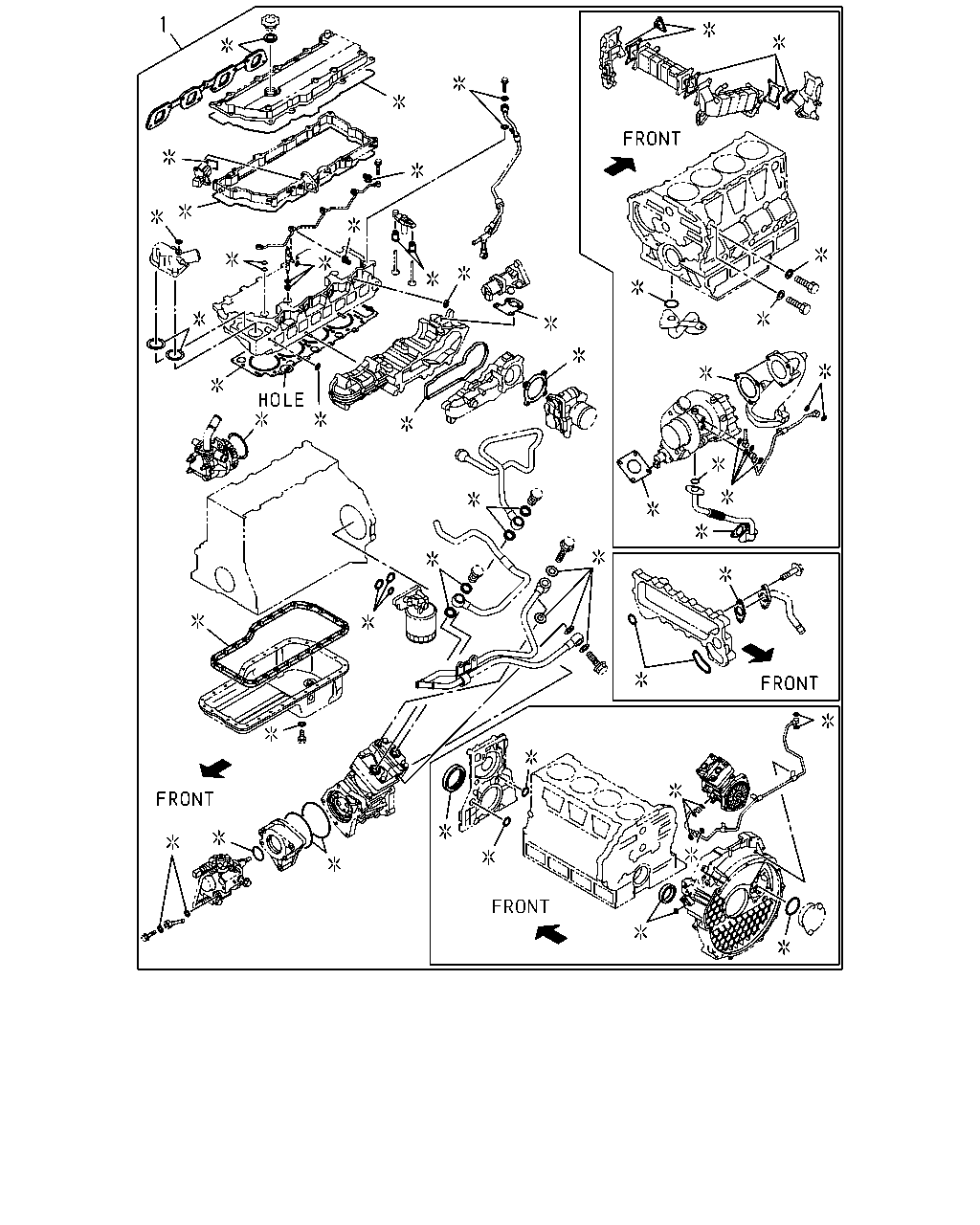

çizim 493409
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.010 GASKET SET; ENG OVERHAUL
ANTI EROSION SPEC<7XK> T=1.475 NON-HOLE 		5-87817-939-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
ANTI EROSION SPEC<7XK> T=1.525 1-HOLE 		5-87817-940-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
ANTI EROSION SPEC<7XK> T=1.575 2-HOLE 		5-87817-941-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. ANTI EROSION SPEC<7XK> T=1.475 NON-HOLE 		5-87817-966-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. ANTI EROSION SPEC<7XK> T=1.525 1-HOLE 		5-87817-967-0 01 1 1509- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. ANTI EROSION SPEC<7XK> T=1.575 2-HOLE 		5-87817-968-0 01 1 1509- ● ●

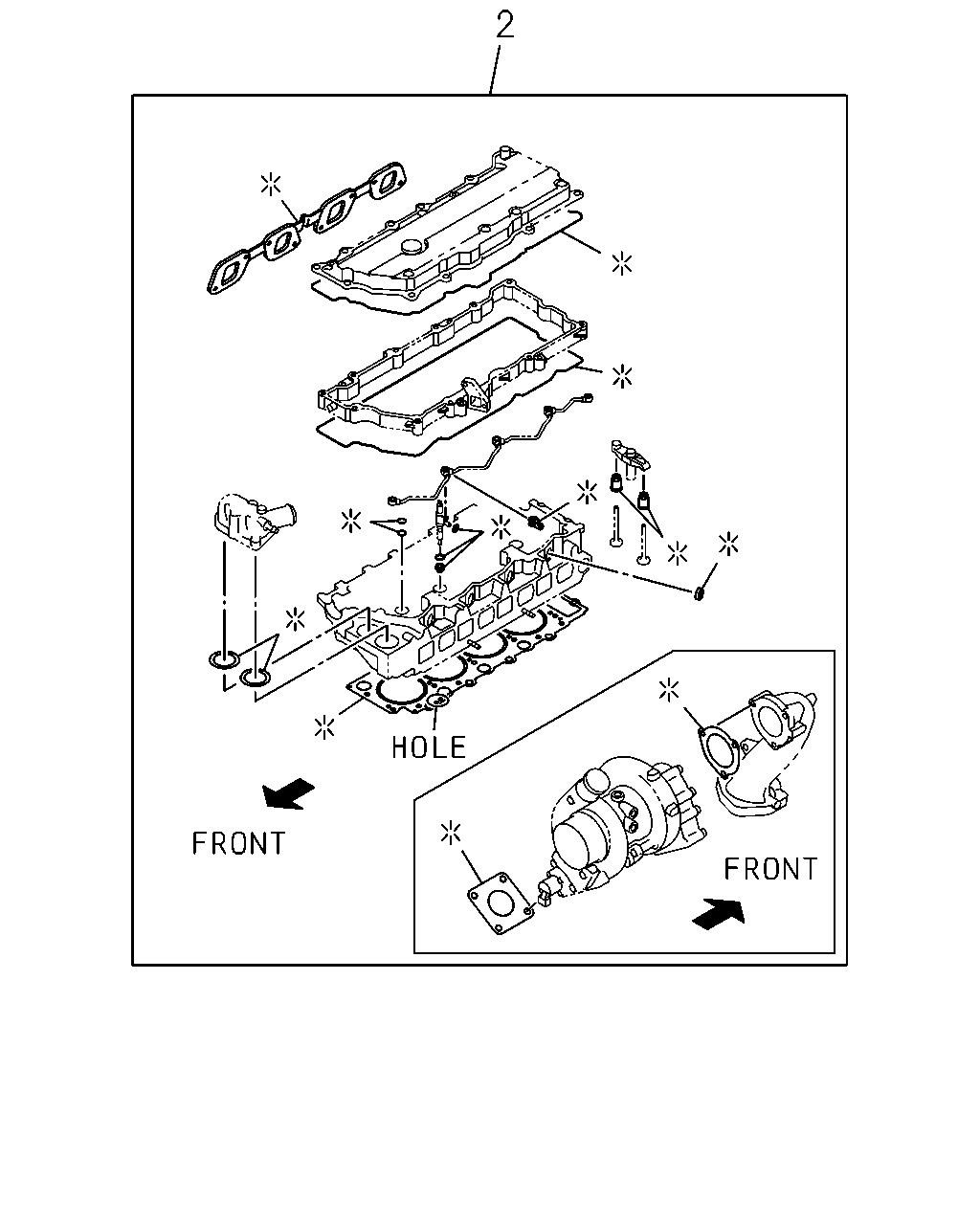

çizim 493426
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-921-0 01 1 1509- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-922-0 01 1 1509- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-923-0 01 1 1509- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
