Isuzu WW
▶
TRUCKS
▶
NQR
▶
51636 - NQR BUS A/BRAKE LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#166286) — 19 parça
◀

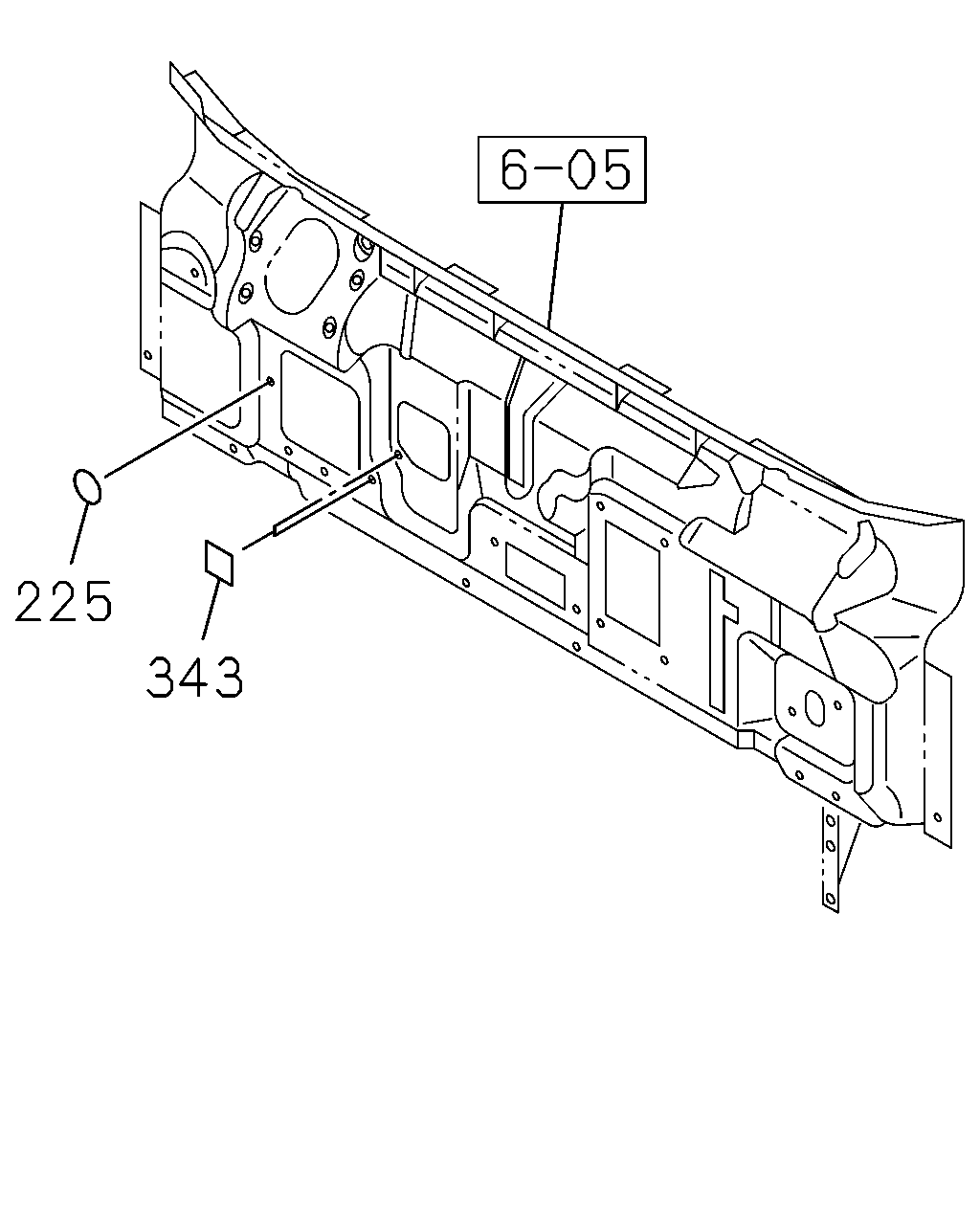

[840A] NO.2 (2 parça)

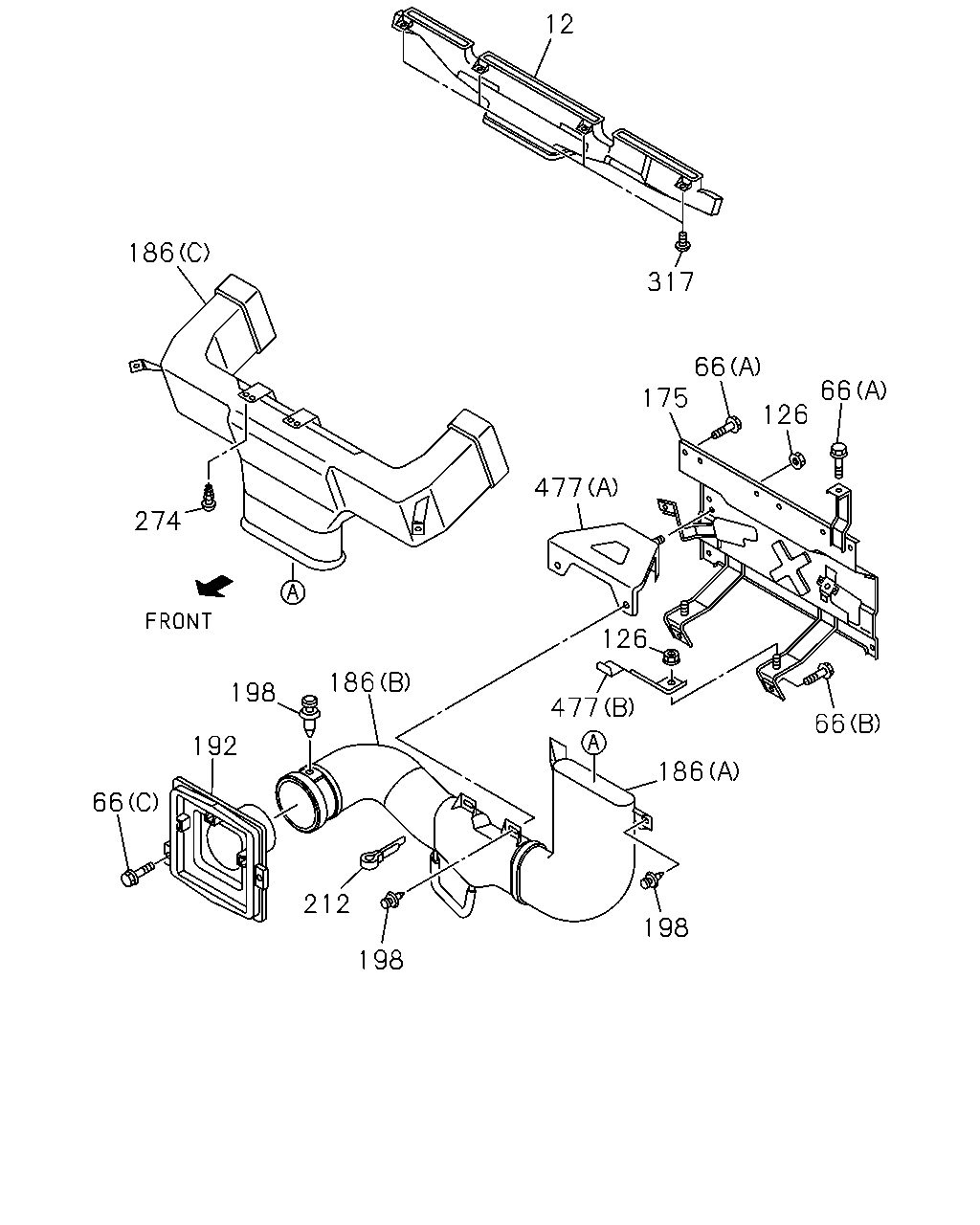

[840A] NO.1 (17 parça)
▶
225
343
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
225
08.845 SEAL; WATER
16.165 OD=20 T=0.05 BLACK
5-76777-036-0
01
1
1509-
343
08.845 SEAL; AIR DUCT
8-97856-616-0
02
1
1509-
12
186
317
66
66
175
126
477
274
66
126
477
186
198
198
212
66
192
198
186
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
09.779 NOZZLE; DEFROSTER
8-98040-490-3
01
1
1509-
66
08.845 BOLT; DUCT
02.343 (A) M6X16 FLANGE
0-28650-616-0
02
1
1509-
66
08.845 BOLT; DUCT
08.857 (C) M6X20 W/LK&PL WASHER
8-98081-030-0
02
1
1509-
66
08.845 BOLT; DUCT
(B) M6X20 W/LK&PL WASHER
8-98081-175-0
02
1
1509-
126
09.262 NUT; BRKT
01.062 M6 FLANGE
0-91180-106-0
01
1
1509-
126
09.262 NUT; BRKT
01.062 M6 FLANGE
0-91180-106-0
01
1
1509-
175
09.262 BRACKET; HTR DUCT
8-98091-543-5
01
1
1509-
186
09.786 DUCT; VENTILATOR
(C)
8-98054-362-0
01
1
1509-
186
09.786 DUCT; VENTILATOR
(A)
8-98054-369-0
01
1
1509-
186
09.786 DUCT; VENTILATOR
(B)
8-98054-378-2
01
1
1509-
192
09.262 DUCT; RAM AIR
8-98054-385-4
01
1
1509-
198
09.787 CLIP; DUCT
09.264
1-09987-144-0
05
1
1509-
212
09.262 CLIP; HOSE
01.166 ID=16 L=46
9-09917-428-0
01
1
1509-
274
08.852 SCREW; VENT DUCT
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1509-
317
09.264 SCREW; DEFROSTER NOZZLE
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1509-
477
09.786 BRACKET; DUCT
(A)
8-98091-304-0
01
1
1509-
477
09.786 BRACKET; DUCT
(B)
8-98164-456-0
01
1
1509-
