8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#166283) — 14 parça

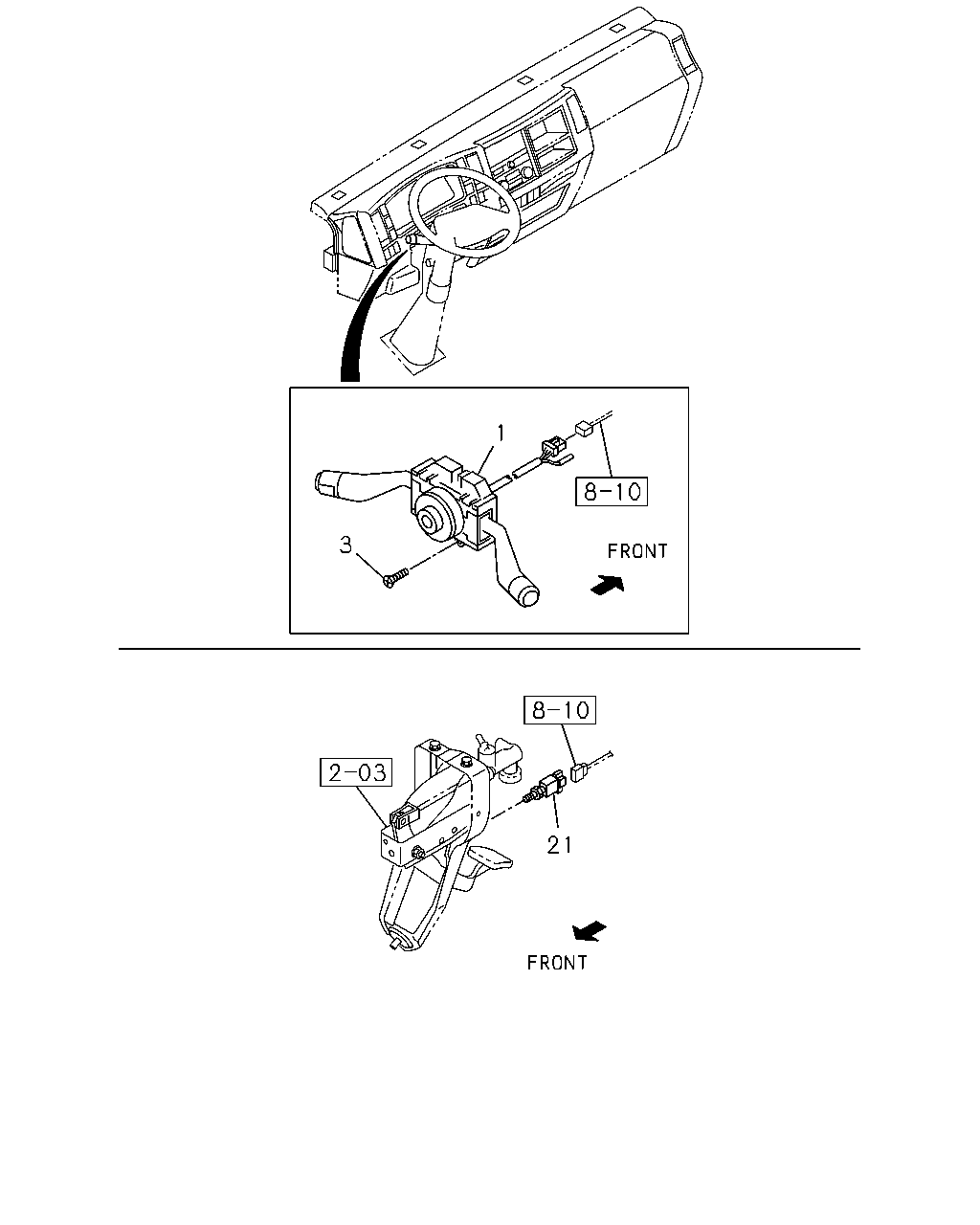

çizim 492681
1 3 21
BalonParca AdiParca NoAdetTipApplied Date
1 02.895 SWITCH; COMB 8-98243-750-0 01 1 1509-
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1509-
21 02.575 SWITCH; CLU 8-97358-248-0 01 1 1509-

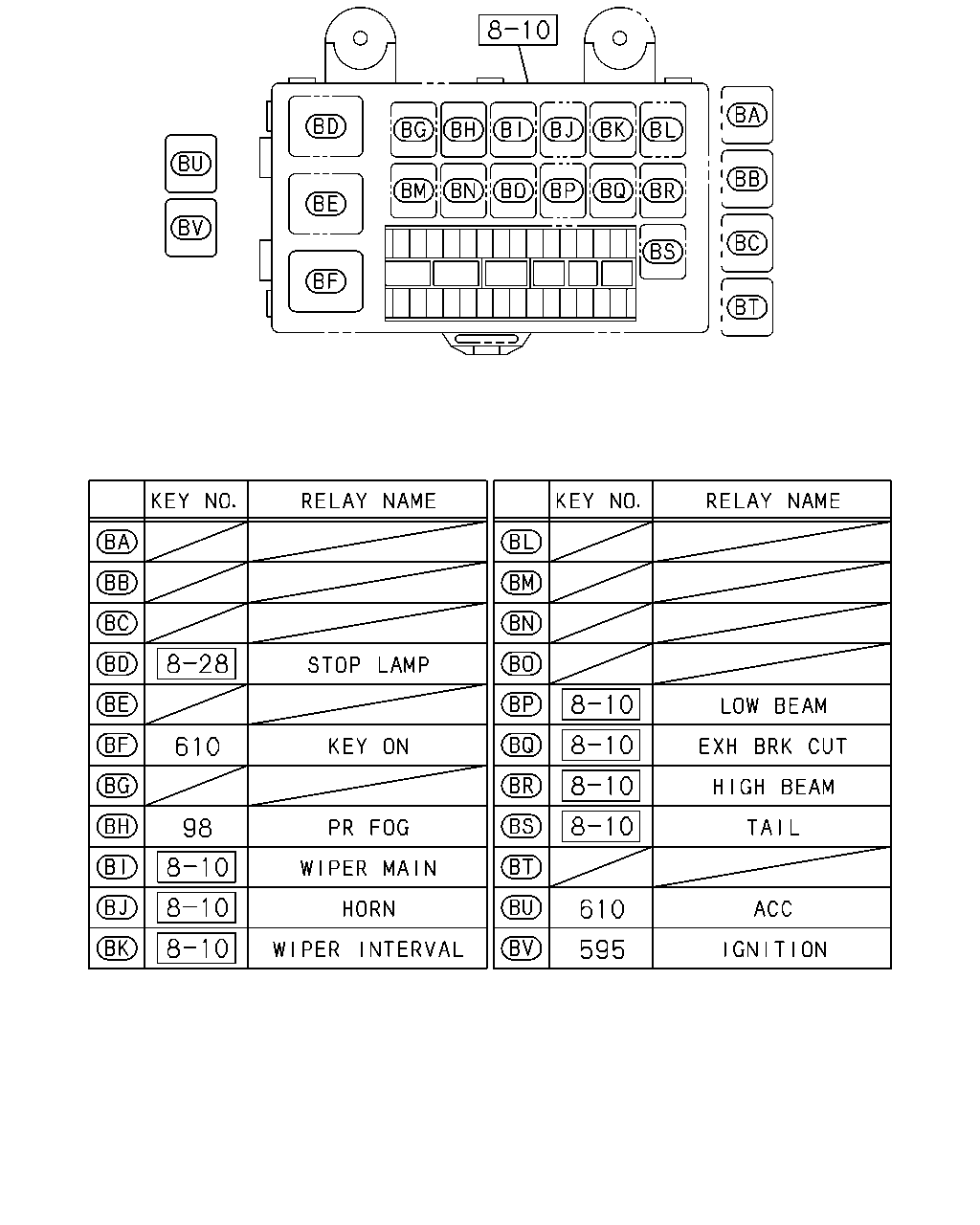

çizim 492703
610 98 610 595
BalonParca AdiParca NoAdetTipApplied Date
98 02.485 RELAY; RR FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1509-
595 02.510 RELAY; IGNITION
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1509-
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 02 1 1509-

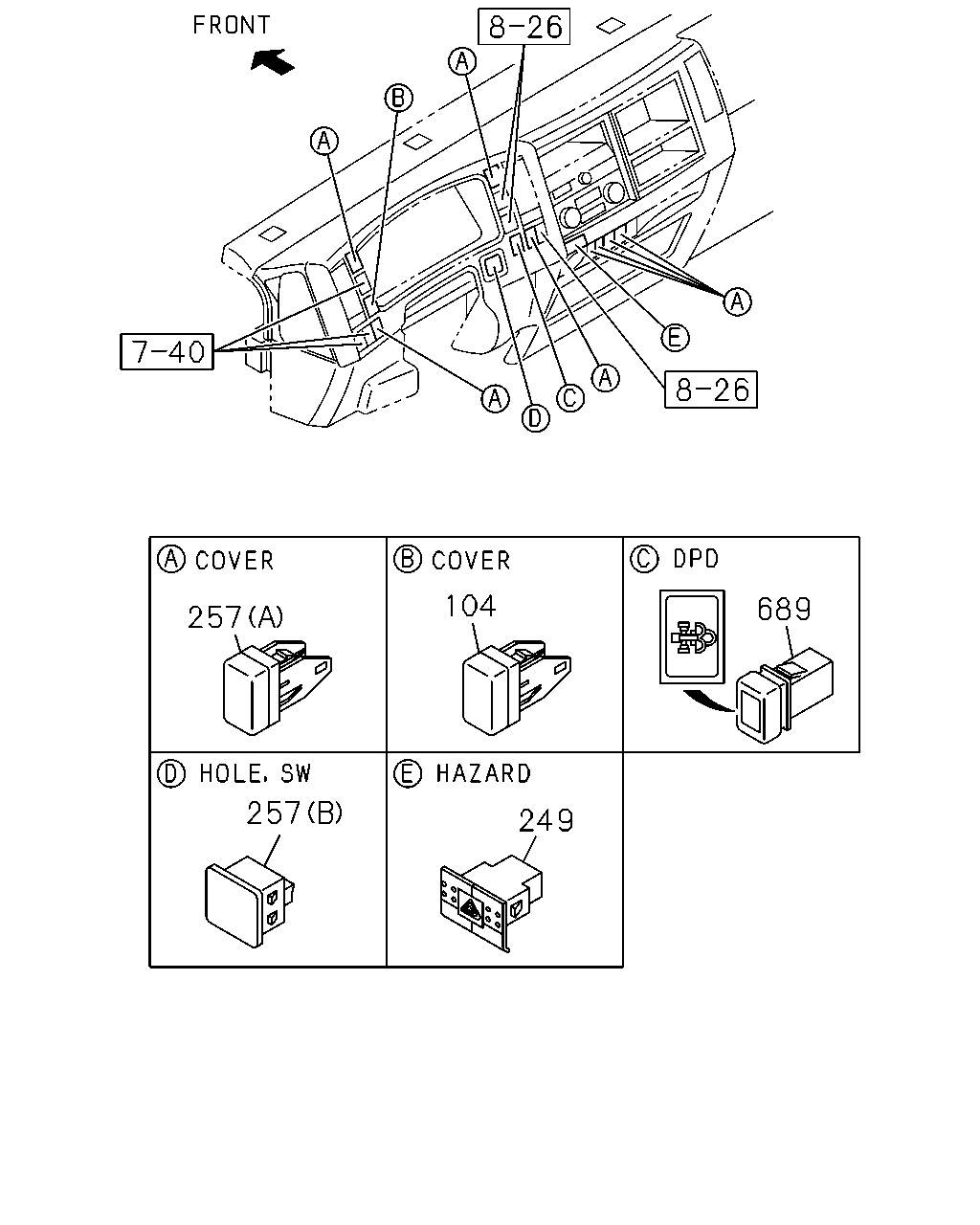

çizim 493121
689 104 257 257 249
BalonParca AdiParca NoAdetTipApplied Date
104 09.778 COVER; SW HOLE,FOG LAMP
16.081 		8-98025-954-1 01 1 1509-
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 1509-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 1509-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 04 1 1509-
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1509-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1509-
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1509-
689 02.780 SWITCH; DPD 8-97386-921-2 01 1 1509-
