8-21 — METER ASM
(#166282) — 19 parça
◀

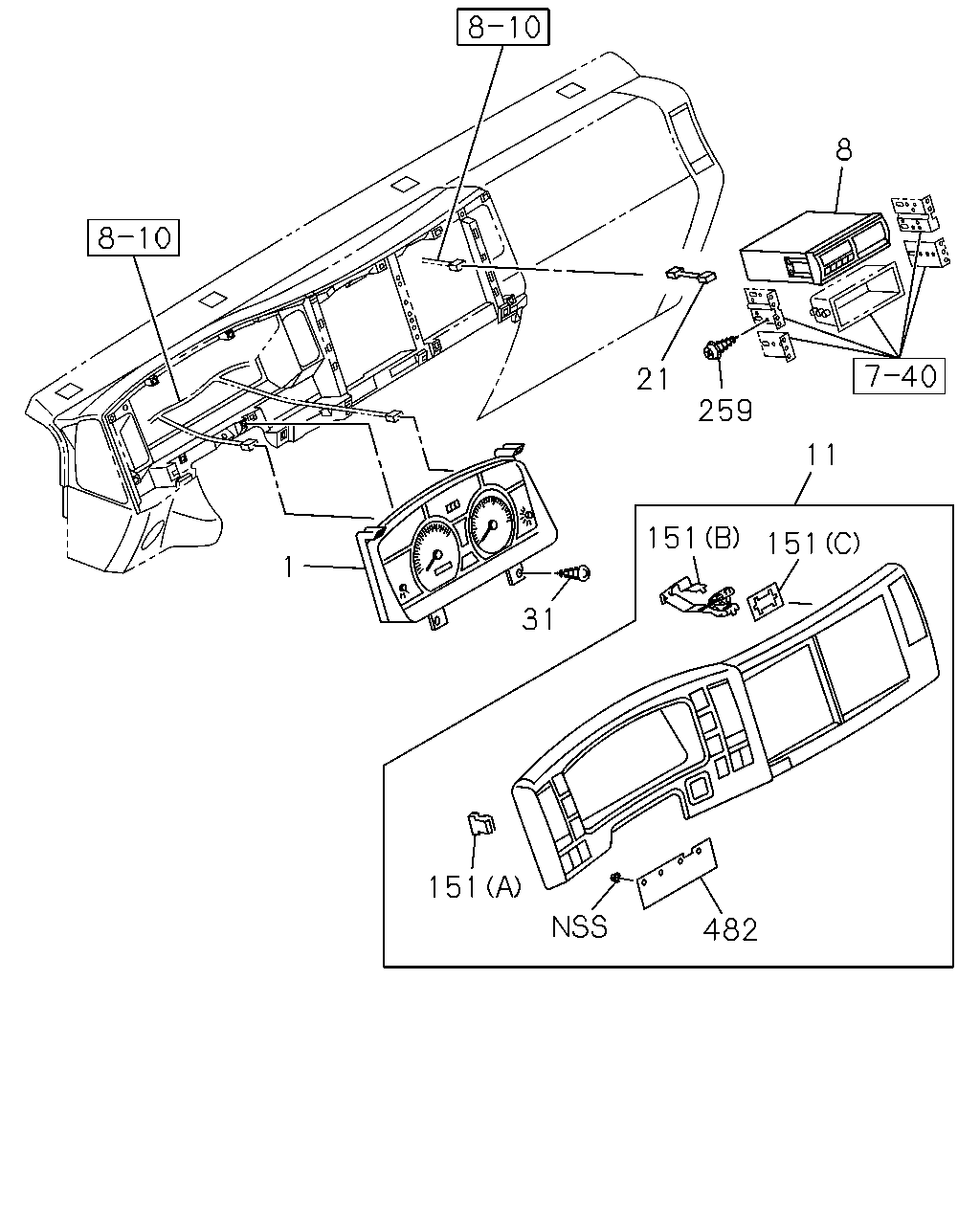

[821A] FIXING (12 parça)

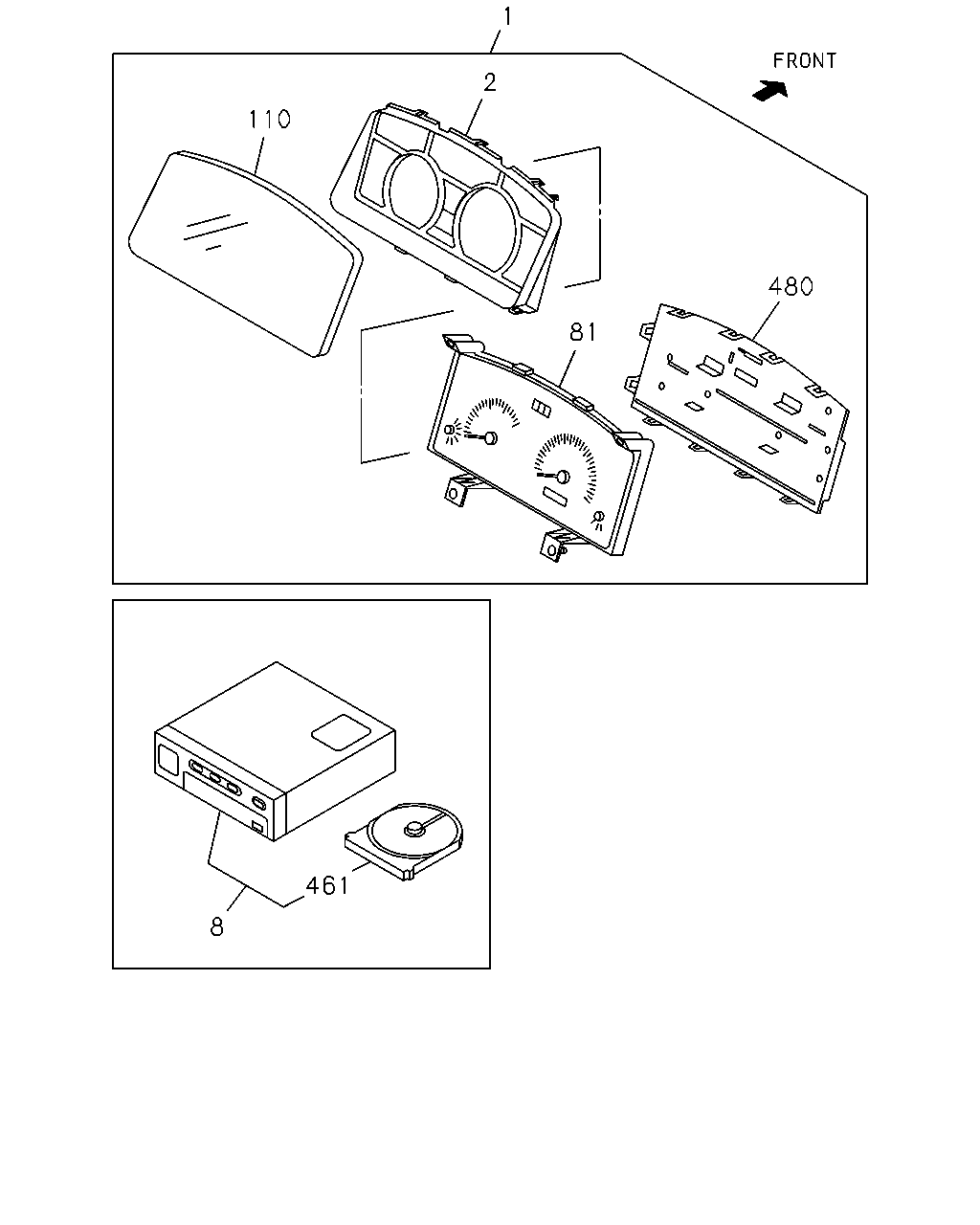

[821A] COMPONENT (7 parça)
▶
8
21
259
11
31
1
151
151
151
482
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.735 METER COMPL; CLUSTER
8-98302-037-0
01
1
1509-
8
09.750 TACHOGRAPH; CLUSTER METER
8-97387-082-2
01
1
1509-
11
09.743 CLUSTER ASM; METER
ECE R29<EFE> DARK GRAY
8-97418-534-1
01
1
1509-
11
09.743 CLUSTER ASM; METER
EXC. ECE R29<EFE> DARK GRAY
8-97406-005-6
01
1
1509-
21
09.743 HARNESS; TACHOGRAPH
8-98201-154-0
01
1
1509-
31
09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1509-
151
09.747 CLIP; METER CLUSTER
ECE R29<EFE> 16.085 (A)
8-98021-271-0
12
1
1509-
151
09.747 CLIP; METER CLUSTER
ECE R29<EFE> 16.090 (B)
8-98152-030-0
01
1
1509-
151
09.747 CLIP; METER CLUSTER
ECE R29<EFE> 16.090 (C)
8-98152-031-0
01
1
1509-
151
09.747 CLIP; METER CLUSTER
EXC. ECE R29<EFE> 16.085 (A)
8-98021-271-0
13
1
1509-
259
09.772 SCREW; TACHOGRAPH
09.650 M5X7 HEXALOBULAR SOCKET
8-98063-767-0
04
1
1509-
482
09.772 SEAL; CLUSTER METER
8-98116-843-0
01
1
1509-
1
2
110
81
480
8
461
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.735 METER COMPL; CLUSTER
8-98302-037-0
01
1
1509-
2
09.735 PANEL; CLUSTER
8-98054-432-0
01
1
1509-
8
09.750 TACHOGRAPH; CLUSTER METER
8-97387-082-2
01
1
1509-
81
09.735 METER SUB ASM
8-98302-865-0
01
1
1509-
110
09.748 GLASS; CLUSTER METER
8-98054-431-0
01
1
1509-
461
09.750 CARTRIDGE ASM; TACHOGRAPH
1-83129-433-0
01
1
1509-
480
09.748 COVER; METER
BLACK
8-98054-433-0
01
1
1509-
