◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51636 - NQR BUS A/BRAKE LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#166275) — 11 parça
çizim 493056
1 20 20
BalonParca AdiParca NoAdetTipApplied Date
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> 		8-98201-216-0 01 1 1509-
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-98201-161-0 01 1 1509-
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1509-
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1509-

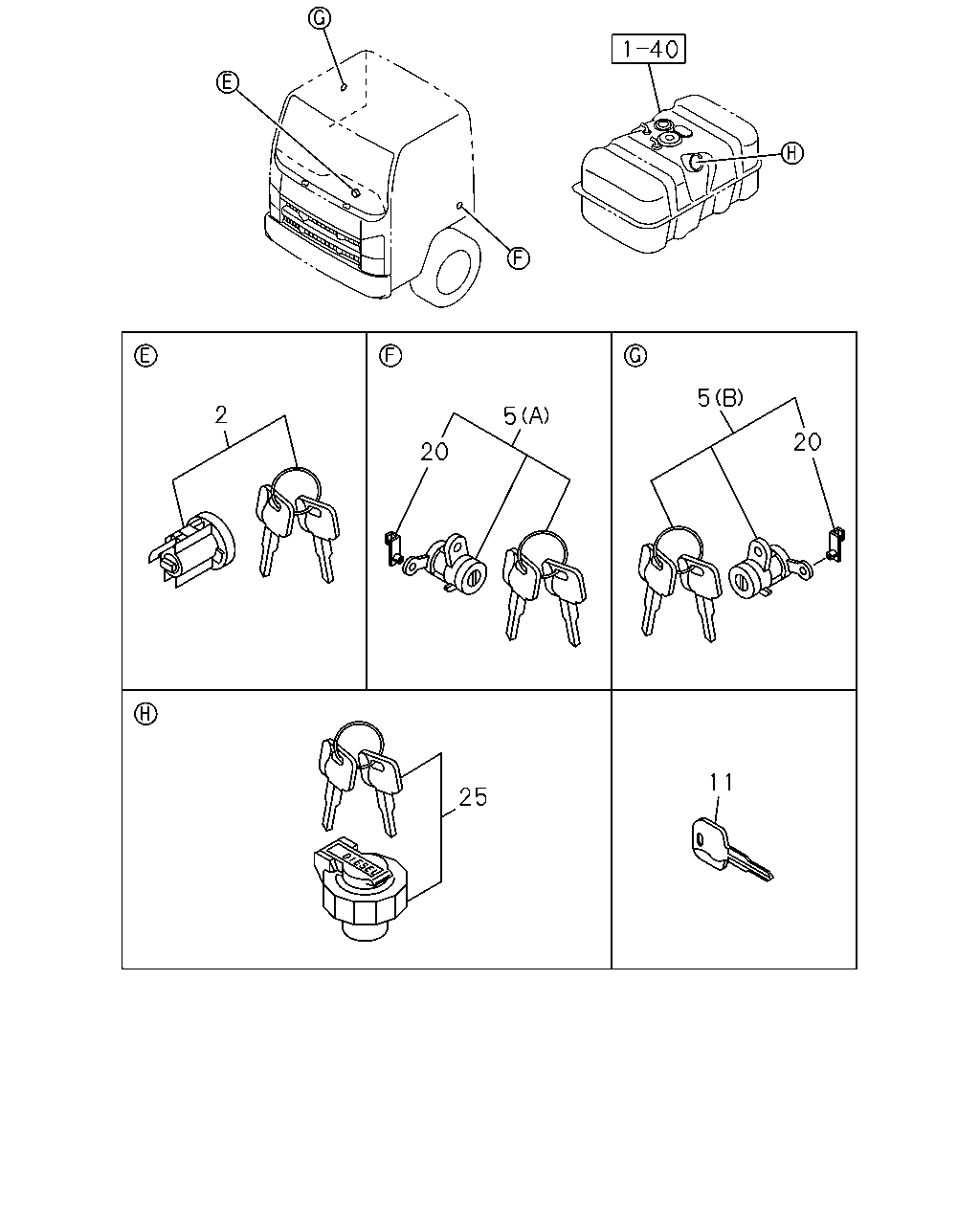

çizim 493365
11 25 20 5 5 20 2
BalonParca AdiParca NoAdetTipApplied Date
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-98201-342-0 01 1 1509-
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 1509-
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 1509-
11 02.187 KEY; BLANK 8-98055-170-0 AR 1 1509-
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1509-
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1509-
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> 		8-98146-010-0 01 1 1509-
