51636 - NQR BUS A/BRAKE LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-05 - FRONT PANEL
▶

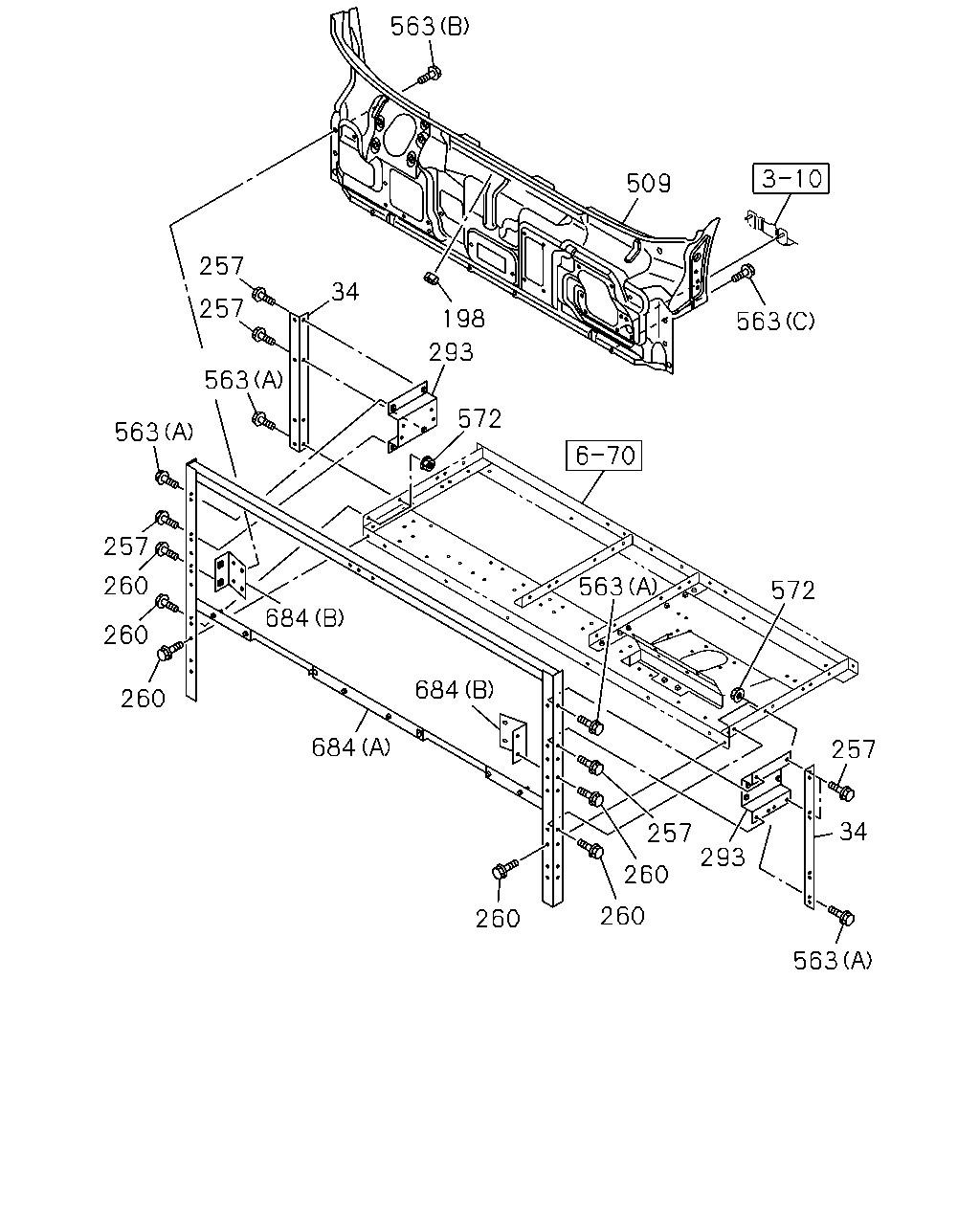

6-05 — FRONT PANEL
(#166270) — 12 parça
563
509
563
198
34
257
257
563
563
257
260
260
260
684
684
684
260
260
260
257
293
563
34
257
572
563
572
293
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
16.570 PANEL; DASH SIDE
8-98157-838-1
02
1
1509-
198
16.125 NUT; PANEL
01.062 M6 FLANGE
0-91180-106-0
02
1
1509-
257
07.039 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
08
1
1509-
260
08.203 BOLT; STAY
06.216 M8X25 FLANGE
0-28650-825-0
08
1
1509-
293
16.592 BRACKET; PANEL
8-98156-231-0
02
1
1509-
509
16.550 PANEL; DASH
8-98179-989-1
01
1
1509-
563
08.143 BOLT; DASH PANEL
06.216 (A) M8X25 FLANGE
0-28650-825-0
02
1
1509-
563
08.143 BOLT; DASH PANEL
16.085 (B) M8X20 W/LK&PL WASHER
8-97359-709-0
04
1
1509-
563
08.143 BOLT; DASH PANEL
02.762 (C) M6X20 W/LK&PL WASHER
8-98031-842-0
04
1
1509-
572
16.588 NUT; STAY
01.062 M8 FLANGE
0-91180-108-0
04
1
1509-
684
16.588 STAY; PANEL,DASH
(A)
8-98156-203-2
01
1
1509-
684
16.588 STAY; PANEL,DASH
(B)
8-98156-230-0
02
1
1509-
