Isuzu WW
▶
TRUCKS
▶
NQR
▶
51636 - NQR BUS A/BRAKE LHD
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

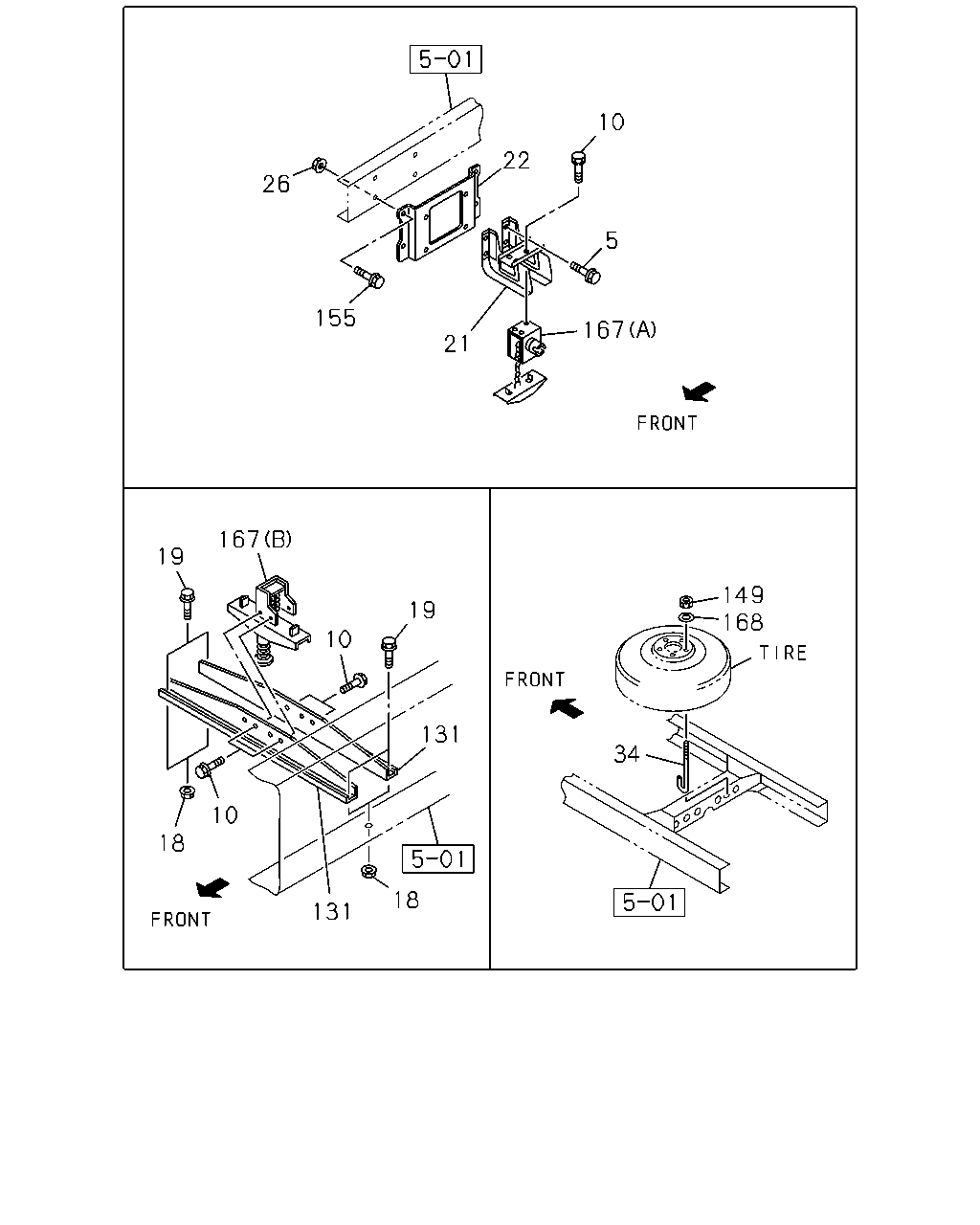

5-30 — SPARE TIRE CARRIER AND COVER
(#166268) — 15 parça
26
155
21
167
5
10
22
149
168
34
167
19
10
19
131
10
18
131
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 4100MM(41W) 09.171 M10X25 FLANGE
0-28051-025-0
04
1
1509-
10
07.632 BOLT; TIRE HANGER
WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE
0-28650-825-0
04
1
1509-
10
07.632 BOLT; TIRE HANGER
WHEEL BASE 4100MM(41W) 01.531 M8X20 FLANGE
0-28650-820-0
03
1
1509-
18
07.633 NUT; MEMBER
WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE
0-91180-110-0
04
1
1509-
19
07.632 BOLT; C/MBR
WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE
0-28651-030-0
04
1
1509-
21
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4100MM(41W)
8-98072-378-2
01
1
1509-
22
07.629 BRACKET; SPARE TIRE
WHEEL BASE 4100MM(41W)
8-98206-731-0
01
1
1509-
26
07.629 NUT; BRKT FIX
WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE
0-91180-110-0
04
1
1509-
34
07.629 BOLT; SPARE TIRE
M12X330
8-98226-501-0
02
1
1509-
131
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3800MM(38W)
8-98035-827-1
02
1
1509-
149
07.629 NUT; CARRIER
05.002 M12
0-91110-512-0
02
1
1509-
155
07.629 BOLT; BRKT
WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE
0-28651-030-0
04
1
1509-
167
07.629 HANGER; TIRE
WHEEL BASE 3800MM(38W) (B)
8-98036-383-0
01
1
1509-
167
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W) (A)
8-97010-955-1
01
1
1509-
168
07.633 WASHER; SPARE TIRE
07.243 ID=12.5 OD=54
8-94466-483-0
02
1
1509-
