4-55 — FRONT LEAF SPRING (#166259) — 69 parça

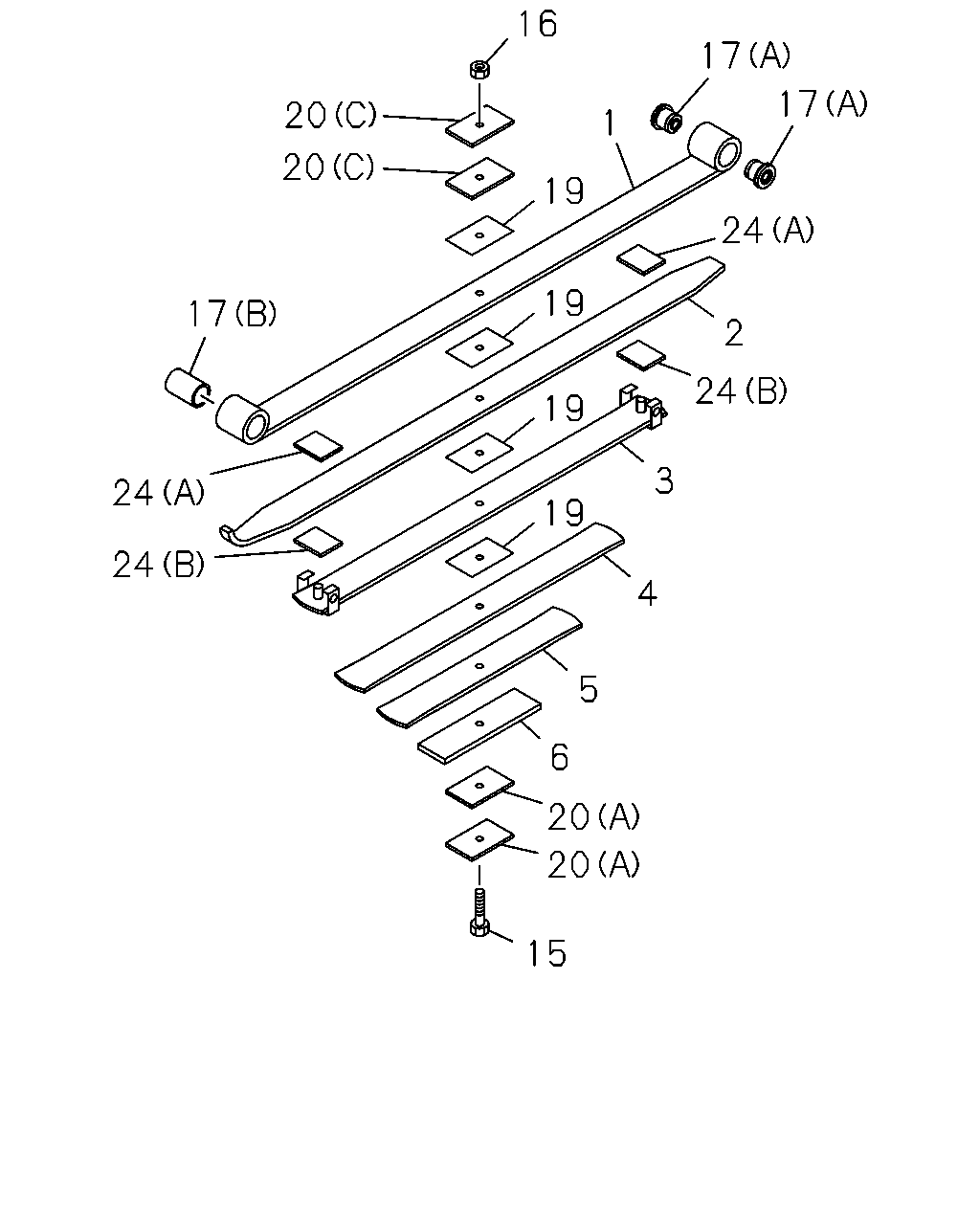

20 17 24 24 15 20 20 6 5 4 19 3 24 2 24 17 17 1 19 19 19 16 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: D = 8-98190-546-1, 98190546	8-98193-072-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: A = 8-98190-543-1, 98190543	8-98193-114-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: B = 8-98190-544-1, 98190544	8-98193-121-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: C = 8-98190-545-1, 98190545	8-98193-128-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: D = 8-98190-546-1, 98190546	8-98193-073-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: A = 8-98190-543-1, 98190543	8-98193-115-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: B = 8-98190-544-1, 98190544	8-98193-122-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: C = 8-98190-545-1, 98190545	8-98193-129-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: D = 8-98190-546-1, 98190546	8-98193-074-1	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: A = 8-98190-543-1, 98190543	8-98193-116-1	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: B = 8-98190-544-1, 98190544	8-98193-123-1	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: C = 8-98190-545-1, 98190545	8-98193-130-1	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: D = 8-98190-546-1, 98190546	8-98193-075-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: A = 8-98190-543-1, 98190543	8-98193-117-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: B = 8-98190-544-1, 98190544	8-98193-124-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: C = 8-98190-545-1, 98190545	8-98193-131-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: D = 8-98190-546-1, 98190546	8-98193-076-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: A = 8-98190-543-1, 98190543	8-98193-118-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: B = 8-98190-544-1, 98190544	8-98193-125-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: C = 8-98190-545-1, 98190545	8-98193-132-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: D = 8-98190-546-1, 98190546	8-98193-077-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: A = 8-98190-543-1, 98190543	8-98193-119-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: B = 8-98190-544-1, 98190544	8-98193-126-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: C = 8-98190-545-1, 98190545	8-98193-133-0	01	1	-
15	07.428 BOLT; CENTER,LEAF SPR,FRT L=115 ASM PART: A = 8-98190-543-1, 98190543, B = 8-98190-544-1, 98190544, C = 8-98190-545-1, 98190545, D = 8-98190-546-1, 98190546	8-98152-295-0	01	1	-
16	07.506 NUT; CENTER BOLT,LEAF SPR,FRT M10 ASM PART: A = 8-98190-543-1, 98190543, B = 8-98190-544-1, 98190544, C = 8-98190-545-1, 98190545, D = 8-98190-546-1, 98190546	1-09400-055-0	01	1	-
17	07.413 BUSHING; LEAF SPR,FRT 07.524, (A) ASM PART: A = 8-98190-543-1, 98190543, B = 8-98190-544-1, 98190544, C = 8-98190-545-1, 98190545, D = 8-98190-546-1, 98190546	8-94118-588-1	02	1	-
17	07.413 BUSHING; LEAF SPR,FRT 07.105, (B) ASM PART: A = 8-98190-543-1, 98190543, B = 8-98190-544-1, 98190544, C = 8-98190-545-1, 98190545, D = 8-98190-546-1, 98190546	8-94130-354-0	01	1	-
19	07.425 SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98190-543-1, 98190543, B = 8-98190-544-1, 98190544, C = 8-98190-545-1, 98190545, D = 8-98190-546-1, 98190546	8-97084-845-0	04	1	-
20	07.425 SEAT; LEAF SPR,FRT (A) ASM PART: A = 8-98190-543-1, 98190543, B = 8-98190-544-1, 98190544	8-98039-233-0	02	1	-
20	07.425 SEAT; LEAF SPR,FRT (B) ASM PART: C = 8-98190-545-1, 98190545, D = 8-98190-546-1, 98190546	8-98041-368-0	01	1	-
20	07.425 SEAT; LEAF SPR,FRT (C) ASM PART: A = 8-98190-543-1, 98190543, B = 8-98190-544-1, 98190544, C = 8-98190-545-1, 98190545, D = 8-98190-546-1, 98190546	8-98094-959-0	02	1	-
24	07.436 LINER; LEAF SPR,FWD FRT (A) ASM PART: A = 8-98190-543-1, 98190543, B = 8-98190-544-1, 98190544, C = 8-98190-545-1, 98190545, D = 8-98190-546-1, 98190546	8-97084-848-0	02	1	-
24	07.436 LINER; LEAF SPR,FWD FRT 07.506, (B) ASM PART: A = 8-98190-543-1, 98190543, B = 8-98190-544-1, 98190544, C = 8-98190-545-1, 98190545, D = 8-98190-546-1, 98190546	8-98193-188-0	02	1	-

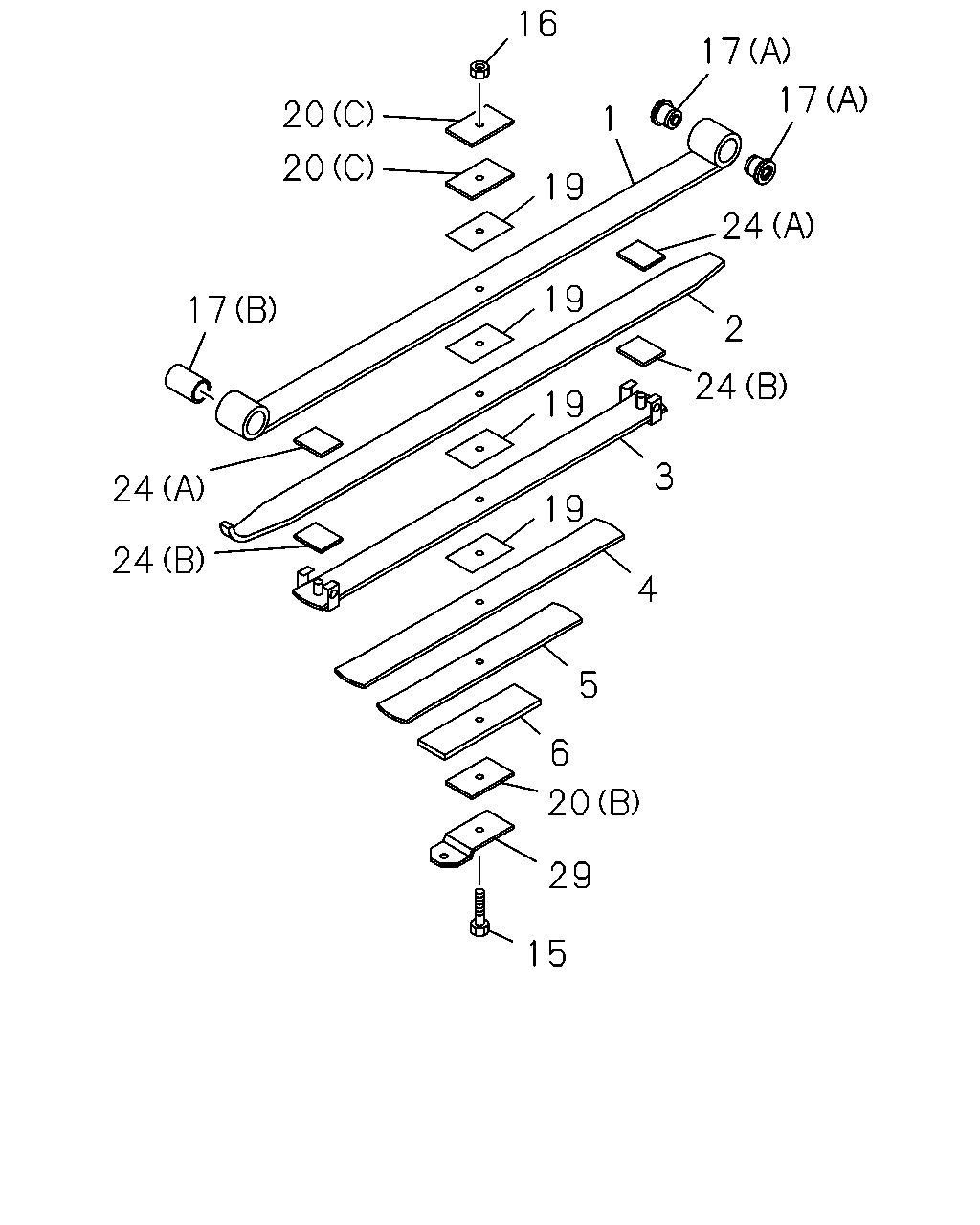

16 19 19 19 19 5 4 6 20 29 15 24 24 17 20 20 24 17 17 24 2 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: D = 8-98190-546-1, 98190546	8-98193-072-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: A = 8-98190-543-1, 98190543	8-98193-114-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: B = 8-98190-544-1, 98190544	8-98193-121-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: C = 8-98190-545-1, 98190545	8-98193-128-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: D = 8-98190-546-1, 98190546	8-98193-073-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: A = 8-98190-543-1, 98190543	8-98193-115-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: B = 8-98190-544-1, 98190544	8-98193-122-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: C = 8-98190-545-1, 98190545	8-98193-129-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: D = 8-98190-546-1, 98190546	8-98193-074-1	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: A = 8-98190-543-1, 98190543	8-98193-116-1	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: B = 8-98190-544-1, 98190544	8-98193-123-1	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: C = 8-98190-545-1, 98190545	8-98193-130-1	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: D = 8-98190-546-1, 98190546	8-98193-075-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: A = 8-98190-543-1, 98190543	8-98193-117-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: B = 8-98190-544-1, 98190544	8-98193-124-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: C = 8-98190-545-1, 98190545	8-98193-131-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: D = 8-98190-546-1, 98190546	8-98193-076-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: A = 8-98190-543-1, 98190543	8-98193-118-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: B = 8-98190-544-1, 98190544	8-98193-125-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: C = 8-98190-545-1, 98190545	8-98193-132-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: D = 8-98190-546-1, 98190546	8-98193-077-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: A = 8-98190-543-1, 98190543	8-98193-119-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: B = 8-98190-544-1, 98190544	8-98193-126-0	01	1	-
6	07.415 SPRING; LEAF,NO 6,FRT ASM PART: C = 8-98190-545-1, 98190545	8-98193-133-0	01	1	-
15	07.428 BOLT; CENTER,LEAF SPR,FRT L=115 ASM PART: A = 8-98190-543-1, 98190543, B = 8-98190-544-1, 98190544, C = 8-98190-545-1, 98190545, D = 8-98190-546-1, 98190546	8-98152-295-0	01	1	-
16	07.506 NUT; CENTER BOLT,LEAF SPR,FRT M10 ASM PART: A = 8-98190-543-1, 98190543, B = 8-98190-544-1, 98190544, C = 8-98190-545-1, 98190545, D = 8-98190-546-1, 98190546	1-09400-055-0	01	1	-
17	07.413 BUSHING; LEAF SPR,FRT 07.524, (A) ASM PART: A = 8-98190-543-1, 98190543, B = 8-98190-544-1, 98190544, C = 8-98190-545-1, 98190545, D = 8-98190-546-1, 98190546	8-94118-588-1	02	1	-
17	07.413 BUSHING; LEAF SPR,FRT 07.105, (B) ASM PART: A = 8-98190-543-1, 98190543, B = 8-98190-544-1, 98190544, C = 8-98190-545-1, 98190545, D = 8-98190-546-1, 98190546	8-94130-354-0	01	1	-
19	07.425 SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98190-543-1, 98190543, B = 8-98190-544-1, 98190544, C = 8-98190-545-1, 98190545, D = 8-98190-546-1, 98190546	8-97084-845-0	04	1	-
20	07.425 SEAT; LEAF SPR,FRT (A) ASM PART: A = 8-98190-543-1, 98190543, B = 8-98190-544-1, 98190544	8-98039-233-0	02	1	-
20	07.425 SEAT; LEAF SPR,FRT (B) ASM PART: C = 8-98190-545-1, 98190545, D = 8-98190-546-1, 98190546	8-98041-368-0	01	1	-
20	07.425 SEAT; LEAF SPR,FRT (C) ASM PART: A = 8-98190-543-1, 98190543, B = 8-98190-544-1, 98190544, C = 8-98190-545-1, 98190545, D = 8-98190-546-1, 98190546	8-98094-959-0	02	1	-
24	07.436 LINER; LEAF SPR,FWD FRT (A) ASM PART: A = 8-98190-543-1, 98190543, B = 8-98190-544-1, 98190544, C = 8-98190-545-1, 98190545, D = 8-98190-546-1, 98190546	8-97084-848-0	02	1	-
24	07.436 LINER; LEAF SPR,FWD FRT 07.506, (B) ASM PART: A = 8-98190-543-1, 98190543, B = 8-98190-544-1, 98190544, C = 8-98190-545-1, 98190545, D = 8-98190-546-1, 98190546	8-98193-188-0	02	1	-
29	07.425 SUPPORTER; LEAF SPR,FRT ASM PART: C = 8-98190-545-1, 98190545, D = 8-98190-546-1, 98190546	8-98152-826-0	01	1	-
