4-31 — STEERING COLUMN AND SHAFT
(#166252) — 31 parça
◀

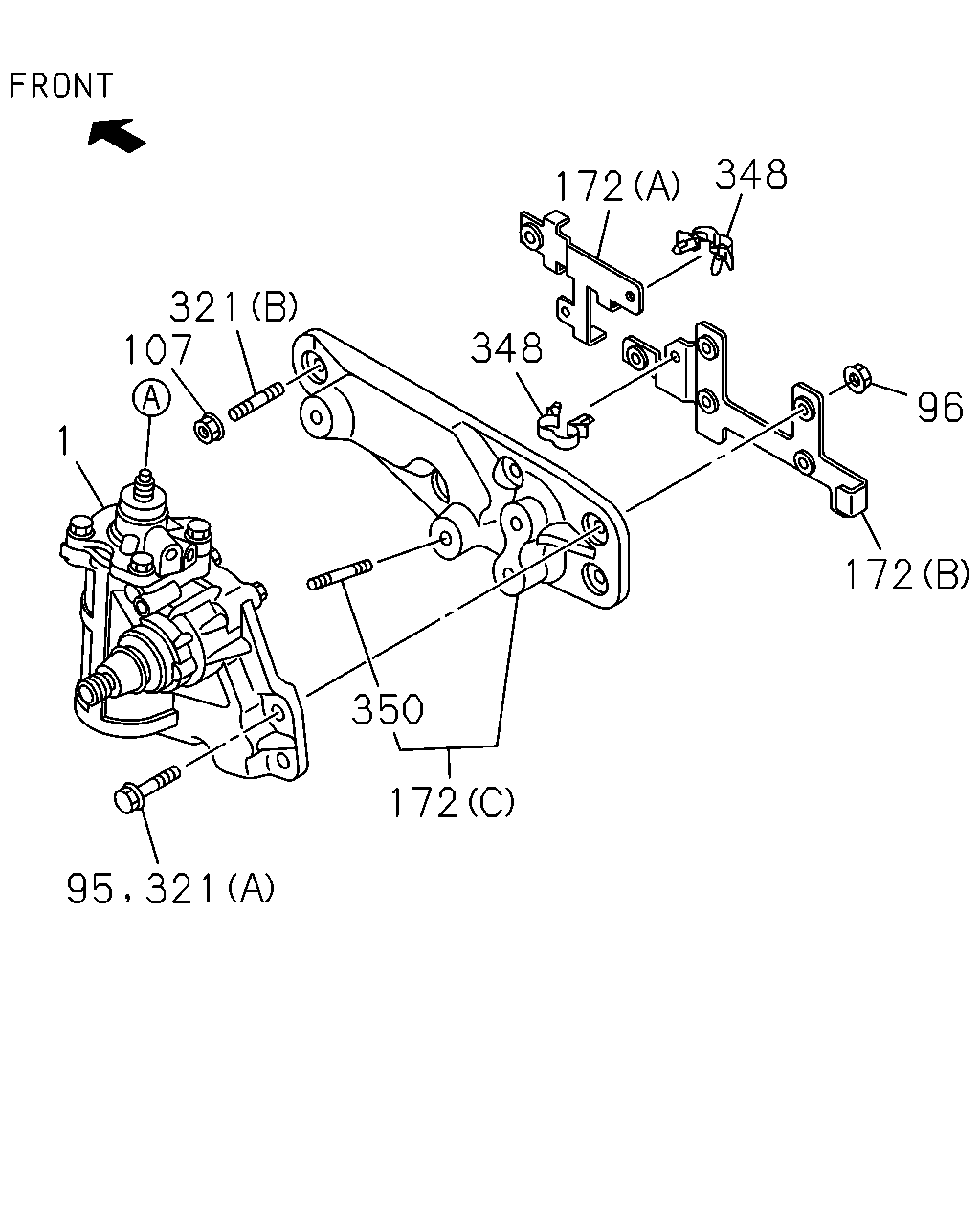

[431A] FIXING; STEERING UNIT (11 parça)
[431A] FIXING; STEERING SHAFT (20 parça)
▶
321
107
1
95
321
350
172
348
172
348
96
172
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
8-98110-220-5
01
1
1509-
95
06.509 BOLT; STRG UNIT
M12X47 FLANGE
8-98055-055-0
03
1
1509-
96
06.509 NUT; STRG UNIT
M12 FLANGE
8-97359-618-0
01
1
1509-
107
06.514 NUT; BRKT
06.509 M12 FLANGE
8-97359-618-0
01
1
1509-
172
06.509 BRACKET; STRG
(A)
8-98073-917-0
01
1
1509-
172
06.509 BRACKET; STRG
(B)
8-98192-005-0
01
1
1509-
172
06.509 BRACKET; STRG
(C)
8-98196-128-0
01
1
1509-
321
06.514 BOLT; BRKT,STRG
06.509 (A) M12X47 FLANGE
8-98055-055-0
05
1
1509-
321
06.514 BOLT; BRKT,STRG
(B)
8-98183-654-0
01
1
1509-
348
06.525 CLIP; BRKT,STRG
ID=5-12 L=22
1-09709-288-0
02
1
1509-
350
06.509 STUD; BRACKET
8-98196-098-0
01
1
1509-
103
236
102
148
105
66
104
66
148
33
35
203
251
66
20
291
231
291
79
296
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
06.518 SHAFT ASM; STRG
BLACK
8-97423-030-1
01
1
1509-
20
06.525 COVER; STRG SHAFT
BLACK
8-97405-159-0
01
1
1509-
33
06.525 BOLT; STRG SHAFT TO UNIT
M8X30
8-97359-615-0
01
1
1509-
35
06.525 WASHER; LK,STRG SHAFT
02.559 ID=8.2
0-91510-808-0
01
1
1509-
66
06.514 BOLT; STRG COLUMN
01.531 (B) M8X20 FLANGE
0-28650-820-0
02
1
1509-
66
06.514 BOLT; STRG COLUMN
(A) M5X18 TAPPING
0-72180-518-0
04
1
1509-
66
06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER
8-98051-939-0
02
1
1509-
79
06.760 CLIP; STRG COLUMN COVER
16.800 L=19 BLACK
8-94363-776-0
02
1
1509-
102
06.500 LOCK ASM; STRG
8-97387-036-0
01
1
1509-
103
02.188 SWITCH; IGNITION
8-98045-349-0
01
1
1509-
104
06.500 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT
8-97321-385-0
02
1
1509-
105
06.500 SCREW; IGN SW
8-98045-346-0
02
1
1509-
148
06.514 NUT; COLUMN TO BRKT
01.840 M8 W/DISHED WASHER
8-97329-625-0
03
1
1509-
203
06.525 BOOT; STRG COLUMN LWR
8-98137-331-0
01
1
1509-
231
06.525 SEAL; RUBBER,STRG COLUMN
8-98137-329-0
01
1
1509-
236
02.195 SWITCH; DOOR WARNING,STRG LOCK
8-98045-350-0
01
1
1509-
251
06.518 COVER; LWR
BLACK
8-97417-049-0
01
1
1509-
291
06.518 GROMMET; STRG SHAFT COVER
04.931 (A) H=15
8-94463-268-1
04
1
1509-
291
06.518 GROMMET; STRG SHAFT COVER
(B)
8-98029-442-1
02
1
1509-
296
06.525 CLIP; COVER
BLACK
8-97868-409-0
01
1
1509-
