Isuzu WW
▶
TRUCKS
▶
NQR
▶
51636 - NQR BUS A/BRAKE LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

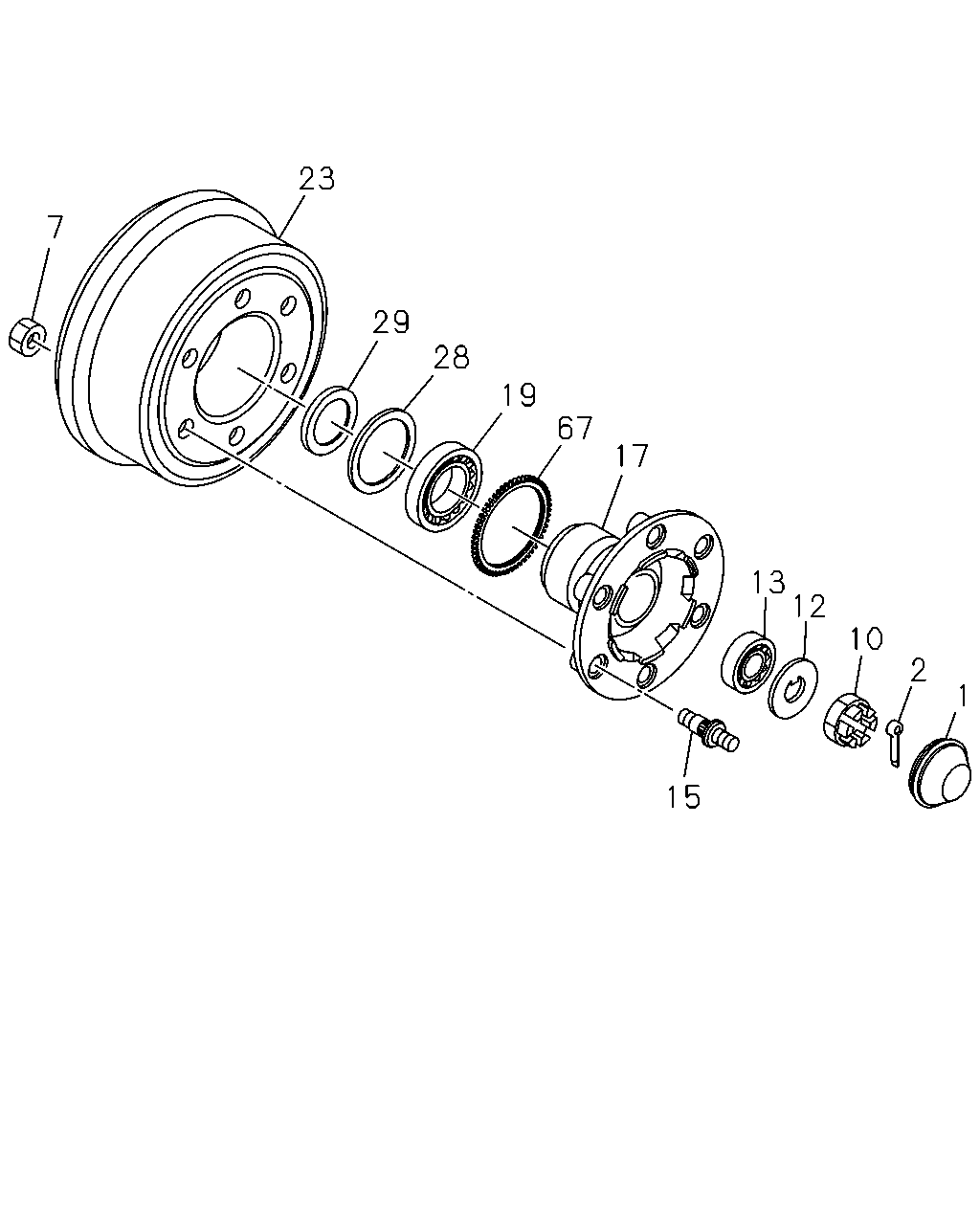

4-11 - FRONT HUB AND DRUM OR ROTOR
▶
4-11 — FRONT HUB AND DRUM OR ROTOR
(#166248) — 16 parça
23
29
19
28
67
13
17
12
2
1
10
15
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
06.330 CAP; HUB,FRT AXLE
8-98276-604-0
02
1
1509-
2
05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40
0-81125-040-0
02
1
1509-
7
05.812 NUT; FRT HUB
07.172 M22
0-91110-522-0
12
1
1509-
10
05.812 NUT; FRT HUB BRG
06.022
8-94247-357-1
02
1
1509-
12
06.321 WASHER; LK,FRT HUB BRG
05.812
8-98282-435-0
02
1
1509-
13
06.313 BEARING; HUB OUTER,FRT AXLE
NSK
9-00093-172-0
02
1
1509-
13
06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS
5-87610-134-0
02
1
1509-
15
05.812 PIN; WHEEL,FRT AXLE
M20X28,M22X50 RH THREAD
8-97131-283-3
06
1
1509-
15
05.812 PIN; WHEEL,FRT AXLE
M20X28 LH THREAD,M22X50 RH THREAD
8-97131-284-3
06
1
1509-
17
06.307 HUB; FRT AXLE
8-98164-015-0
02
1
1509-
19
06.311 BEARING; HUB INNER,FRT AXLE
JTEKT
8-98171-254-0
02
1
1509-
19
06.311 BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS
1-87610-134-0
02
1
1509-
23
05.809 DRUM; BRK,FRT
8-98171-472-0
02
1
1509-
28
06.326 SEAL; OIL,FRT HUB
8-94248-117-1
02
1
1509-
29
06.326 DISTANCE PIECE; HUB BRKT
NTN
8-97234-513-0
02
1
1509-
67
05.811 ROTOR; SENSOR
17.505
1-42319-170-2
02
1
1509-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
