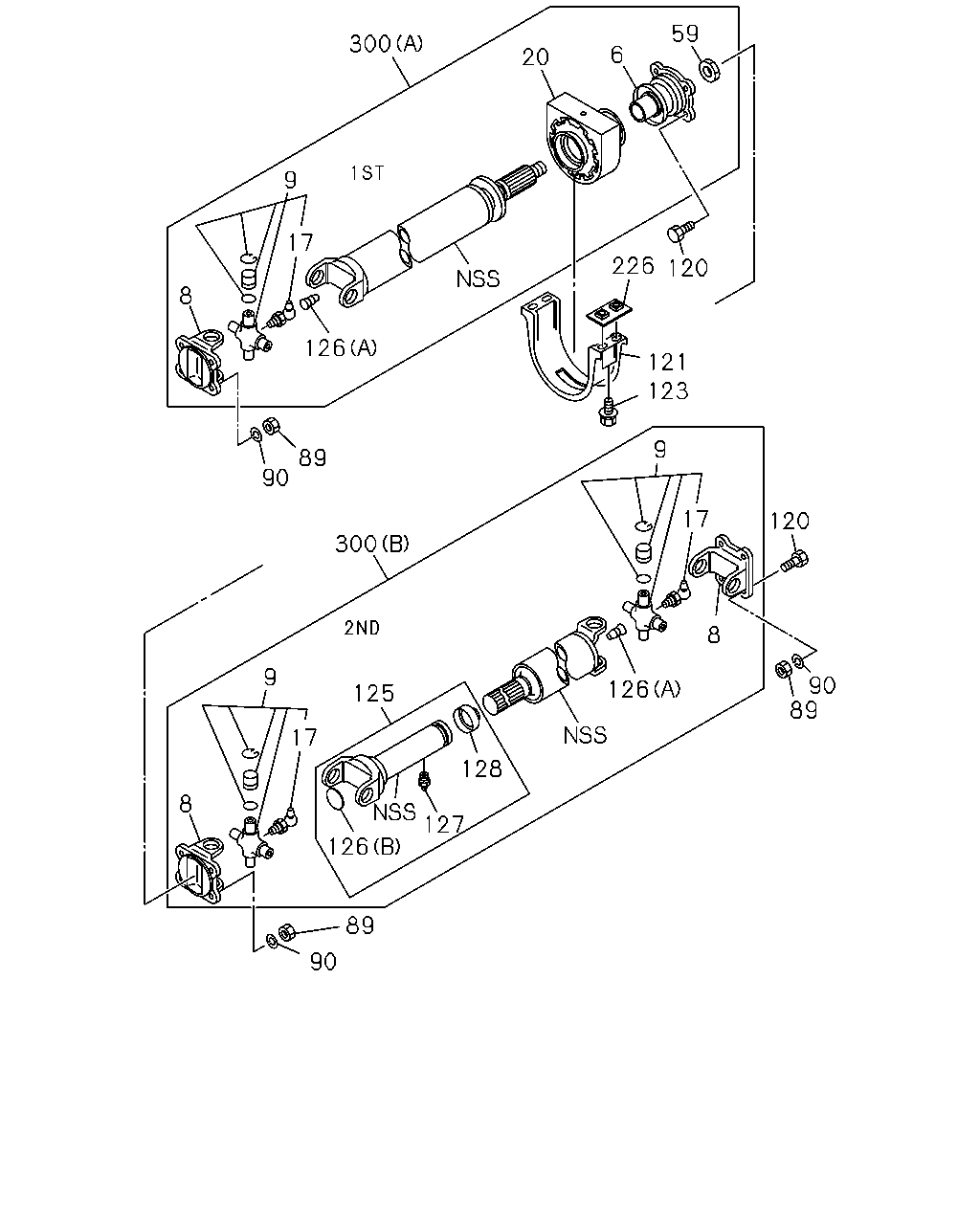

4-01 — PROPELLER SHAFT (#166246) — 27 parça

300 20 6 59 120 226 121 123 120 90 89 126 128 127 126 89 90 8 17 9 125 300 89 90 126 9 17 8 9 17 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT	8-98020-796-0	01	1	1509-
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	01	1	1509-
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	02	1	1509-
9	05.548 JOURNAL ASM; PROP SHAFT	8-98020-789-1	01	1	1509-
9	05.548 JOURNAL ASM; PROP SHAFT	8-98020-789-1	02	1	1509-
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 PT1/8 ELBOW	0-90301-610-0	01	1	1509-
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 PT1/8 ELBOW	0-90301-610-0	02	1	1509-
20	05.600 BEARING ASM; CTR,PROP SHAFT	8-98020-880-0	01	1	1509-
59	05.586 NUT; RET TO SUPPORT M30	8-97160-857-0	01	1	1509-
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-1	04	1	1509-
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-1	08	1	1509-
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	04	1	1509-
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	08	1	1509-
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	1509-
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	1509-
121	05.598 RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	1509-
123	05.601 BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1509-
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=224	8-98044-229-0	01	1	1509-
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1509-
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3800MM(38W) (A)	1-09600-023-0	01	1	1509-
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	1509-
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1509-
128	05.586 SEAL; SLEEVE	8-97145-746-0	01	1	1509-
226	05.586 PLATE; LK,CENTER BRG	8-97371-572-0	02	1	1509-
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3800MM(38W) (B) L=1021	8-98040-826-1	01	1	1509-
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 4100MM(41W) (B) L=1252	8-98063-805-1	01	1	1509-
300	05.544 SHAFT ASM; PROP,RR (A) L=1127	8-98040-793-1	01	1	1509-
