Isuzu WW
▶
TRUCKS
▶
NQR
▶
51636 - NQR BUS A/BRAKE LHD
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶

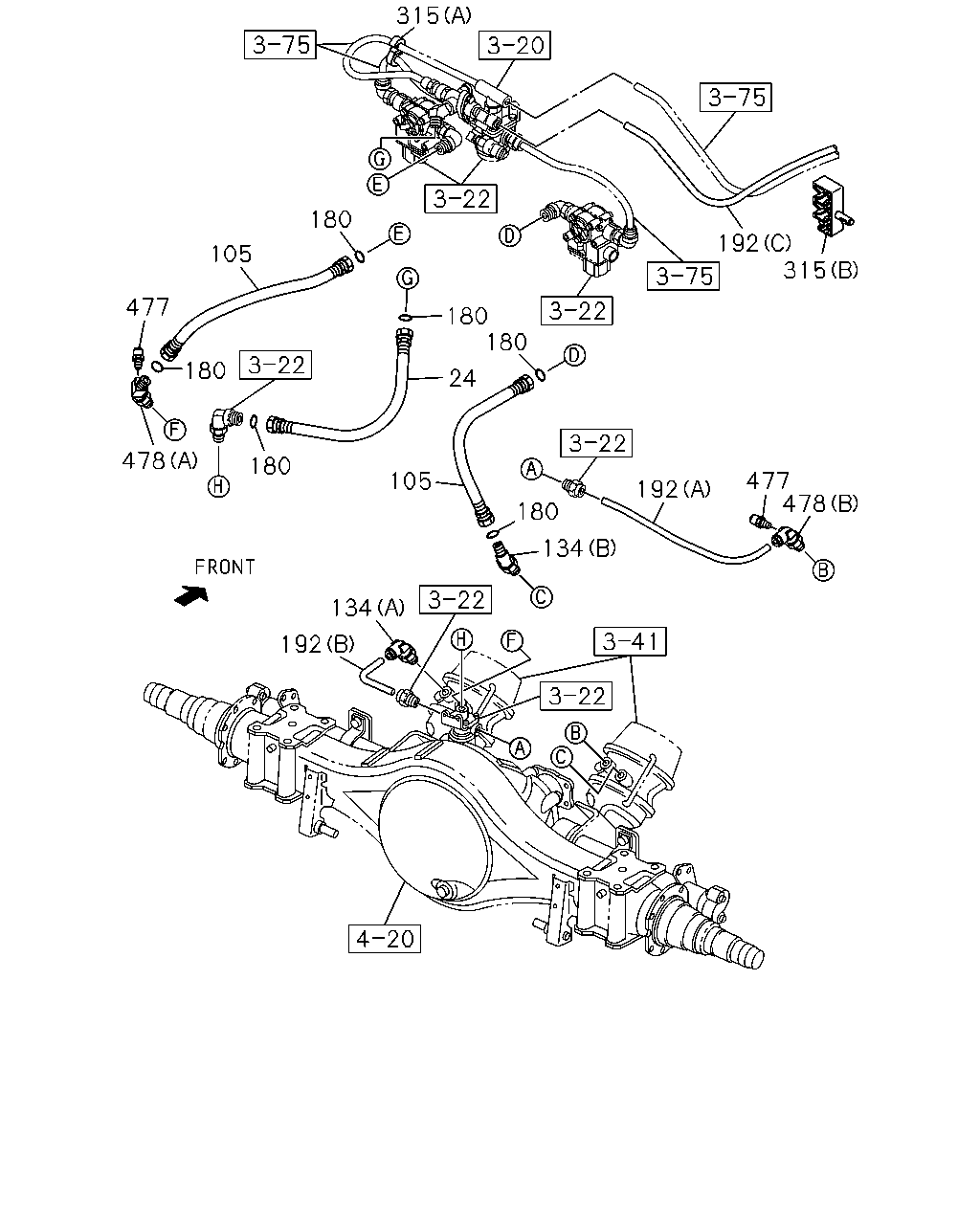

3-77 — BRAKE PIPING; AIR,REAR
(#166245) — 17 parça
477
478
180
192
134
180
192
477
105
24
180
105
180
180
478
180
192
315
315
134
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
04.867 HOSE; FLEX,PARKING BRK
0-57494-400-1
01
1
1509-
105
04.867 HOSE; FLEX
0-57494-400-1
02
1
1509-
134
04.866 CONNECTOR
(A)
8-98179-465-0
01
1
1509-
134
04.866 CONNECTOR
(B)
8-98179-495-0
01
1
1509-
180
04.868 GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
03
1
1509-
180
04.868 GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
03
1
1509-
192
04.867 TUBE; NYLON
WHEEL BASE 3800MM(38W) (C)
8-98269-740-0
01
1
1509-
192
04.867 TUBE; NYLON
WHEEL BASE 4100MM(41W) (C)
8-98269-741-0
01
1
1509-
192
04.867 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
01
1
1509-
192
04.867 TUBE; NYLON
(B)
8-98197-632-0
01
1
1509-
315
08.950 CLIP
WHEEL BASE 3800MM(38W) 04.128 (B) ID=10 OR 12X2 & 4.76
8-98058-323-0
05
1
1509-
315
08.950 CLIP
WHEEL BASE 4100MM(41W) 04.128 (B) ID=10 OR 12X2 & 4.76
8-98058-323-0
06
1
1509-
315
08.950 CLIP
06.672 (A) ID=12 & 12
1-09709-280-1
01
1
1509-
315
08.950 CLIP
04.128 (B) ID=10 OR 12X2 & 4.76
8-98058-323-0
01
1
1509-
477
04.866 CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR
1-47459-013-1
02
1
1509-
478
04.866 CONNECTOR; 3WAY
(A)
8-98179-491-0
01
1
1509-
478
04.866 CONNECTOR; 3WAY
(B)
8-98179-496-0
01
1
1509-
